| Komerční kód: | ARZ 926/H REFRIGERATORS WP |
| Kód 12NC: | 858692616000 |
| I.C. kód: | 858692616005 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 858692616000, 858692616001, 858692616002, 858692616003, 858692616004 |
Potřebujete servis? Jsme tady pro Vás

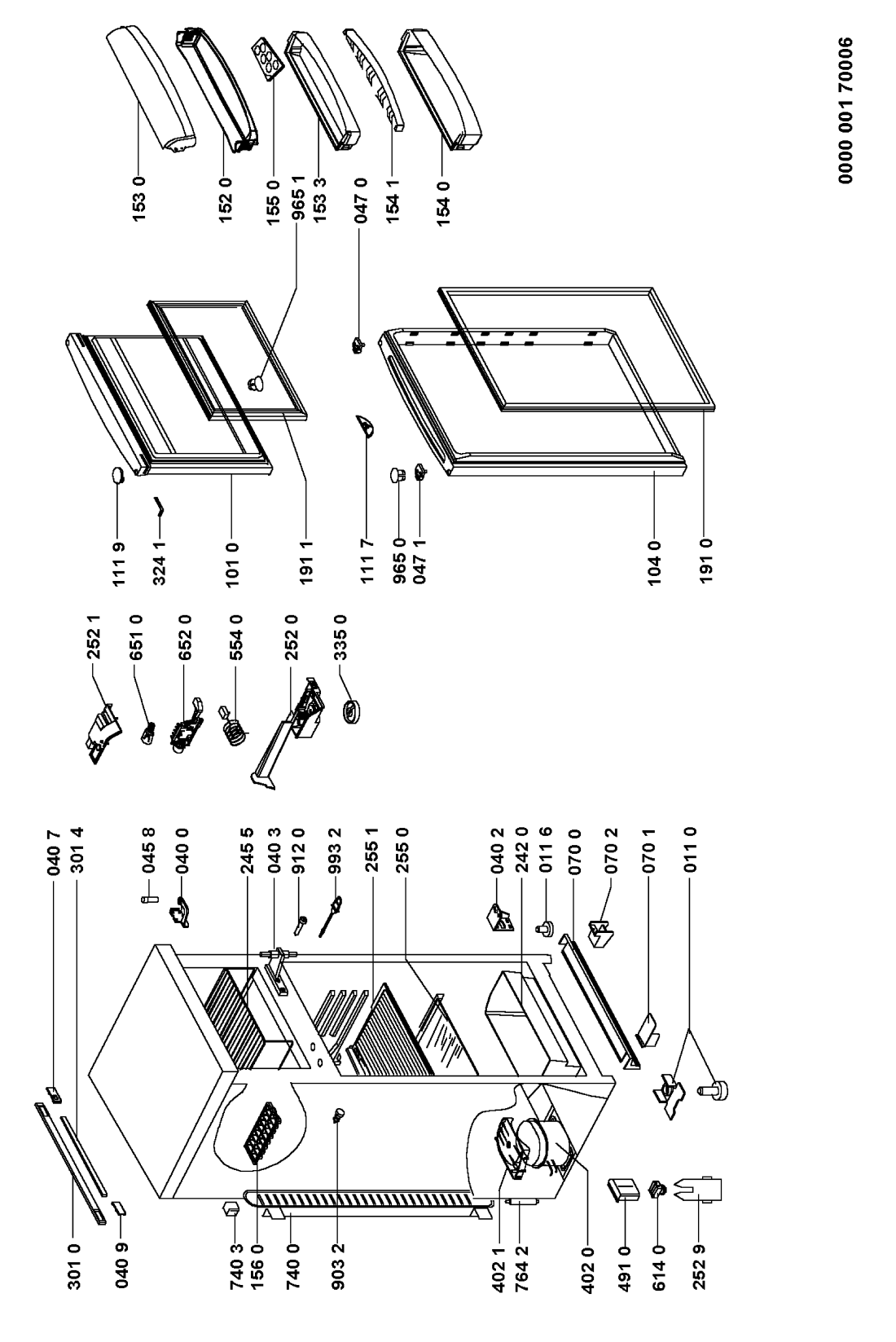

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR91733 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 011 6 WHR91733 |
C00333081
481946248513 |
noha | 63 Kč
€ 2.60 |
||
| 040 0 WHR91733 |
C00329701
481241718916 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR91733 |
C00332997
481941719642 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR91733 |
C00329698
481241718826 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 7 WHR91733 |
C00328969
481240418415 |
Insert front panel | Na dotaz | Zadat poptávku | |
| 040 9 WHR91733 |
C00328970
481240418416 |
Insert | Na dotaz | Zadat poptávku | |
| 045 8 WHR91733 |
C00330687
481246258004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR91733 |
C00328968
481240418414 |
pouzdro dveri | 81 Kč
€ 3.30 |
||
| 047 1 WHR91733 |
C00328967
481240418413 |
drazak dveri pravy | 109 Kč
€ 4.40 |
||
| 070 0 WHR91733 |
C00337691
481244229193 |
sokl | Na dotaz | Zadat poptávku | |
| 070 1 WHR91733 |
C00331040
481244229192 |
Holder | Na dotaz | Zadat poptávku | |
| 070 2 WHR91733 |
C00332946
481940478921 |
drzak soklu | Na dotaz | Zadat poptávku | |
| 101 0 WHR91733 |
C00606543
481241618951 |
Dveře mrazničky | Na dotaz | Zadat poptávku | |
| 104 0 WHR91733 |
C00574366
481241618834 |
DVERE CHLADNICKY | Na dotaz | Zadat poptávku | |
| 111 7 WHR91733 |
C00499298
481945919349 |
logo Whirlpool | Na dotaz | Zadat poptávku | |
| 111 9 WHR91733 |
C00330689
481246258069 |
zaslepka | Na dotaz | Zadat poptávku | |
| 152 0 WHR91733 |
C00511338
481241828465 |
POLICKA DVERI | Na dotaz | Zadat poptávku | |
| 153 0 WHR91733 |
C00484955
481241828148 |
viko police | Na dotaz | Zadat poptávku | |
| 153 3 WHR91733 |
C00583848
481241828147 |
POLIAKA ART 550 PLAST N | Na dotaz | Zadat poptávku | |
| 154 0 WHR91733 |
C00313323
481941879576 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR91733 |
C00344322
481241828146 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 155 0 WHR91733 |
C00339538
481241828149 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 156 0 WHR91733 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 0 WHR91733 |
C00557565
481946818072 |
NAHRADENE 481246688697 | Na dotaz | Zadat poptávku | |
| 191 1 WHR91733 |
C00338286
481246688698 |
tesneni magneticke | Na dotaz | Zadat poptávku | |
| 242 0 WHR91733 |
C00574461
481241848592 |
zasuvka na zeleninu | Na dotaz | Zadat poptávku | |
| 245 5 WHR91733 |
C00340272
481945868064 |
rost mraznicky | Na dotaz | Zadat poptávku | |
| 252 0 WHR91733 |
C00342763
481244079058 |
Casing | Na dotaz | Zadat poptávku | |
| 252 1 WHR91733 |
C00342352
481246228512 |
Cover thermost. | Na dotaz | Zadat poptávku | |
| 252 9 WHR91733 |
C00333089
481946258371 |
Guard | Na dotaz | Zadat poptávku | |
| 255 0 WHR91733 |
C00486822
481946678406 |
kryci deska - plastová | 1 211 Kč
€ 49.30 |
||
| 255 1 WHR91733 |
C00592956
481946678422 |
POLICKA N | Na dotaz | Zadat poptávku | |
| 301 0 WHR91733 |
C00606658
481245228413 |
Panel,control | Na dotaz | Zadat poptávku | |
| 301 4 WHR91733 |
C00606659
481245228414 |
Insert | Na dotaz | Zadat poptávku | |
| 324 1 WHR91733 |
C00329190
481240478623 |
Insert | Na dotaz | Zadat poptávku | |
| 335 0 WHR91733 |
C00341921
481241359129 |
Knoflík termostatu | Na dotaz | Zadat poptávku | |
| 402 0 WHR91733 |
C00498951
481936038704 |
nahradene 481281718829 | Na dotaz | Zadat poptávku | |
| 402 1 WHR91733 |
C00489291
481244079046 |
MISKA ODPAROVACIA | Na dotaz | Zadat poptávku | |
| 491 0 WHR91733 |
C00333094
481946279241 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR91733 |
C00317260
481927129047 |
termostat A13-0455R | Na dotaz | Zadat poptávku | |
| 614 0 WHR91733 |
C00332847
481928068367 |
RELE ART284 | 740 Kč
€ 30.10 |
||
| 651 0 WHR91733 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR91733 |
C00327136
481225528017 |
drzak termostatu A | Na dotaz | Zadat poptávku | |
| 740 0 WHR91733 |
C00486875
481951148631 |
CHLADIC N | Na dotaz | Zadat poptávku | |
| 740 3 WHR91733 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 2 WHR91733 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 903 2 WHR91733 |
C00333168
481949248154 |
zaslepka | 41 Kč
€ 1.70 |
||
| 912 0 WHR91733 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 965 0 WHR91733 |
C00330502
481246228513 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 1 WHR91733 |
C00330503
481246228514 |
Stopper | Na dotaz | Zadat poptávku | |
| 993 2 WHR91733 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 180 Kč
€ 7.30 |
||
| 999 WHR91733 |
C00735678 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
