| Komerční kód: | ARZ 959/H REFRIGERATORS WP |
| Kód 12NC/I.C. kód: | 858695910000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 858695910001, 858695910002 |
Potřebujete servis? Jsme tady pro Vás

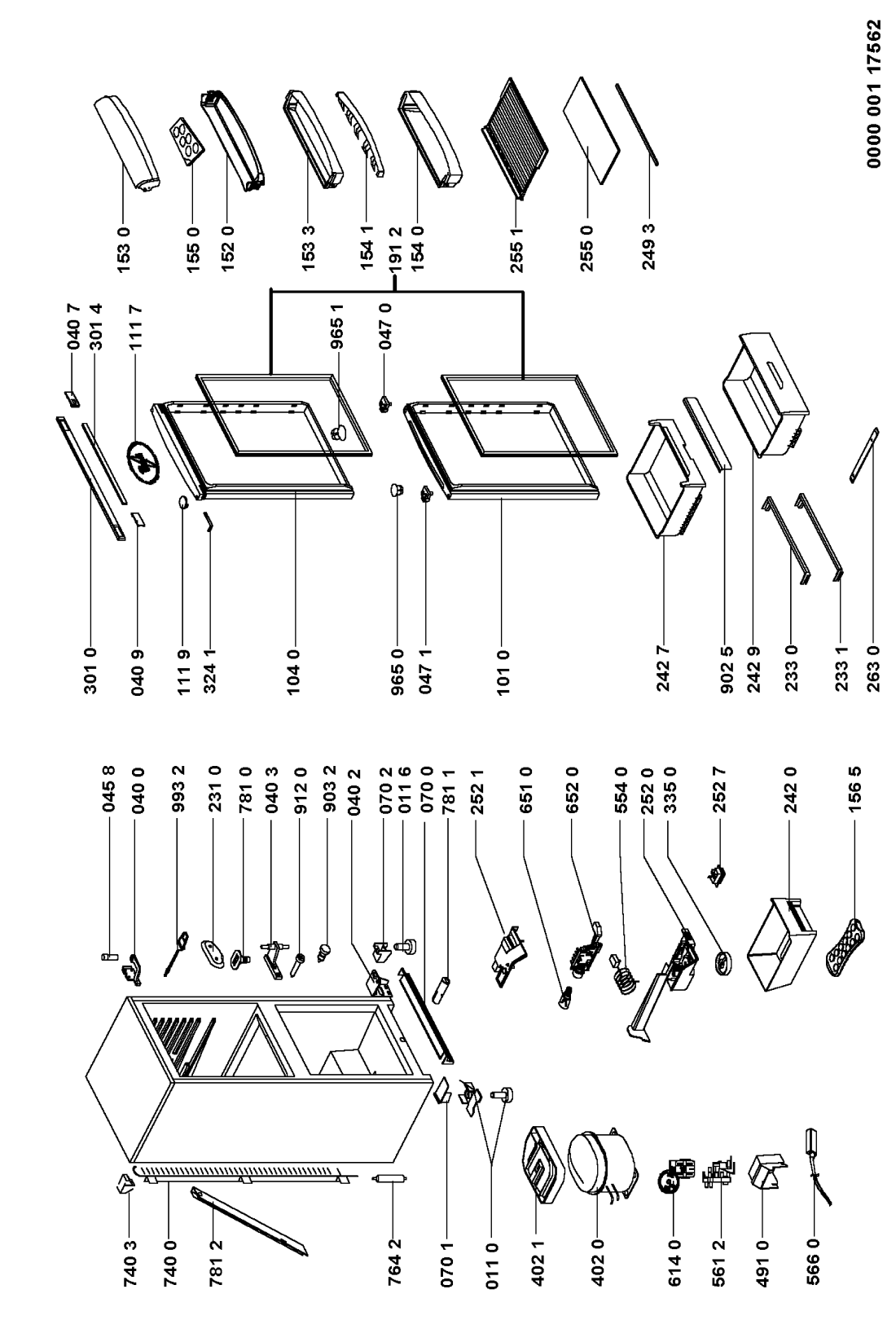

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR86135 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 011 6 WHR86135 |
C00333081
481946248513 |
noha | 63 Kč
€ 2.60 |
||
| 040 0 WHR86135 |
C00329701
481241718916 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR86135 |
C00332997
481941719642 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR86135 |
C00329698
481241718826 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 7 WHR86135 |
C00586653
481241778038 |
KRYT ZAVESU ARZ810 PLAST N | Na dotaz | Zadat poptávku | |
| 040 9 WHR86135 |
C00586960
481946288151 |
KRYT ZAVESU ARZ810 N | Na dotaz | Zadat poptávku | |
| 045 8 WHR86135 |
C00330687
481246258004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR86135 |
C00337809
481253088018 |
Pivot | Na dotaz | Zadat poptávku | |
| 047 1 WHR86135 |
C00337810
481253088019 |
Pivot | Na dotaz | Zadat poptávku | |
| 070 0 WHR86135 |
C00337724
481944268703 |
sokl | Na dotaz | Zadat poptávku | |
| 070 1 WHR86135 |
C00338893
481945919436 |
kryt soklu | Na dotaz | Zadat poptávku | |
| 070 2 WHR86135 |
C00332946
481940478921 |
drzak soklu | Na dotaz | Zadat poptávku | |
| 101 0 WHR86135 |
C00593523
481241618313 |
DVERE MRAZNICKY PLAST. N | Na dotaz | Zadat poptávku | |
| 104 0 WHR86135 |
C00606576
481244229052 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 111 7 WHR86135 |
C00499298
481945919349 |
logo Whirlpool | Na dotaz | Zadat poptávku | |
| 111 9 WHR86135 |
C00592952
481946279195 |
ZATKA ARZ810 N | Na dotaz | Zadat poptávku | |
| 152 0 WHR86135 |
C00319980
481941879726 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 153 0 WHR86135 |
C00484955
481241828148 |
viko police | Na dotaz | Zadat poptávku | |
| 153 3 WHR86135 |
C00583848
481241828147 |
POLIAKA ART 550 PLAST N | Na dotaz | Zadat poptávku | |
| 154 0 WHR86135 |
C00313323
481941879576 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR86135 |
C00344322
481241828146 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 155 0 WHR86135 |
C00339538
481241828149 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 156 5 WHR86135 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 2 WHR86135 |
C00338278
481946818074 |
Magnetic seal freezing | Na dotaz | Zadat poptávku | |
| 231 0 WHR86135 |
C00343342
481946258101 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 233 0 WHR86135 |
C00339653
481940479375 |
Holder ,EvaporatorEvaporator | Na dotaz | Zadat poptávku | |
| 233 1 WHR86135 |
C00339620
481940479374 |
drzak vyparniku | Na dotaz | Zadat poptávku | |
| 242 0 WHR86135 |
C00333011
481941879478 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 7 WHR86135 |
C00341225
481941879192 |
Drawer large | Na dotaz | Zadat poptávku | |
| 242 9 WHR86135 |
C00341242
481241828175 |
Drawer | Na dotaz | Zadat poptávku | |
| 249 3 WHR86135 |
C00316803
481946089247 |
Trim | Na dotaz | Zadat poptávku | |
| 252 0 WHR86135 |
C00342762
481941878586 |
Casing thermostat | Na dotaz | Zadat poptávku | |
| 252 1 WHR86135 |
C00342351
481946279393 |
krabicka termostatu | Na dotaz | Zadat poptávku | |
| 252 7 WHR86135 |
C00318173
481227618363 |
spinac | Na dotaz | Zadat poptávku | |
| 255 0 WHR86135 |
C00320102
481946678139 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR86135 |
C00606786
481945858763 |
Grid | Na dotaz | Zadat poptávku | |
| 263 0 WHR86135 |
C00340172
481946238886 |
kolejnice kose | Na dotaz | Zadat poptávku | |
| 301 0 WHR86135 |
C00606187
481245228087 |
panel | Na dotaz | Zadat poptávku | |
| 301 4 WHR86135 |
C00606339
481246048906 |
KRYTKA ARZ810 N | Na dotaz | Zadat poptávku | |
| 324 1 WHR86135 |
C00606366
481246228106 |
KRYTKA ARZ810 N | Na dotaz | Zadat poptávku | |
| 335 0 WHR86135 |
C00487957
481941128769 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR86135 |
C00320271
481236038651 |
COMPRESSOR NBM1116Y 1/5HP R600 S.P. | Na dotaz | Zadat poptávku | |
| 402 1 WHR86135 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 491 0 WHR86135 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR86135 |
C00312010
481927128788 |
Thermostat A13-0103-26 | Na dotaz | Zadat poptávku | |
| 561 2 WHR86135 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 566 0 WHR86135 |
C00327563
481228248259 |
Thermostat bi-metal | Na dotaz | Zadat poptávku | |
| 614 0 WHR86135 |
C00341712
481269028003 |
Monoblock | Na dotaz | Zadat poptávku | |
| 651 0 WHR86135 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR86135 |
C00339514
481946698567 |
Holder,thermom. f. ATE | Na dotaz | Zadat poptávku | |
| 740 0 WHR86135 |
C00333252
481951148652 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 3 WHR86135 |
C00333137
481946698259 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 2 WHR86135 |
C00266743
481948028144 |
Filtr chladničky - patrona Náhrada C00495431 |
Na dotaz | Zadat poptávku | |
| 781 0 WHR86135 |
C00335471
481946278785 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 781 1 WHR86135 |
C00494680
481952648478 |
trubice odtokova | Na dotaz | Zadat poptávku | |
| 781 2 WHR86135 |
C00333287
481953028869 |
Hadice odvodu vody chladničky Whirlpool, Indesit | 74 Kč
€ 3.00 |
||
| 902 5 WHR86135 |
C00338859
481240488034 |
kryt kose | Na dotaz | Zadat poptávku | |
| 903 2 WHR86135 |
C00333168
481949248154 |
zaslepka | 41 Kč
€ 1.70 |
||
| 912 0 WHR86135 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 965 0 WHR86135 |
C00336022
481946278448 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 1 WHR86135 |
C00486729
481946248413 |
ZATKA N | Na dotaz | Zadat poptávku | |
| 993 2 WHR86135 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 180 Kč
€ 7.40 |
||
| 999 WHR86135 |
C00723589 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
