| Komerční kód: | AVM 581 WH |
| Kód 12NC: | 853858164290 |
| I.C. kód: | 853858164291 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 853858164292 |
Potřebujete servis? Jsme tady pro Vás

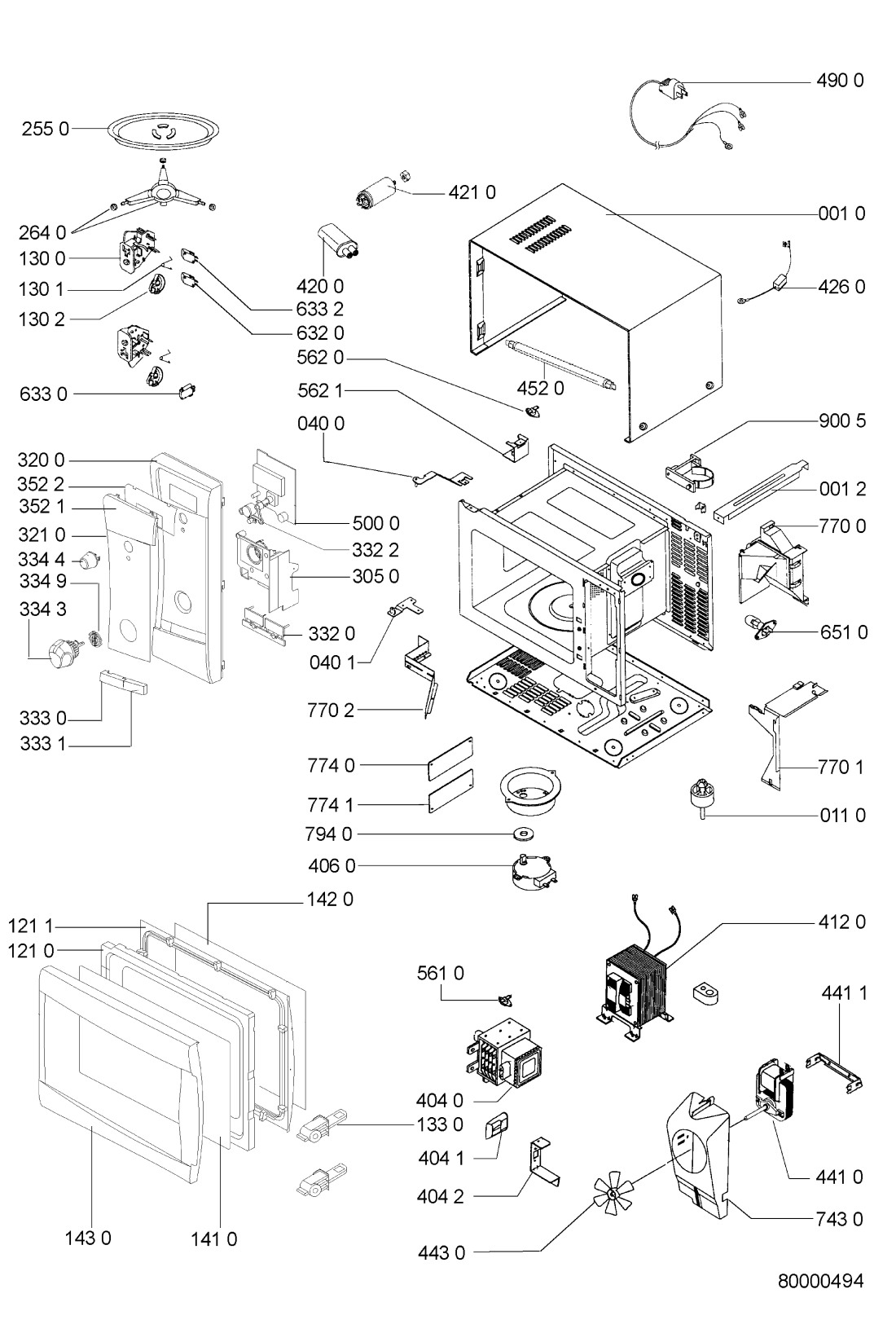

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR72411 |
C00482966
481244229081 |
Cabinet | Na dotaz | Zadat poptávku | |
| 001 2 WHR72411 |
C00482944
481244069295 |
Support | Na dotaz | Zadat poptávku | |
| 011 0 WHR72411 |
C00317881
481246279757 |
noha | 255 Kč
€ 10.50 |
||
| 040 0 WHR72411 |
C00488938
481241718987 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 1 WHR72411 |
C00488966
481241719149 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 121 0 WHR72411 |
C00485186
481244229082 |
Door inner | Na dotaz | Zadat poptávku | |
| 121 1 WHR72411 |
C00485850
481245948171 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 130 0 WHR72411 |
C00313499
481940479412 |
drzak mikrospinacu | 90 Kč
€ 3.70 |
||
| 130 1 WHR72411 |
C00333362
481990200756 |
pruzina | 68 Kč
€ 2.80 |
||
| 130 2 WHR72411 |
C00316672
481240478463 |
vacka plastova | 68 Kč
€ 2.80 |
||
| 133 0 WHR72411 |
C00380510
481990200778 |
Blocking door | Na dotaz | Zadat poptávku | |
| 141 0 WHR72411 |
C00485286
481245058765 |
Oven glass outer | Na dotaz | Zadat poptávku | |
| 142 0 WHR72411 |
C00373281
481990200781 |
Inner glass PE | Na dotaz | Zadat poptávku | |
| 143 0 WHR72411 |
C00586765
481245948194 |
Door frame outer | Na dotaz | Zadat poptávku | |
| 255 0 WHR72411 |
C00333013
481941879728 |
Skleněný otočný talíř; průměr 32,5 cm | Na dotaz | Zadat poptávku | |
| 264 0 WHR72411 |
C00586824
481253578071 |
Crosspiece turntable bearing. | Na dotaz | Zadat poptávku | |
| 305 0 WHR72411 |
C00482888
481240478671 |
Support PCB board | Na dotaz | Zadat poptávku | |
| 320 0 WHR72411 |
C00508633
481245359865 |
Panel control | Na dotaz | Zadat poptávku | |
| 321 0 WHR72411 |
C00482887
481240478669 |
Panel control PC plate | Na dotaz | Zadat poptávku | |
| 332 0 WHR72411 |
C00494922
481990200766 |
TLACITKO PLAST | Na dotaz | Zadat poptávku | |
| 332 2 WHR72411 |
C00487045
481241029006 |
Knob clock set | Na dotaz | Zadat poptávku | |
| 333 0 WHR72411 |
C00319783
481241029004 |
Knob start | Na dotaz | Zadat poptávku | |
| 333 1 WHR72411 |
C00487044
481241029005 |
Knob stop | Na dotaz | Zadat poptávku | |
| 334 3 WHR72411 |
C00487043
481241029003 |
Knob | Na dotaz | Zadat poptávku | |
| 334 4 WHR72411 |
C00373344
481941258692 |
GOMBIK PLAST | 24 Kč
€ 1.00 |
||
| 334 9 WHR72411 |
C00492556
481949268826 |
Spring | Na dotaz | Zadat poptávku | |
| 352 1 WHR72411 |
C00489346
481245058767 |
Display glass, cover | Na dotaz | Zadat poptávku | |
| 352 2 WHR72411 |
C00489345
481245058766 |
Display glass, lens | Na dotaz | Zadat poptávku | |
| 404 0 WHR72411 |
C00586524
481213158803 |
nahradene 481214158001 | Na dotaz | Zadat poptávku | |
| 404 1 WHR72411 |
C00486722
481946238901 |
Cover | Na dotaz | Zadat poptávku | |
| 404 2 WHR72411 |
C00506805
481990200775 |
Holder | Na dotaz | Zadat poptávku | |
| 406 0 WHR72411 |
C00328828
481236158369 |
Motorek otočného talíře | Na dotaz | Zadat poptávku | |
| 412 0 WHR72411 |
C00484614
481214538042 |
Transformer HV | Na dotaz | Zadat poptávku | |
| 420 0 WHR72411 |
C00326782
481212158145 |
CapacitorHV sub 481212158163 | Na dotaz | Zadat poptávku | |
| 421 0 WHR72411 |
C00484586
481212118256 |
Mains filter | Na dotaz | Zadat poptávku | |
| 426 0 WHR72411 |
C00312562
481912118265 |
Diode HV 12KV/500MA | Na dotaz | Zadat poptávku | |
| 441 0 WHR72411 |
C00373648
481236158181 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 1 WHR72411 |
C00492319
481940479414 |
Holder | Na dotaz | Zadat poptávku | |
| 443 0 WHR72411 |
C00333260
481951528197 |
Fan | Na dotaz | Zadat poptávku | |
| 452 0 WHR72411 |
C00548528
481225998309 |
Weerstand | Na dotaz | Zadat poptávku | |
| 490 0 WHR72411 |
C00586580
481232118069 |
Cable | Na dotaz | Zadat poptávku | |
| 500 0 WHR72411 |
C00380504
481241338054 |
CONTROL BOARD | Na dotaz | Zadat poptávku | |
| 561 0 WHR72411 |
C00317424
481990200761 |
termostat 165 C | 1 082 Kč
€ 44.50 |
||
| 562 0 WHR72411 |
C00494921
481990200749 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 562 1 WHR72411 |
C00492742
481990200768 |
Holder | Na dotaz | Zadat poptávku | |
| 632 0 WHR72411 |
C00315557
481927138271 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 0 WHR72411 |
C00332841
481927138269 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 2 WHR72411 |
C00333363
481990200845 |
Microswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR72411 |
C00311360
481913428051 |
Žárovka AVM 25W | 247 Kč
€ 10.10 |
||
| 743 0 WHR72411 |
C00500983
481990200875 |
NAVADZAC VZDUCHU AKL595 N | Na dotaz | Zadat poptávku | |
| 770 0 WHR72411 |
C00500951
481290208028 |
Air guide 2 | Na dotaz | Zadat poptávku | |
| 770 1 WHR72411 |
C00500950
481290208027 |
Air guide 3 | Na dotaz | Zadat poptávku | |
| 770 2 WHR72411 |
C00508636
481990200769 |
Air guide.. | Na dotaz | Zadat poptávku | |
| 774 0 WHR72411 |
C00319377
481246228561 |
Krytka horní | Na dotaz | Zadat poptávku | |
| 774 1 WHR72411 |
C00315881
481246228562 |
Krytka slídová | Na dotaz | Zadat poptávku | |
| 794 0 WHR72411 |
C00332676
481253268106 |
Podložka | 528 Kč
€ 21.70 |
||
| 900 5 WHR72411 |
C00332958
481940479411 |
Bracket for cable | Na dotaz | Zadat poptávku | |
