IGNIS AWF 032 TUMBLE DRYER IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWF 032 TUMBLE DRYER IG |
| Kód 12NC: | 851903231000 |
| Značka: | IGNIS |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás

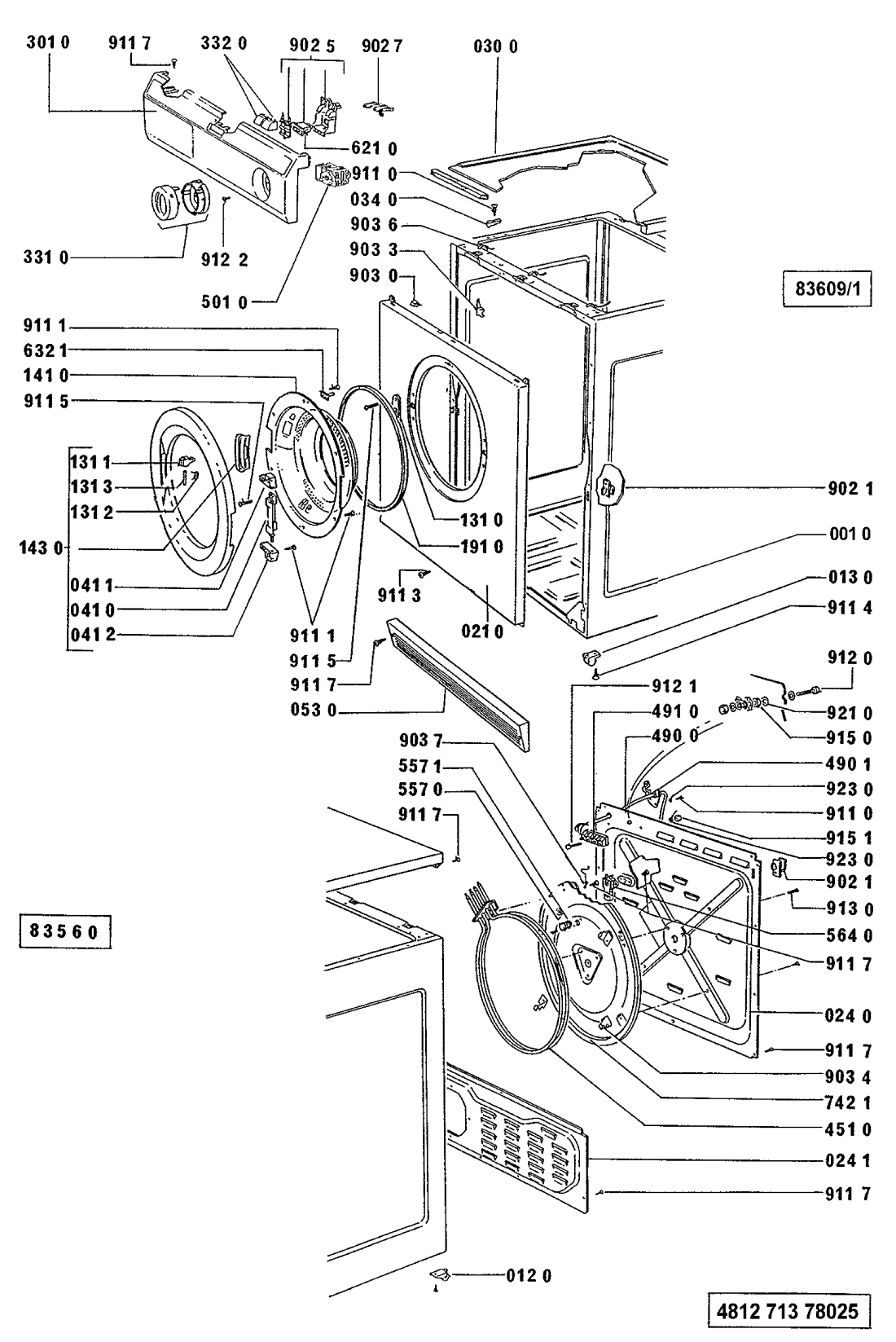

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR93191 |
C00343890
481944019603 |
SKRIŇA | 6 704 Kč
€ 294.70 |
||
| 012 0 WHR93191 |
C00373718
481952878041 |
Roller assembly | Na dotaz | Zadat poptávku | |
| 013 0 WHR93191 |
C00312544
481946278598 |
Foot, fix | Na dotaz | Zadat poptávku | |
| 021 0 WHR93191 |
C00340653
481944019642 |
Front panel white | Na dotaz | Zadat poptávku | |
| 024 0 WHR93191 |
C00341515
481944019409 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 024 1 WHR93191 |
C00499130
481944018854 |
ZADN? MRIEYKA N | Na dotaz | Zadat poptávku | |
| 030 0 WHR93191 |
C00581616
481944019605 |
TABLE TOP. | Na dotaz | Zadat poptávku | |
| 034 0 WHR93191 |
C00531637
481940478696 |
BRACKET TABLE TOP Table top | Na dotaz | Zadat poptávku | |
| 041 0 WHR93191 |
C00315278
481941719341 |
Hinge Ignis door mid white | Na dotaz | Zadat poptávku | |
| 041 1 WHR93191 |
C00555965
481941719339 |
NAHRADENE 481931039858 | Na dotaz | Zadat poptávku | |
| 041 2 WHR93191 |
C00555966
481941719342 |
BEARING.. | Na dotaz | Zadat poptávku | |
| 053 0 WHR93191 |
C00581615
481944019604 |
PLINTH. | Na dotaz | Zadat poptávku | |
| 131 0 WHR93191 |
C00313111
481946238702 |
Latch Guide | Na dotaz | Zadat poptávku | |
| 131 1 WHR93191 |
C00315006
481941758128 |
Hook | Na dotaz | Zadat poptávku | |
| 131 2 WHR93191 |
C00336066
481949248105 |
pruzina dveri | 394 Kč
€ 17.30 |
||
| 131 3 WHR93191 |
C00336446
481953518013 |
osa uzaveru dveri | 198 Kč
€ 8.70 |
||
| 141 0 WHR93191 |
C00337171
481945069666 |
sklo dvirek plast | 1 508 Kč
€ 66.30 |
||
| 143 0 WHR93191 |
C00317344
481945948611 |
DOOR FRAME CPL.cpl. | Na dotaz | Zadat poptávku | |
| 191 0 WHR93191 |
C00581636
481946669976 |
TESNENIE DVIEROK N | Na dotaz | Zadat poptávku | |
| 210 0 WHR93191 |
C00311275
481953578078 |
ulozeni bubnu | Na dotaz | Zadat poptávku | |
| 211 0 WHR93191 |
C00313188
481952028021 |
lozisko predni dlou. | Na dotaz | Zadat poptávku | |
| 211 1 WHR93191 |
C00311530
481952028022 |
Ložisko predni krat. | Na dotaz | Zadat poptávku | |
| 220 0 WHR93191 |
C00315591
481941818239 |
Drum | Na dotaz | Zadat poptávku | |
| 223 0 WHR93191 |
C00312492
481946698324 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR93191 |
C00311098
481935818131 |
V-ribbed belt | Na dotaz | Zadat poptávku | |
| 275 1 WHR93191 |
C00498993
481940448662 |
drzak napin.kladky | 507 Kč
€ 22.30 |
||
| 301 0 WHR93191 |
C00744330
481945319157 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR93191 |
C00582305
481941249984 |
KNOB,TIMER. | Na dotaz | Zadat poptávku | |
| 332 0 WHR93191 |
C00636492
481941028626 |
BUTTON,PUSH. | Na dotaz | Zadat poptávku | |
| 401 0 WHR93191 |
C00313955
481936158089 |
motor susicky | 7 190 Kč
€ 316.00 |
||
| 401 2 WHR93191 |
C00311436
482231020275 |
Clamp Motor | Na dotaz | Zadat poptávku | |
| 420 0 WHR93191 |
C00342792
481912118147 |
Capacitor 8 yF | Na dotaz | Zadat poptávku | |
| 443 0 WHR93191 |
C00310991
481951528127 |
Ventilátor | 604 Kč
€ 26.50 |
||
| 451 0 WHR93191 |
C00311936
481925928745 |
topeni susicky | 3 455 Kč
€ 151.90 |
||
| 490 0 WHR93191 |
C00498934
481932118058 |
CONNECT.CABLE | Na dotaz | Zadat poptávku | |
| 490 1 WHR93191 |
C00335987
481940118531 |
Strain relief | Na dotaz | Zadat poptávku | |
| 491 0 WHR93191 |
C00335586
481929068098 |
Terminal block | Na dotaz | Zadat poptávku | |
| 501 0 WHR93191 |
C00498878
481928218662 |
PROGRAMATOR EC4340. | 2 662 Kč
€ 117.00 |
||
| 557 0 WHR93191 |
C00311797
481928248046 |
termostat vstupni | 942 Kč
€ 41.40 |
||
| 557 1 WHR93191 |
C00319802
481932568005 |
Gasket Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR93191 |
C00335545
481928248047 |
termostat | 1 418 Kč
€ 62.30 |
||
| 564 0 WHR93191 |
C00313187
481928248221 |
SNIMAC PRETAZENIA | 1 091 Kč
€ 48.00 |
||
| 621 0 WHR93191 |
C00335706
481927718173 |
spinac ohrevu | 504 Kč
€ 22.20 |
||
| 632 0 WHR93191 |
C00338095
481931038156 |
Microswitch | Na dotaz | Zadat poptávku | |
| 632 1 WHR93191 |
C00314233
481940478695 |
HOLDER,ADJUST. DOOR | Na dotaz | Zadat poptávku | |
| 742 1 WHR93191 |
C00338722
481944018852 |
Insulation | Na dotaz | Zadat poptávku | |
| 743 0 WHR93191 |
C00313022
481941878978 |
Air Guide | Na dotaz | Zadat poptávku | |
| 743 1 WHR93191 |
C00311704
481944019619 |
PRÍKLOP | 1 151 Kč
€ 50.60 |
||
| 761 0 WHR93191 |
C00556260
481948058128 |
FILTER.. | Na dotaz | Zadat poptávku | |
| 781 0 WHR93191 |
C00337223
481953028506 |
Waste air hose | Na dotaz | Zadat poptávku | |
| 783 0 WHR93191 |
C00339387
481953268391 |
Hose connection | Na dotaz | Zadat poptávku | |
| 793 0 WHR93191 |
C00340483
481946669066 |
Gasket Banjo | Na dotaz | Zadat poptávku | |
| 794 0 WHR93191 |
C00313846
481946669065 |
Gasket Front | Na dotaz | Zadat poptávku | |
| 902 1 WHR93191 |
C00344233
481940118246 |
Bracket | Na dotaz | Zadat poptávku | |
| 902 3 WHR93191 |
C00317300
481940449026 |
Holder Motor (CR03 motor) | Na dotaz | Zadat poptávku | |
| 902 5 WHR93191 |
C00636465
481931038897 |
SWITCH BRACKET ASSY.. | Na dotaz | Zadat poptávku | |
| 902 7 WHR93191 |
C00581600
481940478769 |
Small plate. | Na dotaz | Zadat poptávku | |
| 903 0 WHR93191 |
C00498893
481929048004 |
PR?CHYTKA VODIAOV N | Na dotaz | Zadat poptávku | |
| 903 1 WHR93191 |
C00498977
481940118247 |
Hoop | Na dotaz | Zadat poptávku | |
| 903 3 WHR93191 |
C00336096
481949268299 |
SPONA | 249 Kč
€ 10.90 |
||
| 903 4 WHR93191 |
C00498996
481940449024 |
DRZIAK OHR.TELESA N | Na dotaz | Zadat poptávku | |
| 903 5 WHR93191 |
C00343284
481949268679 |
Clip fix | Na dotaz | Zadat poptávku | |
| 903 6 WHR93191 |
C00336049
481953598165 |
Staple | Na dotaz | Zadat poptávku | |
| 903 7 WHR93191 |
C00315766
481949268317 |
Clip fix Heater | Na dotaz | Zadat poptávku | |
| 911 0 WHR93191 |
C00336627
481950238022 |
Screw 6 x 1/2 " | Na dotaz | Zadat poptávku | |
| 911 1 WHR93191 |
C00336624
481950238185 |
Screw 6 x 11 | Na dotaz | Zadat poptávku | |
| 911 3 WHR93191 |
C00336619
481950310026 |
Screw 8 x 1/2 " | Na dotaz | Zadat poptávku | |
| 911 4 WHR93191 |
C00336616
482250230006 |
Screw 8 x 3 /8 | Na dotaz | Zadat poptávku | |
| 911 5 WHR93191 |
C00336617
482250230074 |
Screw 8 x 25(N.S) | Na dotaz | Zadat poptávku | |
| 911 6 WHR93191 |
C00336615
482250230098 |
Screw 8 x 5/8 " | Na dotaz | Zadat poptávku | |
| 911 7 WHR93191 |
C00336623
482250230131 |
Screw 6 x 3/8 | Na dotaz | Zadat poptávku | |
| 912 0 WHR93191 |
C00336576
481950218184 |
Screw M 5 x 18 | Na dotaz | Zadat poptávku | |
| 912 1 WHR93191 |
C00336578
481950218185 |
Screw M 4 x 25M 4 x 25 | Na dotaz | Zadat poptávku | |
| 912 2 WHR93191 |
C00336577
482250211065 |
Screw M 4x6 | Na dotaz | Zadat poptávku | |
| 913 0 WHR93191 |
C00336648
481950238203 |
Screw 1024 UNC X10 | Na dotaz | Zadat poptávku | |
| 913 1 WHR93191 |
C00336626
481950238209 |
Screw 6 x 1/2 C.S. | Na dotaz | Zadat poptávku | |
| 914 0 WHR93191 |
C00343306
481949268296 |
SPONA "J" | 29 Kč
€ 1.30 |
||
| 915 0 WHR93191 |
C00337992
482250510327 |
Nut M 5 | Na dotaz | Zadat poptávku | |
| 915 1 WHR93191 |
C00337994
481950518159 |
Nut M 4 | Na dotaz | Zadat poptávku | |
| 921 0 WHR93191 |
C00337228
481953088011 |
Washer,toothed 5 mm | Na dotaz | Zadat poptávku | |
| 923 0 WHR93191 |
C00337236
481953088022 |
Washer M 5 | Na dotaz | Zadat poptávku | |
| 965 6 WHR93191 |
C00343285
481946248404 |
Clip fix | Na dotaz | Zadat poptávku | |
