| Komerční kód: | AWG 200/3 TUMBLE DRYER WP |
| Kód 12NC: | 853720015100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 853720015101 |
Potřebujete servis? Jsme tady pro Vás

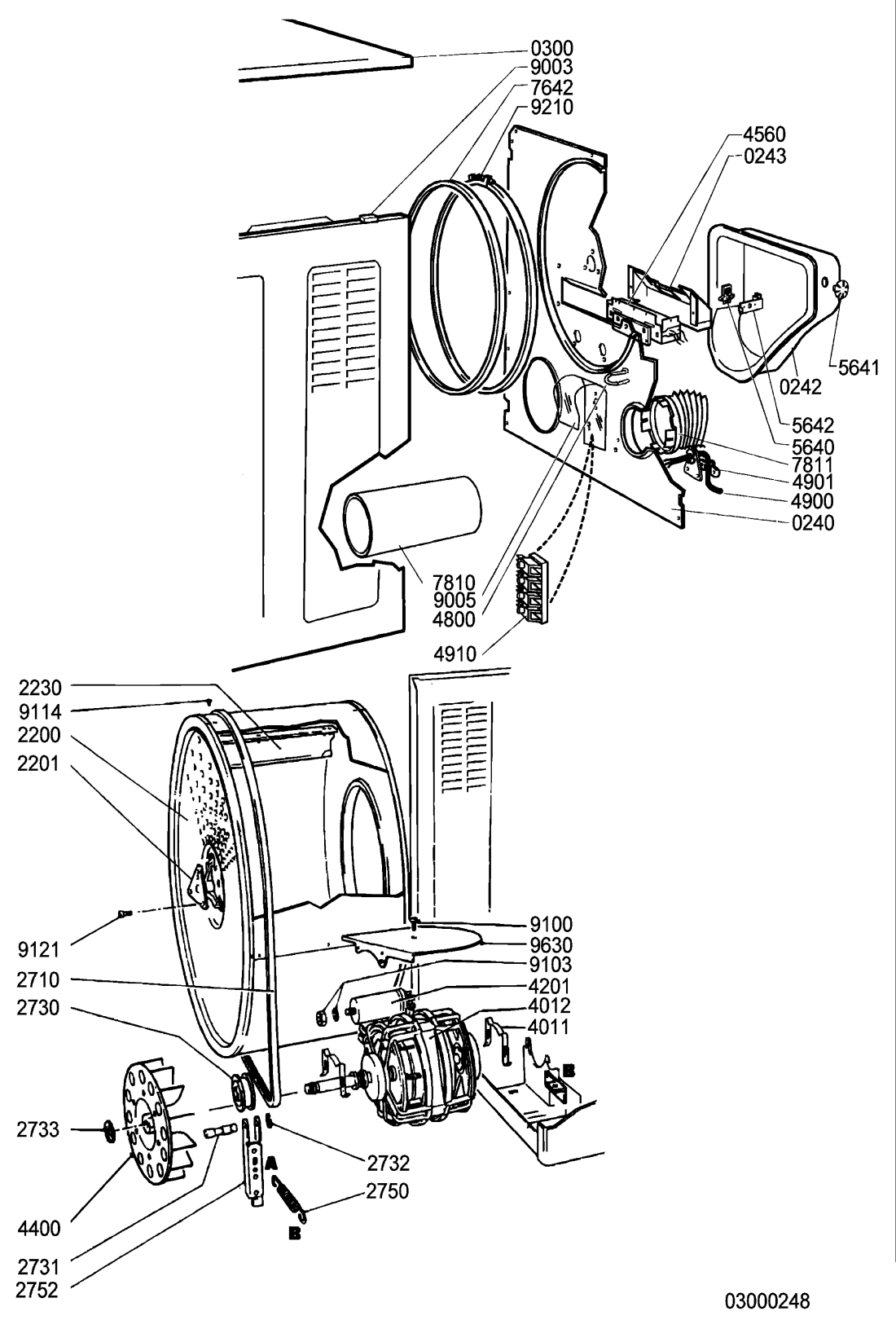

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR93351 |
C00585345
481244019677 |
CABINET. | Na dotaz | Zadat poptávku | |
| 004 0 WHR93351 |
C00585590
482246690803 |
Plate bottom. | Na dotaz | Zadat poptávku | |
| 012 0 WHR93351 |
C00373718
481952878041 |
Roller assembly | Na dotaz | Zadat poptávku | |
| 013 0 WHR93351 |
C00312544
481946278598 |
Foot, fix | Na dotaz | Zadat poptávku | |
| 024 0 WHR93351 |
C00585347
481244019679 |
REAR PANEL. | Na dotaz | Zadat poptávku | |
| 024 2 WHR93351 |
C00556986
481944019662 |
AIR GUIDE.. | Na dotaz | Zadat poptávku | |
| 024 3 WHR93351 |
C00585548
481946689177 |
COVER F.SHIELD. | Na dotaz | Zadat poptávku | |
| 030 0 WHR93351 |
C00585346
481244019678 |
TABLE TOP. | Na dotaz | Zadat poptávku | |
| 040 0 WHR93351 |
C00555822
481931038134 |
HINGE KIT.. | Na dotaz | Zadat poptávku | |
| 103 0 WHR93351 |
C00344947
481244019921 |
Door frame Cpl.(Soft.) | Na dotaz | Zadat poptávku | |
| 110 0 WHR93351 |
C00318146
481949869365 |
Handle,door | Na dotaz | Zadat poptávku | |
| 131 0 WHR93351 |
C00585537
481945948227 |
LOCK PLATE. | Na dotaz | Zadat poptávku | |
| 131 1 WHR93351 |
C00748659
481249248163 |
Spring | Na dotaz | Zadat poptávku | |
| 131 3 WHR93351 |
C00336446
481953518013 |
osa uzaveru dveri | 198 Kč
€ 8.70 |
||
| 141 0 WHR93351 |
C00585355
481245068266 |
WINDOW. | Na dotaz | Zadat poptávku | |
| 191 0 WHR93351 |
C00581638
481946818046 |
Gasket. | Na dotaz | Zadat poptávku | |
| 211 0 WHR93351 |
C00557589
481952028031 |
Friction plate.. | Na dotaz | Zadat poptávku | |
| 220 0 WHR93351 |
C00585316
481241818257 |
DRUM. | Na dotaz | Zadat poptávku | |
| 220 1 WHR93351 |
C00585263
481231018561 |
Kit Shaft/Bearing. | Na dotaz | Zadat poptávku | |
| 223 0 WHR93351 |
C00557129
481251528052 |
DRUM LIFTER.. | Na dotaz | Zadat poptávku | |
| 271 0 WHR93351 |
C00375173
481935818139 |
Belt | Na dotaz | Zadat poptávku | |
| 273 0 WHR93351 |
C00337064
481952888037 |
kolecko kladky | 383 Kč
€ 16.80 |
||
| 273 1 WHR93351 |
C00585420
481253538087 |
SHAFT. | Na dotaz | Zadat poptávku | |
| 273 2 WHR93351 |
C00585415
481253078043 |
RING,CIRCLIP. | Na dotaz | Zadat poptávku | |
| 273 3 WHR93351 |
C00581646
481953078045 |
Ring push fix. | Na dotaz | Zadat poptávku | |
| 275 0 WHR93351 |
C00336115
481949238074 |
pruzina napin.kladky | 337 Kč
€ 14.80 |
||
| 275 2 WHR93351 |
C00585290
481240448686 |
HOOP. | Na dotaz | Zadat poptávku | |
| 301 0 WHR93351 |
C00585356
481245210181 |
Control panel AWG 200. | Na dotaz | Zadat poptávku | |
| 331 0 WHR93351 |
C00585476
481941358729 |
Knob timeswitch. | Na dotaz | Zadat poptávku | |
| 354 0 WHR93351 |
C00488446
481213448242 |
LAMP | Na dotaz | Zadat poptávku | |
| 401 1 WHR93351 |
C00311436
482231020275 |
Clamp Motor | Na dotaz | Zadat poptávku | |
| 401 2 WHR93351 |
C00490396
481936158093 |
Motor with capacitor | Na dotaz | Zadat poptávku | |
| 401 3 WHR93351 |
C00484471
481946689223 |
SMALL PLATE | Na dotaz | Zadat poptávku | |
| 420 1 WHR93351 |
C00342792
481912118147 |
Capacitor 8 yF | Na dotaz | Zadat poptávku | |
| 440 0 WHR93351 |
C00490226
481251548013 |
FAN WHEEL | Na dotaz | Zadat poptávku | |
| 456 0 WHR93351 |
C00585243
481225938185 |
HEATING ELEMENT. | Na dotaz | Zadat poptávku | |
| 480 0 WHR93351 |
C00527295
481232058048 |
CABLE TIE Tie | Na dotaz | Zadat poptávku | |
| 490 0 WHR93351 |
C00581588
481932118248 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 490 1 WHR93351 |
C00335987
481940118531 |
Strain relief | Na dotaz | Zadat poptávku | |
| 491 0 WHR93351 |
C00335586
481929068098 |
Terminal block | Na dotaz | Zadat poptávku | |
| 501 0 WHR93351 |
C00491209
481228218681 |
Timer CS 1079 D | Na dotaz | Zadat poptávku | |
| 554 0 WHR93351 |
C00313066
481228248241 |
Thermostat exhaust | Na dotaz | Zadat poptávku | |
| 564 0 WHR93351 |
C00313187
481928248221 |
SNIMAC PRETAZENIA | 1 091 Kč
€ 48.00 |
||
| 564 1 WHR93351 |
C00557428
481941028669 |
KNOB RESET.. | Na dotaz | Zadat poptávku | |
| 564 2 WHR93351 |
C00531639
481940478833 |
BRACKET Thermostat | Na dotaz | Zadat poptávku | |
| 621 0 WHR93351 |
C00335706
481927718173 |
spinac ohrevu | 504 Kč
€ 22.20 |
||
| 632 0 WHR93351 |
C00338095
481931038156 |
Microswitch | Na dotaz | Zadat poptávku | |
| 632 1 WHR93351 |
C00311076
481940448847 |
palec spinace | 328 Kč
€ 14.40 |
||
| 761 0 WHR93351 |
C00556449
482248050172 |
SIEVE.. | Na dotaz | Zadat poptávku | |
| 764 2 WHR93351 |
C00585395
481246668602 |
RING. | Na dotaz | Zadat poptávku | |
| 781 0 WHR93351 |
C00585266
481231088348 |
Tube exhaust | Na dotaz | Zadat poptávku | |
| 781 1 WHR93351 |
C00585267
481231088349 |
Hose deaeration. | Na dotaz | Zadat poptávku | |
| 794 1 WHR93351 |
C00482175
482246660717 |
RING,PACKING | Na dotaz | Zadat poptávku | |
| 900 0 WHR93351 |
C00585421
481293008004 |
Nut captive. | Na dotaz | Zadat poptávku | |
| 900 3 WHR93351 |
C00585233
481211018001 |
Pad f. Top. | Na dotaz | Zadat poptávku | |
| 900 5 WHR93351 |
C00581551
481211018002 |
PROTECTOR. | Na dotaz | Zadat poptávku | |
| 910 0 WHR93351 |
C00585424
481293008008 |
Screw M4 x 6 self tapping. | Na dotaz | Zadat poptávku | |
| 910 3 WHR93351 |
C00492187
481293008009 |
Nut M8 | Na dotaz | Zadat poptávku | |
| 911 4 WHR93351 |
C00585423
481293008006 |
Screw 8x10. | Na dotaz | Zadat poptávku | |
| 911 7 WHR93351 |
C00585422
481293008005 |
Screw 6x10. | Na dotaz | Zadat poptávku | |
| 912 1 WHR93351 |
C00492186
481293008007 |
Screw 10-24 unc x 10 | Na dotaz | Zadat poptávku | |
| 921 0 WHR93351 |
C00585589
482240440361 |
RING,PRESSURE. | Na dotaz | Zadat poptávku | |
| 962 0 WHR93351 |
C00585234
481211018003 |
Cover Thermostat. | Na dotaz | Zadat poptávku | |
| 963 0 WHR93351 |
C00585351
481244098056 |
COVER. | Na dotaz | Zadat poptávku | |
