| Komerční kód: | AWG 230 TUMBLE DRYER WP |
| Kód 12NC: | 853723015000 |
| I.C. kód: | 853723015001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

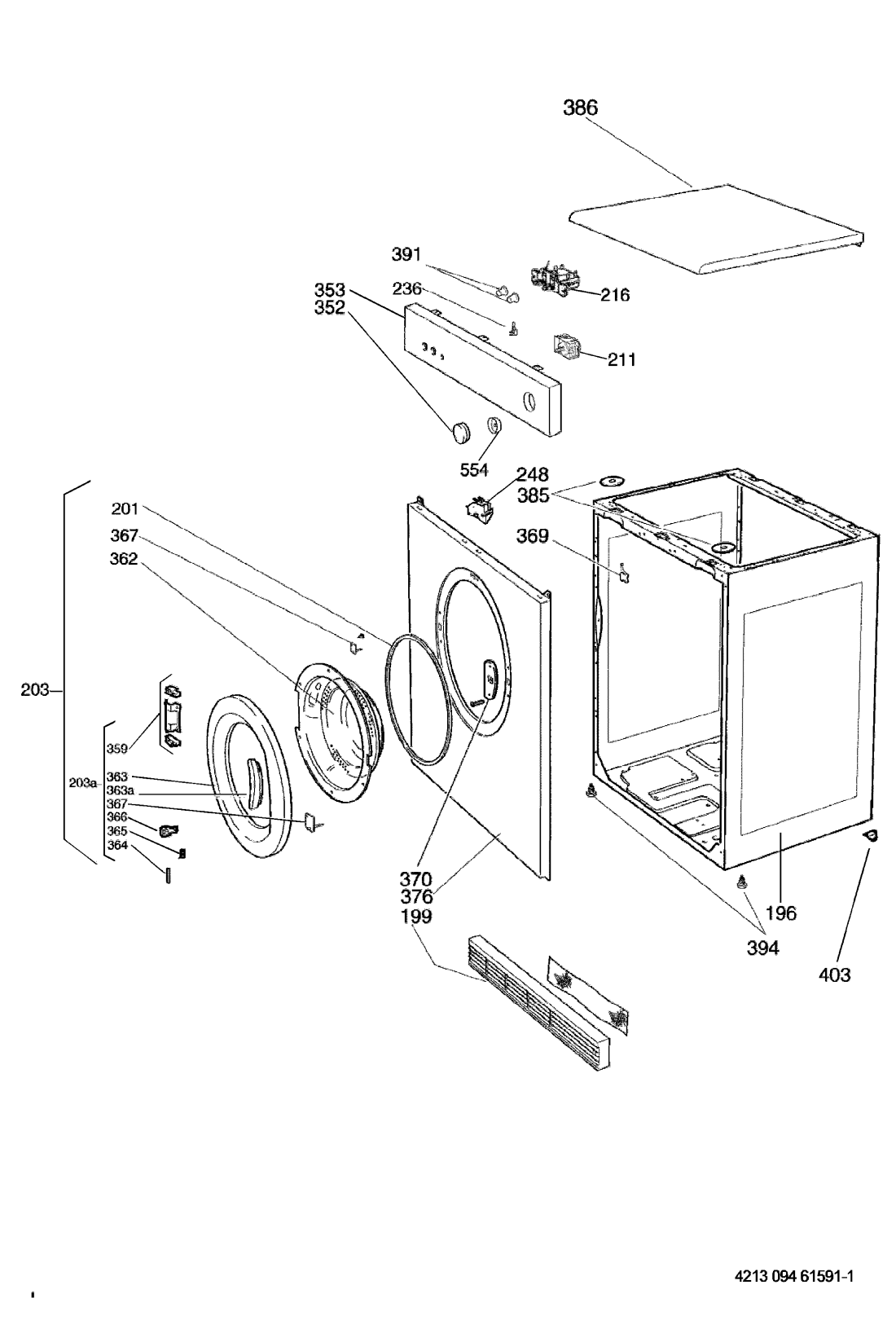

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 101 WHR99226 |
C00311029
481236158166 |
Motor with capacitor | Na dotaz | Zadat poptávku | |
| 112 WHR99226 |
C00313246
481912118279 |
Capacitor 8çF - 450V - 6çm dielectric | Na dotaz | Zadat poptávku | |
| 125 WHR99226 |
C00311098
481935818131 |
V-ribbed belt | Na dotaz | Zadat poptávku | |
| 141 WHR99226 |
C00311735
481232118094 |
Cable mains | Na dotaz | Zadat poptávku | |
| 142 WHR99226 |
C00314578
481229068217 |
Terminal Block | Na dotaz | Zadat poptávku | |
| 196 WHR99226 |
C00343890
481944019603 |
SKRIŇA | 6 704 Kč
€ 294.70 |
||
| 199 WHR99226 |
C00585349
481244019765 |
Plinth Stack. | Na dotaz | Zadat poptávku | |
| 201 WHR99226 |
C00581636
481946669976 |
TESNENIE DVIEROK N | Na dotaz | Zadat poptávku | |
| 203 WHR99226 |
C00311940
481244019861 |
Door Cpl.(Ignis white) | Na dotaz | Zadat poptávku | |
| 203 A WHR99226 |
C00317344
481945948611 |
DOOR FRAME CPL.cpl. | Na dotaz | Zadat poptávku | |
| 211 WHR99226 |
C00527041
481227628388 |
TIMER EC4818.01A EC4818.01A | Na dotaz | Zadat poptávku | |
| 216 WHR99226 |
C00585244
481225938187 |
Switch 2 buttons. | Na dotaz | Zadat poptávku | |
| 227 WHR99226 |
C00316147
481225928763 |
HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 228 WHR99226 |
C00313187
481928248221 |
SNIMAC PRETAZENIA | 1 091 Kč
€ 48.00 |
||
| 229 WHR99226 |
C00313066
481228248241 |
Thermostat exhaust | Na dotaz | Zadat poptávku | |
| 230 WHR99226 |
C00574328
481228248251 |
Thermostat inlet. | Na dotaz | Zadat poptávku | |
| 236 WHR99226 |
C00316849
481213428067 |
INDICATION UNIT | Na dotaz | Zadat poptávku | |
| 248 WHR99226 |
C00311325
481231038505 |
icroswitch door | Na dotaz | Zadat poptávku | |
| 266 WHR99226 |
C00311012
481241818272 |
Drum | Na dotaz | Zadat poptávku | |
| 270 WHR99226 |
C00311275
481953578078 |
ulozeni bubnu | Na dotaz | Zadat poptávku | |
| 352 WHR99226 |
C00585371
481245310011 |
Knob timer. | Na dotaz | Zadat poptávku | |
| 353 WHR99226 |
C00585406
481250218523 |
Control panel cpl.. | Na dotaz | Zadat poptávku | |
| 356 WHR99226 |
C00336624
481950238185 |
Screw 6 x 11 | Na dotaz | Zadat poptávku | |
| 359 WHR99226 |
C00315278
481941719341 |
Hinge Ignis door mid white | Na dotaz | Zadat poptávku | |
| 362 WHR99226 |
C00337171
481945069666 |
sklo dvirek plast | 1 508 Kč
€ 66.30 |
||
| 363 WHR99226 |
C00553571
481244019747 |
FRAME,DOOR GLAS (IGNIS | Na dotaz | Zadat poptávku | |
| 363 a WHR99226 |
C00574551
481246268015 |
RUKOVAT N | Na dotaz | Zadat poptávku | |
| 364 WHR99226 |
C00336446
481953518013 |
osa uzaveru dveri | 198 Kč
€ 8.70 |
||
| 365 WHR99226 |
C00336066
481949248105 |
pruzina dveri | 394 Kč
€ 17.30 |
||
| 366 WHR99226 |
C00315006
481941758128 |
Hook | Na dotaz | Zadat poptávku | |
| 367 WHR99226 |
C00314233
481940478695 |
HOLDER,ADJUST. DOOR | Na dotaz | Zadat poptávku | |
| 369 WHR99226 |
C00336096
481949268299 |
SPONA | 249 Kč
€ 10.90 |
||
| 370 WHR99226 |
C00313111
481946238702 |
Latch Guide | Na dotaz | Zadat poptávku | |
| 376 WHR99226 |
C00340653
481944019642 |
Front panel white | Na dotaz | Zadat poptávku | |
| 385 WHR99226 |
C00482929
481244019741 |
Bracket Top cover | Na dotaz | Zadat poptávku | |
| 386 WHR99226 |
C00557096
481244019727 |
TABLE TOP WHITE.. | Na dotaz | Zadat poptávku | |
| 390 WHR99226 |
C00319802
481932568005 |
Gasket Thermostat | Na dotaz | Zadat poptávku | |
| 391 WHR99226 |
C00337025
481941028473 |
PUSH BUTTON | Na dotaz | Zadat poptávku | |
| 393 WHR99226 |
C00574345
481240118475 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 394 WHR99226 |
C00585400
481249268161 |
Foot adjustable. | Na dotaz | Zadat poptávku | |
| 395 WHR99226 |
C00315766
481949268317 |
Clip fix Heater | Na dotaz | Zadat poptávku | |
| 399 WHR99226 |
C00311594
481240448707 |
Support heating element | Na dotaz | Zadat poptávku | |
| 400 WHR99226 |
C00314222
481240478376 |
Plate heating element | Na dotaz | Zadat poptávku | |
| 402 WHR99226 |
C00585388
481246228132 |
Cover rear access. | Na dotaz | Zadat poptávku | |
| 403 WHR99226 |
C00318960
481210028004 |
ROLLER ASS. | Na dotaz | Zadat poptávku | |
| 405 WHR99226 |
C00574582
481250238158 |
Screw M5 x 16. | Na dotaz | Zadat poptávku | |
| 406 WHR99226 |
C00337228
481953088011 |
Washer,toothed 5 mm | Na dotaz | Zadat poptávku | |
| 407 WHR99226 |
C00337992
482250510327 |
Nut M 5 | Na dotaz | Zadat poptávku | |
| 408 WHR99226 |
C00574471
481243518093 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 413 WHR99226 |
C00582174
481244019744 |
PANEL, REAR | Na dotaz | Zadat poptávku | |
| 427 WHR99226 |
C00311436
482231020275 |
Clamp Motor | Na dotaz | Zadat poptávku | |
| 432 WHR99226 |
C00317300
481940449026 |
Holder Motor (CR03 motor) | Na dotaz | Zadat poptávku | |
| 437 WHR99226 |
C00313069
481217088002 |
Hose | Na dotaz | Zadat poptávku | |
| 440 WHR99226 |
C00313022
481941878978 |
Air Guide | Na dotaz | Zadat poptávku | |
| 441 WHR99226 |
C00311530
481952028022 |
Ložisko predni krat. | Na dotaz | Zadat poptávku | |
| 442 WHR99226 |
C00319777
481246668625 |
Seal Front | Na dotaz | Zadat poptávku | |
| 444 WHR99226 |
C00312492
481946698324 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 445 WHR99226 |
C00313188
481952028021 |
lozisko predni dlou. | Na dotaz | Zadat poptávku | |
| 445 a WHR99226 |
C00311115
481952028037 |
Sealing Set | Na dotaz | Zadat poptávku | |
| 446 WHR99226 |
C00310991
481951528127 |
Ventilátor | 604 Kč
€ 26.50 |
||
| 447 WHR99226 |
C00311704
481944019619 |
PRÍKLOP | 1 151 Kč
€ 50.60 |
||
| 448 WHR99226 |
C00312009
481249148006 |
Spring ring (fan) | Na dotaz | Zadat poptávku | |
| 454 WHR99226 |
C00553739
481248128152 |
FILTER | Na dotaz | Zadat poptávku | |
| 455 WHR99226 |
C00574581
481250218455 |
Screw 6X10 countersunkh. | Na dotaz | Zadat poptávku | |
| 456 WHR99226 |
C00311432
481246668626 |
Gasket banjo | Na dotaz | Zadat poptávku | |
| 457 WHR99226 |
C00343306
481949268296 |
SPONA "J" | 29 Kč
€ 1.30 |
||
| 458 WHR99226 |
C00313299
481240448709 |
Insert No. 2, banjo | Na dotaz | Zadat poptávku | |
| 459 WHR99226 |
C00313495
481240448711 |
Insert No. 1, banjo | Na dotaz | Zadat poptávku | |
| 471 WHR99226 |
C00343266
481949268316 |
SPONA "U" | 40 Kč
€ 1.80 |
||
| 518 WHR99226 |
C00491698
481243518088 |
CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 519 WHR99226 |
C00529858
481250518381 |
NUT M5 M5 | Na dotaz | Zadat poptávku | |
| 520 WHR99226 |
C00574329
481229068216 |
Connection Earth. | Na dotaz | Zadat poptávku | |
| 537 WHR99226 |
C00343285
481946248404 |
Clip fix | Na dotaz | Zadat poptávku | |
| 554 WHR99226 |
C00314260
481252648072 |
Knob (adaptor) | Na dotaz | Zadat poptávku | |
