| Komerční kód: | AWG 324/3 WASHING MACHINES WP |
| Kód 12NC/I.C. kód: | 853732438020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky se sušičkou |
| Další podobné modely: | 853732410020 |
Potřebujete servis? Jsme tady pro Vás

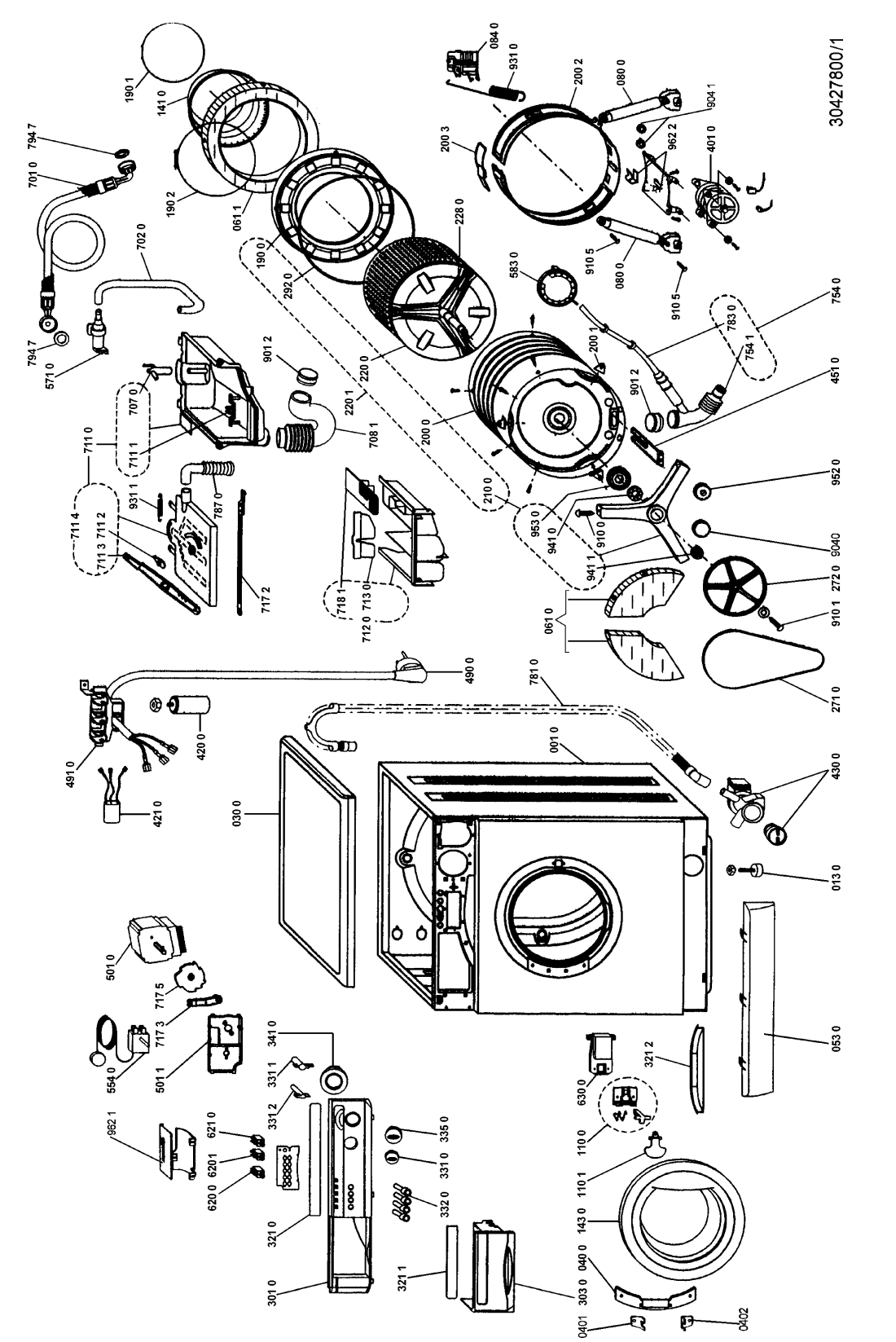

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR55998 |
C00585501
481944019933 |
skrin pracky | Na dotaz | Zadat poptávku | |
| 013 0 WHR55998 |
C00053874
481946258273 |
noha pracky | Na dotaz | Zadat poptávku | |
| 030 0 WHR55998 |
C00585496
481944019831 |
deska horni | Na dotaz | Zadat poptávku | |
| 040 0 WHR55998 |
C00585480
481941719367 |
Z?VES DVIEROK AWG322 *** N | Na dotaz | Zadat poptávku | |
| 040 1 WHR55998 |
C00636144
481940118864 |
DRZIAK ZAVESU DVIEROK N | Na dotaz | Zadat poptávku | |
| 040 2 WHR55998 |
C00636145
481940118865 |
DRZIAK ZAVESU DVIEROK N | Na dotaz | Zadat poptávku | |
| 053 0 WHR55998 |
C00585489
481944019646 |
SOKEL | Na dotaz | Zadat poptávku | |
| 061 0 WHR55998 |
C00053903
481946699084 |
zavazi predni horni | Na dotaz | Zadat poptávku | |
| 061 1 WHR55998 |
C00585550
481946689406 |
PROTIZAVAZIE CELNE AWG324 N | Na dotaz | Zadat poptávku | |
| 080 0 WHR55998 |
C00380592
481952918125 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 084 0 WHR55998 |
C00053899
481946699139 |
SUSPENSION SPRING ANCHORAGE PAD | Na dotaz | Zadat poptávku | |
| 110 0 WHR55998 |
C00621262
481941758129 |
HAK UZAVERU DVIER AWG316,322 **kovN | Na dotaz | Zadat poptávku | |
| 110 1 WHR55998 |
C00053950
481949869888 |
COVER LID HANDLE | Na dotaz | Zadat poptávku | |
| 141 0 WHR55998 |
C00534532
481946818268 |
TVO GUMA | Na dotaz | Zadat poptávku | |
| 143 0 WHR55998 |
C00585344
481244019658 |
DVERE KOMPLET AWG328/10020 skl | Na dotaz | Zadat poptávku | |
| 190 0 WHR55998 |
C00585500
481944019852 |
Bočnice nádrže | Na dotaz | Zadat poptávku | |
| 190 1 WHR55998 |
C00492688
481953288043 |
SPONA TVO AWG322 N | Na dotaz | Zadat poptávku | |
| 190 2 WHR55998 |
C00053886
481940118723 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 0 WHR55998 |
C00053877
481941818362 |
TUB | Na dotaz | Zadat poptávku | |
| 200 1 WHR55998 |
C00585454
481940479251 |
Bracket | Na dotaz | Zadat poptávku | |
| 200 2 WHR55998 |
C00053883
481946689422 |
CLAMPING BAND - OUTER TANK BACK | Na dotaz | Zadat poptávku | |
| 200 3 WHR55998 |
C00053884
481941758144 |
SPOJOVACI KUS | Na dotaz | Zadat poptávku | |
| 210 0 WHR55998 |
C00053892
481940479252 |
BEARING SPIDER ASSEMBLY | Na dotaz | Zadat poptávku | |
| 220 0 WHR55998 |
C00556882
481941818363 |
NAHRADENE 481941818336 N | Na dotaz | Zadat poptávku | |
| 220 1 WHR55998 |
C00620028
481941818336 |
NADRZ | Na dotaz | Zadat poptávku | |
| 228 0 WHR55998 |
C00585586
481953578155 |
nosic bubnu | Na dotaz | Zadat poptávku | |
| 271 0 WHR55998 |
C00378053
481935818146 |
Řemen pro pračku Whirlpool AWG 324 1061J3 | 83 Kč
€ 3.40 |
||
| 272 0 WHR55998 |
C00053896
481952888114 |
remenice bubnu | Na dotaz | Zadat poptávku | |
| 292 0 WHR55998 |
C00053882
481946818225 |
SEAL - TANKBACK | Na dotaz | Zadat poptávku | |
| 301 0 WHR55998 |
C00585512
481945319874 |
panel ovladaci | Na dotaz | Zadat poptávku | |
| 303 0 WHR55998 |
C00377843
481249878044 |
Čelo násypky pračky Whirlpool | 407 Kč
€ 16.50 |
||
| 321 0 WHR55998 |
C00529826
481249878047 |
Insert control panel control panel | Na dotaz | Zadat poptávku | |
| 321 1 WHR55998 |
C00585403
481249878048 |
Insert soap drawer handle. | Na dotaz | Zadat poptávku | |
| 321 2 WHR55998 |
C00053875
481946078533 |
PROTECTION | Na dotaz | Zadat poptávku | |
| 331 0 WHR55998 |
C00487173
481241258854 |
knoflik termostatu | Na dotaz | Zadat poptávku | |
| 331 1 WHR55998 |
C00585582
481953518127 |
GOMBIK PRORAMATORA PLAST PRACKA | Na dotaz | Zadat poptávku | |
| 331 2 WHR55998 |
C00378117
481953518128 |
Shaft temp.knob | Na dotaz | Zadat poptávku | |
| 332 0 WHR55998 |
C00585458
481941028918 |
tlacitko | Na dotaz | Zadat poptávku | |
| 335 0 WHR55998 |
C00585300
481241258859 |
GOMBIK PROGRAMATORA | Na dotaz | Zadat poptávku | |
| 341 0 WHR55998 |
C00585419
481253228922 |
Ring f. Timer Knob | Na dotaz | Zadat poptávku | |
| 401 0 WHR55998 |
C00053936
481936158194 |
motor 2/16 600 ot. | Na dotaz | Zadat poptávku | |
| 420 0 WHR55998 |
C00635736
481912118214 |
KONDENZ?TOR AWG316,322 *** N | Na dotaz | Zadat poptávku | |
| 421 0 WHR55998 |
C00053925
481912118213 |
ODRUŠOVACÍ FILTR 'IAR' | Na dotaz | Zadat poptávku | |
| 430 0 WHR55998 |
C00380590
481936118484 |
Pump draining cpl. | Na dotaz | Zadat poptávku | |
| 451 0 WHR55998 |
C00053934
481925928878 |
TOPNÉ TĚLÍSKO 1750 W 230 V | Na dotaz | Zadat poptávku | |
| 490 0 WHR55998 |
C00053924
481932118284 |
SUPPLY CABLE | Na dotaz | Zadat poptávku | |
| 491 0 WHR55998 |
C00053923
481929068395 |
TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 501 0 WHR55998 |
C00053927
481928218765 |
programator | Na dotaz | Zadat poptávku | |
| 501 1 WHR55998 |
C00378063
481940479312 |
Holder | Na dotaz | Zadat poptávku | |
| 554 0 WHR55998 |
C00063371
481927129063 |
Termostat kapilární pračky Whirlpool 90 °C | Na dotaz | Zadat poptávku | |
| 571 0 WHR55998 |
C00481059
481928128263 |
ventil napousteci | Na dotaz | Zadat poptávku | |
| 583 0 WHR55998 |
C00053933
481927129062 |
presostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR55998 |
C00636121
481927618381 |
SPINAC | Na dotaz | Zadat poptávku | |
| 620 1 WHR55998 |
C00053930
481927618382 |
spinac tlacitkovy | Na dotaz | Zadat poptávku | |
| 621 0 WHR55998 |
C00585432
481927638367 |
Switch option.CO | Na dotaz | Zadat poptávku | |
| 630 0 WHR55998 |
C00053931
481969018139 |
MIKROSP.BLOKOVÁNÍ DVÍŘEK 'IAR' | Na dotaz | Zadat poptávku | |
| 701 0 WHR55998 |
C00635784
481953028882 |
HADICA PRIVODOVA AWG322 G/T N | Na dotaz | Zadat poptávku | |
| 702 0 WHR55998 |
C00063425
481953029045 |
HOSE - VALVE/DISPENSER | Na dotaz | Zadat poptávku | |
| 707 0 WHR55998 |
C00585449
481936069626 |
tryska otocna - vyřazeno | Na dotaz | Zadat poptávku | |
| 708 1 WHR55998 |
C00053907
481952918114 |
hadice k nasypce | Na dotaz | Zadat poptávku | |
| 711 0 WHR55998 |
C00053914
481941879792 |
DISPENSER TOP | Na dotaz | Zadat poptávku | |
| 711 1 WHR55998 |
C00585544
481946238831 |
KOUAJNIAKA AWG322 N | Na dotaz | Zadat poptávku | |
| 711 2 WHR55998 |
C00053916
481953598608 |
DIVERTER QUADRANT | Na dotaz | Zadat poptávku | |
| 711 3 WHR55998 |
C00492722
481953598607 |
PACKA AWG322 N | Na dotaz | Zadat poptávku | |
| 711 4 WHR55998 |
C00556004
481941879485 |
NAHRADENE 481941879792 N | Na dotaz | Zadat poptávku | |
| 712 0 WHR55998 |
C00053922
481241879654 |
DETERGENT DRAWER KIT | Na dotaz | Zadat poptávku | |
| 713 0 WHR55998 |
C00492362
481944019804 |
PRIEHRADKA Z?SUVKY N?SYPKY AWG322 N | Na dotaz | Zadat poptávku | |
| 717 2 WHR55998 |
C00063359
481953598625 |
tahlo nasypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR55998 |
C00063360
481953598627 |
METAL OPERATING ROD RIGHT | Na dotaz | Zadat poptávku | |
| 717 3 WHR55998 |
C00053919
481946699086 |
posouvac | Na dotaz | Zadat poptávku | |
| 717 5 WHR55998 |
C00063436
481952838458 |
Vačka | Na dotaz | Zadat poptávku | |
| 718 1 WHR55998 |
C00053920
481946279935 |
ADDITIVE COVER | Na dotaz | Zadat poptávku | |
| 754 0 WHR55998 |
C00585577
481953029009 |
HADICA GUMA | Na dotaz | Zadat poptávku | |
| 754 1 WHR55998 |
C00556912
481952928196 |
HADICA NADRY AERPADLO gum. N | Na dotaz | Zadat poptávku | |
| 781 0 WHR55998 |
C00620308
481953029026 |
hadicevytokova | Na dotaz | Zadat poptávku | |
| 783 0 WHR55998 |
C00053908
481953029011 |
Hadice k presostatu vyřazeno | Na dotaz | Zadat poptávku | |
| 787 0 WHR55998 |
C00053911
481952918116 |
STEAM EXHAUST HOSE | Na dotaz | Zadat poptávku | |
| 794 7 WHR55998 |
C00340492
482248050121 |
Gasket + filter | Na dotaz | Zadat poptávku | |
| 901 2 WHR55998 |
C00053909
481940118804 |
klapka | Na dotaz | Zadat poptávku | |
| 904 0 WHR55998 |
C00635781
481946248468 |
ZATKA N | Na dotaz | Zadat poptávku | |
| 904 1 WHR55998 |
C00063380
481953268858 |
MOTOR RUBBER BUSH | Na dotaz | Zadat poptávku | |
| 910 0 WHR55998 |
C00053893
481950218446 |
BOLT | Na dotaz | Zadat poptávku | |
| 910 1 WHR55998 |
C00053897
481950218447 |
BOLT - DRUM PULLEY FIXING | Na dotaz | Zadat poptávku | |
| 910 5 WHR55998 |
C00492576
481950218448 |
SKRUTKA N | Na dotaz | Zadat poptávku | |
| 931 0 WHR55998 |
C00053898
481949238144 |
TANK SPRING | Na dotaz | Zadat poptávku | |
| 931 1 WHR55998 |
C00053917
481949238142 |
pruzina trysky | Na dotaz | Zadat poptávku | |
| 941 0 WHR55998 |
C00636273
481952028032 |
LOZISKO BOCNICE AWG322 GULICKOVE N | Na dotaz | Zadat poptávku | |
| 941 1 WHR55998 |
C00636274
481952028033 |
LOZISKO BOCNICE AWG322 N | Na dotaz | Zadat poptávku | |
| 952 0 WHR55998 |
C00636283
481953268716 |
tesneni termostatu | Na dotaz | Zadat poptávku | |
| 953 0 WHR55998 |
C00573002
481953268802 |
KRUZOK TESNIACI PLAST N | Na dotaz | Zadat poptávku | |
| 962 1 WHR55998 |
C00063379
481946258373 |
SWITCH-DEVIATOR PROTECTION | Na dotaz | Zadat poptávku | |
| 962 2 WHR55998 |
C00053894
481946689368 |
PODPERA AWG322 | Na dotaz | Zadat poptávku | |
