WHIRLPOOL AWG 5122/S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG 5122/S |
| Kód 12NC: | 853722915010 |
| I.C. kód: | 853722915011 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 853722915010, Q0913260000, Q0913260001 |
Potřebujete servis? Jsme tady pro Vás

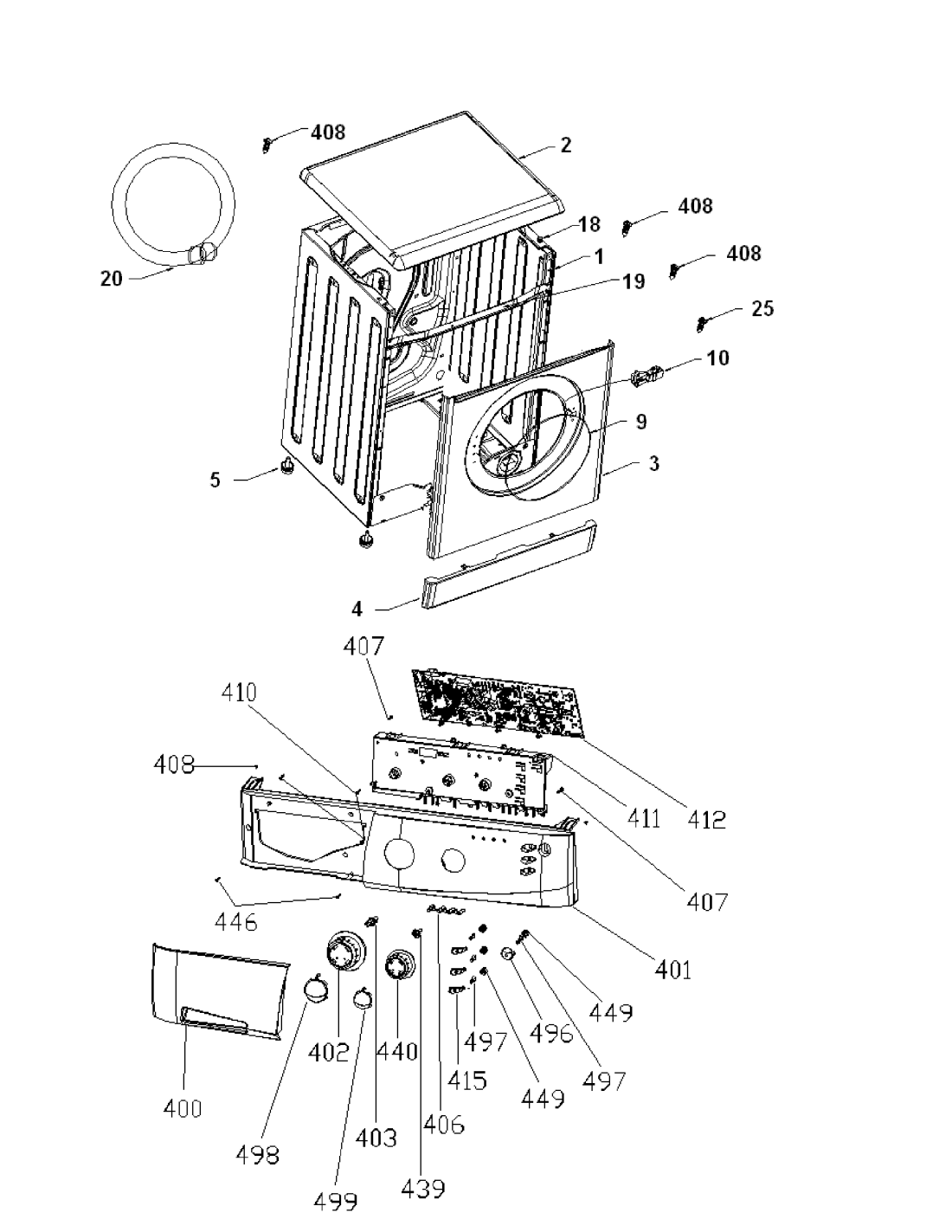

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 1 WHR01260 |
C00320940
480111100022 |
Cabinet | Na dotaz | Zadat poptávku | |
| 000 2 WHR01260 |
C00319792
480111100023 |
Table top | Na dotaz | Zadat poptávku | |
| 000 3 WHR01260 |
C00319858
480111100024 |
Front panel | Na dotaz | Zadat poptávku | |
| 000 4 WHR01260 |
C00317541
480111100025 |
Plinth | Na dotaz | Zadat poptávku | |
| 000 5 WHR01260 |
C00318055
481202308004 |
noha | 806 Kč
€ 35.40 |
||
| 000 6 WHR01260 |
C00321044
480111102045 |
Door frame | Na dotaz | Zadat poptávku | |
| 000 7 WHR01260 |
C00326629
481202308006 |
Sklo dveří | 1 436 Kč
€ 63.10 |
||
| 000 8 WHR01260 |
C00326630
481202308007 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 000 9 WHR01260 |
C00326631
481202308008 |
Spring,wire | Na dotaz | Zadat poptávku | |
| 001 0 WHR01260 |
C00317322
481202308009 |
Blokování dveří | 895 Kč
€ 39.30 |
||
| 001 2 WHR01260 |
C00326632
481202308011 |
zaves dveri AWG5124C | 897 Kč
€ 39.40 |
||
| 001 4 WHR01260 |
C00318233
480111102046 |
Handle silver | Na dotaz | Zadat poptávku | |
| 001 5 WHR01260 |
C00326634
481202308013 |
pruzina | 131 Kč
€ 5.80 |
||
| 001 6 WHR01260 |
C00326635
481202308014 |
Pin | Na dotaz | Zadat poptávku | |
| 001 7 WHR01260 |
C00326636
481202308015 |
hak dveri | 129 Kč
€ 5.70 |
||
| 001 8 WHR01260 |
C00326637
481202308016 |
Fixation | Na dotaz | Zadat poptávku | |
| 001 9 WHR01260 |
C00326638
481202308017 |
Bracket | Na dotaz | Zadat poptávku | |
| 002 0 WHR01260 |
C00319944
481202308018 |
hadice | 987 Kč
€ 43.40 |
||
| 002 5 WHR01260 |
C00326639
481202308019 |
Screw ST 4,2*16 TS 432 | Na dotaz | Zadat poptávku | |
| 002 8 WHR01260 |
C00326640
481202308021 |
sroub | 83 Kč
€ 3.60 |
||
| 002 9 WHR01260 |
C00326641
481202308022 |
sroub | 56 Kč
€ 2.50 |
||
| 003 0 WHR01260 |
C00326642
481202308023 |
sroub | 108 Kč
€ 4.70 |
||
| 010 0 WHR01260 |
C00314767
481202308024 |
remen | 755 Kč
€ 33.20 |
||
| 010 1 WHR01260 |
C00326643
481202308025 |
pulley | Na dotaz | Zadat poptávku | |
| 010 2 WHR01260 |
C00311365
481202308026 |
motor | Na dotaz | Zadat poptávku | |
| 010 3 WHR01260 |
C00326707
481202308135 |
Tub rear | Na dotaz | Zadat poptávku | |
| 010 4 WHR01260 |
C00326645
481202308028 |
tlumic | 861 Kč
€ 37.80 |
||
| 010 5 WHR01260 |
C00326646
481202308029 |
Pin Shockabsorber | 187 Kč
€ 8.20 |
||
| 011 2 WHR01260 |
C00326647
481202308031 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 011 3 WHR01260 |
C00326648
481202308032 |
tesneni nadrze | 423 Kč
€ 18.60 |
||
| 011 5 WHR01260 |
C00326649
481202308033 |
Clip heating | Na dotaz | Zadat poptávku | |
| 011 7 WHR01260 |
C00326708
481202308136 |
Tub front part | Na dotaz | Zadat poptávku | |
| 011 8 WHR01260 |
C00314783
481202308035 |
Door bellow | Na dotaz | Zadat poptávku | |
| 011 9 WHR01260 |
C00326651
481202308036 |
Spring,wire | Na dotaz | Zadat poptávku | |
| 012 0 WHR01260 |
C00326709
481202308137 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 012 1 WHR01260 |
C00312953
481202308038 |
Heating element | Na dotaz | Zadat poptávku | |
| 012 2 WHR01260 |
C00316060
481202308039 |
Screw PT 8*25 | Na dotaz | Zadat poptávku | |
| 012 4 WHR01260 |
C00326653
481202308041 |
Screw M8*25 | Na dotaz | Zadat poptávku | |
| 012 6 WHR01260 |
C00326654
481202308042 |
sroub | 178 Kč
€ 7.80 |
||
| 013 2 WHR01260 |
C00326655
481202308043 |
Cable earth / tub | Na dotaz | Zadat poptávku | |
| 016 0 WHR01260 |
C00326710
481202308138 |
Drum | Na dotaz | Zadat poptávku | |
| 020 0 WHR01260 |
C00313840
481202308045 |
Drawer detergent | Na dotaz | Zadat poptávku | |
| 020 1 WHR01260 |
C00317525
481202308046 |
rozdelovac prasku | 553 Kč
€ 24.30 |
||
| 020 2 WHR01260 |
C00326657
481202308047 |
Siphon | 230 Kč
€ 10.10 |
||
| 020 4 WHR01260 |
C00326658
481202308049 |
Exhaust fume | Na dotaz | Zadat poptávku | |
| 020 6 WHR01260 |
C00317529
481202308052 |
Bellows | Na dotaz | Zadat poptávku | |
| 020 7 WHR01260 |
C00326659
481202308053 |
Hose valve / deterg. box | Na dotaz | Zadat poptávku | |
| 020 8 WHR01260 |
C00326711
481202308139 |
Hose inlet valve / box | Na dotaz | Zadat poptávku | |
| 020 9 WHR01260 |
C00326661
481202308055 |
ventil | 1 416 Kč
€ 62.20 |
||
| 021 1 WHR01260 |
C00326662
481202308056 |
Hose pressure switch | Na dotaz | Zadat poptávku | |
| 021 2 WHR01260 |
C00326663
481202308057 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 021 3 WHR01260 |
C00318077
481202308058 |
hadice | 408 Kč
€ 17.90 |
||
| 021 5 WHR01260 |
C00326664
481202308059 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 021 9 WHR01260 |
C00326665
481202308061 |
Hose drain | Na dotaz | Zadat poptávku | |
| 022 0 WHR01260 |
C00326666
481202308062 |
koleno | 124 Kč
€ 5.50 |
||
| 022 1 WHR01260 |
C00326667
481202308063 |
Suspension hook | Na dotaz | Zadat poptávku | |
| 022 2 WHR01260 |
C00326668
481202308064 |
drzak presostatu | Na dotaz | Zadat poptávku | |
| 022 5 WHR01260 |
C00318079
481202308065 |
presostat | 1 027 Kč
€ 45.10 |
||
| 022 8 WHR01260 |
C00326669
481202308066 |
Clamp | Na dotaz | Zadat poptávku | |
| 023 4 WHR01260 |
C00326671
481202308068 |
Clamp | Na dotaz | Zadat poptávku | |
| 023 5 WHR01260 |
C00326672
481202308069 |
Holder hose | Na dotaz | Zadat poptávku | |
| 023 6 WHR01260 |
C00326673
481202308071 |
Holder | Na dotaz | Zadat poptávku | |
| 023 8 WHR01260 |
C00320941
480111100026 |
Stopper | Na dotaz | Zadat poptávku | |
| 023 9 WHR01260 |
C00326676
481202308074 |
Cable mains | Na dotaz | Zadat poptávku | |
| 024 4 WHR01260 |
C00326681
481202308079 |
Clamp | Na dotaz | Zadat poptávku | |
| 024 9 WHR01260 |
C00326713
481202308185 |
Cable harness | Na dotaz | Zadat poptávku | |
| 025 0 WHR01260 |
C00326683
481202308082 |
svorka | 111 Kč
€ 4.90 |
||
| 027 0 WHR01260 |
C00312957
481202308083 |
nasypka | 2 676 Kč
€ 117.60 |
||
| 028 5 WHR01260 |
C00313268 | Pump | Na dotaz | Zadat poptávku | |
| 029 0 WHR01260 |
C00326684
481202308085 |
Lever,security cpl. | Na dotaz | Zadat poptávku | |
| 040 0 WHR01260 |
C00317888
480111100027 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 040 1 WHR01260 |
C00317669
480111100028 |
Control panel | Na dotaz | Zadat poptávku | |
| 040 2 WHR01260 |
C00326686
481202308088 |
Knob Programme adjust | Na dotaz | Zadat poptávku | |
| 040 3 WHR01260 |
C00326687
481202308089 |
Shaft Programm Knob | Na dotaz | Zadat poptávku | |
| 040 6 WHR01260 |
C00326688
481202308091 |
svetlovod | 203 Kč
€ 8.90 |
||
| 040 7 WHR01260 |
C00317348
481202308092 |
sroub | 56 Kč
€ 2.50 |
||
| 040 8 WHR01260 |
C00326689
481202308093 |
sroub | 56 Kč
€ 2.50 |
||
| 041 0 WHR01260 |
C00326690
481202308094 |
sroub | 56 Kč
€ 2.50 |
||
| 041 1 WHR01260 |
C00320064
481202308095 |
Držák řídící jednotky pračky Whirlpool, Ignis | 556 Kč
€ 24.40 |
||
| 041 2 WHR01260 |
C00312447
480111100018 |
Control board | Na dotaz | Zadat poptávku | |
| 041 5 WHR01260 |
C00326691
481202308097 |
knoflik | 56 Kč
€ 2.50 |
||
| 043 9 WHR01260 |
C00326692
481202308098 |
Shaft | Na dotaz | Zadat poptávku | |
| 044 0 WHR01260 |
C00317545
481202308099 |
Knob | Na dotaz | Zadat poptávku | |
| 044 6 WHR01260 |
C00326693
481202308101 |
sroub | 56 Kč
€ 2.50 |
||
| 044 9 WHR01260 |
C00326694
481202308102 |
pruzina | 417 Kč
€ 18.30 |
||
| 049 6 WHR01260 |
C00326695
481202308103 |
Button Start - Pause | Na dotaz | Zadat poptávku | |
| 049 7 WHR01260 |
C00326696
481202308104 |
Light guide Start - select | Na dotaz | Zadat poptávku | |
| 049 8 WHR01260 |
C00326697
481202308105 |
kryt | 257 Kč
€ 11.30 |
||
| 049 9 WHR01260 |
C00326698
481202308106 |
Cover spin / temp | Na dotaz | Zadat poptávku | |
| 070 0 WHR01260 |
C00326699
481202308107 |
pruzina | 174 Kč
€ 7.60 |
||
| 080 0 WHR01260 |
C00326700
481202308108 |
Spring | Na dotaz | Zadat poptávku | |
| 080 0 WHR01260 |
C00318947
480111100019 |
Spring | Na dotaz | Zadat poptávku | |
| 080 5 WHR01260 |
C00326701
481202308109 |
Screw PT 8*40 | Na dotaz | Zadat poptávku | |
| 080 6 WHR01260 |
C00326702
481202308111 |
Washer 8,4*28*3 | Na dotaz | Zadat poptávku | |
| 081 1 WHR01260 |
C00326704
481202308113 |
Support | Na dotaz | Zadat poptávku | |
| 081 2 WHR01260 |
C00326705
481202308114 |
Nut M 8 | Na dotaz | Zadat poptávku | |
| 081 3 WHR01260 |
C00312961
481202308115 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 999 WHR01260 |
C00354537 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01260 |
C00354538 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
