WHIRLPOOL AWG 858 WASHING MACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG 858 WASHING MACHINES WP |
| Kód 12NC/I.C. kód: | 853785845000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

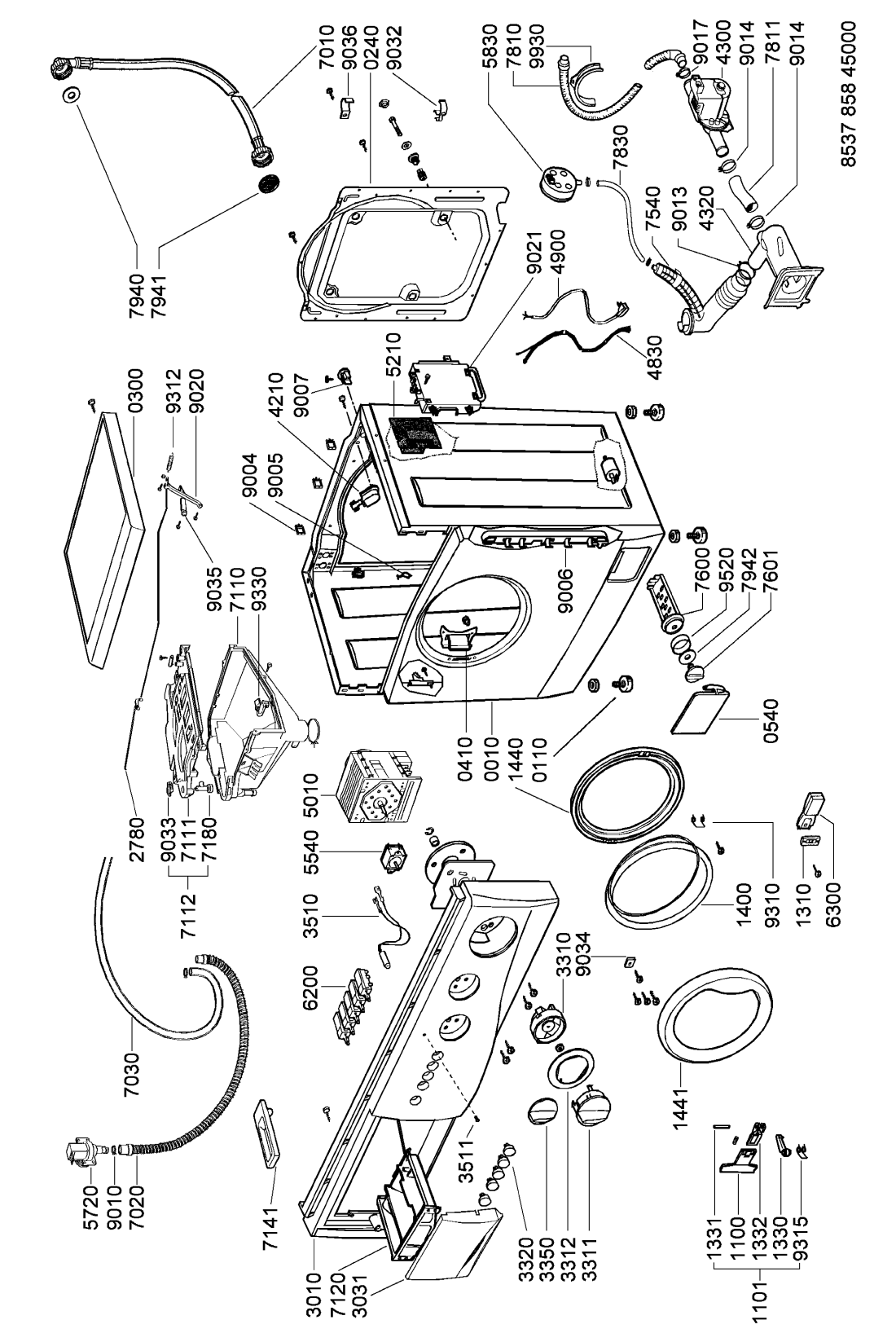

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR67899 |
C00585332
481244010544 |
skrin pracky | Na dotaz | Zadat poptávku | |
| 011 0 WHR67899 |
C00333071
481946247014 |
noha nastavitelna | 283 Kč
€ 11.50 |
||
| 024 0 WHR67899 |
C00491702
481244010322 |
stena zadni | Na dotaz | Zadat poptávku | |
| 030 0 WHR67899 |
C00491710
481244010545 |
deska horni | Na dotaz | Zadat poptávku | |
| 041 0 WHR67899 |
C00339876
481941719534 |
Hinge | Na dotaz | Zadat poptávku | |
| 054 0 WHR67899 |
C00342497
481246228312 |
kryt filtru | Na dotaz | Zadat poptávku | |
| 061 0 WHR67899 |
C00585873
481246688565 |
Counter weight upper. | Na dotaz | Zadat poptávku | |
| 061 1 WHR67899 |
C00585397
481246688566 |
Counter weight bottom. | Na dotaz | Zadat poptávku | |
| 081 0 WHR67899 |
C00377825
481246698975 |
tlumic | Na dotaz | Zadat poptávku | |
| 081 1 WHR67899 |
C00377826
481246698976 |
tlumic | Na dotaz | Zadat poptávku | |
| 086 1 WHR67899 |
C00585265
481231038539 |
Fastener counterweight kit. | Na dotaz | Zadat poptávku | |
| 086 2 WHR67899 |
C00585264
481231028243 |
Fastener kit motor. | Na dotaz | Zadat poptávku | |
| 110 0 WHR67899 |
C00340141
481949878431 |
Rukojeť dveří pračky v10120 | 502 Kč
€ 20.40 |
||
| 110 1 WHR67899 |
C00312699
481949878432 |
rukojet dveri kompl. | Na dotaz | Zadat poptávku | |
| 131 0 WHR67899 |
C00338327
481990310159 |
Lock Plate | Na dotaz | Zadat poptávku | |
| 133 0 WHR67899 |
C00333391
481990310175 |
hak uzaveru dveri | Na dotaz | Zadat poptávku | |
| 133 1 WHR67899 |
C00333390
481990310174 |
Pin handle | Na dotaz | Zadat poptávku | |
| 133 2 WHR67899 |
C00319560
481990310176 |
paka rukojeti | Na dotaz | Zadat poptávku | |
| 140 0 WHR67899 |
C00333041
481945058178 |
sklo dveri | 1 287 Kč
€ 52.40 |
||
| 143 0 WHR67899 |
C00333371
481990302494 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 144 0 WHR67899 |
C00318322
481990310179 |
Příruba dveří | 695 Kč
€ 28.30 |
||
| 144 1 WHR67899 |
C00314636
481241618441 |
Rám dveří vnější | Na dotaz | Zadat poptávku | |
| 144 2 WHR67899 |
C00316504
481953288054 |
spona TVO - vnitřní | Na dotaz | Zadat poptávku | |
| 190 0 WHR67899 |
C00377827
481246818075 |
Door bellows | Na dotaz | Zadat poptávku | |
| 200 0 WHR67899 |
C00585317
481241818313 |
nadrz | Na dotaz | Zadat poptávku | |
| 201 0 WHR67899 |
C00585319
481241818316 |
dno nadrze | Na dotaz | Zadat poptávku | |
| 210 0 WHR67899 |
C00585410
481252898015 |
NOSIC BUBNA | Na dotaz | Zadat poptávku | |
| 220 1 WHR67899 |
C00585318
481241818315 |
buben | Na dotaz | Zadat poptávku | |
| 223 0 WHR67899 |
C00493542
481241888991 |
zebro bubnu | Na dotaz | Zadat poptávku | |
| 271 0 WHR67899 |
C00375540
481235818174 |
Řemen víceklínový 1245 J5 pračka Whirlpool | 502 Kč
€ 20.40 |
||
| 272 0 WHR67899 |
C00492082
481252888093 |
remenice bubnu | 1 069 Kč
€ 43.50 |
||
| 278 0 WHR67899 |
C00493826
481253598094 |
Rod pull dispenser | Na dotaz | Zadat poptávku | |
| 291 0 WHR67899 |
C00486354
481290308213 |
tesneni bocnice | Na dotaz | Zadat poptávku | |
| 301 0 WHR67899 |
C00585851
481246468293 |
Control panel. | Na dotaz | Zadat poptávku | |
| 303 1 WHR67899 |
C00487838
481249878169 |
celo nasypky | Na dotaz | Zadat poptávku | |
| 331 0 WHR67899 |
C00487188
481241258918 |
GOMBIK | Na dotaz | Zadat poptávku | |
| 331 1 WHR67899 |
C00341909
481241378645 |
knoflik programatoru | Na dotaz | Zadat poptávku | |
| 331 2 WHR67899 |
C00377634
481241378646 |
krouzek knofliku | Na dotaz | Zadat poptávku | |
| 332 0 WHR67899 |
C00343967
481241028854 |
Krytka spínače | Na dotaz | Zadat poptávku | |
| 335 0 WHR67899 |
C00338442
481241258919 |
knoflik termostatu | Na dotaz | Zadat poptávku | |
| 351 0 WHR67899 |
C00320908
481913448503 |
SIGNALKA | Na dotaz | Zadat poptávku | |
| 351 1 WHR67899 |
C00341815
481238118276 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 401 0 WHR67899 |
C00488690
481236178014 |
MOTOR | Na dotaz | Zadat poptávku | |
| 421 0 WHR67899 |
C00556756
481212118221 |
KONDENZATOR N | Na dotaz | Zadat poptávku | |
| 430 0 WHR67899 |
C00377572
481236018499 |
Čerpadlo vypouštěcí | Na dotaz | Zadat poptávku | |
| 432 0 WHR67899 |
C00320137
481248058106 |
teleso filtru | Na dotaz | Zadat poptávku | |
| 451 0 WHR67899 |
C00377489
481225928783 |
topeni s pojistkou | Na dotaz | Zadat poptávku | |
| 483 0 WHR67899 |
C00493199
481232178133 |
Cable harness | Na dotaz | Zadat poptávku | |
| 490 0 WHR67899 |
C00328489
481232118099 |
Cable mains at 02.04.2006 | Na dotaz | Zadat poptávku | |
| 501 0 WHR67899 |
C00377569
481232818179 |
programator | Na dotaz | Zadat poptávku | |
| 521 0 WHR67899 |
C00482221
481221458069 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 551 0 WHR67899 |
C00491325
481228228256 |
termostat | Na dotaz | Zadat poptávku | |
| 551 3 WHR67899 |
C00320422
481290308212 |
senzor NTC | Na dotaz | Zadat poptávku | |
| 554 0 WHR67899 |
C00337597
481990308226 |
potenciometr | Na dotaz | Zadat poptávku | |
| 572 0 WHR67899 |
C00492949
481228118054 |
ventil napousteci | Na dotaz | Zadat poptávku | |
| 583 0 WHR67899 |
C00491009
481227128458 |
presostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR67899 |
C00316615
481927638336 |
spinac sitovy | 992 Kč
€ 40.40 |
||
| 630 0 WHR67899 |
C00557947
481227138432 |
NAHRADA 481228058043 | Na dotaz | Zadat poptávku | |
| 701 0 WHR67899 |
C00314542
481953028932 |
60Bars 25# WRC,VDE, IMQ straight/curved | Na dotaz | Zadat poptávku | |
| 702 0 WHR67899 |
C00380586
481252648089 |
hadice od ventilu | Na dotaz | Zadat poptávku | |
| 703 0 WHR67899 |
C00585413
481253029042 |
HADICA | Na dotaz | Zadat poptávku | |
| 708 4 WHR67899 |
C00493719
481253029041 |
Hadice k násypce | Na dotaz | Zadat poptávku | |
| 711 0 WHR67899 |
C00485020
481241879725 |
teleso nasypky | Na dotaz | Zadat poptávku | |
| 711 1 WHR67899 |
C00485980
481246228326 |
viko nasypky | Na dotaz | Zadat poptávku | |
| 711 2 WHR67899 |
C00486063
481246279765 |
viko nasypky | Na dotaz | Zadat poptávku | |
| 712 0 WHR67899 |
C00377696
481241879726 |
zasuvka nasypky | Na dotaz | Zadat poptávku | |
| 714 1 WHR67899 |
C00585323
481241879727 |
vlozka nasypky | Na dotaz | Zadat poptávku | |
| 718 0 WHR67899 |
C00484340
481936069853 |
ODTOK PLAST | Na dotaz | Zadat poptávku | |
| 754 0 WHR67899 |
C00493720
481253029043 |
Hadice buben-čerpadlo-presostat | Na dotaz | Zadat poptávku | |
| 760 0 WHR67899 |
C00378125
481990308151 |
filtr cerpadla | 1 157 Kč
€ 47.10 |
||
| 760 1 WHR67899 |
C00318920
481946278861 |
sroub filtru | Na dotaz | Zadat poptávku | |
| 781 0 WHR67899 |
C00315104
481253029045 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 781 1 WHR67899 |
C00493721
481253029044 |
hadice k filtru | Na dotaz | Zadat poptávku | |
| 783 0 WHR67899 |
C00333283
481953028682 |
hadice | Na dotaz | Zadat poptávku | |
| 794 0 WHR67899 |
C00333379
481990304978 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 1 WHR67899 |
C00332861
481931038057 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 2 WHR67899 |
C00316082
481953268309 |
Podložka filtru | Na dotaz | Zadat poptávku | |
| 900 4 WHR67899 |
C00333345
481953538158 |
Hook | Na dotaz | Zadat poptávku | |
| 900 5 WHR67899 |
C00332908
481940113349 |
Hook | Na dotaz | Zadat poptávku | |
| 900 6 WHR67899 |
C00500797
481240478427 |
Bracket vertical cable | Na dotaz | Zadat poptávku | |
| 900 7 WHR67899 |
C00332924
481940118738 |
Clamp | Na dotaz | Zadat poptávku | |
| 901 0 WHR67899 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 77 Kč
€ 3.10 |
||
| 901 3 WHR67899 |
C00332911
481940118351 |
SPONA HADICE NÁDRŽ-F | Na dotaz | Zadat poptávku | |
| 901 4 WHR67899 |
C00311154
481940118174 |
Spona odparov.hadica | 122 Kč
€ 5.00 |
||
| 901 7 WHR67899 |
C00332913
481940118429 |
SPONA VYT. HADICE | Na dotaz | Zadat poptávku | |
| 902 0 WHR67899 |
C00333367
481990302468 |
Lever | Na dotaz | Zadat poptávku | |
| 902 1 WHR67899 |
C00585663
481240448747 |
kryt regulatoru | Na dotaz | Zadat poptávku | |
| 903 2 WHR67899 |
C00333384
481990308165 |
drzak hadice | Na dotaz | Zadat poptávku | |
| 903 3 WHR67899 |
C00333366
481990302466 |
Páka trysky | Na dotaz | Zadat poptávku | |
| 903 4 WHR67899 |
C00333387
481990310167 |
Door glass insert | Na dotaz | Zadat poptávku | |
| 903 5 WHR67899 |
C00333368
481990302469 |
Rocker | Na dotaz | Zadat poptávku | |
| 903 6 WHR67899 |
C00333383
481990308162 |
Holder hose 2 | Na dotaz | Zadat poptávku | |
| 910 1 WHR67899 |
C00492024
481250218501 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR67899 |
C00492025
481250218502 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 921 0 WHR67899 |
C00585416
481253218067 |
PODLOZKA REMENICE | Na dotaz | Zadat poptávku | |
| 931 0 WHR67899 |
C00333392
481990310178 |
Spring | Na dotaz | Zadat poptávku | |
| 931 2 WHR67899 |
C00333369
481990302471 |
Spring | Na dotaz | Zadat poptávku | |
| 931 5 WHR67899 |
C00333388
481990310172 |
PRUZINA UZAVERU | Na dotaz | Zadat poptávku | |
| 933 0 WHR67899 |
C00333377
481990303659 |
hak nasypky | Na dotaz | Zadat poptávku | |
| 952 0 WHR67899 |
C00315611
481946669816 |
tesneni filtru | Na dotaz | Zadat poptávku | |
| 952 3 WHR67899 |
C00486166
481246688606 |
Gasket thermoresistance | Na dotaz | Zadat poptávku | |
| 993 0 WHR67899 |
C00332909
481940118345 |
koleno vyt. hadice | Na dotaz | Zadat poptávku | |
