WHIRLPOOL AWG 870/4
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG 870/4 |
| Kód 12NC/I.C. kód: | 853787061400 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 853787061401, 853787010400 |
Potřebujete servis? Jsme tady pro Vás

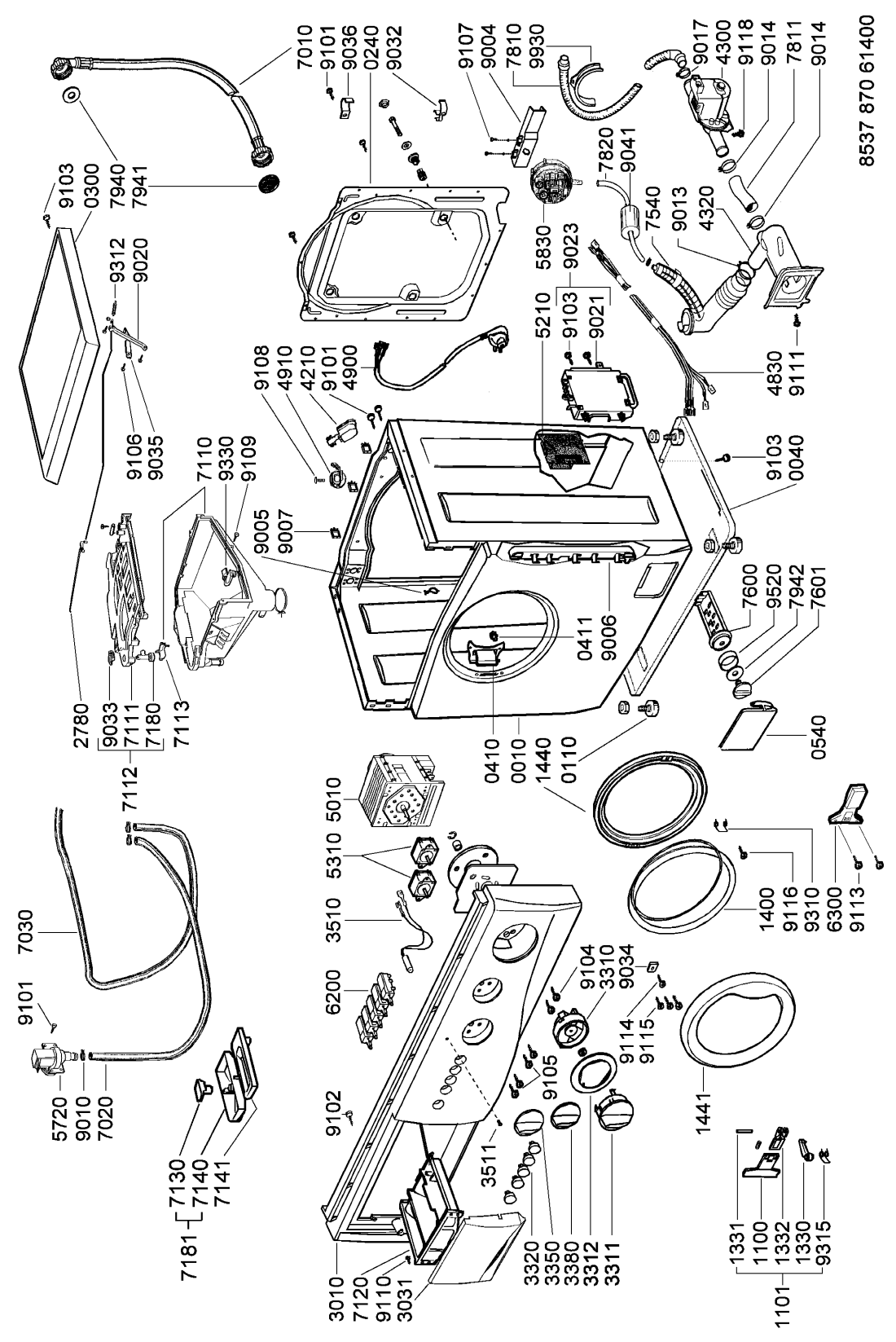

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR63121 |
C00585336
481244011059 |
skrin pracky | Na dotaz | Zadat poptávku | |
| 003 0 WHR63121 |
C00484768
481240448778 |
Bearer hook crosspiece | Na dotaz | Zadat poptávku | |
| 004 0 WHR63121 |
C00482962
481244098232 |
Plate, bottom | Na dotaz | Zadat poptávku | |
| 011 0 WHR63121 |
C00333071
481946247014 |
noha nastavitelna | 283 Kč
€ 11.60 |
||
| 024 0 WHR63121 |
C00491702
481244010322 |
stena zadni | Na dotaz | Zadat poptávku | |
| 030 0 WHR63121 |
C00491710
481244010545 |
deska horni | Na dotaz | Zadat poptávku | |
| 041 0 WHR63121 |
C00329731
481241719305 |
Závěs dveří | Na dotaz | Zadat poptávku | |
| 041 1 WHR63121 |
C00336813
481990310139 |
nyt plastovy | Na dotaz | Zadat poptávku | |
| 054 0 WHR63121 |
C00342497
481246228312 |
kryt filtru | Na dotaz | Zadat poptávku | |
| 061 0 WHR63121 |
C00621450
481246688792 |
Counter weight | Na dotaz | Zadat poptávku | |
| 061 1 WHR63121 |
C00486173
481246688755 |
zavazi predni | Na dotaz | Zadat poptávku | |
| 083 0 WHR63121 |
C00333117
481946647003 |
Destička třecí | Na dotaz | Zadat poptávku | |
| 083 1 WHR63121 |
C00377802
481246238194 |
plech ke trecim dest | Na dotaz | Zadat poptávku | |
| 083 2 WHR63121 |
C00486029
481246238193 |
plech ke trecim dest | Na dotaz | Zadat poptávku | |
| 086 0 WHR63121 |
C00333176
481949268576 |
pruzina treciho tlum | Na dotaz | Zadat poptávku | |
| 086 1 WHR63121 |
C00491573
481240478715 |
Fastener | Na dotaz | Zadat poptávku | |
| 086 2 WHR63121 |
C00585291
481240478686 |
UPEVNOVADLO | Na dotaz | Zadat poptávku | |
| 086 3 WHR63121 |
C00500799
481240478716 |
Fastener | Na dotaz | Zadat poptávku | |
| 086 4 WHR63121 |
C00377606
481240478717 |
plech ke trecim dest | Na dotaz | Zadat poptávku | |
| 086 5 WHR63121 |
C00332788
481290448018 |
tlumic | Na dotaz | Zadat poptávku | |
| 110 0 WHR63121 |
C00340141
481949878431 |
Rukojeť dveří pračky v10120 | 502 Kč
€ 20.60 |
||
| 110 1 WHR63121 |
C00312699
481949878432 |
rukojet dveri kompl. | Na dotaz | Zadat poptávku | |
| 133 0 WHR63121 |
C00333391
481990310175 |
hak uzaveru dveri | Na dotaz | Zadat poptávku | |
| 133 1 WHR63121 |
C00333390
481990310174 |
Pin handle | Na dotaz | Zadat poptávku | |
| 133 2 WHR63121 |
C00319560
481990310176 |
paka rukojeti | Na dotaz | Zadat poptávku | |
| 140 0 WHR63121 |
C00333041
481945058178 |
sklo dveri | 1 287 Kč
€ 52.90 |
||
| 143 0 WHR63121 |
C00333371
481990302494 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 144 0 WHR63121 |
C00318322
481990310179 |
Příruba dveří | 695 Kč
€ 28.60 |
||
| 144 1 WHR63121 |
C00314636
481241618441 |
Rám dveří vnější | Na dotaz | Zadat poptávku | |
| 144 2 WHR63121 |
C00492115
481253298019 |
spona TVO | Na dotaz | Zadat poptávku | |
| 190 0 WHR63121 |
C00377828
481246818103 |
Těsnění dveří pračky | 2 708 Kč
€ 111.30 |
||
| 200 0 WHR63121 |
C00493538
481241818488 |
nadrz | Na dotaz | Zadat poptávku | |
| 201 0 WHR63121 |
C00585325
481241889036 |
dno nadrze | Na dotaz | Zadat poptávku | |
| 204 0 WHR63121 |
C00485031
481241888988 |
ochrana nadrz-skrin | Na dotaz | Zadat poptávku | |
| 220 0 WHR63121 |
C00585320
481241818492 |
BUBON PRACKY | Na dotaz | Zadat poptávku | |
| 223 0 WHR63121 |
C00380582
481241889031 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR63121 |
C00380577
481235818189 |
remen vicekl.1238H7 | Na dotaz | Zadat poptávku | |
| 272 0 WHR63121 |
C00492082
481252888093 |
remenice bubnu | 1 069 Kč
€ 43.90 |
||
| 278 0 WHR63121 |
C00493825
481253598091 |
ROD,PULL | Na dotaz | Zadat poptávku | |
| 291 0 WHR63121 |
C00486165
481246688598 |
tesneni bocnice | Na dotaz | Zadat poptávku | |
| 301 0 WHR63121 |
C00500898
481246469002 |
panel ovladaci | Na dotaz | Zadat poptávku | |
| 303 1 WHR63121 |
C00487838
481249878169 |
celo nasypky | Na dotaz | Zadat poptávku | |
| 331 0 WHR63121 |
C00487188
481241258918 |
GOMBIK | Na dotaz | Zadat poptávku | |
| 331 1 WHR63121 |
C00341909
481241378645 |
knoflik programatoru | Na dotaz | Zadat poptávku | |
| 331 2 WHR63121 |
C00377634
481241378646 |
krouzek knofliku | Na dotaz | Zadat poptávku | |
| 332 0 WHR63121 |
C00343967
481241028854 |
Krytka spínače | Na dotaz | Zadat poptávku | |
| 335 0 WHR63121 |
C00338442
481241258919 |
knoflik termostatu | Na dotaz | Zadat poptávku | |
| 338 0 WHR63121 |
C00487193
481241258945 |
Knob,potentiom. | Na dotaz | Zadat poptávku | |
| 351 0 WHR63121 |
C00480847
481913448496 |
SIGNALKA AWG336 | Na dotaz | Zadat poptávku | |
| 351 1 WHR63121 |
C00341815
481238118276 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 401 0 WHR63121 |
C00380579
481236158401 |
motor | Na dotaz | Zadat poptávku | |
| 421 0 WHR63121 |
C00317581
481212118212 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 430 0 WHR63121 |
C00377572
481236018499 |
Čerpadlo vypouštěcí | Na dotaz | Zadat poptávku | |
| 432 0 WHR63121 |
C00320137
481248058106 |
teleso filtru | Na dotaz | Zadat poptávku | |
| 451 0 WHR63121 |
C00380560
481225928806 |
topeni s pojistkou | Na dotaz | Zadat poptávku | |
| 451 1 WHR63121 |
C00490126
481246638051 |
kryt topeni | Na dotaz | Zadat poptávku | |
| 483 0 WHR63121 |
C00493169
481232118262 |
Cable harness | Na dotaz | Zadat poptávku | |
| 490 0 WHR63121 |
C00342882
481232118122 |
Cable mains until 02.04.2006 | Na dotaz | Zadat poptávku | |
| 491 0 WHR63121 |
C00332924
481940118738 |
Clamp | Na dotaz | Zadat poptávku | |
| 501 0 WHR63121 |
C00527077
481228218828 |
Timer 0797-03 | Na dotaz | Zadat poptávku | |
| 521 0 WHR63121 |
C00585597
481221458191 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 531 0 WHR63121 |
C00327539
481228228307 |
Potentiometer | Na dotaz | Zadat poptávku | |
| 551 9 WHR63121 |
C00327228
481227128445 |
Thermostat | Na dotaz | Zadat poptávku | |
| 572 0 WHR63121 |
C00492951
481228118065 |
Valve magnet cold water | Na dotaz | Zadat poptávku | |
| 583 0 WHR63121 |
C00491017
481227128498 |
PRESSOSTAT | Na dotaz | Zadat poptávku | |
| 620 0 WHR63121 |
C00585292
481241028746 |
Switch. | Na dotaz | Zadat poptávku | |
| 630 0 WHR63121 |
C00572992
481228058045 |
Blokování dveří pračky pro pračku Whirlpool AWG 875 | 134 Kč
€ 5.50 |
||
| 701 0 WHR63121 |
C00314542
481953028932 |
60Bars 25# WRC,VDE, IMQ straight/curved | Na dotaz | Zadat poptávku | |
| 702 0 WHR63121 |
C00493745
481253029347 |
Hose inlet inner | Na dotaz | Zadat poptávku | |
| 703 0 WHR63121 |
C00380588
481253029375 |
Hose air-break | Na dotaz | Zadat poptávku | |
| 708 4 WHR63121 |
C00377875
481253029312 |
hadice k nasypce | Na dotaz | Zadat poptávku | |
| 711 0 WHR63121 |
C00585692
481241879751 |
dno nasypky | Na dotaz | Zadat poptávku | |
| 711 1 WHR63121 |
C00486004
481246228612 |
Cover | Na dotaz | Zadat poptávku | |
| 711 2 WHR63121 |
C00486003
481246228611 |
Cover | Na dotaz | Zadat poptávku | |
| 711 3 WHR63121 |
C00344552
481241889047 |
Arm | Na dotaz | Zadat poptávku | |
| 712 0 WHR63121 |
C00315595
481941878067 |
Zásuvka násypky AWG | Na dotaz | Zadat poptávku | |
| 713 0 WHR63121 |
C00333008
481941878989 |
Accessory deterg. fluid | Na dotaz | Zadat poptávku | |
| 714 0 WHR63121 |
C00333007
481941878988 |
Container liquid detergent | Na dotaz | Zadat poptávku | |
| 714 1 WHR63121 |
C00333003
481941878166 |
mrizka kryci | Na dotaz | Zadat poptávku | |
| 718 0 WHR63121 |
C00484340
481936069853 |
ODTOK PLAST | Na dotaz | Zadat poptávku | |
| 718 1 WHR63121 |
C00332862
481931038651 |
vlozka nasypky | Na dotaz | Zadat poptávku | |
| 754 0 WHR63121 |
C00493720
481253029043 |
Hadice buben-čerpadlo-presostat | Na dotaz | Zadat poptávku | |
| 760 0 WHR63121 |
C00378125
481990308151 |
filtr cerpadla | 1 157 Kč
€ 47.50 |
||
| 760 1 WHR63121 |
C00318920
481946278861 |
sroub filtru | Na dotaz | Zadat poptávku | |
| 781 0 WHR63121 |
C00332455
481253029372 |
Hose draining | Na dotaz | Zadat poptávku | |
| 781 1 WHR63121 |
C00493721
481253029044 |
hadice k filtru | Na dotaz | Zadat poptávku | |
| 782 0 WHR63121 |
C00333283
481953028682 |
hadice | Na dotaz | Zadat poptávku | |
| 794 0 WHR63121 |
C00333379
481990304978 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 1 WHR63121 |
C00332861
481931038057 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 2 WHR63121 |
C00316082
481953268309 |
Podložka filtru | Na dotaz | Zadat poptávku | |
| 900 1 WHR63121 |
C00317362
481946698528 |
Clamping piece | Na dotaz | Zadat poptávku | |
| 900 4 WHR63121 |
C00491505
481240438728 |
Holder | Na dotaz | Zadat poptávku | |
| 900 5 WHR63121 |
C00332908
481940113349 |
Hook | Na dotaz | Zadat poptávku | |
| 900 6 WHR63121 |
C00500797
481240478427 |
Bracket vertical cable | Na dotaz | Zadat poptávku | |
| 900 7 WHR63121 |
C00333345
481953538158 |
Hook | Na dotaz | Zadat poptávku | |
| 901 0 WHR63121 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 77 Kč
€ 3.20 |
||
| 901 3 WHR63121 |
C00332911
481940118351 |
SPONA HADICE NÁDRŽ-F | Na dotaz | Zadat poptávku | |
| 901 4 WHR63121 |
C00311154
481940118174 |
Spona odparov.hadica | 122 Kč
€ 5.00 |
||
| 901 7 WHR63121 |
C00332913
481940118429 |
SPONA VYT. HADICE | Na dotaz | Zadat poptávku | |
| 902 0 WHR63121 |
C00333367
481990302468 |
Lever | Na dotaz | Zadat poptávku | |
| 902 1 WHR63121 |
C00491519
481240448777 |
Holder electronic | Na dotaz | Zadat poptávku | |
| 902 3 WHR63121 |
C00484623
481221479235 |
Electronic box | Na dotaz | Zadat poptávku | |
| 903 0 WHR63121 |
C00333171
481949268392 |
Clamp | Na dotaz | Zadat poptávku | |
| 903 1 WHR63121 |
C00333375
481990302535 |
Gumové tlumiče pračky Whirlpool, Ignis - sada | Na dotaz | Zadat poptávku | |
| 903 2 WHR63121 |
C00333384
481990308165 |
drzak hadice | Na dotaz | Zadat poptávku | |
| 903 3 WHR63121 |
C00333366
481990302466 |
Páka trysky | Na dotaz | Zadat poptávku | |
| 903 4 WHR63121 |
C00333387
481990310167 |
Door glass insert | Na dotaz | Zadat poptávku | |
| 903 5 WHR63121 |
C00333368
481990302469 |
Rocker | Na dotaz | Zadat poptávku | |
| 903 6 WHR63121 |
C00333383
481990308162 |
Holder hose 2 | Na dotaz | Zadat poptávku | |
| 904 1 WHR63121 |
C00333118
481946663326 |
RING,RUBBER | Na dotaz | Zadat poptávku | |
| 910 1 WHR63121 |
C00332098
481250218649 |
Screw Torx D=4,2 H=9,5 | Na dotaz | Zadat poptávku | |
| 910 2 WHR63121 |
C00332113
481250218706 |
Screw | Na dotaz | Zadat poptávku | |
| 910 3 WHR63121 |
C00332099
481250218651 |
Screw Torx D=4,2 H=13 | Na dotaz | Zadat poptávku | |
| 910 4 WHR63121 |
C00336746
481950218486 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 5 WHR63121 |
C00332795
481293008011 |
sroub | Na dotaz | Zadat poptávku | |
| 910 6 WHR63121 |
C00333211
481950218387 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 7 WHR63121 |
C00333226
481950233254 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR63121 |
C00333218
481950218462 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 9 WHR63121 |
C00332156
481250238362 |
Screw | Na dotaz | Zadat poptávku | |
| 911 0 WHR63121 |
C00333210
481950218386 |
SCREW | Na dotaz | Zadat poptávku | |
| 911 1 WHR63121 |
C00333224
481950218534 |
Šroub | Na dotaz | Zadat poptávku | |
| 911 2 WHR63121 |
C00492029
481250218535 |
Screw | Na dotaz | Zadat poptávku | |
| 911 3 WHR63121 |
C00333389
481990310173 |
SCREW | Na dotaz | Zadat poptávku | |
| 911 4 WHR63121 |
C00333386
481990310165 |
Screw f.Door Glass expired | Na dotaz | Zadat poptávku | |
| 911 5 WHR63121 |
C00498567
481250218673 |
Screw | Na dotaz | Zadat poptávku | |
| 911 6 WHR63121 |
C00316725
481256018075 |
Screw | Na dotaz | Zadat poptávku | |
| 911 7 WHR63121 |
C00492047
481250218653 |
SKRUTKA | Na dotaz | Zadat poptávku | |
| 911 8 WHR63121 |
C00333215
481950218409 |
SCREW | Na dotaz | Zadat poptávku | |
| 911 9 WHR63121 |
C00332106
481250218677 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR63121 |
C00492025
481250218502 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 921 0 WHR63121 |
C00493815
481253218062 |
podlozka | Na dotaz | Zadat poptávku | |
| 931 0 WHR63121 |
C00333392
481990310178 |
Spring | Na dotaz | Zadat poptávku | |
| 931 2 WHR63121 |
C00333369
481990302471 |
Spring | Na dotaz | Zadat poptávku | |
| 931 3 WHR63121 |
C00491992
481249238394 |
Pružina agregátu | Na dotaz | Zadat poptávku | |
| 931 5 WHR63121 |
C00333388
481990310172 |
PRUZINA UZAVERU | Na dotaz | Zadat poptávku | |
| 933 0 WHR63121 |
C00333377
481990303659 |
hak nasypky | Na dotaz | Zadat poptávku | |
| 941 1 WHR63121 |
C00377876
481253068028 |
gufero | Na dotaz | Zadat poptávku | |
| 941 2 WHR63121 |
C00377869
481252088109 |
Ložisko sada | Na dotaz | Zadat poptávku | |
| 952 0 WHR63121 |
C00315611
481946669816 |
tesneni filtru | Na dotaz | Zadat poptávku | |
| 952 1 WHR63121 |
C00333365
481990302447 |
tesneni termostatu | Na dotaz | Zadat poptávku | |
| 993 0 WHR63121 |
C00332909
481940118345 |
koleno vyt. hadice | Na dotaz | Zadat poptávku | |
