WHIRLPOOL AWG/B M6060/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG/B M6060/1 |
| Kód 12NC/I.C. kód: | 859991568500 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

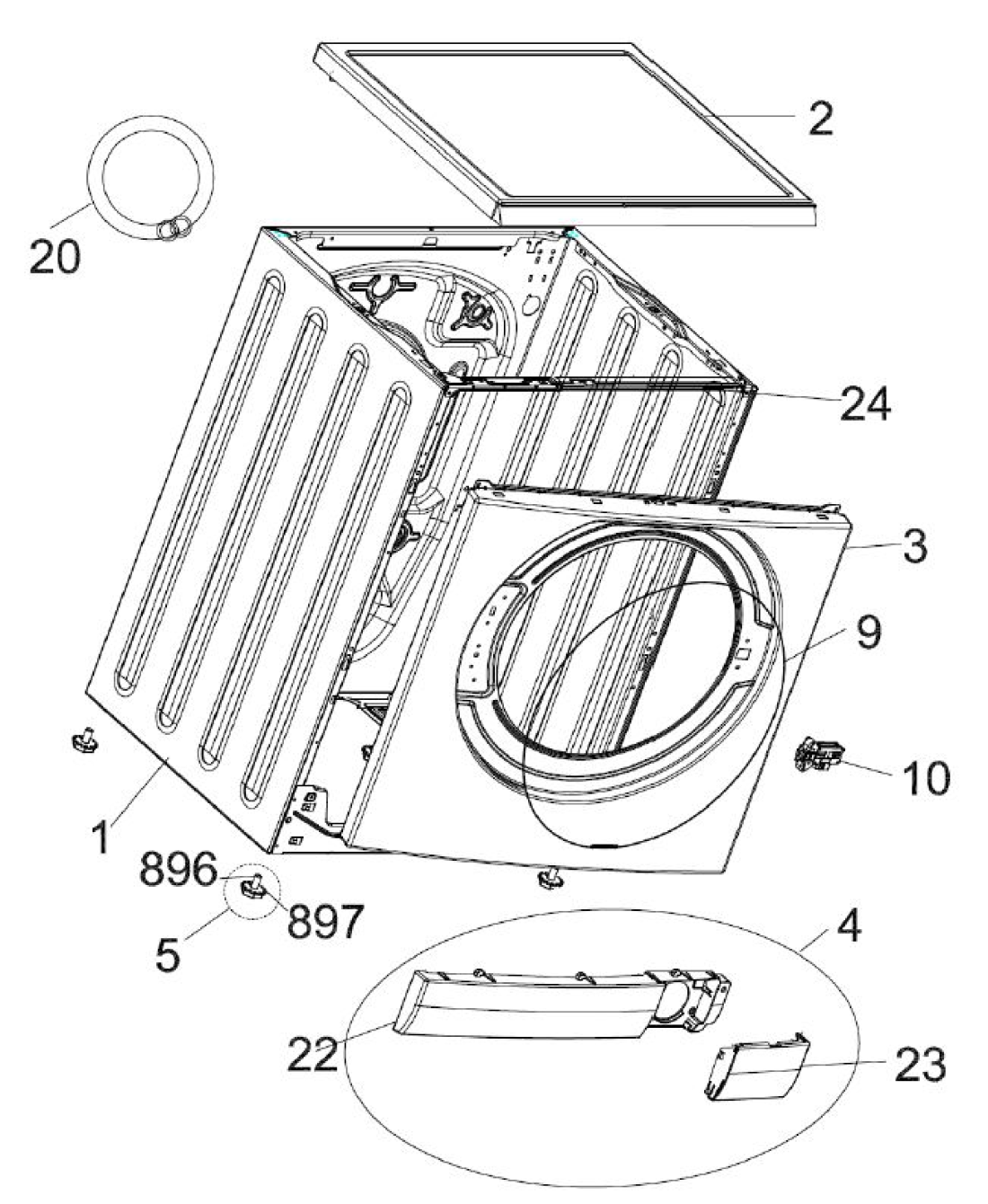

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 VEWS01b |
C00425845
480111101023 |
Cabinet | Na dotaz | Zadat poptávku | |
| 002 VEWS01b |
C00425854
480111101041 |
Table top | Na dotaz | Zadat poptávku | |
| 003 VEWS01b |
C00466467
482000005853 |
Front panel | Na dotaz | Zadat poptávku | |
| 004 VEWS01b |
C00505645
482000094811 |
Plinth | Na dotaz | Zadat poptávku | |
| 005 VEWS01b |
C00540502
488000540502 |
NASTAVITELNÉ PÁSY SBR-H | Na dotaz | Zadat poptávku | |
| 009 VEWS01b |
C00505647
482000094813 |
Clamp | Na dotaz | Zadat poptávku | |
| 010 VEWS01b |
C00338989
480111101045 |
Blokování dveří | 536 Kč
€ 22.00 |
||
| 020 VEWS01b |
C00517341
482000097674 |
Hose inlet water group | Na dotaz | Zadat poptávku | |
| 022 VEWS01b |
C00337705
480111101047 |
Plinth | Na dotaz | Zadat poptávku | |
| 023 VEWS01b |
C00505678
482000094817 |
Plinth COVER | Na dotaz | Zadat poptávku | |
| 024 VEWS01b |
C00505679
482000094818 |
Bracket bearing | Na dotaz | Zadat poptávku | |
| 100 VEWS01c |
C00469505
482000020922 |
Belt | Na dotaz | Zadat poptávku | |
| 101 VEWS01c |
C00314512
482000015838 |
Pulley | Na dotaz | Zadat poptávku | |
| 102 VEWS01c |
C00467280
482000010582 |
Motor | Na dotaz | Zadat poptávku | |
| 103 VEWS01c |
C00467951
482000015839 |
Tub rear part | Na dotaz | Zadat poptávku | |
| 104 VEWS01c |
C00469085
482000019803 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 105 VEWS01c |
C00326646
481202308029 |
Pin Shockabsorber | 90 Kč
€ 3.70 |
||
| 112 VEWS01c |
C00517318
482000097677 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 113 VEWS01c |
C00326648
481202308032 |
tesneni nadrze | 265 Kč
€ 10.90 |
||
| 115 VEWS01c |
C00345123
482000009783 |
Clip Heating | Na dotaz | Zadat poptávku | |
| 117 VEWS01c |
C00469086
482000019804 |
Tub half front | Na dotaz | Zadat poptávku | |
| 118 VEWS01c |
C00505691
482000094830 |
Gasket | Na dotaz | Zadat poptávku | |
| 119 VEWS01c |
C00505727
482000094831 |
TUB-GASKET CLAMP-ALVA -2 | Na dotaz | Zadat poptávku | |
| 120 VEWS01c |
C00517319
482000097678 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 121 VEWS01c |
C00469087
482000019805 |
Heating element + NTC (1850W) | Na dotaz | Zadat poptávku | |
| 124 VEWS01c |
C00505731
482000094835 |
Screw | Na dotaz | Zadat poptávku | |
| 160 VEWS01c |
C00467955
482000015844 |
Drum | Na dotaz | Zadat poptávku | |
| 206 VEWS01c |
C00317529
481202308052 |
Bellows | Na dotaz | Zadat poptávku | |
| 213 VEWS01c |
C00335133
482000019771 |
Drainhose | Na dotaz | Zadat poptávku | |
| 700 VEWS01c |
C00326699
481202308107 |
pruzina | 74 Kč
€ 3.00 |
||
| 800 VEWS01c |
C00466484
482000005873 |
Spring Tub | Na dotaz | Zadat poptávku | |
| 808 VEWS01c |
C00425873
480111101071 |
Screw | Na dotaz | Zadat poptávku | |
| 811 VEWS01c |
C00505818
482000094890 |
Support | Na dotaz | Zadat poptávku | |
| 812 VEWS01c |
C00505819
482000094891 |
Nut AKB,M8,C,FE,RPM-L | Na dotaz | Zadat poptávku | |
| 813 VEWS01c |
C00312961
481202308115 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 899 VEWS01c |
C00466486
482000005875 |
Heating element with hole | Na dotaz | Zadat poptávku | |
| 999 VEWS01c |
C00469094
482000019812 |
Sensor temper. NTC | Na dotaz | Zadat poptávku | |
| 200 VEWS01d |
C00425857
480111101053 |
Drawer | Na dotaz | Zadat poptávku | |
| 201 VEWS01d |
C00505736
482000094840 |
Drawer | Na dotaz | Zadat poptávku | |
| 202 VEWS01d |
C00505737
482000094841 |
Siphon COVER | Na dotaz | Zadat poptávku | |
| 203 VEWS01d |
C00505772
482000094842 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 205 VEWS01d |
C00425861
480111101057 |
Dispenser housing | Na dotaz | Zadat poptávku | |
| 207 VEWS01d |
C00326659
481202308053 |
Hose valve / deterg. box | Na dotaz | Zadat poptávku | |
| 208 VEWS01d |
C00326711
481202308139 |
Hose inlet valve / box | Na dotaz | Zadat poptávku | |
| 209 VEWS01d |
C00505777
482000094847 |
Valve | Na dotaz | Zadat poptávku | |
| 270 VEWS01d |
C00505795
482000094865 |
Dispenser BOX | Na dotaz | Zadat poptávku | |
| 275 VEWS01d |
C00467956
482000015845 |
Kit detergent box | Na dotaz | Zadat poptávku | |
| 280 VEWS01d |
C00467957
482000015846 |
Kit detergent box | Na dotaz | Zadat poptávku | |
| 211 VEWS01e |
C00467281
482000010583 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| 212 VEWS01e |
C00467253
482000010463 |
Chamber air | Na dotaz | Zadat poptávku | |
| 234 VEWS01e |
C00517346
482000097683 |
Clamp hose 32,7 | Na dotaz | Zadat poptávku | |
| 244 VEWS01e |
C00326681
481202308079 |
Clamp | Na dotaz | Zadat poptávku | |
| 295 VEWS01e |
C00505800
482000094870 |
Pressostat HOSE | Na dotaz | Zadat poptávku | |
| 215 VEWS01f |
C00505778
482000094848 |
Filter | Na dotaz | Zadat poptávku | |
| 219 VEWS01f |
C00505779
482000094849 |
Hose draining | Na dotaz | Zadat poptávku | |
| 220 VEWS01f |
C00505780
482000094850 |
Hose | Na dotaz | Zadat poptávku | |
| 221 VEWS01f |
C00517353
482000097690 |
Spring hanger sheetiron PLS | Na dotaz | Zadat poptávku | |
| 222 VEWS01f |
C00505782
482000094852 |
Clip | Na dotaz | Zadat poptávku | |
| 225 VEWS01f |
C00318079
481202308065 |
presostat | 1 093 Kč
€ 44.90 |
||
| 231 VEWS01f |
C00467447
482000012151 |
Crossbar spring | Na dotaz | Zadat poptávku | |
| 235 VEWS01f |
C00326672
481202308069 |
Holder hose | Na dotaz | Zadat poptávku | |
| 238 VEWS01f |
C00469088
482000019806 |
Cover | Na dotaz | Zadat poptávku | |
| 239 VEWS01f |
C00505788
482000094858 |
Mains cable | Na dotaz | Zadat poptávku | |
| 241 VEWS01f |
C00469058
482000019773 |
Washer 8.30x29x2 | Na dotaz | Zadat poptávku | |
| 249 VEWS01f |
C00540503
488000540503 |
CBL HARN (600-800-1000-1200 COLD) R / 42 | Na dotaz | Zadat poptávku | |
| 250 VEWS01f |
C00469677
482000023710 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 251 VEWS01f |
C00505791
482000094861 |
Cable holder | Na dotaz | Zadat poptávku | |
| 296 VEWS01f |
C00540501
488000540501 |
CBL GR(600-800-1000-1200 COLD)R/42-BMRNG | Na dotaz | Zadat poptávku | |
| 918 VEWS01f |
C00517357
482000097694 |
Pump filter | Na dotaz | Zadat poptávku | |
| 920 VEWS01f |
C00466520
482000006009 |
Fastener front panel, plastic | Na dotaz | Zadat poptávku | |
| 006 VEWS01g |
C00339291
480111101043 |
Door frame outer | Na dotaz | Zadat poptávku | |
| 007 VEWS01g |
C00454880
481202308134 |
Door glass | Na dotaz | Zadat poptávku | |
| 008 VEWS01g |
C00339295
480111101044 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 012 VEWS01g |
C00466468
482000005854 |
Hinge | Na dotaz | Zadat poptávku | |
| 014 VEWS01g |
C00426052
480111101335 |
Madlo, rukojeť dveří pračky Whirlpool | 366 Kč
€ 15.00 |
||
| 015 VEWS01g |
C00326634
481202308013 |
pruzina | 63 Kč
€ 2.60 |
||
| 016 VEWS01g |
C00341461
480111101052 |
Pin | Na dotaz | Zadat poptávku | |
| 017 VEWS01g |
C00426447
480111102063 |
Hák dveří pračky | 372 Kč
€ 15.30 |
||
| 026 VEWS01g |
C00336108
480111101051 |
Spring | Na dotaz | Zadat poptávku | |
| 027 VEWS01g |
C00326635
481202308014 |
Pin | Na dotaz | Zadat poptávku | |
| 050 VEWS01g |
C00505680
482000094819 |
Door outer | Na dotaz | Zadat poptávku | |
| 400 VEWS02a |
C00540903
488000540903 |
DETERGENT DRAWER COVER / LISSOTIS WHIRLP | Na dotaz | Zadat poptávku | |
| 401 VEWS02a |
C00540902
488000540902 |
OVLÁDACÍ PANEL WHIRLPOOL LR1 (AWG / B M6 | Na dotaz | Zadat poptávku | |
| 402 VEWS02a |
C00466564
482000006068 |
Knob timer | Na dotaz | Zadat poptávku | |
| 403 VEWS02a |
C00425866
480111101063 |
Adapter | Na dotaz | Zadat poptávku | |
| 405 VEWS02a |
C00466565
482000006069 |
Light guide 2x | Na dotaz | Zadat poptávku | |
| 406 VEWS02a |
C00466566
482000006070 |
Light guide 3x | Na dotaz | Zadat poptávku | |
| 411 VEWS02a |
C00469681
482000023714 |
Box PCB | Na dotaz | Zadat poptávku | |
| 412 VEWS02a |
C00540900
488000540900 |
E.CARD R1-22492FF00400-PCB-AKOR59-E | Na dotaz | Zadat poptávku | |
| 415 VEWS02a |
C00466568
482000006072 |
Button | Na dotaz | Zadat poptávku | |
| 483 VEWS02a |
C00540904
488000540904 |
DETERGENT DRAWER COVER INSERT/LISSOTIS-I | Na dotaz | Zadat poptávku | |
| 488 VEWS02a |
C00467965
482000015854 |
Shaft button group | Na dotaz | Zadat poptávku | |
| 489 VEWS02a |
C00467966
482000015855 |
Indication disc | Na dotaz | Zadat poptávku | |
| 500 VEWS02a |
C00540901
488000540901 |
CON.PAN.GR.WHIRLPOOL LR1 (AWG / B M6060 | Na dotaz | Zadat poptávku | |
