WHIRLPOOL AWG/B M6080 S/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG/B M6080 S/1 |
| Kód 12NC: | 859991568510 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

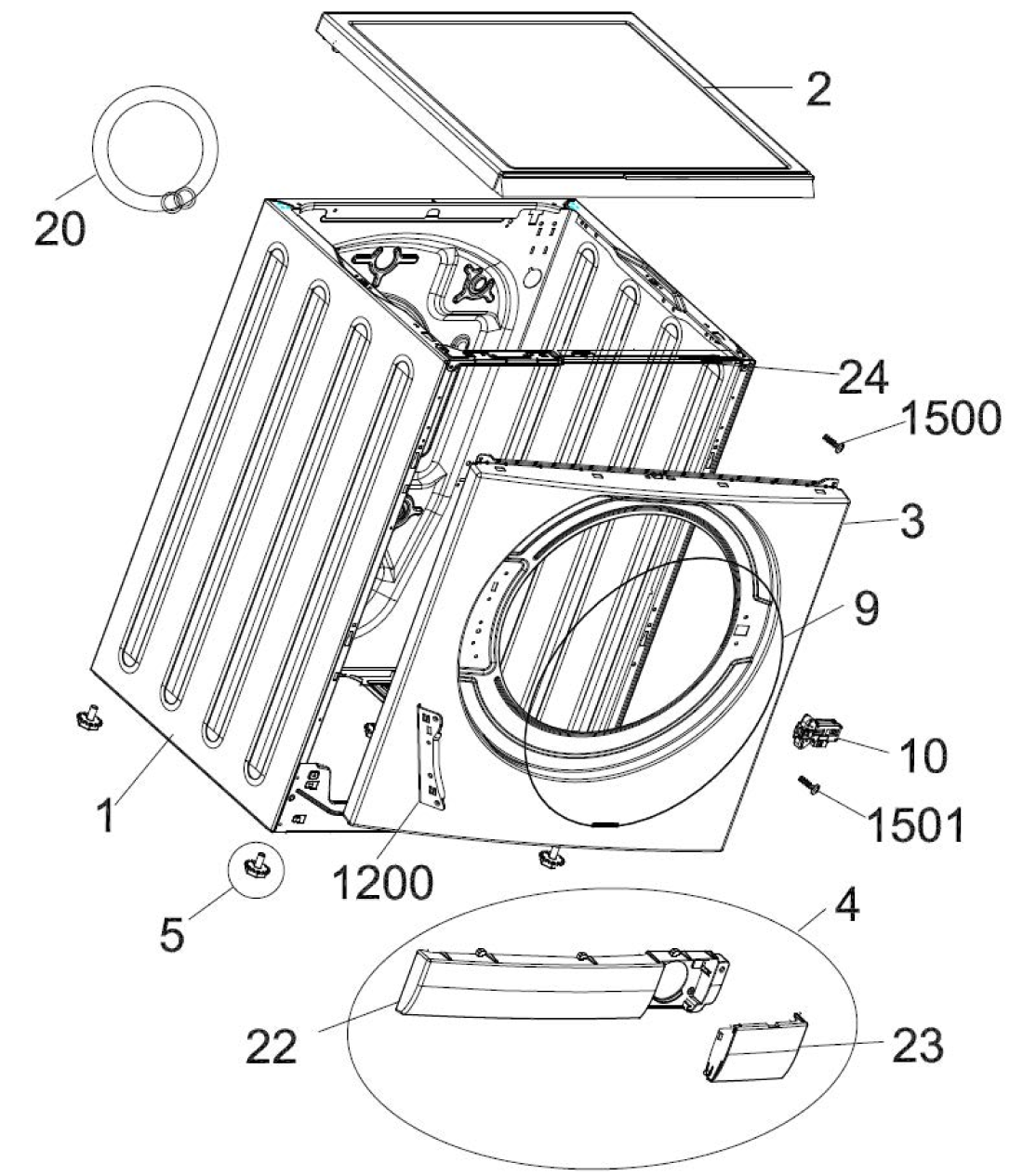

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0001 VEFR13e |
C00521825
482000098865 |
Body group painted 420ALV | Na dotaz | Zadat poptávku | |
| 0002 VEFR13e |
C00469067
482000019782 |
Table top | Na dotaz | Zadat poptávku | |
| 0003 VEFR13e |
C00466523
482000006022 |
Front panel | Na dotaz | Zadat poptávku | |
| 0004 VEFR13e |
C00469054
482000019767 |
Plinth | Na dotaz | Zadat poptávku | |
| 0005 VEFR13e |
C00540502
488000540502 |
NASTAVITELNÉ PÁSY SBR-H | Na dotaz | Zadat poptávku | |
| 0009 VEFR13e |
C00505647
482000094813 |
Clamp | Na dotaz | Zadat poptávku | |
| 0010 VEFR13e |
C00338989
480111101045 |
Blokování dveří | 504 Kč
€ 22.20 |
||
| 0020 VEFR13e |
C00517341
482000097674 |
Hose inlet water group | Na dotaz | Zadat poptávku | |
| 0022 VEFR13e |
C00426892
480111102669 |
Plinth | Na dotaz | Zadat poptávku | |
| 0023 VEFR13e |
C00426893
480111102671 |
Cover plinth | Na dotaz | Zadat poptávku | |
| 0024 VEFR13e |
C00505679
482000094818 |
Bracket bearing | Na dotaz | Zadat poptávku | |
| 1200 VEFR13e |
C00540828
488000540828 |
PODPORA HINGE-II-M5 | Na dotaz | Zadat poptávku | |
| 100 VEFR14 |
C00540514
488000540514 |
BELT(5-6-8 RPM,32-40-41-42LT)HUTCHINSON | Na dotaz | Zadat poptávku | |
| 101 VEFR14 |
C00314512
482000015838 |
Pulley | Na dotaz | Zadat poptávku | |
| 102 VEFR14 |
C00467280
482000010582 |
Motor | Na dotaz | Zadat poptávku | |
| 103 VEFR14 |
C00378990
482000005857 |
Tub half rear | Na dotaz | Zadat poptávku | |
| 104 VEFR14 |
C00469085
482000019803 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 105 VEFR14 |
C00326646
481202308029 |
Pin Shockabsorber | 187 Kč
€ 8.20 |
||
| 112 VEFR14 |
C00517318
482000097677 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 113 VEFR14 |
C00326648
481202308032 |
tesneni nadrze | 423 Kč
€ 18.60 |
||
| 115 VEFR14 |
C00345123
482000009783 |
Clip Heating | Na dotaz | Zadat poptávku | |
| 117 VEFR14 |
C00469086
482000019804 |
Tub half front | Na dotaz | Zadat poptávku | |
| 118 VEFR14 |
C00466474
482000005861 |
Door bellow | Na dotaz | Zadat poptávku | |
| 119 VEFR14 |
C00505727
482000094831 |
TUB-GASKET CLAMP-ALVA -2 | Na dotaz | Zadat poptávku | |
| 120 VEFR14 |
C00517319
482000097678 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 121 VEFR14 |
C00469087
482000019805 |
Heating element + NTC (1850W) | Na dotaz | Zadat poptávku | |
| 124 VEFR14 |
C00505731
482000094835 |
Screw | Na dotaz | Zadat poptávku | |
| 1401 VEFR14 |
C00521832
482000098872 |
Clamp VHK C65 A3B | Na dotaz | Zadat poptávku | |
| 1402 VEFR14 |
C00469461
482000020741 |
Clamp hose 72 | Na dotaz | Zadat poptávku | |
| 1403 VEFR14 |
C00521834
482000098875 |
Clamp YHK C38.8 A3B, V2 | Na dotaz | Zadat poptávku | |
| 1507 VEFR14 |
C00521849
482000098873 |
Washer DUZ 10.5x30x2,5 ST | Na dotaz | Zadat poptávku | |
| 160 VEFR14 |
C00319210
482000010462 |
Drum | Na dotaz | Zadat poptávku | |
| 206 VEFR14 |
C00317529
481202308052 |
Bellows | Na dotaz | Zadat poptávku | |
| 213 VEFR14 |
C00335133
482000019771 |
Drainhose | Na dotaz | Zadat poptávku | |
| 700 VEFR14 |
C00326699
481202308107 |
pruzina | 174 Kč
€ 7.60 |
||
| 800 VEFR14 |
C00466484
482000005873 |
Spring Tub | Na dotaz | Zadat poptávku | |
| 808 VEFR14 |
C00425873
480111101071 |
Screw | Na dotaz | Zadat poptávku | |
| 809 VEFR14 |
C00326702
481202308111 |
Washer 8,4*28*3 | Na dotaz | Zadat poptávku | |
| 811 VEFR14 |
C00505818
482000094890 |
Support | Na dotaz | Zadat poptávku | |
| 812 VEFR14 |
C00505819
482000094891 |
Nut AKB,M8,C,FE,RPM-L | Na dotaz | Zadat poptávku | |
| 813 VEFR14 |
C00435473
480461005674 |
TEGEN PLAAT | Na dotaz | Zadat poptávku | |
| 898 VEFR14 |
C00505821
482000094894 |
PSW HOSE MOUNTING RUBBER-10MM | Na dotaz | Zadat poptávku | |
| 899 VEFR14 |
C00466486
482000005875 |
Heating element with hole | Na dotaz | Zadat poptávku | |
| 999 VEFR14 |
C00469094
482000019812 |
Sensor temper. NTC | Na dotaz | Zadat poptávku | |
| 999 VEFR14 |
C00540491
488000540491 |
PAKIET GRUPA / 42 (SHRINK) SIGMA PLUS-WH | Na dotaz | Zadat poptávku | |
| 200 VEFR15 |
C00466526
482000006025 |
Drawer | Na dotaz | Zadat poptávku | |
| 201 VEFR15 |
C00469056
482000019770 |
Drawer cpl. | Na dotaz | Zadat poptávku | |
| 202 VEFR15 |
C00466527
482000006026 |
Cover siphon | Na dotaz | Zadat poptávku | |
| 203 VEFR15 |
C00505772
482000094842 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 205 VEFR15 |
C00425861
480111101057 |
Dispenser housing | Na dotaz | Zadat poptávku | |
| 207 VEFR15 |
C00326659
481202308053 |
Hose valve / deterg. box | Na dotaz | Zadat poptávku | |
| 208 VEFR15 |
C00326711
481202308139 |
Hose inlet valve / box | Na dotaz | Zadat poptávku | |
| 209 VEFR15 |
C00505777
482000094847 |
Valve | Na dotaz | Zadat poptávku | |
| 228 VEFR15 |
C00326669
481202308066 |
Clamp | Na dotaz | Zadat poptávku | |
| 270 VEFR15 |
C00426895
480111102673 |
Dispenser box compl. | Na dotaz | Zadat poptávku | |
| 275 VEFR15 |
C00469070
482000019785 |
Dispenser | Na dotaz | Zadat poptávku | |
| 280 VEFR15 |
C00469071
482000019786 |
Dispenser cpl. | Na dotaz | Zadat poptávku | |
| 211 VEFR16 |
C00467281
482000010583 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| 212 VEFR16 |
C00467253
482000010463 |
Chamber air | Na dotaz | Zadat poptávku | |
| 234 VEFR16 |
C00517346
482000097683 |
Clamp hose 32,7 | Na dotaz | Zadat poptávku | |
| 244 VEFR16 |
C00326681
481202308079 |
Clamp | Na dotaz | Zadat poptávku | |
| 295 VEFR16 |
C00505800
482000094870 |
Pressostat HOSE | Na dotaz | Zadat poptávku | |
| 132 VEFR17a |
C00469400
482000020680 |
Staple 110x2.5mm | Na dotaz | Zadat poptávku | |
| 1404 VEFR17a |
C00469463
482000020743 |
Clamp hose 35.0 | Na dotaz | Zadat poptávku | |
| 1508 VEFR17a |
C00466475
482000005863 |
Cable earth/tub | Na dotaz | Zadat poptávku | |
| 1603 VEFR17a |
C00469676
482000023709 |
Holder hose | Na dotaz | Zadat poptávku | |
| 215 VEFR17a |
C00505778
482000094848 |
Filter | Na dotaz | Zadat poptávku | |
| 219 VEFR17a |
C00505779
482000094849 |
Hose draining | Na dotaz | Zadat poptávku | |
| 220 VEFR17a |
C00505780
482000094850 |
Hose | Na dotaz | Zadat poptávku | |
| 221 VEFR17a |
C00517353
482000097690 |
Spring hanger sheetiron PLS | Na dotaz | Zadat poptávku | |
| 222 VEFR17a |
C00505782
482000094852 |
Clip | Na dotaz | Zadat poptávku | |
| 225 VEFR17a |
C00318079
481202308065 |
presostat | 1 027 Kč
€ 45.10 |
||
| 231 VEFR17a |
C00467447
482000012151 |
Crossbar spring | Na dotaz | Zadat poptávku | |
| 235 VEFR17a |
C00326672
481202308069 |
Holder hose | Na dotaz | Zadat poptávku | |
| 238 VEFR17a |
C00521853
482000098879 |
Zátka III | Na dotaz | Zadat poptávku | |
| 239 VEFR17a |
C00505788
482000094858 |
Mains cable | Na dotaz | Zadat poptávku | |
| 241 VEFR17a |
C00469058
482000019773 |
Washer 8.30x29x2 | Na dotaz | Zadat poptávku | |
| 242 VEFR17a |
C00517354
482000097691 |
Screw transport plastic A | Na dotaz | Zadat poptávku | |
| 243 VEFR17a |
C00469059
482000019774 |
Screw plastic | Na dotaz | Zadat poptávku | |
| 249 VEFR17a |
C00540503
488000540503 |
CBL HARN (600-800-1000-1200 COLD) R / 42 | Na dotaz | Zadat poptávku | |
| 250 VEFR17a |
C00469677
482000023710 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 251 VEFR17a |
C00505791
482000094861 |
Cable holder | Na dotaz | Zadat poptávku | |
| 285 VEFR17a |
C00540506
488000540506 |
PUMP(LEILI-50HZ-TUF) | Na dotaz | Zadat poptávku | |
| 290 VEFR17a |
C00517356
482000097693 |
Screw transport group | Na dotaz | Zadat poptávku | |
| 296 VEFR17a |
C00540501
488000540501 |
CBL GR(600-800-1000-1200 COLD)R/42-BMRNG | Na dotaz | Zadat poptávku | |
| 331 VEFR17a |
C00505733
482000094837 |
Tie | Na dotaz | Zadat poptávku | |
| 918 VEFR17a |
C00517357
482000097694 |
Pump filter | Na dotaz | Zadat poptávku | |
| 919 VEFR17a |
C00521833
482000098874 |
Clamp YHK C9 1A3B | Na dotaz | Zadat poptávku | |
| 920 VEFR17a |
C00466520
482000006009 |
Fastener front panel, plastic | Na dotaz | Zadat poptávku | |
| 0252 VEFR18a |
C00517351
482000097688 |
Holder PCB BOX SOCKET S1 | Na dotaz | Zadat poptávku | |
| 0253 VEFR18a |
C00517352
482000097689 |
Holder PCB BOX SOCKET S2 | Na dotaz | Zadat poptávku | |
| 0403 VEFR18a |
C00425866
480111101063 |
Adapter | Na dotaz | Zadat poptávku | |
| 0411 VEFR18a |
C00469681
482000023714 |
Box PCB | Na dotaz | Zadat poptávku | |
| 0412 VEFR18a |
C00540494
488000540494 |
E.CARD R1-32492FF00400-PCB-AKOR59-E | Na dotaz | Zadat poptávku | |
| 0500 VEFR18a |
C00540526
488000540526 |
CON.PAN.GR.WHIRLPOOL LR1 (AWG / B M6080 | Na dotaz | Zadat poptávku | |
| 1100 VEFR18a |
C00521854
482000098880 |
Box PCB series cover | Na dotaz | Zadat poptávku | |
