WHIRLPOOL AWM 909
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWM 909 |
| Kód 12NC: | |
| I.C. kód: | Q0924170000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | |
| Další podobné modely: | 857090902000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

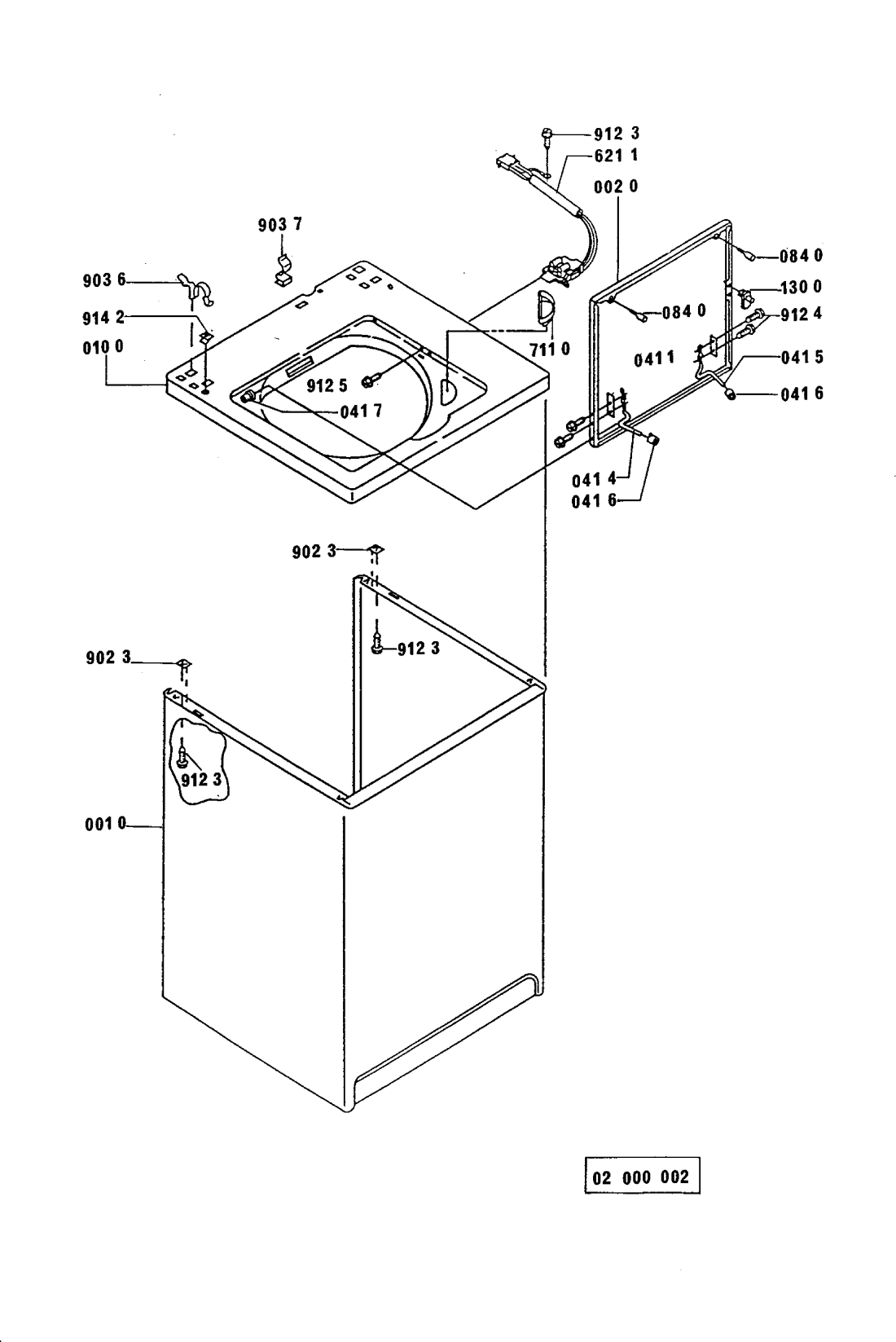

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR05535 |
C00343891
481944019485 |
Cabinet white | Na dotaz | Zadat poptávku | |
| 002 0 WHR05535 |
C00338389
481944019704 |
LID | Na dotaz | Zadat poptávku | |
| 004 0 WHR05535 |
C00344518
481946418127 |
BASE ASSEMBLY | Na dotaz | Zadat poptávku | |
| 004 2 WHR05535 |
C00336803
481953598416 |
Rod pull | Na dotaz | Zadat poptávku | |
| 004 3 WHR05535 |
C00337754
481946688953 |
PLATE SUSPENSION | Na dotaz | Zadat poptávku | |
| 010 0 WHR05535 |
C00339727 | HOB | Na dotaz | Zadat poptávku | |
| 011 0 WHR05535 |
C00340787
481946248269 |
Foot front | Na dotaz | Zadat poptávku | |
| 011 1 WHR05535 |
C00340782
481946248271 |
Foot rear | Na dotaz | Zadat poptávku | |
| 011 2 WHR05535 |
C00341438
481953598417 |
Pin knurled | Na dotaz | Zadat poptávku | |
| 024 0 WHR05535 |
C00341565 | Panel rear | Na dotaz | Zadat poptávku | |
| 024 1 WHR05535 |
C00344422
481952918048 |
Batten rear panel | Na dotaz | Zadat poptávku | |
| 025 0 WHR05535 |
C00344259 | BRACKET | Na dotaz | Zadat poptávku | |
| 040 0 WHR05535 |
C00339863 | HINGE | Na dotaz | Zadat poptávku | |
| 041 1 WHR05535 |
C00342056 | Pad lid hinge | Na dotaz | Zadat poptávku | |
| 041 4 WHR05535 |
C00339817
481941719195 |
Hinge left | Na dotaz | Zadat poptávku | |
| 041 5 WHR05535 |
C00339780
481941719196 |
Hinge right | Na dotaz | Zadat poptávku | |
| 041 6 WHR05535 |
C00313588
481946248262 |
Shock absorber lid hinge | Na dotaz | Zadat poptávku | |
| 041 7 WHR05535 |
C00333264
481952018016 |
Bearing lid hinge | Na dotaz | Zadat poptávku | |
| 065 2 WHR05535 |
C00312241
481952918049 |
Pad plate | Na dotaz | Zadat poptávku | |
| 065 3 WHR05535 |
C00342057
481952918051 |
PAD BASE | Na dotaz | Zadat poptávku | |
| 084 0 WHR05535 |
C00336350
481946248266 |
Shock absorber lid | Na dotaz | Zadat poptávku | |
| 084 1 WHR05535 |
C00340201
481932568038 |
Grommet motor | Na dotaz | Zadat poptávku | |
| 130 0 WHR05535 |
C00314040
481953538108 |
Fixation lid switch | Na dotaz | Zadat poptávku | |
| 200 0 WHR05535 |
C00319946
481941818309 |
TUB | Na dotaz | Zadat poptávku | |
| 200 1 WHR05535 |
C00314849
481946698644 |
RING FOR TUB | Na dotaz | Zadat poptávku | |
| 210 0 WHR05535 |
C00335917
481931038735 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 211 0 WHR05535 |
C00338209
481969018131 |
MECHANISM CLUTCH | Na dotaz | Zadat poptávku | |
| 220 0 WHR05535 |
C00316482
481941818299 |
Drum | Na dotaz | Zadat poptávku | |
| 223 0 WHR05535 |
C00317579
481951528199 |
LAUNDRY MOVER | Na dotaz | Zadat poptávku | |
| 223 1 WHR05535 |
C00341174
481951528201 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 223 2 WHR05535 |
C00336209
481946698891 |
SPACER | Na dotaz | Zadat poptávku | |
| 228 0 WHR05535 |
C00342849
481952838376 |
CAM driven | Na dotaz | Zadat poptávku | |
| 276 0 WHR05535 |
C00313049
481952228008 |
3363395 Box transmiss. | Na dotaz | Zadat poptávku | |
| 276 1 WHR05535 |
C00342506
481946279449 |
Cover f transmission. | Na dotaz | Zadat poptávku | |
| 276 2 WHR05535 |
C00340391 | Gear bottom | Na dotaz | Zadat poptávku | |
| 276 3 WHR05535 |
C00341433
481952218002 |
pINION | Na dotaz | Zadat poptávku | |
| 276 5 WHR05535 |
C00336535
481952838381 |
Segment,toothed. | Na dotaz | Zadat poptávku | |
| 276 6 WHR05535 |
C00344657
481952838382 |
ACTUATOR SHIFTshift | Na dotaz | Zadat poptávku | |
| 276 7 WHR05535 |
C00316498
481952228007 |
DRIVE SHAFT | Na dotaz | Zadat poptávku | |
| 276 8 WHR05535 |
C00344519
481969018148 |
Base | Na dotaz | Zadat poptávku | |
| 277 0 WHR05535 |
C00311546
481953598415 |
Brake + drive tube | Na dotaz | Zadat poptávku | |
| 277 1 WHR05535 |
C00316835
481953238058 |
TUBE | Na dotaz | Zadat poptávku | |
| 277 2 WHR05535 |
C00317605
481953268535 |
SPACER | Na dotaz | Zadat poptávku | |
| 277 3 WHR05535 |
C00318938
481946688954 |
BRAKE SHOE | Na dotaz | Zadat poptávku | |
| 277 4 WHR05535 |
C00342862
481952838383 |
CAM | Na dotaz | Zadat poptávku | |
| 277 5 WHR05535 |
C00341171
481952648271 |
Drum lifter brake cam | Na dotaz | Zadat poptávku | |
| 277 6 WHR05535 |
C00336823
481946648009 |
Ring,retaining | Na dotaz | Zadat poptávku | |
| 301 0 WHR05535 |
C00342602 | CONTROL PANEL | Na dotaz | Zadat poptávku | |
| 301 1 WHR05535 |
C00342445
481946689151 |
COVER LID LEFT | Na dotaz | Zadat poptávku | |
| 301 2 WHR05535 |
C00342444
481946689152 |
COVER LID RIGHT | Na dotaz | Zadat poptávku | |
| 331 0 WHR05535 |
C00341849
481941359013 |
KNOB TIMER | Na dotaz | Zadat poptávku | |
| 341 0 WHR05535 |
C00342187
481941379001 |
DIAL | Na dotaz | Zadat poptávku | |
| 400 1 WHR05535 |
C00316825
481952018017 |
Clutch | Na dotaz | Zadat poptávku | |
| 400 2 WHR05535 |
C00319800
481932528019 |
Coupling piece | Na dotaz | Zadat poptávku | |
| 401 0 WHR05535 |
C00341694 | MOTOR | Na dotaz | Zadat poptávku | |
| 401 2 WHR05535 |
C00320112
481946688949 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 421 0 WHR05535 |
C00311786
481912118185 |
482156 Capacitor 189/229uf | Na dotaz | Zadat poptávku | |
| 430 0 WHR05535 |
C00311624
481936018211 |
PUMP,DRAINING. | Na dotaz | Zadat poptávku | |
| 490 0 WHR05535 |
C00343859 | Cable GB | Na dotaz | Zadat poptávku | |
| 501 0 WHR05535 |
C00335448 | TIMER | Na dotaz | Zadat poptávku | |
| 571 0 WHR05535 |
C00337297
481928128245 |
Valve magnet | Na dotaz | Zadat poptávku | |
| 583 0 WHR05535 |
C00337549 | Pressostat f.white model | Na dotaz | Zadat poptávku | |
| 620 0 WHR05535 |
C00337351
481927648238 |
UNIT PUSHBUTTON | Na dotaz | Zadat poptávku | |
| 621 0 WHR05535 |
C00317947
481927618205 |
Switch motor | Na dotaz | Zadat poptávku | |
| 621 1 WHR05535 |
C00317270
481927718187 |
Switch lid | Na dotaz | Zadat poptávku | |
| 701 0 WHR05535 |
C00339352
481953028801 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 708 1 WHR05535 |
C00339474
481953028912 |
hOSE | Na dotaz | Zadat poptávku | |
| 711 0 WHR05535 |
C00342172
481941879154 |
DISPENSER | Na dotaz | Zadat poptávku | |
| 750 0 WHR05535 |
C00343493
481952648326 |
CONNECTION | Na dotaz | Zadat poptávku | |
| 753 1 WHR05535 |
C00318942
481946698643 |
CHAMBER,AIR. | Na dotaz | Zadat poptávku | |
| 754 0 WHR05535 |
C00339460
481953028804 |
HOSE | Na dotaz | Zadat poptávku | |
| 761 0 WHR05535 |
C00340970
481948058126 |
FILTER | Na dotaz | Zadat poptávku | |
| 781 0 WHR05535 |
C00314032
481952928175 |
Hose draining 10 Ft. | Na dotaz | Zadat poptávku | |
| 781 0 WHR05535 |
C00316500
481952928174 |
Hose draining 5-1/2 Ft. | Na dotaz | Zadat poptávku | |
| 781 1 WHR05535 |
C00339475 | HOSE | Na dotaz | Zadat poptávku | |
| 783 0 WHR05535 |
C00333288
481953028893 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| 783 2 WHR05535 |
C00339351
481953028889 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 791 2 WHR05535 |
C00320098
481946669832 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
| 791 3 WHR05535 |
C00317553
481946669833 |
Gasket | Na dotaz | Zadat poptávku | |
| 791 4 WHR05535 |
C00340571
481946669834 |
Gasket | Na dotaz | Zadat poptávku | |
| 791 5 WHR05535 |
C00340501
481946818059 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 1 WHR05535 |
C00336441
481932568037 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
| 794 3 WHR05535 |
C00336443
481953268532 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
| 794 7 WHR05535 |
C00340971 | FILTER | Na dotaz | Zadat poptávku | |
| 794 8 WHR05535 |
C00314694
481953238055 |
Inlet Hose Washer | Na dotaz | Zadat poptávku | |
| 901 0 WHR05535 |
C00343354
481940118544 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 2 WHR05535 |
C00332917
481940118542 |
hose clamp | Na dotaz | Zadat poptávku | |
| 901 4 WHR05535 |
C00343336
481940118548 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 5 WHR05535 |
C00318138
481949268607 |
Holder suspension spring | Na dotaz | Zadat poptávku | |
| 901 7 WHR05535 |
C00332918
481940118546 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 902 3 WHR05535 |
C00336210
481946698642 |
SPACER | Na dotaz | Zadat poptávku | |
| 902 5 WHR05535 |
C00335795
481940478289 |
Support rear panel | Na dotaz | Zadat poptávku | |
| 902 6 WHR05535 |
C00343378 | Clamp capacitor | Na dotaz | Zadat poptávku | |
| 902 7 WHR05535 |
C00343330
481940478291 |
CLAMPING PIECE MOTOR | Na dotaz | Zadat poptávku | |
| 902 8 WHR05535 |
C00316478
481940478292 |
CLAMPING PIECE PUMP | Na dotaz | Zadat poptávku | |
| 903 0 WHR05535 |
C00343381 | Clamp cable | Na dotaz | Zadat poptávku | |
| 903 2 WHR05535 |
C00343365 | Clamp hose | Na dotaz | Zadat poptávku | |
| 903 3 WHR05535 |
C00318134
481949248162 |
CLIP | Na dotaz | Zadat poptávku | |
| 903 6 WHR05535 |
C00315625
481949268595 |
Clip fix | Na dotaz | Zadat poptávku | |
| 903 7 WHR05535 |
C00333177
481949268597 |
Clip fix harness | Na dotaz | Zadat poptávku | |
| 903 8 WHR05535 |
C00343288 | Clip fix | Na dotaz | Zadat poptávku | |
| 912 3 WHR05535 |
C00333227
481950318022 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
| 912 4 WHR05535 |
C00336709
481950318029 |
SCREW | Na dotaz | Zadat poptávku | |
| 912 5 WHR05535 |
C00336656
481950318211 |
Screw + washer | Na dotaz | Zadat poptávku | |
| 912 6 WHR05535 |
C00336744
481950318221 |
SCREW | Na dotaz | Zadat poptávku | |
| 912 7 WHR05535 |
C00336661
481950318048 |
Screw | Na dotaz | Zadat poptávku | |
| 913 0 WHR05535 |
C00336646
481950318034 |
Screw 10-24x3/8 | Na dotaz | Zadat poptávku | |
| 913 1 WHR05535 |
C00333206
481950218332 |
Screw 8Ax3/8 | Na dotaz | Zadat poptávku | |
| 913 2 WHR05535 |
C00336645
481950318036 |
Screw 10-32x1 | Na dotaz | Zadat poptávku | |
| 913 3 WHR05535 |
C00336745
481950318206 |
SCREW | Na dotaz | Zadat poptávku | |
| 913 4 WHR05535 |
C00336660
481950318219 |
SCREW | Na dotaz | Zadat poptávku | |
| 913 5 WHR05535 |
C00333228
481950318042 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
| 913 6 WHR05535 |
C00314897
481950318043 |
Screw 5/16-24x1 | Na dotaz | Zadat poptávku | |
| 913 7 WHR05535 |
C00336711
481950318208 |
SCREW | Na dotaz | Zadat poptávku | |
| 913 8 WHR05535 |
C00336650
481950318039 |
Screw 10-16x3/8 | Na dotaz | Zadat poptávku | |
| 913 9 WHR05535 |
C00336649
481950318209 |
Screw 10-16x5/8 | Na dotaz | Zadat poptávku | |
| 914 0 WHR05535 |
C00312035
481950618005 |
NUT | Na dotaz | Zadat poptávku | |
| 914 2 WHR05535 |
C00317386
481950618024 |
Nut push-in | Na dotaz | Zadat poptávku | |
| 914 3 WHR05535 |
C00313854
481950618023 |
hex nut | Na dotaz | Zadat poptávku | |
| 921 0 WHR05535 |
C00311287
481946688948 |
Block basket drive | Na dotaz | Zadat poptávku | |
| 921 2 WHR05535 |
C00337244
481953228264 |
WASHER | Na dotaz | Zadat poptávku | |
| 921 3 WHR05535 |
C00317410
481953228225 |
tesneni | 167 Kč
€ 7.30 |
||
| 921 4 WHR05535 |
C00315270
481932568036 |
tesneni | 286 Kč
€ 12.60 |
||
| 921 5 WHR05535 |
C00336824
481953238059 |
RING,RETAINING | Na dotaz | Zadat poptávku | |
| 921 6 WHR05535 |
C00336825
481953238062 |
RING,RETAINING. | Na dotaz | Zadat poptávku | |
| 921 7 WHR05535 |
C00336827
481953238064 |
RING RETAINING | Na dotaz | Zadat poptávku | |
| 922 0 WHR05535 |
C00318274
481953268534 |
Ring sound deadening | Na dotaz | Zadat poptávku | |
| 923 2 WHR05535 |
C00337230
481953268539 |
WASHER KIT | Na dotaz | Zadat poptávku | |
| 923 4 WHR05535 |
C00313860
481953228222 |
tesneni | 407 Kč
€ 17.90 |
||
| 931 0 WHR05535 |
C00312149
481949238103 |
SPRING,SUSPENS. | Na dotaz | Zadat poptávku | |
| 931 3 WHR05535 |
C00315623
481949238104 |
Spring leveling mechanism | Na dotaz | Zadat poptávku | |
| 931 4 WHR05535 |
C00315296
481949238109 |
SPRING COUNTERWEIGHT | Na dotaz | Zadat poptávku | |
| 932 4 WHR05535 |
C00320160
481949238112 |
Spring brake | Na dotaz | Zadat poptávku | |
| 932 5 WHR05535 |
C00344075 | Bushing brake spring | Na dotaz | Zadat poptávku | |
| 933 0 WHR05535 |
C00319882
481940478293 |
Bracket spring | Na dotaz | Zadat poptávku | |
| 933 1 WHR05535 |
C00344153
481940478294 |
BRACKET SPRING | Na dotaz | Zadat poptávku | |
| 941 0 WHR05535 |
C00344401
481952018018 |
BEARING | Na dotaz | Zadat poptávku | |
| 941 2 WHR05535 |
C00317392
481952018019 |
Bearing kit | Na dotaz | Zadat poptávku | |
| 941 3 WHR05535 |
C00344402
481952018022 |
Bearing | Na dotaz | Zadat poptávku | |
| 945 0 WHR05535 |
C00344407
481952018026 |
BEARING | Na dotaz | Zadat poptávku | |
| 951 1 WHR05535 |
C00318264
481953238057 |
RING | Na dotaz | Zadat poptávku | |
| 951 2 WHR05535 |
C00318284
481953278121 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
| 953 0 WHR05535 |
C00340560
481946669831 |
Gasket | Na dotaz | Zadat poptávku | |
| 953 1 WHR05535 |
C00340561 | GASKET | Na dotaz | Zadat poptávku | |
| 962 1 WHR05535 |
C00336371
481946689153 |
SHIELD SUDSsuds | Na dotaz | Zadat poptávku | |
| 962 2 WHR05535 |
C00336375
481946688951 |
SHIELD | Na dotaz | Zadat poptávku | |
| 962 3 WHR05535 |
C00336376
481946688952 |
SHIELD | Na dotaz | Zadat poptávku | |
| 965 0 WHR05535 |
C00342719
481941879059 |
CONTAINER | Na dotaz | Zadat poptávku | |
| 965 1 WHR05535 |
C00311706
481953268533 |
GASKET CENTERPOST | Na dotaz | Zadat poptávku | |
| 965 2 WHR05535 |
C00313547
481946258109 |
CAP | Na dotaz | Zadat poptávku | |
| 965 3 WHR05535 |
C00342829
481946279448 |
Cap brake spring | Na dotaz | Zadat poptávku | |
| 993 4 WHR05535 |
C00344648
481969018145 |
Adapter | Na dotaz | Zadat poptávku | |
| 993 5 WHR05535 |
C00344682 | ACCESSORIES | Na dotaz | Zadat poptávku | |
| 999 WHR05535 |
C00361850 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
