WHIRLPOOL AWO/D 10714 S W
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWO/D 10714 S W |
| Kód 12NC/I.C. kód: | 859298229000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859298229005 |
Potřebujete servis? Jsme tady pro Vás

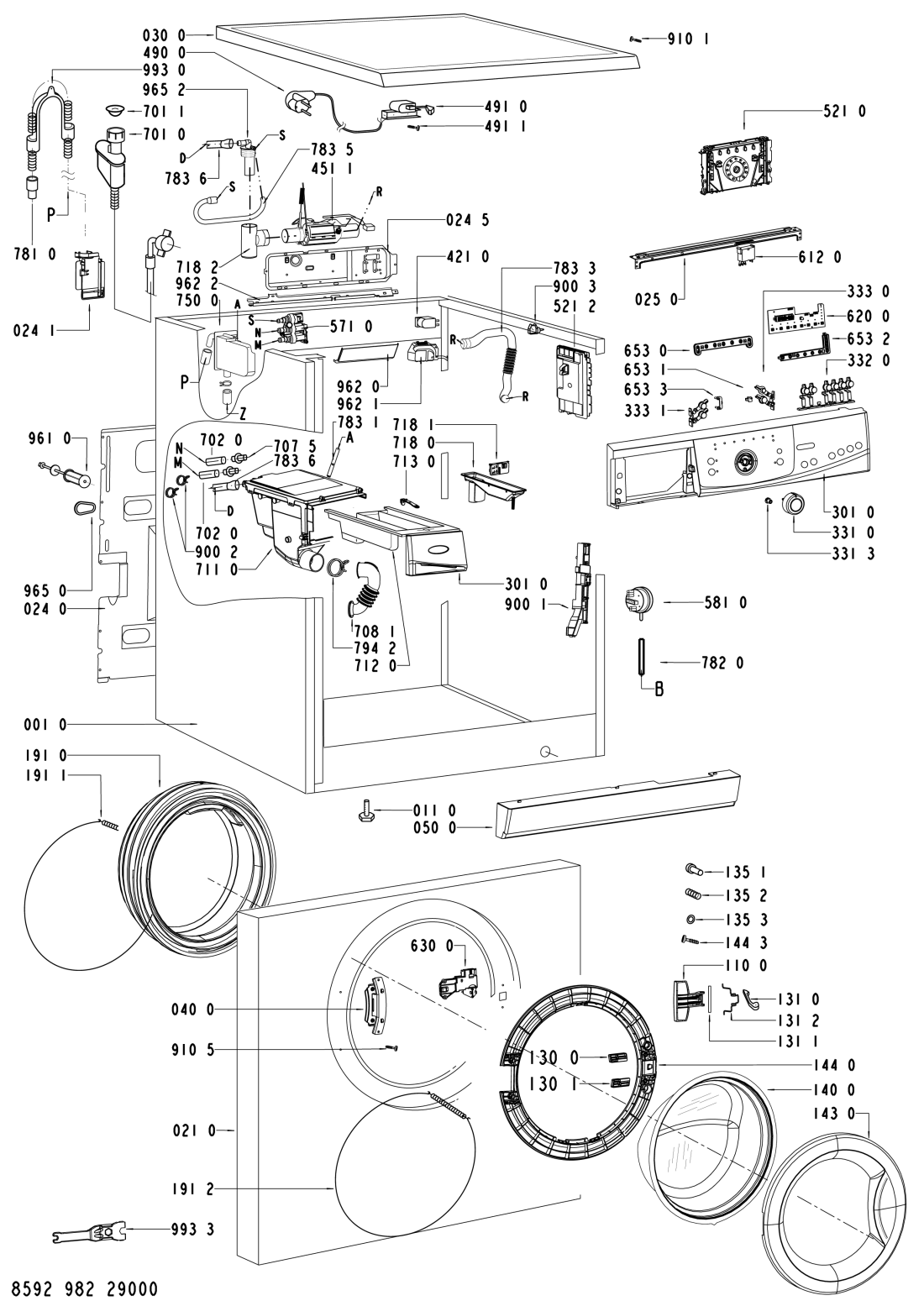

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR13556 |
C00320974
480111100657 |
skrin | Na dotaz | Zadat poptávku | |
| 0110 WHR13556 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 0210 WHR13556 |
C00311725
481244011564 |
stena predni | 2 720 Kč
€ 109.10 |
||
| 0240 WHR13556 |
C00316521
481244011544 |
stena zadni | 1 472 Kč
€ 59.00 |
||
| 0241 WHR13556 |
C00320981
480111100785 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 0245 WHR13556 |
C00328085
481244011745 |
Bracket MYST | Na dotaz | Zadat poptávku | |
| 0250 WHR13556 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 0300 WHR13556 |
C00317161
481244011473 |
deska horni GW | Na dotaz | Zadat poptávku | |
| 0400 WHR13556 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 0500 WHR13556 |
C00312706
481244010779 |
sokl pracky GW | Na dotaz | Zadat poptávku | |
| 0610 WHR13556 |
C00313390
481246689017 |
Counter weight upper, Eureka 50-54l | Na dotaz | Zadat poptávku | |
| 0611 WHR13556 |
C00312633
481246689034 |
zavazi | 1 448 Kč
€ 58.10 |
||
| 0612 WHR13556 |
C00312077
481231039249 |
sroub+podlozka | 81 Kč
€ 3.30 |
||
| 0810 WHR13556 |
C00311556
480111100195 |
tlumič pračky Whirlpool AWOE | 355 Kč
€ 14.20 |
||
| 0840 WHR13556 |
C00330907
481246658001 |
drzak pruziny agreg. | Na dotaz | Zadat poptávku | |
| 1100 WHR13556 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 1300 WHR13556 |
C00318057
481241728047 |
desticka uzaveru dv. | 27 Kč
€ 1.10 |
||
| 1301 WHR13556 |
C00318073
481241728108 |
podlozka | 380 Kč
€ 15.20 |
||
| 1310 WHR13556 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 1311 WHR13556 |
C00312243
481241728045 |
osa uzaveru dveri | 143 Kč
€ 5.70 |
||
| 1312 WHR13556 |
C00312651
481249258022 |
Pružina uzávěru dveří | 237 Kč
€ 9.50 |
||
| 1351 WHR13556 |
C00317048
481249818262 |
pojistka dveri | 227 Kč
€ 9.10 |
||
| 1352 WHR13556 |
C00317024
481249148004 |
Pružina | 220 Kč
€ 8.80 |
||
| 1353 WHR13556 |
C00313732
481229068153 |
drzak pojistky | Na dotaz | Zadat poptávku | |
| 1400 WHR13556 |
C00311241
481245059812 |
Sklo dveří | 2 701 Kč
€ 108.40 |
||
| 1430 WHR13556 |
C00314758
481244011772 |
sklo dveří | Na dotaz | Zadat poptávku | |
| 1440 WHR13556 |
C00313481
481244011139 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 1443 WHR13556 |
C00318393
481250218669 |
sroub pojistka dv. | 267 Kč
€ 10.70 |
||
| 1910 WHR13556 |
C00311125
481246068633 |
Těsnění dveří, manžeta do pračky Whirlpool, 481246068633 | 438 Kč
€ 17.60 |
||
| 1911 WHR13556 |
C00312650
481249218028 |
spona TVO - vnitřní | 66 Kč
€ 2.60 |
||
| 1912 WHR13556 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 2000 WHR13556 |
C00320977
480111100661 |
Wash unit EUREKA/1400/54L-MYST | Na dotaz | Zadat poptávku | |
| 2230 WHR13556 |
C00313097
481241848987 |
drum lifter 54LT | Na dotaz | Zadat poptávku | |
| 2710 WHR13556 |
C00311514
481935818152 |
Řemen víceklínový 1248J5 | 96 Kč
€ 3.90 |
||
| 2720 WHR13556 |
C00314580
481252858044 |
Pulley Eureka/MR+HR | Na dotaz | Zadat poptávku | |
| 2723 WHR13556 |
C00313276
481250218817 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 3010 WHR13556 |
C00425587
480111100685 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 3310 WHR13556 |
C00318515
481241458326 |
Knoflík časovače | Na dotaz | Zadat poptávku | |
| 3313 WHR13556 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 347 Kč
€ 13.90 |
||
| 3320 WHR13556 |
C00316310
480111100365 |
Push button opt. BigWin | Na dotaz | Zadat poptávku | |
| 3330 WHR13556 |
C00310977
481251318172 |
Tlačítko | 252 Kč
€ 10.10 |
||
| 3331 WHR13556 |
C00312048
481241029401 |
tlacitko | 217 Kč
€ 8.70 |
||
| 4000 WHR13556 |
C00311155
480111100362 |
motor | 3 655 Kč
€ 146.70 |
||
| 4001 WHR13556 |
C00332143
481250218816 |
Screw P8x50 | Na dotaz | Zadat poptávku | |
| 4090 WHR13556 |
C00311255
481236248442 |
Brush,carbon ACC sub 481281719419 | Na dotaz | Zadat poptávku | |
| 4210 WHR13556 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | 294 Kč
€ 11.80 |
||
| 4300 WHR13556 |
C00320951
480111100205 |
cerpadlo vypousteci | Na dotaz | Zadat poptávku | |
| 4510 WHR13556 |
C00456493
481225928918 |
Grzałka | Na dotaz | Zadat poptávku | |
| 4511 WHR13556 |
C00327203
481225998591 |
topeni | Na dotaz | Zadat poptávku | |
| 4800 WHR13556 |
C00313337
481232178412 |
vodic eureka 50lt | Na dotaz | Zadat poptávku | |
| 4900 WHR13556 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 4910 WHR13556 |
C00309418
481232128367 |
Přechodka | 324 Kč
€ 13.00 |
||
| 4911 WHR13556 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 5210 WHR13556 |
C00315056
480111100214 |
Control unit DOMINO C2I, basic | Na dotaz | Zadat poptávku | |
| 5210 WHR13556 |
C00320976
480111100659 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 5212 WHR13556 |
C00318908
481221470538 |
Control board STEAMER,MYST | Na dotaz | Zadat poptávku | |
| 5710 WHR13556 |
C00311493
481227128592 |
ventil triple | 1 078 Kč
€ 43.30 |
||
| 5810 WHR13556 |
C00311217
481227128554 |
Presostat pračky | 207 Kč
€ 8.30 |
||
| 6120 WHR13556 |
C00320136
481203618931 |
Relay MYST | Na dotaz | Zadat poptávku | |
| 6200 WHR13556 |
C00314020
481223958075 |
Modul displeje pračky Whirlpool, Bauknecht | 3 050 Kč
€ 122.40 |
||
| 6300 WHR13556 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 6530 WHR13556 |
C00318312
481213418046 |
svetlovod | 277 Kč
€ 11.10 |
||
| 6531 WHR13556 |
C00314404
481213418047 |
kolik | 175 Kč
€ 7.00 |
||
| 6532 WHR13556 |
C00320964
480111100366 |
Guide,light BigWin | Na dotaz | Zadat poptávku | |
| 6533 WHR13556 |
C00319090
481213448362 |
svetlovod | 50 Kč
€ 2.00 |
||
| 6910 WHR13556 |
C00311893
480111100607 |
senzor NTC | Na dotaz | Zadat poptávku | |
| 7010 WHR13556 |
C00314963
481953028848 |
hadicenapousteci | Na dotaz | Zadat poptávku | |
| 7011 WHR13556 |
C00316490
481946669704 |
tesneni + sitko | 173 Kč
€ 6.90 |
||
| 7020 WHR13556 |
C00315519
481253029405 |
hadice od ventilu | 108 Kč
€ 4.30 |
||
| 7075 WHR13556 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 7081 WHR13556 |
C00313076
481253049392 |
Hadice násypka-nádrž | 517 Kč
€ 20.70 |
||
| 7110 WHR13556 |
C00317093
481241868435 |
Dispenser | Na dotaz | Zadat poptávku | |
| 7120 WHR13556 |
C00312664
481241868415 |
Drawer | Na dotaz | Zadat poptávku | |
| 7130 WHR13556 |
C00312158
481241868382 |
Pojistka násypky | 305 Kč
€ 12.20 |
||
| 7180 WHR13556 |
C00315768
481241889085 |
Vložka násypky | 295 Kč
€ 11.80 |
||
| 7181 WHR13556 |
C00315499
481252648252 |
Vložka násypky | 90 Kč
€ 3.60 |
||
| 7182 WHR13556 |
C00332670
481253248066 |
Tank STEAMER, MYST | Na dotaz | Zadat poptávku | |
| 7500 WHR13556 |
C00332502
481253048139 |
Expanzní nádoba pračky Whirlpool, Bauknecht | 141 Kč
€ 5.70 |
||
| 7540 WHR13556 |
C00313144
481253029495 |
Hadice čerpadlo - nádrž pračky Whirlpool | 510 Kč
€ 20.50 |
||
| 7541 WHR13556 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 894 Kč
€ 35.90 |
||
| 7600 WHR13556 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 697 Kč
€ 28.00 |
||
| 7810 WHR13556 |
C00314886
481253029355 |
hadice | Na dotaz | Zadat poptávku | |
| 7820 WHR13556 |
C00312246
481253029497 |
Hadice k presostatu pračky Whirlpool | 43 Kč
€ 1.70 |
||
| 7831 WHR13556 |
C00332488
481253029473 |
hadice k nasypce | Na dotaz | Zadat poptávku | |
| 7833 WHR13556 |
C00320967
480111100605 |
Hose Steamer-Tub | Na dotaz | Zadat poptávku | |
| 7834 WHR13556 |
C00315777
480111100312 |
Hose draining outlet,int. | Na dotaz | Zadat poptávku | |
| 7835 WHR13556 |
C00332492
481253029489 |
Hose exhaust | Na dotaz | Zadat poptávku | |
| 7836 WHR13556 |
C00332493
481253029491 |
Hose Siphon-Disp.MYST | Na dotaz | Zadat poptávku | |
| 7942 WHR13556 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 9001 WHR13556 |
C00327322
481229088123 |
Bracket eureka | Na dotaz | Zadat poptávku | |
| 9002 WHR13556 |
C00328881
481240118501 |
Svorka hadice 1 | 84 Kč
€ 3.40 |
||
| 9003 WHR13556 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 9004 WHR13556 |
C00316612
481240118414 |
SPONA39,7 | 37 Kč
€ 1.50 |
||
| 9005 WHR13556 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 92 Kč
€ 3.70 |
||
| 9101 WHR13556 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 9105 WHR13556 |
C00316731
481290308196 |
sroub | Na dotaz | Zadat poptávku | |
| 9300 WHR13556 |
C00345873
481249238421 |
Pružina nádrže | Na dotaz | Zadat poptávku | |
| 9610 WHR13556 |
C00333324
481953268829 |
Vložka vymezovací | 305 Kč
€ 12.20 |
||
| 9620 WHR13556 |
C00330966
481246668929 |
Cover shield Steamer, MYST | Na dotaz | Zadat poptávku | |
| 9621 WHR13556 |
C00330967
481246668931 |
Cover RFI,MYST | Na dotaz | Zadat poptávku | |
| 9622 WHR13556 |
C00330969
481246668934 |
Bracket | Na dotaz | Zadat poptávku | |
| 9650 WHR13556 |
C00330912
481246668545 |
kryt odjisteni prack | 206 Kč
€ 8.30 |
||
| 9652 WHR13556 |
C00345866
481246818398 |
Cap Syphon-MYST | Na dotaz | Zadat poptávku | |
| 9930 WHR13556 |
C00316831
481953029028 |
Ohyb plastový/držák vypouštěcí hadice pračky | Na dotaz | Zadat poptávku | |
| 9933 WHR13556 |
C00328868
481239558004 |
klic montazni | 64 Kč
€ 2.60 |
||
| 999 WHR13556 |
C00364608 | Testprogram WHP | Na dotaz | Zadat poptávku | |
