WHIRLPOOL AWO/D 9562 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWO/D 9562 S |
| Kód 12NC: | 859208436000 |
| I.C. kód: | 859208436005 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859208436006, 859208436000 |
Potřebujete servis? Jsme tady pro Vás

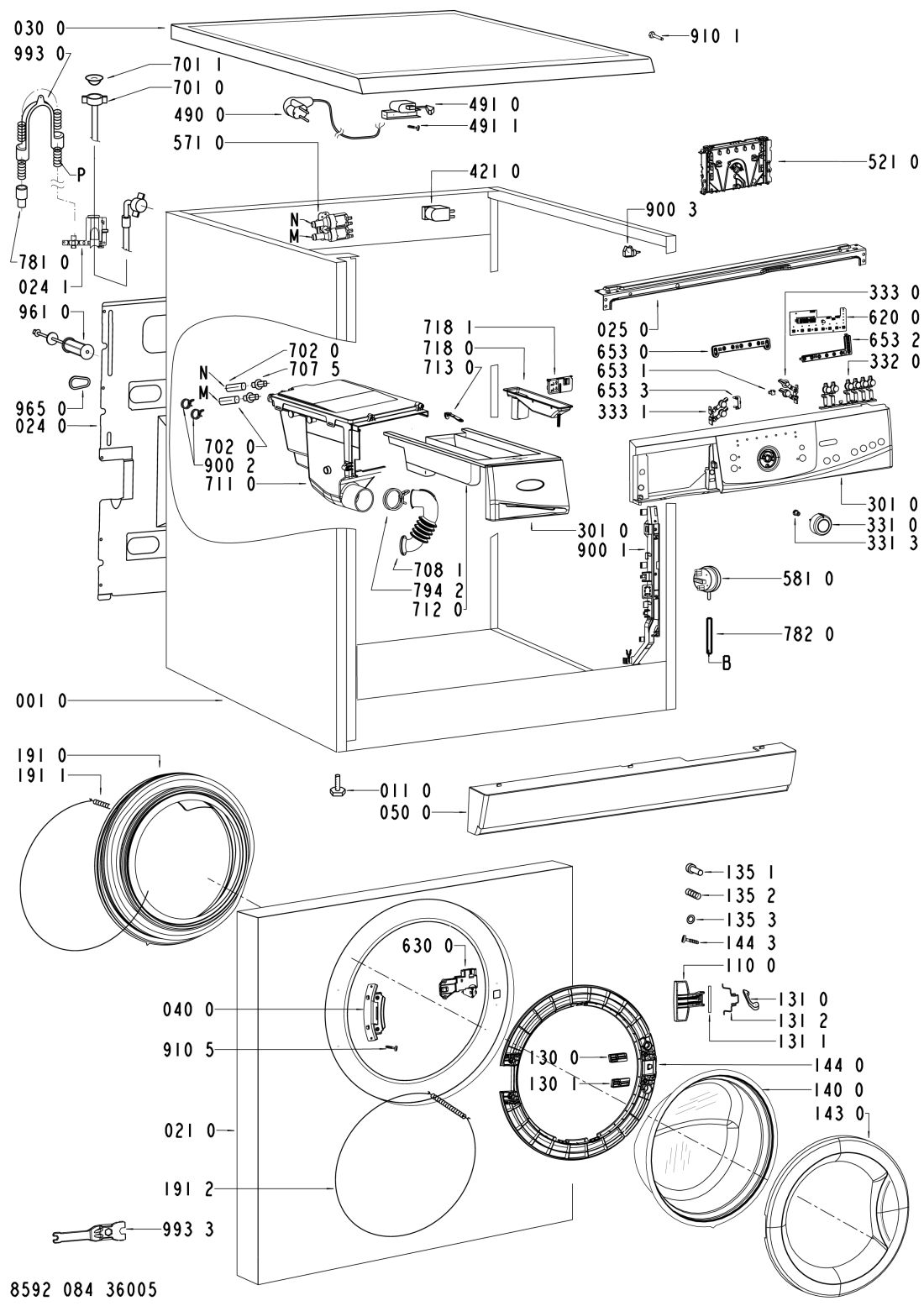

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR15899 |
C00320984
480111100936 |
Cabinet silver | Na dotaz | Zadat poptávku | |
| 011 0 WHR15899 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR15899 |
C00328064
481244011649 |
Front COD silver | Na dotaz | Zadat poptávku | |
| 024 0 WHR15899 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 90.20 |
||
| 024 1 WHR15899 |
C00331035
481244138021 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 025 0 WHR15899 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 030 0 WHR15899 |
C00328063
481244011648 |
Table top SILVER 42/48 UBS possibl | Na dotaz | Zadat poptávku | |
| 040 0 WHR15899 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR15899 |
C00328386
481244081183 |
plinth VBL silver | Na dotaz | Zadat poptávku | |
| 061 0 WHR15899 |
C00313390
481246689017 |
Counter weight upper, Eureka 50-54l | Na dotaz | Zadat poptávku | |
| 061 1 WHR15899 |
C00312927
481246689018 |
Counter weight front, bottom, Eureka 50l | Na dotaz | Zadat poptávku | |
| 061 2 WHR15899 |
C00312077
481231039249 |
sroub+podlozka | 167 Kč
€ 7.30 |
||
| 081 0 WHR15899 |
C00311556
480111100195 |
tlumič pračky Whirlpool AWOE | 266 Kč
€ 11.70 |
||
| 084 0 WHR15899 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.40 |
||
| 110 0 WHR15899 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 130 0 WHR15899 |
C00318057
481241728047 |
desticka uzaveru dv. | 57 Kč
€ 2.50 |
||
| 130 1 WHR15899 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 27.20 |
||
| 131 0 WHR15899 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR15899 |
C00312243
481241728045 |
osa uzaveru dveri | 76 Kč
€ 3.30 |
||
| 131 2 WHR15899 |
C00312651
481249258022 |
Pružina uzávěru dveří | 413 Kč
€ 18.20 |
||
| 135 1 WHR15899 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 18.30 |
||
| 135 2 WHR15899 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 17.50 |
||
| 135 3 WHR15899 |
C00313732
481229068153 |
drzak pojistky | 299 Kč
€ 13.10 |
||
| 140 0 WHR15899 |
C00311241
481245059812 |
Sklo dveří | 1 641 Kč
€ 72.10 |
||
| 143 0 WHR15899 |
C00316503
481244011344 |
Glassdoor frame chrome | Na dotaz | Zadat poptávku | |
| 144 0 WHR15899 |
C00317167
481244011575 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 3 WHR15899 |
C00318393
481250218669 |
sroub pojistka dv. | 512 Kč
€ 22.50 |
||
| 191 0 WHR15899 |
C00311125
481246068633 |
Těsnění dveří, manžeta do pračky Whirlpool, 481246068633 | 352 Kč
€ 15.50 |
||
| 191 1 WHR15899 |
C00312650
481249218028 |
spona TVO - vnitřní | 153 Kč
€ 6.70 |
||
| 191 2 WHR15899 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 0 WHR15899 |
C00311871
481241818727 |
Washing unit Eureka | Na dotaz | Zadat poptávku | |
| 223 0 WHR15899 |
C00313239
481241848978 |
Drum lifter eureka 50lt | Na dotaz | Zadat poptávku | |
| 271 0 WHR15899 |
C00311752
481235818214 |
Belt eureka 50lt | Na dotaz | Zadat poptávku | |
| 272 0 WHR15899 |
C00314580
481252858044 |
Pulley Eureka/MR+HR | Na dotaz | Zadat poptávku | |
| 272 3 WHR15899 |
C00313276
481250218817 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 301 0 WHR15899 |
C00425774
480111100937 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 331 0 WHR15899 |
C00318515
481241458326 |
Knoflík časovače | 671 Kč
€ 29.50 |
||
| 331 3 WHR15899 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 385 Kč
€ 16.90 |
||
| 332 0 WHR15899 |
C00425583
480111100679 |
Push button 7 OPT.SILVER | Na dotaz | Zadat poptávku | |
| 333 0 WHR15899 |
C00312969
481251318186 |
Push button ST/RST silver BW | Na dotaz | Zadat poptávku | |
| 333 1 WHR15899 |
C00318509
481251318187 |
Push button Options silver BW | Na dotaz | Zadat poptávku | |
| 400 0 WHR15899 |
C00313986
481236158509 |
Motor eureka 50lt | Na dotaz | Zadat poptávku | |
| 400 1 WHR15899 |
C00332143
481250218816 |
Screw P8x50 | Na dotaz | Zadat poptávku | |
| 409 0 WHR15899 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | 182 Kč
€ 8.00 |
||
| 421 0 WHR15899 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR15899 |
C00310955
480111100786 |
Pump,draining | Na dotaz | Zadat poptávku | |
| 451 0 WHR15899 |
C00318278
481225928919 |
Heating element 2050W, 230V + NTC | Na dotaz | Zadat poptávku | |
| 480 0 WHR15899 |
C00313337
481232178412 |
vodic eureka 50lt | 1 365 Kč
€ 60.00 |
||
| 490 0 WHR15899 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR15899 |
C00309418
481232128367 |
Přechodka | 551 Kč
€ 24.20 |
||
| 491 1 WHR15899 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR15899 |
C00425417
480111100463 |
Control unit | Na dotaz | Zadat poptávku | |
| 521 0 WHR15899 |
C00425490
480111100546 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 571 0 WHR15899 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 336 Kč
€ 14.80 |
||
| 581 0 WHR15899 |
C00311217
481227128554 |
Presostat pračky | 208 Kč
€ 9.10 |
||
| 620 0 WHR15899 |
C00314020
481223958075 |
Modul displeje pračky Whirlpool, Bauknecht | 3 973 Kč
€ 174.60 |
||
| 630 0 WHR15899 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 653 0 WHR15899 |
C00318312
481213418046 |
svetlovod | 471 Kč
€ 20.70 |
||
| 653 1 WHR15899 |
C00314404
481213418047 |
kolik | 323 Kč
€ 14.20 |
||
| 653 2 WHR15899 |
C00320964
480111100366 |
Guide,light BigWin | Na dotaz | Zadat poptávku | |
| 653 3 WHR15899 |
C00319090
481213448362 |
svetlovod | 101 Kč
€ 4.40 |
||
| 691 0 WHR15899 |
C00313117
481228219485 |
senzor NTC | 679 Kč
€ 29.80 |
||
| 701 0 WHR15899 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 58.50 |
||
| 701 1 WHR15899 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 14.40 |
||
| 702 0 WHR15899 |
C00315519
481253029405 |
hadice od ventilu | 214 Kč
€ 9.40 |
||
| 707 5 WHR15899 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 708 1 WHR15899 |
C00313076
481253049392 |
Hadice násypka-nádrž | 427 Kč
€ 18.80 |
||
| 711 0 WHR15899 |
C00327875
481241868437 |
Dispenser Box | Na dotaz | Zadat poptávku | |
| 712 0 WHR15899 |
C00312664
481241868415 |
Drawer | Na dotaz | Zadat poptávku | |
| 713 0 WHR15899 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 20.00 |
||
| 718 0 WHR15899 |
C00315768
481241889085 |
Vložka násypky | 502 Kč
€ 22.10 |
||
| 718 1 WHR15899 |
C00315499
481252648252 |
Vložka násypky | 187 Kč
€ 8.20 |
||
| 754 0 WHR15899 |
C00313144
481253029495 |
Hadice čerpadlo - nádrž pračky Whirlpool | 567 Kč
€ 24.90 |
||
| 754 1 WHR15899 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 103 Kč
€ 48.50 |
||
| 760 0 WHR15899 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 005 Kč
€ 44.20 |
||
| 781 0 WHR15899 |
C00311421
480111100272 |
Hadice výtoková | 392 Kč
€ 17.20 |
||
| 782 0 WHR15899 |
C00312246
481253029497 |
Hadice k presostatu pračky Whirlpool | 93 Kč
€ 4.10 |
||
| 794 2 WHR15899 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 900 1 WHR15899 |
C00327322
481229088123 |
Bracket eureka | Na dotaz | Zadat poptávku | |
| 900 2 WHR15899 |
C00328881
481240118501 |
Svorka hadice 1 | 156 Kč
€ 6.90 |
||
| 900 3 WHR15899 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR15899 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.30 |
||
| 900 5 WHR15899 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 189 Kč
€ 8.30 |
||
| 910 1 WHR15899 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 5 WHR15899 |
C00316731
481290308196 |
sroub | 67 Kč
€ 2.90 |
||
| 930 0 WHR15899 |
C00345873
481249238421 |
Pružina nádrže | Na dotaz | Zadat poptávku | |
| 961 0 WHR15899 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 23.40 |
||
| 965 0 WHR15899 |
C00330912
481246668545 |
kryt odjisteni prack | 388 Kč
€ 17.10 |
||
| 993 0 WHR15899 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 4.20 |
||
| 993 3 WHR15899 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 6.10 |
||
| 999 WHR15899 |
C00364608 | Testprogram WHP | Na dotaz | Zadat poptávku | |
