WHIRLPOOL AWT 2266 N WASHING MACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWT 2266 N WASHING MACHINES WP |
| Kód 12NC: | 856122642160 |
| I.C. kód: | 856122642161 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 856122642163, 856122642160 |
Potřebujete servis? Jsme tady pro Vás

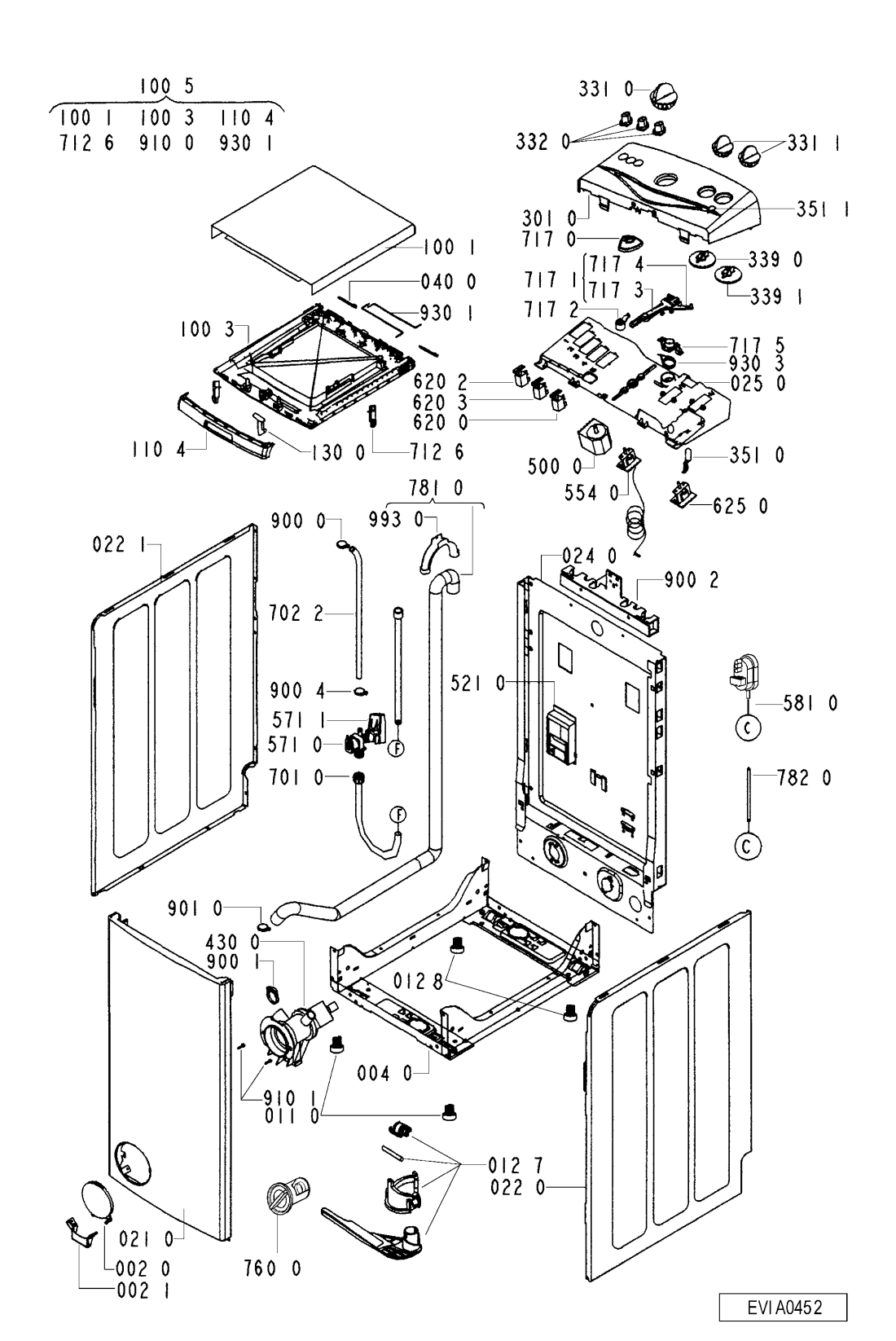

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR82152 |
C00592398
481245938027 |
kryt filtru | Na dotaz | Zadat poptávku | |
| 002 1 WHR82152 |
C00490022
481245938028 |
Dr×iak veka Ţerpadla | Na dotaz | Zadat poptávku | |
| 004 0 WHR82152 |
C00328116
481244019625 |
ram zakladni skrine | 836 Kč
€ 34.30 |
||
| 010 0 WHR82152 |
C00591495
481245948056 |
hrdlo nadrze | Na dotaz | Zadat poptávku | |
| 010 1 WHR82152 |
C00591686
481244010599 |
ram pracky bily GW | Na dotaz | Zadat poptávku | |
| 011 0 WHR82152 |
C00313162
481246248054 |
Noha pračky přední | 38 Kč
€ 1.60 |
||
| 012 7 WHR82152 |
C00327327
481231018497 |
Podvozek výsuvný | 339 Kč
€ 13.90 |
||
| 012 8 WHR82152 |
C00340790
481252878046 |
Nastavitelná noha - zadní pračky Whirlpool, Indesit | 413 Kč
€ 17.00 |
||
| 021 0 WHR82152 |
C00592079
481244019626 |
nahradene 481244010838 | Na dotaz | Zadat poptávku | |
| 022 0 WHR82152 |
C00591689
481244019628 |
stena bocni prava | Na dotaz | Zadat poptávku | |
| 022 1 WHR82152 |
C00591491
481244019629 |
stena bocni leva | Na dotaz | Zadat poptávku | |
| 024 0 WHR82152 |
C00336920
481244019631 |
stena zadni | Na dotaz | Zadat poptávku | |
| 025 0 WHR82152 |
C00558002
481244019632 |
NAHRADENE 481244010535 | Na dotaz | Zadat poptávku | |
| 040 0 WHR82152 |
C00339832
481241718815 |
Hinge bolt | Na dotaz | Zadat poptávku | |
| 061 0 WHR82152 |
C00343092
481246688489 |
zavazi horni zadni | Na dotaz | Zadat poptávku | |
| 061 1 WHR82152 |
C00343083
481246688491 |
zavazi | Na dotaz | Zadat poptávku | |
| 061 2 WHR82152 |
C00330990
481246688492 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| 081 4 WHR82152 |
C00309362
481252918043 |
Tlumič nárazů pračky Whirlpool | 136 Kč
€ 5.60 |
||
| 086 2 WHR82152 |
C00314527
481240118412 |
pojistka tlumice | 333 Kč
€ 13.70 |
||
| 086 3 WHR82152 |
C00555632
481252918044 |
nahradene 481252918052 | Na dotaz | Zadat poptávku | |
| 086 4 WHR82152 |
C00312814
481252918045 |
kolik tlum.pruzny | Na dotaz | Zadat poptávku | |
| 086 5 WHR82152 |
C00336450
481252918046 |
Shaft f. absorber | Na dotaz | Zadat poptávku | |
| 100 1 WHR82152 |
C00558003
481244019634 |
nahradene 481244010842 | Na dotaz | Zadat poptávku | |
| 100 3 WHR82152 |
C00591492
481244019635 |
nahradene 4812 440 10843 | Na dotaz | Zadat poptávku | |
| 100 5 WHR82152 |
C00592080
481244019636 |
nahradene 481244010845 | Na dotaz | Zadat poptávku | |
| 110 4 WHR82152 |
C00487584
481244019553 |
rukojet dveri pracky | Na dotaz | Zadat poptávku | |
| 130 0 WHR82152 |
C00591489
481241718849 |
NAHRADENE 481241719193 | Na dotaz | Zadat poptávku | |
| 191 0 WHR82152 |
C00312647
481246668596 |
Těsnění dveří, manžeta (TVO) pračky Whirlpool | 1 318 Kč
€ 54.20 |
||
| 191 1 WHR82152 |
C00384619
481249298014 |
Strap f. bellow; f. bellow | Na dotaz | Zadat poptávku | |
| 200 0 WHR82152 |
C00337452
481241818242 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR82152 |
C00316140
481244019644 |
Bočnice nádrže s ložiskem | 2 246 Kč
€ 92.30 |
||
| 220 0 WHR82152 |
C00557988
481241818243 |
nahradene 481241818557 | Na dotaz | Zadat poptávku | |
| 223 0 WHR82152 |
C00315124
481941849713 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR82152 |
C00375541
481235818167 |
Řemen pračky Whirlpool 1204 H8 | 107 Kč
€ 4.40 |
||
| 272 0 WHR82152 |
C00312977
481252888083 |
Řemenice bubnu (298 mm) vrchem plněné pračky Whirlpool, Indesit | 768 Kč
€ 31.60 |
||
| 290 0 WHR82152 |
C00312292
481253268078 |
Těsnění bočnice | 563 Kč
€ 23.10 |
||
| 301 0 WHR82152 |
C00592528
481245210818 |
Control panel AWT 2266N - ISR AWT 2266 | Na dotaz | Zadat poptávku | |
| 331 0 WHR82152 |
C00341869
481241258818 |
knoflik programatoru | Na dotaz | Zadat poptávku | |
| 331 1 WHR82152 |
C00338496
481241258817 |
knoflik prepinaci | Na dotaz | Zadat poptávku | |
| 332 0 WHR82152 |
C00344002
481241028583 |
krytka tlacitka | Na dotaz | Zadat poptávku | |
| 339 0 WHR82152 |
C00493517
481241358947 |
unasec termostatu | Na dotaz | Zadat poptávku | |
| 339 1 WHR82152 |
C00493518
481241359007 |
Unašeč knoflíku 0/I Whirlpool | Na dotaz | Zadat poptávku | |
| 351 0 WHR82152 |
C00341482
481213448227 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 351 1 WHR82152 |
C00591601
481212418001 |
Krytka signalky awt2 | Na dotaz | Zadat poptávku | |
| 400 0 WHR82152 |
C00377591
481236158146 |
motor komutatorovy | 3 870 Kč
€ 159.00 |
||
| 421 0 WHR82152 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 421 2 WHR82152 |
C00329010
481240438679 |
Držák | 169 Kč
€ 6.90 |
||
| 430 0 WHR82152 |
C00557958
481236018472 |
nahradene 481236018529 P | Na dotaz | Zadat poptávku | |
| 451 0 WHR82152 |
C00557938
481225928703 |
nahrada 4812 259 28919 | Na dotaz | Zadat poptávku | |
| 490 0 WHR82152 |
C00338659
481231018404 |
Kit cable, mains 1.62 m x3 | Na dotaz | Zadat poptávku | |
| 490 1 WHR82152 |
C00309418
481232128367 |
Přechodka | 324 Kč
€ 13.30 |
||
| 500 0 WHR82152 |
C00377536
481228218856 |
programator AWT | 3 637 Kč
€ 149.40 |
||
| 521 0 WHR82152 |
C00380557
481221478455 |
regulator motoru | Na dotaz | Zadat poptávku | |
| 554 0 WHR82152 |
C00377552
481228248234 |
Thermostat TL 0164 | Na dotaz | Zadat poptávku | |
| 571 0 WHR82152 |
C00337280
481228128393 |
Napouštěcí ventil pračky - jednocestný, boční vývod | Na dotaz | Zadat poptávku | |
| 571 1 WHR82152 |
C00342508
481228118049 |
kryt ventilu | Na dotaz | Zadat poptávku | |
| 581 0 WHR82152 |
C00377502
481227128502 |
presostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR82152 |
C00335725
481941029005 |
spinac tlacitkovy | 772 Kč
€ 31.70 |
||
| 620 2 WHR82152 |
C00491120
481227628369 |
spinac | Na dotaz | Zadat poptávku | |
| 620 3 WHR82152 |
C00494571
481941029044 |
spinac | 170 Kč
€ 7.00 |
||
| 625 0 WHR82152 |
C00494349
481927638362 |
spinac otocny | Na dotaz | Zadat poptávku | |
| 630 0 WHR82152 |
C00338990
481227138373 |
Door lock hybrid | Na dotaz | Zadat poptávku | |
| 701 0 WHR82152 |
C00557593
481953029034 |
Pr#vodov# hadica so sitkom | Na dotaz | Zadat poptávku | |
| 702 2 WHR82152 |
C00339235
481253028871 |
hadice od ventilu | 122 Kč
€ 5.00 |
||
| 707 0 WHR82152 |
C00318593
481252648122 |
Box + tryska awt2050 | 234 Kč
€ 9.60 |
||
| 707 1 WHR82152 |
C00332331
481252648049 |
Spona boxu trysky | 77 Kč
€ 3.20 |
||
| 712 6 WHR82152 |
C00315600
481241868164 |
Příchytka násypka | 285 Kč
€ 11.70 |
||
| 712 9 WHR82152 |
C00557996
481241868186 |
nahradene 481241868359 | Na dotaz | Zadat poptávku | |
| 717 0 WHR82152 |
C00377568
481232318179 |
vacka A1/A2 | Na dotaz | Zadat poptávku | |
| 717 1 WHR82152 |
C00488633
481232318183 |
Packa plastova | Na dotaz | Zadat poptávku | |
| 717 2 WHR82152 |
C00338411
481232318021 |
paka trysky distr.vo | 283 Kč
€ 11.60 |
||
| 717 3 WHR82152 |
C00557954
481232318181 |
paka distribuce II | Na dotaz | Zadat poptávku | |
| 717 4 WHR82152 |
C00557955
481232318182 |
paka distribuce | Na dotaz | Zadat poptávku | |
| 717 5 WHR82152 |
C00482699
481232318025 |
nosic paky distr. | Na dotaz | Zadat poptávku | |
| 753 0 WHR82152 |
C00320198
481241868187 |
vzdusnik | 154 Kč
€ 6.30 |
||
| 754 0 WHR82152 |
C00309507
481253028938 |
Hadice čerpadlo - nádrž pračky Whirlpool, Indesit, Bauknecht, Ignis | 634 Kč
€ 26.00 |
||
| 754 1 WHR82152 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 894 Kč
€ 36.70 |
||
| 760 0 WHR82152 |
C00320131
481248058089 |
Filtr čerpadla AWT | 844 Kč
€ 34.70 |
||
| 781 0 WHR82152 |
C00557375
481253028953 |
hadicevytokova | Na dotaz | Zadat poptávku | |
| 782 0 WHR82152 |
C00332415
481253028941 |
hadice k presostatu | 107 Kč
€ 4.40 |
||
| 787 0 WHR82152 |
C00377873
481253028942 |
hadice odparovaci | 518 Kč
€ 21.30 |
||
| 787 1 WHR82152 |
C00493709
481253028943 |
krytka | Na dotaz | Zadat poptávku | |
| 794 0 WHR82152 |
C00319466
481253058098 |
tesneni vzdusniku Náhrada 481010395017 |
Na dotaz | Zadat poptávku | |
| 900 0 WHR82152 |
C00335942
481229068157 |
Strap SNP 8 | Na dotaz | Zadat poptávku | |
| 900 1 WHR82152 |
C00328873
481240118431 |
Spona hadice cerpadl | 177 Kč
€ 7.30 |
||
| 900 2 WHR82152 |
C00335859
481240118461 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 900 3 WHR82152 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 105 Kč
€ 4.30 |
||
| 900 4 WHR82152 |
C00335940
481940118362 |
Spona plastová SNP8 | Na dotaz | Zadat poptávku | |
| 901 0 WHR82152 |
C00328877
481240118462 |
Spona vytokovej hadi | Na dotaz | Zadat poptávku | |
| 910 0 WHR82152 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 284 Kč
€ 11.70 |
||
| 910 1 WHR82152 |
C00332152
481250238151 |
Šroubek (4x14) vrchem plněné pračky Whirlpool AWE 50510, AWT 2284, AWT 8123 D. | 50 Kč
€ 2.10 |
||
| 910 3 WHR82152 |
C00312644
481250218404 |
Šroub řemenice pračky Whirlpool | 75 Kč
€ 3.10 |
||
| 910 4 WHR82152 |
C00318381
481250218423 |
Šroub PT 7x15 | 61 Kč
€ 2.50 |
||
| 910 5 WHR82152 |
C00336568
481250218401 |
sroub do zavazi | Na dotaz | Zadat poptávku | |
| 910 6 WHR82152 |
C00345896
481250218399 |
Nut Push in M 8Push in M 8 | Na dotaz | Zadat poptávku | |
| 921 0 WHR82152 |
C00314517
481240018047 |
Washer | Na dotaz | Zadat poptávku | |
| 930 1 WHR82152 |
C00318211
481249248171 |
Pružiny dveří - torzní (sada) | 277 Kč
€ 11.40 |
||
| 930 2 WHR82152 |
C00316647
481249248162 |
Pružina agregátu | 716 Kč
€ 29.40 |
||
| 930 3 WHR82152 |
C00336091
481232318019 |
pruzina dist.vody | Na dotaz | Zadat poptávku | |
| 941 0 WHR82152 |
C00318643
481231018578 |
Bearing Kit | Na dotaz | Zadat poptávku | |
| 953 0 WHR82152 |
C00319719
481232568001 |
Těsnění bubnu VA 22 Náhrada 481010777092 |
Na dotaz | Zadat poptávku | |
| 962 0 WHR82152 |
C00485097
481244019645 |
kryt motoru | Na dotaz | Zadat poptávku | |
| 990 0 WHR82152 |
C00340894
481231018504 |
sroub -set do zavazi | Na dotaz | Zadat poptávku | |
| 990 2 WHR82152 |
C00327328
481231018506 |
Šrouby do závaží-sada | 212 Kč
€ 8.70 |
||
| 993 0 WHR82152 |
C00316831
481953029028 |
Ohyb plastový/držák vypouštěcí hadice pračky | Na dotaz | Zadat poptávku | |
| 993 1 WHR82152 |
C00312135
481229018025 |
Clamp heating element | Na dotaz | Zadat poptávku | |
