WHIRLPOOL AWT 5108
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWT 5108 |
| Kód 12NC/I.C. kód: | 856151015000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | Q0923130000, 856151003100 |
Potřebujete servis? Jsme tady pro Vás

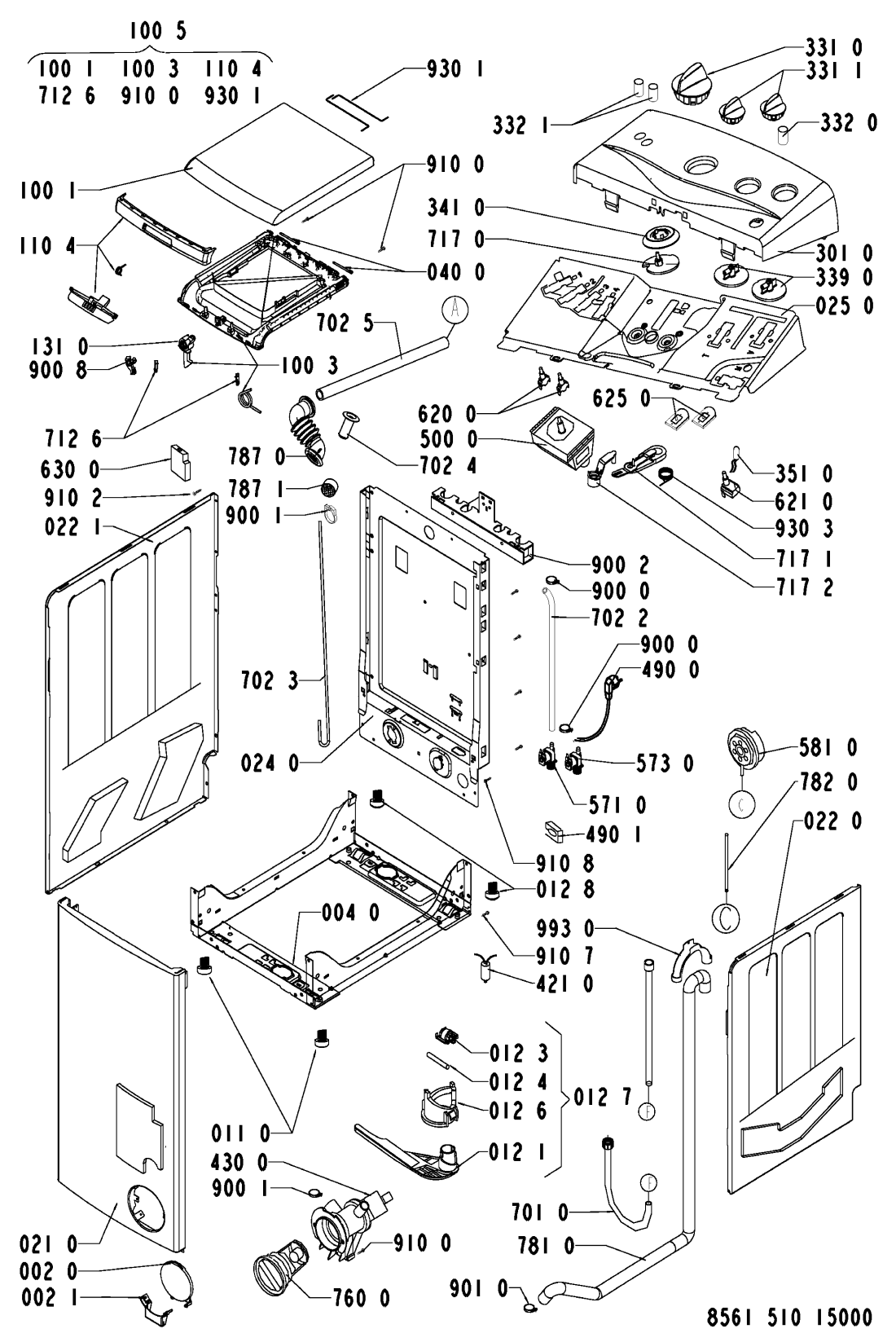

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR04781 |
C00340876
481245938016 |
Kryt čerpadla | Na dotaz | Zadat poptávku | |
| 002 1 WHR04781 |
C00339824 | Hinge flap | Na dotaz | Zadat poptávku | |
| 004 0 WHR04781 |
C00341216
481244019496 |
RAM SKRINE AWT8123 K | Na dotaz | Zadat poptávku | |
| 010 0 WHR04781 |
C00339299
481245848349 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 010 1 WHR04781 |
C00340716
481244019566 |
ram pracky bily | Na dotaz | Zadat poptávku | |
| 011 0 WHR04781 |
C00313162
481246248054 |
Noha pračky přední | 38 Kč
€ 1.60 |
||
| 012 1 WHR04781 |
C00338408
481252878035 |
PAKA PODVOZKU AWT812 | Na dotaz | Zadat poptávku | |
| 012 3 WHR04781 |
C00337178
481252878038 |
Wheel front | Na dotaz | Zadat poptávku | |
| 012 4 WHR04781 |
C00344543
481252878039 |
OSKA PODVOZKU A | Na dotaz | Zadat poptávku | |
| 012 6 WHR04781 |
C00342848 | Cam f. trolley | Na dotaz | Zadat poptávku | |
| 012 7 WHR04781 |
C00337458
481252878044 |
Trolley kit front | Na dotaz | Zadat poptávku | |
| 012 8 WHR04781 |
C00340790
481252878046 |
Nastavitelná noha - zadní pračky Whirlpool, Indesit | 413 Kč
€ 16.90 |
||
| 021 0 WHR04781 |
C00340659 | Front panel classic | Na dotaz | Zadat poptávku | |
| 022 0 WHR04781 |
C00336317 | Side panel right | Na dotaz | Zadat poptávku | |
| 022 1 WHR04781 |
C00336330
481244019493 |
stena bocni leva | Na dotaz | Zadat poptávku | |
| 024 0 WHR04781 |
C00336922 | Rear panel | Na dotaz | Zadat poptávku | |
| 025 0 WHR04781 |
C00335848
481244019582 |
nosic elektrodilu | Na dotaz | Zadat poptávku | |
| 040 0 WHR04781 |
C00339832
481241718815 |
Hinge bolt | Na dotaz | Zadat poptávku | |
| 061 0 WHR04781 |
C00330989
481246688466 |
zavazi leve k remen. | Na dotaz | Zadat poptávku | |
| 061 1 WHR04781 |
C00330988
481246688465 |
Závaží pravé | Na dotaz | Zadat poptávku | |
| 081 4 WHR04781 |
C00315238
481252918042 |
tlumice - sada ( 2x tlumič,2x kolík ) | 282 Kč
€ 11.60 |
||
| 100 1 WHR04781 |
C00338359
481244019489 |
Lid outer | Na dotaz | Zadat poptávku | |
| 100 3 WHR04781 |
C00338366
481244019512 |
Lid inner cpl.inner cpl. | Na dotaz | Zadat poptávku | |
| 100 5 WHR04781 |
C00338369
481244019535 |
Lid cpl.cpl. | Na dotaz | Zadat poptávku | |
| 110 4 WHR04781 |
C00339992
481249868144 |
Handle service kit | Na dotaz | Zadat poptávku | |
| 131 0 WHR04781 |
C00338332
481253578037 |
Lock hook | Na dotaz | Zadat poptávku | |
| 191 1 WHR04781 |
C00345877
481249298012 |
spona TVO kov.FR | 286 Kč
€ 11.70 |
||
| 191 2 WHR04781 |
C00338661 | Kit Bellow (MH) 5cm | Na dotaz | Zadat poptávku | |
| 200 0 WHR04781 |
C00337451
481241818222 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR04781 |
C00316136
481244019487 |
bocnice nadrze | Na dotaz | Zadat poptávku | |
| 220 0 WHR04781 |
C00320110
481241818227 |
Drum door 210 mm | Na dotaz | Zadat poptávku | |
| 223 0 WHR04781 |
C00341179
481241848474 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 223 1 WHR04781 |
C00341172
481241848475 |
Žebro bubnu 84mm | Na dotaz | Zadat poptávku | |
| 271 0 WHR04781 |
C00319989
481235818158 |
Belt | Na dotaz | Zadat poptávku | |
| 272 0 WHR04781 |
C00318659
481252888077 |
Pulley 298 (MH) | Na dotaz | Zadat poptávku | |
| 290 0 WHR04781 |
C00320197 | Seal f. Tub | Na dotaz | Zadat poptávku | |
| 301 0 WHR04781 |
C00343616 | Control panel AWT 5108 | Na dotaz | Zadat poptávku | |
| 331 0 WHR04781 |
C00341869
481241258818 |
knoflik programatoru | Na dotaz | Zadat poptávku | |
| 331 1 WHR04781 |
C00338496
481241258817 |
knoflik prepinaci | Na dotaz | Zadat poptávku | |
| 332 0 WHR04781 |
C00344006
481241028582 |
tlacitko ON/OFF | Na dotaz | Zadat poptávku | |
| 332 1 WHR04781 |
C00344002
481241028583 |
krytka tlacitka | Na dotaz | Zadat poptávku | |
| 339 0 WHR04781 |
C00344653
481241318241 |
Adapter | Na dotaz | Zadat poptávku | |
| 341 0 WHR04781 |
C00337521
481241318275 |
Program indic. | Na dotaz | Zadat poptávku | |
| 351 0 WHR04781 |
C00341466
481212498001 |
Pilot lampmains | Na dotaz | Zadat poptávku | |
| 400 0 WHR04781 |
C00316248
481236158134 |
motor komutatorovy | Na dotaz | Zadat poptávku | |
| 421 0 WHR04781 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR04781 |
C00315253
481236018474 |
Pump | Na dotaz | Zadat poptávku | |
| 451 0 WHR04781 |
C00312815
481225928765 |
Heating element | Na dotaz | Zadat poptávku | |
| 451 1 WHR04781 |
C00317366
481228218702 |
senzor NTC | Na dotaz | Zadat poptávku | |
| 490 0 WHR04781 |
C00342884 | Cable mains UK | Na dotaz | Zadat poptávku | |
| 490 1 WHR04781 |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 500 0 WHR04781 |
C00335409 | Timer SC1 A3 | Na dotaz | Zadat poptávku | |
| 571 0 WHR04781 |
C00337293
481228128399 |
Valve magnet cold (UK) | Na dotaz | Zadat poptávku | |
| 573 0 WHR04781 |
C00337291 | Valve magnet hot (UK) | Na dotaz | Zadat poptávku | |
| 581 0 WHR04781 |
C00337570
481227128389 |
presostat | 1 071 Kč
€ 43.90 |
||
| 620 0 WHR04781 |
C00332969
481941028998 |
spinac | Na dotaz | Zadat poptávku | |
| 621 0 WHR04781 |
C00335728
481227618276 |
Switch ON/OFF | Na dotaz | Zadat poptávku | |
| 625 0 WHR04781 |
C00336785
481241348279 |
Rotary selector + potentiometer. | Na dotaz | Zadat poptávku | |
| 630 0 WHR04781 |
C00319007
481227138364 |
Blokování dveří | Na dotaz | Zadat poptávku | |
| 701 0 WHR04781 |
C00318779
481253028971 |
Hose inlet hot | Na dotaz | Zadat poptávku | |
| 702 2 WHR04781 |
C00339235
481253028871 |
hadice od ventilu | 122 Kč
€ 5.00 |
||
| 702 3 WHR04781 |
C00339233 | Hose Valve-Dispenser hot | Na dotaz | Zadat poptávku | |
| 702 4 WHR04781 |
C00343472
481229018023 |
Connection part | Na dotaz | Zadat poptávku | |
| 702 5 WHR04781 |
C00316325
481253029102 |
Hose connection water cont. | Na dotaz | Zadat poptávku | |
| 707 0 WHR04781 |
C00341594 | Nozzle box hot cpl. | Na dotaz | Zadat poptávku | |
| 712 4 WHR04781 |
C00336282
481241868162 |
Siphon f. softener | Na dotaz | Zadat poptávku | |
| 712 6 WHR04781 |
C00315600
481241868164 |
Příchytka násypka | 285 Kč
€ 11.70 |
||
| 712 9 WHR04781 |
C00342177
481241868174 |
Dispencer cpl. 3 comp. | Na dotaz | Zadat poptávku | |
| 717 0 WHR04781 |
C00342846
481232118154 |
Cam SC1 plastic support | Na dotaz | Zadat poptávku | |
| 717 1 WHR04781 |
C00338400
481232138023 |
paka distribuce | Na dotaz | Zadat poptávku | |
| 717 2 WHR04781 |
C00338411
481232318021 |
paka trysky distr.vo | 283 Kč
€ 11.60 |
||
| 750 0 WHR04781 |
C00344335 | Boiler | Na dotaz | Zadat poptávku | |
| 753 0 WHR04781 |
C00342742
481253028874 |
vzdusnik | Na dotaz | Zadat poptávku | |
| 754 0 WHR04781 |
C00341282
481253028859 |
Hadice nádrž - čerpadlo pračky Whirlpool, Bauknecht | 453 Kč
€ 18.60 |
||
| 754 1 WHR04781 |
C00318763
488000318763 |
Lock eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR04781 |
C00320131
481248058089 |
Filtr čerpadla AWT | 844 Kč
€ 34.60 |
||
| 781 0 WHR04781 |
C00337957
481253028861 |
Outlet Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR04781 |
C00339266
481253028866 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR04781 |
C00339394
481253029101 |
hadice | Na dotaz | Zadat poptávku | |
| 787 1 WHR04781 |
C00336171
481258038007 |
Sponge | Na dotaz | Zadat poptávku | |
| 794 0 WHR04781 |
C00319466
481253058098 |
tesneni vzdusniku Náhrada 481010395017 |
Na dotaz | Zadat poptávku | |
| 900 0 WHR04781 |
C00335942
481229068157 |
Strap SNP 8 | Na dotaz | Zadat poptávku | |
| 900 1 WHR04781 |
C00328873
481240118431 |
Spona hadice cerpadl | 177 Kč
€ 7.30 |
||
| 900 2 WHR04781 |
C00335858 | Support Cable/Hose | Na dotaz | Zadat poptávku | |
| 900 6 WHR04781 |
C00317886
481240018048 |
kolik plast | 157 Kč
€ 6.40 |
||
| 900 8 WHR04781 |
C00343339
481240118447 |
Clamp top frame | Na dotaz | Zadat poptávku | |
| 901 0 WHR04781 |
C00315583 | Clamp hose | Na dotaz | Zadat poptávku | |
| 904 1 WHR04781 |
C00312814
481252918045 |
kolik tlum.pruzny | Na dotaz | Zadat poptávku | |
| 904 2 WHR04781 |
C00336450
481252918046 |
Shaft f. absorber | Na dotaz | Zadat poptávku | |
| 910 0 WHR04781 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 284 Kč
€ 11.60 |
||
| 910 1 WHR04781 |
C00332152
481250238151 |
Šroubek (4x14) vrchem plněné pračky Whirlpool AWE 50510, AWT 2284, AWT 8123 D. | 50 Kč
€ 2.10 |
||
| 910 2 WHR04781 |
C00336632 | Screw 4x12 SS T10 | Na dotaz | Zadat poptávku | |
| 910 3 WHR04781 |
C00312644
481250218404 |
Šroub řemenice pračky Whirlpool | 75 Kč
€ 3.10 |
||
| 910 5 WHR04781 |
C00336568
481250218401 |
sroub do zavazi | Na dotaz | Zadat poptávku | |
| 910 6 WHR04781 |
C00345896
481250218399 |
Nut Push in M 8Push in M 8 | Na dotaz | Zadat poptávku | |
| 910 7 WHR04781 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 910 8 WHR04781 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 921 0 WHR04781 |
C00314517
481240018047 |
Washer | Na dotaz | Zadat poptávku | |
| 930 1 WHR04781 |
C00335389 | Torsions spring | Na dotaz | Zadat poptávku | |
| 930 2 WHR04781 |
C00314200
481249248086 |
Pružina agregátu vrchem plněné pračky Whirlpool, Indesit | 605 Kč
€ 24.80 |
||
| 930 3 WHR04781 |
C00336091
481232318019 |
pruzina dist.vody | Na dotaz | Zadat poptávku | |
| 941 2 WHR04781 |
C00314774
481231018483 |
Ložisková sestava AWT kov. | 318 Kč
€ 13.00 |
||
| 953 0 WHR04781 |
C00319719
481232568001 |
Těsnění bubnu VA 22 Náhrada 481010777092 |
Na dotaz | Zadat poptávku | |
| 953 1 WHR04781 |
C00315493 | Ring counterface | Na dotaz | Zadat poptávku | |
| 953 2 WHR04781 |
C00320179
481253068017 |
O-Ring | Na dotaz | Zadat poptávku | |
| 962 0 WHR04781 |
C00328110
481244019497 |
Cover f. Motor | Na dotaz | Zadat poptávku | |
| 993 0 WHR04781 |
C00344292
481253028875 |
Bow | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360503 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360504 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360505 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360506 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360507 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360508 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360509 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360510 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04781 |
C00360511 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
