WHIRLPOOL AWZ 7814 AL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 7814 AL |
| Kód 12NC: | 857578115140 |
| I.C. kód: | 857578115142 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857578115140, Q0924610000, Q0924610002 |
Potřebujete servis? Jsme tady pro Vás

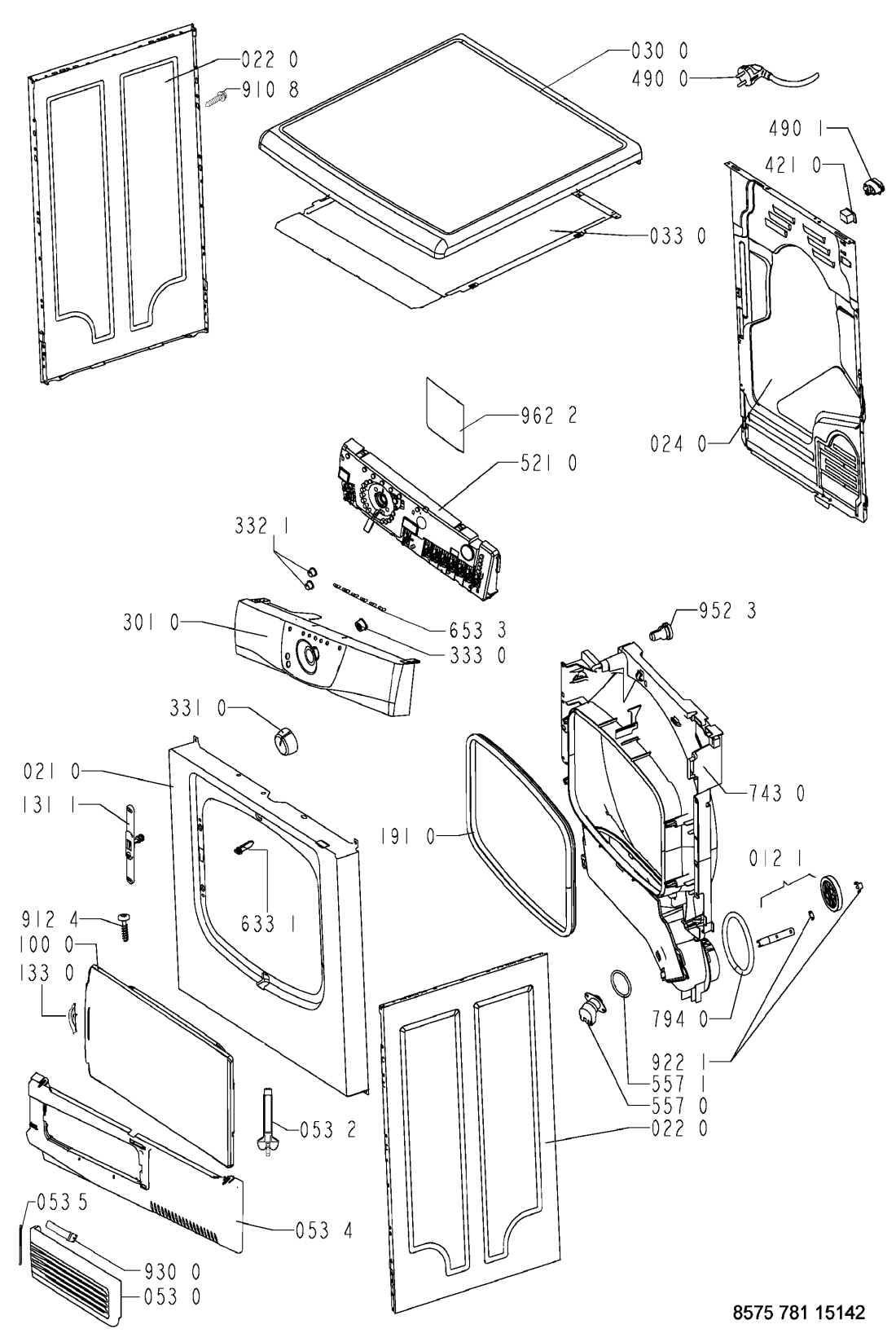

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR05105 |
C00316150
481244019718 |
sokl | 4 064 Kč
€ 178.60 |
||
| 011 0 WHR05105 |
C00312250
481250018054 |
Noha nastavitelná sušičky | 54 Kč
€ 2.40 |
||
| 012 0 WHR05105 |
C00311093
481252878033 |
kolecko bubnu | 1 201 Kč
€ 52.80 |
||
| 012 1 WHR05105 |
C00311104
481252898003 |
Kolečko bubnu | 1 283 Kč
€ 56.40 |
||
| 012 2 WHR05105 |
C00312253
481252028188 |
osa kolecka | 472 Kč
€ 20.70 |
||
| 021 0 WHR05105 |
C00340654
481244069355 |
Front panel silver | Na dotaz | Zadat poptávku | |
| 022 0 WHR05105 |
C00341530
481244011361 |
Panel side silver | Na dotaz | Zadat poptávku | |
| 024 0 WHR05105 |
C00341541
481244011474 |
Panel rear CD | Na dotaz | Zadat poptávku | |
| 030 0 WHR05105 |
C00335634
481244011362 |
Table top CD EBL WH silver | Na dotaz | Zadat poptávku | |
| 033 0 WHR05105 |
C00318645
481231018582 |
Kit Push in cover | Na dotaz | Zadat poptávku | |
| 053 0 WHR05105 |
C00340853
481244011364 |
Flap EBL WH silver | Na dotaz | Zadat poptávku | |
| 053 2 WHR05105 |
C00315514
481241728103 |
tahlo | Na dotaz | Zadat poptávku | |
| 053 4 WHR05105 |
C00337679
481244089125 |
Plinth f. tank bottom EBL silver | Na dotaz | Zadat poptávku | |
| 053 5 WHR05105 |
C00344544
481241728102 |
osa | 370 Kč
€ 16.30 |
||
| 100 0 WHR05105 |
C00342107
481244011363 |
Door CD WH EBL silver | Na dotaz | Zadat poptávku | |
| 131 1 WHR05105 |
C00313071
481227138354 |
Zámek sušičky | 447 Kč
€ 19.60 |
||
| 133 0 WHR05105 |
C00340075 | Handle door + hook WH EBL silver | Na dotaz | Zadat poptávku | |
| 133 2 WHR05105 |
C00338336
481241728056 |
Lock Bag filter | Na dotaz | Zadat poptávku | |
| 191 0 WHR05105 |
C00312285
481246668607 |
Těsnění dveří sušičky | 937 Kč
€ 41.20 |
||
| 220 0 WHR05105 |
C00311837
481241818177 |
Buben sušičky | 4 085 Kč
€ 179.60 |
||
| 223 0 WHR05105 |
C00316053
481241889017 |
žebro bubnu sušičky | 539 Kč
€ 23.70 |
||
| 271 0 WHR05105 |
C00311016
481235818164 |
Řemen sušičky 1936H6 | 123 Kč
€ 5.40 |
||
| 273 0 WHR05105 |
C00311000
481235818055 |
kladka napinaci | 1 056 Kč
€ 46.40 |
||
| 275 0 WHR05105 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR05105 |
C00313025
481246668561 |
tesneni bubnu predni | 1 192 Kč
€ 52.40 |
||
| 291 2 WHR05105 |
C00311349
481246668837 |
Těsnění bubnu zadní | 1 868 Kč
€ 82.10 |
||
| 301 0 WHR05105 |
C00317850
481245215471 |
Control panel AWZ 7814 | Na dotaz | Zadat poptávku | |
| 331 0 WHR05105 |
C00318187
481241259143 |
Knoflík sušičky - stříbrný | Na dotaz | Zadat poptávku | |
| 332 1 WHR05105 |
C00316698
481241029359 |
Button Opt. EBL silver | Na dotaz | Zadat poptávku | |
| 333 0 WHR05105 |
C00318495
481251318167 |
Button Start EBL silver | Na dotaz | Zadat poptávku | |
| 401 0 WHR05105 |
C00313120
481236118532 |
Motor + fan wheel + clamp | Na dotaz | Zadat poptávku | |
| 401 1 WHR05105 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 10.90 |
||
| 420 0 WHR05105 |
C00311778
481212118144 |
Kondenzator 10mF | 329 Kč
€ 14.50 |
||
| 421 0 WHR05105 |
C00311367
481212118276 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 443 0 WHR05105 |
C00313112
481236118537 |
vrtule ventilatoru+spona | 1 214 Kč
€ 53.40 |
||
| 443 1 WHR05105 |
C00313062
481236118518 |
vrtule ventilatoru | Na dotaz | Zadat poptávku | |
| 443 2 WHR05105 |
C00311527
481229088096 |
pojistka | 199 Kč
€ 8.70 |
||
| 456 0 WHR05105 |
C00312244
481231018585 |
topeni susicky | 3 455 Kč
€ 151.90 |
||
| 490 0 WHR05105 |
C00328488
481232118063 |
Cable mains UK | Na dotaz | Zadat poptávku | |
| 490 1 WHR05105 |
C00328506
481232128433 |
Strain relief + protect. | Na dotaz | Zadat poptávku | |
| 492 1 WHR05105 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 521 0 WHR05105 |
C00311520
481221479333 |
Control board ALPHA ED 3253 ZAC | Na dotaz | Zadat poptávku | |
| 557 0 WHR05105 |
C00311889
481228208008 |
termostat | 1 521 Kč
€ 66.90 |
||
| 557 1 WHR05105 |
C00340422
481228298005 |
Gasket Thermostat | Na dotaz | Zadat poptávku | |
| 564 0 WHR05105 |
C00313080
481225928681 |
Termostat sestava | 743 Kč
€ 32.70 |
||
| 631 0 WHR05105 |
C00315891
481227138497 |
Mikrospínač plováku | 782 Kč
€ 34.40 |
||
| 631 3 WHR05105 |
C00314326
481227118084 |
Floater system cpl. 6kg | Na dotaz | Zadat poptávku | |
| 633 1 WHR05105 |
C00312237
481227618422 |
Kolík | 540 Kč
€ 23.70 |
||
| 653 3 WHR05105 |
C00338350
481213448324 |
Light guide ALPHA WH | Na dotaz | Zadat poptávku | |
| 692 0 WHR05105 |
C00315824
481221058055 |
kryt senzoru | Na dotaz | Zadat poptávku | |
| 692 1 WHR05105 |
C00311657
481227858001 |
senzor vlhkosti | 1 064 Kč
€ 46.80 |
||
| 740 0 WHR05105 |
C00312656
481251148417 |
Výměník tepla | 5 547 Kč
€ 243.80 |
||
| 741 0 WHR05105 |
C00316089
481244008035 |
Blower cold air | Na dotaz | Zadat poptávku | |
| 741 1 WHR05105 |
C00318903
481253048244 |
Cover blower house | Na dotaz | Zadat poptávku | |
| 743 0 WHR05105 |
C00344567
481253048912 |
Air guide without hole | Na dotaz | Zadat poptávku | |
| 743 1 WHR05105 |
C00332505
481253048253 |
Heating chamber aluzinc | Na dotaz | Zadat poptávku | |
| 743 3 WHR05105 |
C00342555
481253048239 |
kryt | 1 502 Kč
€ 66.00 |
||
| 743 4 WHR05105 |
C00342435
481246448122 |
Cover plate | Na dotaz | Zadat poptávku | |
| 743 8 WHR05105 |
C00340450
481246688519 |
tesneni | 216 Kč
€ 9.50 |
||
| 750 0 WHR05105 |
C00335604
481241818559 |
Tank | Na dotaz | Zadat poptávku | |
| 761 0 WHR05105 |
C00311293
481248058322 |
Filtr sušičky | 975 Kč
€ 42.90 |
||
| 794 0 WHR05105 |
C00313992
481246688863 |
tesneni | 805 Kč
€ 35.40 |
||
| 794 1 WHR05105 |
C00319699
481246628108 |
tesneni | 695 Kč
€ 30.50 |
||
| 794 2 WHR05105 |
C00336536
481246698935 |
Sealing Heater holder | Na dotaz | Zadat poptávku | |
| 794 3 WHR05105 |
C00320041
481246698937 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 4 WHR05105 |
C00313984
481246688521 |
Těsnění dveřního filtru sušičky | 1 125 Kč
€ 49.50 |
||
| 900 1 WHR05105 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 8.70 |
||
| 902 2 WHR05105 |
C00339600
481225638012 |
Holder heater | Na dotaz | Zadat poptávku | |
| 903 0 WHR05105 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 10.00 |
||
| 903 1 WHR05105 |
C00341035 | Fastener | Na dotaz | Zadat poptávku | |
| 910 1 WHR05105 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 155 Kč
€ 6.80 |
||
| 910 8 WHR05105 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 912 4 WHR05105 |
C00316665
481250248015 |
Screw 4,0x16-TORX. | Na dotaz | Zadat poptávku | |
| 922 0 WHR05105 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR05105 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 12.10 |
||
| 930 0 WHR05105 |
C00318247
481249298039 |
spojka | 219 Kč
€ 9.60 |
||
| 950 0 WHR05105 |
C00319725
481246648101 |
Felt,strip bottom group | Na dotaz | Zadat poptávku | |
| 950 1 WHR05105 |
C00312097
481246688517 |
Těsnění sběrné nádoby | 680 Kč
€ 29.90 |
||
| 952 3 WHR05105 |
C00340432
481246688522 |
Gasket sensor wiring | Na dotaz | Zadat poptávku | |
| 962 0 WHR05105 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 962 2 WHR05105 |
C00319715
481246638056 |
Foil Aluminium Display board | Na dotaz | Zadat poptávku | |
| 999 WHR05105 |
C00371111 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05105 |
C00371112 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05105 |
C00371113 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05105 |
C00371114 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05105 |
C00371170 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05105 |
C00371171 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05105 |
C00371172 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05105 |
C00371173 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
