IKEA BEM 540S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | BEM 540S |
| Kód 12NC: | 852200516770 |
| I.C. kód: | 852200516771 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

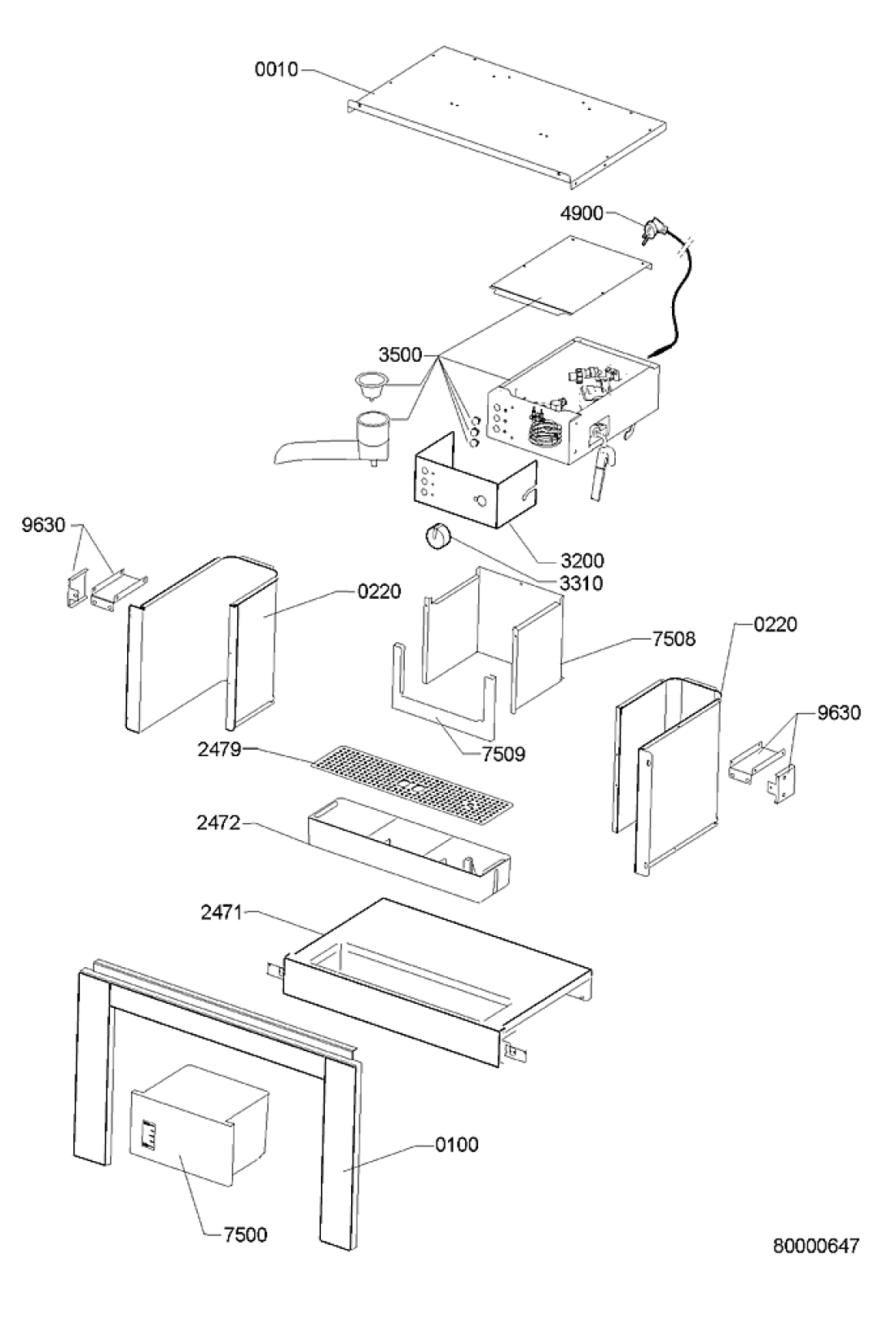

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR20295 |
C00316222
481244058333 |
kryt | Na dotaz | Zadat poptávku | |
| 0100 WHR20295 |
C00317861
481231039125 |
ram kavovaru | Na dotaz | Zadat poptávku | |
| 0220 WHR20295 |
C00328268
481244058332 |
Side panel | Na dotaz | Zadat poptávku | |
| 2471 WHR20295 |
C00319314
481241838154 |
Tray leak | Na dotaz | Zadat poptávku | |
| 2472 WHR20295 |
C00327796
481241838156 |
Tray leak | Na dotaz | Zadat poptávku | |
| 2479 WHR20295 |
C00327795
481241838155 |
mrizka | Na dotaz | Zadat poptávku | |
| 3200 WHR20295 |
C00315759
481245350268 |
Panel control | Na dotaz | Zadat poptávku | |
| 3310 WHR20295 |
C00329358
481241078207 |
knoflik kavovaru | Na dotaz | Zadat poptávku | |
| 3320 WHR20295 |
C00329359
481241078208 |
Button | Na dotaz | Zadat poptávku | |
| 3500 WHR20295 |
C00313139
481221458409 |
Modul kávovaru | 6 548 Kč
€ 262.50 |
||
| 3510 WHR20295 |
C00318436
481213488079 |
signalka | Na dotaz | Zadat poptávku | |
| 3511 WHR20295 |
C00318438
481213488081 |
doutnavka | Na dotaz | Zadat poptávku | |
| 4300 WHR20295 |
C00315259
481236018576 |
Pump | Na dotaz | Zadat poptávku | |
| 4309 WHR20295 |
C00329096
481240449733 |
Support | Na dotaz | Zadat poptávku | |
| 4839 WHR20295 |
C00327603
481229068345 |
Connector | Na dotaz | Zadat poptávku | |
| 4900 WHR20295 |
C00457190
481232118298 |
Cable mains CH | Na dotaz | Zadat poptávku | |
| 5210 WHR20295 |
C00311612
481231088428 |
Bojler kávovaru | 8 550 Kč
€ 342.80 |
||
| 5211 WHR20295 |
C00321537
480123100312 |
Sítko bojleru | 125 Kč
€ 5.00 |
||
| 5212 WHR20295 |
C00321538
480123100313 |
těsnění | 322 Kč
€ 12.90 |
||
| 5620 WHR20295 |
C00327572
481228248296 |
termostat | 582 Kč
€ 23.30 |
||
| 5621 WHR20295 |
C00327571
481228248295 |
termostat | 582 Kč
€ 23.30 |
||
| 5717 WHR20295 |
C00332124
481250218762 |
šroub | 154 Kč
€ 6.20 |
||
| 5720 WHR20295 |
C00312638
481228228339 |
regulator tlaku presovac | 847 Kč
€ 34.00 |
||
| 5721 WHR20295 |
C00317965
481228138003 |
Valve | Na dotaz | Zadat poptávku | |
| 6209 WHR20295 |
C00327249
481227138515 |
spinac sitovy | 221 Kč
€ 8.90 |
||
| 6210 WHR20295 |
C00319469
481227138516 |
spinac | 262 Kč
€ 10.50 |
||
| 7000 WHR20295 |
C00314166
480123100315 |
Hose inlet steam valve 150 mm | Na dotaz | Zadat poptávku | |
| 7000 WHR20295 |
C00314691
480123100316 |
Hose inlet boiler 190 mm | 316 Kč
€ 12.70 |
||
| 7020 WHR20295 |
C00313472
481254828058 |
Hose | Na dotaz | Zadat poptávku | |
| 7021 WHR20295 |
C00312128
481254828059 |
hadice tlakova | 661 Kč
€ 26.50 |
||
| 7022 WHR20295 |
C00313868
481245828028 |
hadička | Na dotaz | Zadat poptávku | |
| 7023 WHR20295 |
C00313614
481245828031 |
Tube | Na dotaz | Zadat poptávku | |
| 7025 WHR20295 |
C00316713
481253088027 |
hadice | Na dotaz | Zadat poptávku | |
| 7260 WHR20295 |
C00330124
481245828029 |
Tryska napěňovače mléka | Na dotaz | Zadat poptávku | |
| 7261 WHR20295 |
C00332740
481254828061 |
Rurka | Na dotaz | Zadat poptávku | |
| 7265 WHR20295 |
C00327934
481244008043 |
cover | Na dotaz | Zadat poptávku | |
| 7411 WHR20295 |
C00316656
481240449736 |
Savec | Na dotaz | Zadat poptávku | |
| 7412 WHR20295 |
C00316654
481240449735 |
Support | Na dotaz | Zadat poptávku | |
| 7413 WHR20295 |
C00319381
481240449734 |
Support | Na dotaz | Zadat poptávku | |
| 7500 WHR20295 |
C00327913
481241889073 |
Nádoba na vodu | Na dotaz | Zadat poptávku | |
| 7508 WHR20295 |
C00328269
481244058334 |
Cover water tank | Na dotaz | Zadat poptávku | |
| 7509 WHR20295 |
C00319705
481240478836 |
Decor plate | Na dotaz | Zadat poptávku | |
| 7620 WHR20295 |
C00317022
481248088031 |
Filter | Na dotaz | Zadat poptávku | |
| 7811 WHR20295 |
C00332577
481253049217 |
Floater | Na dotaz | Zadat poptávku | |
| 9003 WHR20295 |
C00329097
481240449737 |
Strap | Na dotaz | Zadat poptávku | |
| 9100 WHR20295 |
C00317058
481250018112 |
natrubek | 481 Kč
€ 19.30 |
||
| 9101 WHR20295 |
C00329095
481240449732 |
Spojka | 301 Kč
€ 12.10 |
||
| 9102 WHR20295 |
C00345749
481250018113 |
Fitting | 164 Kč
€ 6.60 |
||
| 9300 WHR20295 |
C00317377
480123100425 |
Pružina trubky sání | 149 Kč
€ 6.00 |
||
| 9301 WHR20295 |
C00312947
481249298046 |
Spring | Na dotaz | Zadat poptávku | |
| 9302 WHR20295 |
C00345743
481249298047 |
pruzina | 68 Kč
€ 2.70 |
||
| 9503 WHR20295 |
C00311595
481246688945 |
Gasket | Na dotaz | Zadat poptávku | |
| 9504 WHR20295 |
C00313410
481246688947 |
O-Ring | Na dotaz | Zadat poptávku | |
| 9505 WHR20295 |
C00312921
481246688948 |
Těsnění kávovaru | Na dotaz | Zadat poptávku | |
| 9506 WHR20295 |
C00312923
481246688949 |
Těsnění - O kroužek | Na dotaz | Zadat poptávku | |
| 9507 WHR20295 |
C00312131
481246688944 |
Gasket O-ring | Na dotaz | Zadat poptávku | |
| 9508 WHR20295 |
C00313538
481246688946 |
krouzek | 67 Kč
€ 2.70 |
||
| 9630 WHR20295 |
C00329091
481240449715 |
Angle iron installation | Na dotaz | Zadat poptávku | |
| 9711 WHR20295 |
C00327103
481225228062 |
Fuse | Na dotaz | Zadat poptávku | |
| 9930 WHR20295 |
C00345748
481249898012 |
Páka kávovaru | 1 779 Kč
€ 71.30 |
||
| 9931 WHR20295 |
C00329098
481240449738 |
Zajištění páky kávoru | 76 Kč
€ 3.00 |
||
| 9932 WHR20295 |
C00345737
481248088032 |
Filtr kávovaru - velký | 779 Kč
€ 31.20 |
||
| 9933 WHR20295 |
C00345738
481248088033 |
filtr kavovaru malý | 1 860 Kč
€ 74.60 |
||
| 9934 WHR20295 |
C00466332
482000004579 |
press | Na dotaz | Zadat poptávku | |
