BAUKNECHT BKKR IAXL2
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | BKKR IAXL2 |
| Kód 12NC: | 859993365060 |
| I.C. kód: | 767749167100 |
| Značka: | BAUKNECHT |
| Typ produktu: | Myčky |
| Další podobné modely: | 859993365060 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

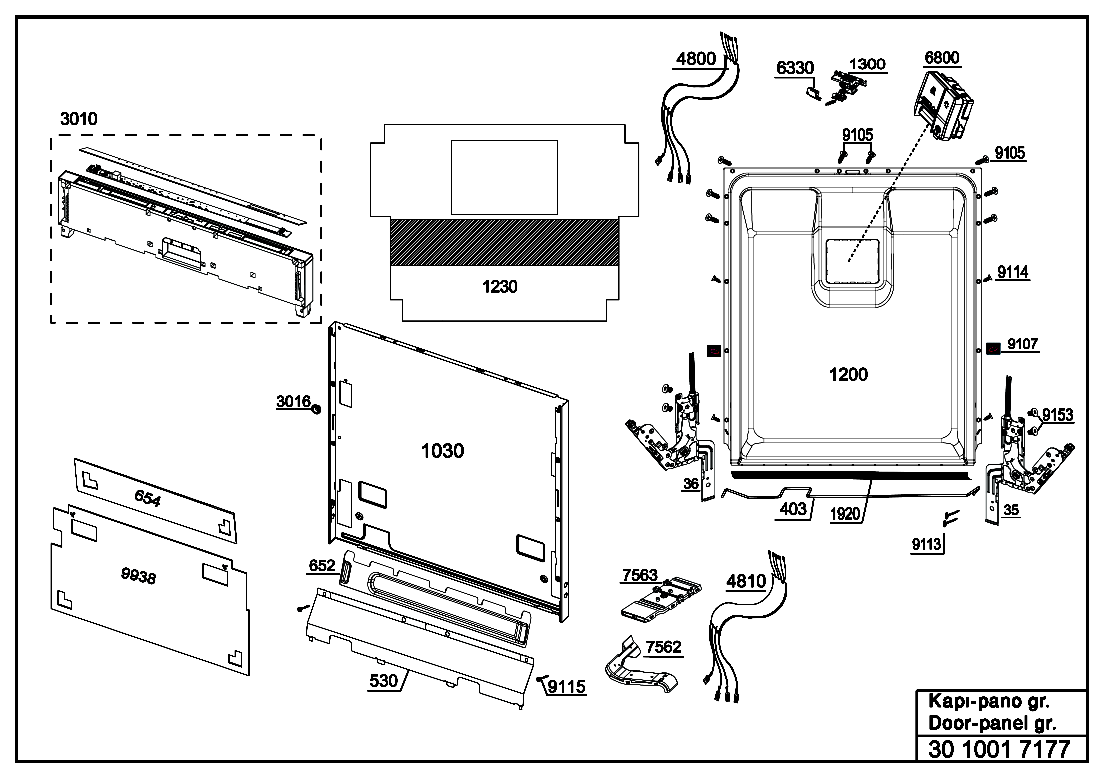

| 035 DISH 3010017177 |
C00980063
1786980601 |
HINGE GROUP SPRING SL40 ADO | Na dotaz | Zadat poptávku | |
| 036 DISH 3010017177 |
C00980062
1786980501 |
HINGE GROUP SPRING SL40 ADO | Na dotaz | Zadat poptávku | |
| 1030 DISH 3010017177 |
C00899491
1749270511 |
OUTER DOOR | Na dotaz | Zadat poptávku | |
| 1200 DISH 3010017177 |
C00974274
1512252300 |
DORA INNER DOOR BITUMEN GR. | Na dotaz | Zadat poptávku | |
| 1230 DISH 3010017177 |
C00974276
1786680100 |
DOOR INSULATION | Na dotaz | Zadat poptávku | |
| 1300 DISH 3010017177 |
C00919391
1510600200 |
Tilt lock cpl. | Na dotaz | Zadat poptávku | |
| 1920 DISH 3010017177 |
C00914092
1882470100 |
Sealing door | Na dotaz | Zadat poptávku | |
| 3010 DISH 3010017177 |
C00969377
1763350595 |
PANEL GROUP BKKR IAXL | Na dotaz | Zadat poptávku | |
| 3016 DISH 3010017177 |
C00871851
1767110100 |
Pouzdro | 225 Kč
€ 9.30 |
||
| 403 DISH 3010017177 |
C00968620
1759260101 |
HINGE SLIDING 80MM SUPPORT WIRE | Na dotaz | Zadat poptávku | |
| 4800 DISH 3010017177 |
C00869736
1522111500 |
PORTAL-2 CABLE HARNESS | Na dotaz | Zadat poptávku | |
| 4810 DISH 3010017177 |
C00985741
1522123801 |
PORTAL 2 CABLE HARNESS | Na dotaz | Zadat poptávku | |
| 530 DISH 3010017177 |
C00875083
1783060200 |
ANGORA BI KICK PLATE STEEL | Na dotaz | Zadat poptávku | |
| 652 DISH 3010017177 |
C00878187
1783840100 |
ANGORA BI KICK PLATE PAD | Na dotaz | Zadat poptávku | |
| 6800 DISH 3010017177 |
C00976543
1512120100 |
BITRON DETERGENT BOX GROUP | Na dotaz | Zadat poptávku | |
| 7562 DISH 3010017177 |
C00873988
1799990200 |
2019 CABLE HOLDER UPPER PART | Na dotaz | Zadat poptávku | |
| 7563 DISH 3010017177 |
C00873990
1799980200 |
2019 CABLE HOLDER TOP PART | Na dotaz | Zadat poptávku | |
| 9107 DISH 3010017177 |
C00915828
1882820100 |
Stopper Door,inner | Na dotaz | Zadat poptávku | |
| 9113 DISH 3010017177 |
C00868054
1883470100 |
BOLT M4X8 D3731 D3421 | Na dotaz | Zadat poptávku | |
| 9114 DISH 3010017177 |
C00870433
1883460100 |
SCREW (INNER-OUTER DOOR) | Na dotaz | Zadat poptávku | |
| 9153 DISH 3010017177 |
C00915894
1802860200 |
Screw M5x8 | Na dotaz | Zadat poptávku | |
| 9938 DISH 3010017177 |
C00875055
1731480500 |
KICK PLATE RUBBER | Na dotaz | Zadat poptávku | |
| 9940 DISH 3010017177 |
C00989081
1784430321 |
ACCESSORIES GROUP | Na dotaz | Zadat poptávku | |
| 2408 DISH 3020013204 |
C00984309
1517640700 |
TRAY HOLDER GROUP | Na dotaz | Zadat poptávku | |
| 2411 DISH 3020013204 |
C00929085
1510460100 |
OEM ATLANTÝS SHELF GROUP | Na dotaz | Zadat poptávku | |
| 2414 DISH 3020013204 |
C00969385
1513190140 |
EU3 UPPER BASKET GROUP | Na dotaz | Zadat poptávku | |
| 2416 DISH 3020013204 |
C00865258
1520400100 |
S3 UPPER BASKET MECHANISM GROUP | Na dotaz | Zadat poptávku | |
| 2417 DISH 3020013204 |
C00865257
1520400200 |
S3 UPPER BASKET MECHANISM GROUP | Na dotaz | Zadat poptávku | |
| 2420 DISH 3020013204 |
C00969386
1766810185 |
LOWER RACK GR. | Na dotaz | Zadat poptávku | |
| 2421 DISH 3020013204 |
C00867388
1742960100 |
LOWER BASKET STOPER PLASTIC WHELL GR. | Na dotaz | Zadat poptávku | |
| 2421 DISH 3020013204 |
C00910106
1782020200 |
GRD LOWER BASKET WHEEL GROUP | Na dotaz | Zadat poptávku | |
| 2423 DISH 3020013204 |
C00873940
1513590101 |
LOWER BASKET PLATE HOLDER BACK LEFT1 | Na dotaz | Zadat poptávku | |
| 2424 DISH 3020013204 |
C00873938
1513610101 |
LOWER BASKET PLATE HOLDER BACK RIGHT1 | Na dotaz | Zadat poptávku | |
| 2428 DISH 3020013204 |
C00969388
1521081500 |
PROLOGUE LOWER HANDLE GROUP | Na dotaz | Zadat poptávku | |
| 2430 DISH 3020013204 |
C00872386
1513940600 |
SLIDING CUTLERY BASKET 45CM | Na dotaz | Zadat poptávku | |
| 2431 DISH 3020013204 |
C00882913
1513970200 |
CUTLERY BASKET BODY 45CM | Na dotaz | Zadat poptávku | |
| 2437 DISH 3020013204 |
C00904068
1513980100 |
45CM SEPERATOR | Na dotaz | Zadat poptávku | |
| 2439 DISH 3020013204 |
C00969389
1521061300 |
PROLOGUE UPPER HANDLE BACK PART | Na dotaz | Zadat poptávku | |
| 2440 DISH 3020013204 |
C00969390
1521091900 |
PROLOGUE TOP HANDLE GROUP | Na dotaz | Zadat poptávku | |
| 2447 DISH 3020013204 |
C00867659
1513620101 |
LOWER BASKET PLATE HOLDER BACK LEFT2 | Na dotaz | Zadat poptávku | |
| 2450 DISH 3020013204 |
C00867658
1513670101 |
LOWER BASKET PLATE HOLDER BACK RIGHT2 | Na dotaz | Zadat poptávku | |
| 2454 DISH 3020013204 |
C00969391
1784850800 |
S3 UPPER BASKET MECHANISM CLASP | Na dotaz | Zadat poptávku | |
| 2457 DISH 3020013204 |
C00876488
1513010101 |
EU3 FOLDABLE WIRE OF THE BOWL HOLDER | Na dotaz | Zadat poptávku | |
| 2458 DISH 3020013204 |
C00876484
1513020101 |
EU3 FOLDABLE WIRE OF THE BOWL HOLDER | Na dotaz | Zadat poptávku | |
| 2461 DISH 3020013204 |
C00874039
1513050101 |
EU3 FOLDABLE WIRE OF THE GLASS HOLDER | Na dotaz | Zadat poptávku | |
| 2719 DISH 3020013204 |
C00867654
1512980100 |
EU3 TOP BASKET BOWL FOLDABLE PART 7016 | Na dotaz | Zadat poptávku | |
| 2720 DISH 3020013204 |
C00873942
1512990100 |
EU3 TOP BASKET GLASS FOLDABLE PART 7016 | Na dotaz | Zadat poptávku | |
| 7211 DISH 3020013204 |
C00868618
1514200100 |
METAL SPTAY ARM GR. | Na dotaz | Zadat poptávku | |
| 7220 DISH 3020013204 |
C00865714
1745630100 |
ATLANTIS TOP SPRAY ARM GROUP COMPLETE | Na dotaz | Zadat poptávku | |
| 7221 DISH 3020013204 |
C00865706
1512280100 |
ATLANTIS UPPER SPRAY ARM FEEDING HOSE GR | Na dotaz | Zadat poptávku | |
| 7260 DISH 3020013204 |
C00969392
1514300300 |
DORA WATER SUPPLY TUBE GR. | Na dotaz | Zadat poptávku | |
| 7261 DISH 3020013204 |
C00869649
1512510100 |
UPPER SPRAY ARM FEED PIPE CENTERING PART | Na dotaz | Zadat poptávku | |
| 7610 DISH 3020013204 |
C00865000
1786610200 |
METAL FILTER HALF | Na dotaz | Zadat poptávku | |
| 7611 DISH 3020013204 |
C00890404
1512150500 |
KARİNA FILTER SUPPORT GROUP | Na dotaz | Zadat poptávku | |
| 7620 DISH 3020013204 |
C00865650
1796080500 |
MICRO FILTER GROUP 3 NO RING | Na dotaz | Zadat poptávku | |
| 7630 DISH 3020013204 |
C00871363
1740230300 |
COARSE FILTER-7016 | Na dotaz | Zadat poptávku | |
| 7640 DISH 3020013204 |
C00868607
1796092100 |
FILTER GROUP COMPLETE 3 NO RING | Na dotaz | Zadat poptávku | |
| 9105 DISH 3020013204 |
C00867296
1883430300 |
SCREW (FILTER SUPPORT) | Na dotaz | Zadat poptávku | |
| 9659 DISH 3020013204 |
C00876487
1513630100 |
FOLDABLE PART LONG | Na dotaz | Zadat poptávku | |
| 9660 DISH 3020013204 |
C00871241
1513640200 |
CLIPS LONG | Na dotaz | Zadat poptávku | |
| 9935 DISH 3020013204 |
C00871850
1732380100 |
SALT FUNNEL 2 | Na dotaz | Zadat poptávku | |
| 9950 DISH 3020013204 |
C00982674
1640060100 |
ECO FIXED UPPER TRAY GROUP 60CM | Na dotaz | Zadat poptávku | |
| 014 DISH 3030011337 |
C00864425
1783200400 |
ANGORA BACK SIDE ADJUSTABLE FOOT RIGHT | Na dotaz | Zadat poptávku | |
| 016 DISH 3030011337 |
C00864426
1783200300 |
ANGORA BACK SIDE ADJUSTABLE FOOT GR LEFT | Na dotaz | Zadat poptávku | |
| 020 DISH 3030011337 |
C00864439
1757740200 |
REAR ADJUSTABLE FOOT CONNECTION PART 3 | Na dotaz | Zadat poptávku | |
| 040 DISH 3030011337 |
C00890815
1783130200 |
ANGORA BOTTOM TRAY | Na dotaz | Zadat poptávku | |
| 047 DISH 3030011337 |
C00874350
1519890100 |
SPACER INNER PART | Na dotaz | Zadat poptávku | |
| 048 DISH 3030011337 |
C00874351
1519880100 |
SPACER OUTSIDE PART | Na dotaz | Zadat poptávku | |
| 1201 DISH 3030011337 |
C00909257
1783050700 |
ANGORA FRONT LOWER SUPPORT SHEET | Na dotaz | Zadat poptávku | |
| 1310 DISH 3030011337 |
C00864999
1764130100 |
HITIT LOCK HOOK-7016 | Na dotaz | Zadat poptávku | |
| 1311 DISH 3030011337 |
C00864998
1760980100 |
DOOR LOCK HOOK SUPPORT BI | Na dotaz | Zadat poptávku | |
| 1495 DISH 3030011337 |
C00877434
9003270300 |
PLASTIC SCREW | Na dotaz | Zadat poptávku | |
| 1725 DISH 3030011337 |
C00874227
1783500400 |
ANGORA FLAP FUNNEL GROUP | Na dotaz | Zadat poptávku | |
| 1910 DISH 3030011337 |
C00873200
1749190300 |
DOOR SEALING GASKET L=1861 | Na dotaz | Zadat poptávku | |
| 2001 DISH 3030011337 |
C00868056
1783400100 |
ANGORA CORNER BRACKET | Na dotaz | Zadat poptávku | |
| 2002 DISH 3030011337 |
C00871290
1783400200 |
ANGORA CORNER BRACKET | Na dotaz | Zadat poptávku | |
| 2004 DISH 3030011337 |
C00880719
1783700500 |
ANGORA BUILT-IN BOTTOM TRAY GR | Na dotaz | Zadat poptávku | |
| 220 DISH 3030011337 |
C00899419
1514060101 |
SIDE PANEL-LEFT-ARC744 | Na dotaz | Zadat poptávku | |
| 221 DISH 3030011337 |
C00899833
1514060201 |
SIDE PANEL-RIGHT-ARC744 | Na dotaz | Zadat poptávku | |
| 224 DISH 3030011337 |
C00907597
1887290100 |
TUB COVER (2mm) | Na dotaz | Zadat poptávku | |
| 2609 DISH 3030011337 |
C00914174
1752600400 |
Wheel basket | Na dotaz | Zadat poptávku | |
| 2610 DISH 3030011337 |
C00918456
1880240400 |
Sliding base | Na dotaz | Zadat poptávku | |
| 2611 DISH 3030011337 |
C00915948
1732840100 |
RAIL CAP FRONT BACK | Na dotaz | Zadat poptávku | |
| 2613 DISH 3030011337 |
C00916240
1748940200 |
Screw Rail for basket | Na dotaz | Zadat poptávku | |
| 2615 DISH 3030011337 |
C00916182
1749910100 |
Holder Rail for basket | Na dotaz | Zadat poptávku | |
| 4007 DISH 3030011337 |
C00909411
1512080200 |
KARÝNA QUADRO MOTOR HANGING BRACKET | Na dotaz | Zadat poptávku | |
| 4300 DISH 3030011337 |
C00872625
1736370200 |
BLDC DRAIN PUMP GROUP | Na dotaz | Zadat poptávku | |
| 4801 DISH 3030011337 |
C00871776
1736340900 |
CABLE HARNESS NEW DOOR OPEN | Na dotaz | Zadat poptávku | |
| 4901 DISH 3030011337 |
C00893068
1751594000 |
MAIN PLUG-CABLE PROTECTION GR | Na dotaz | Zadat poptávku | |
| 5050 DISH 3030011337 |
C01005441
1519805330 |
ELECTRONIC CARD E9L64807 | Na dotaz | Zadat poptávku | |
| 5051 DISH 3030011337 |
C00874084
1519410200 |
PORTAL2 MAINCARD HOLDER FRONT PART | Na dotaz | Zadat poptávku | |
| 5052 DISH 3030011337 |
C00883474
1519420300 |
PORTAL2 MAINCARD HOLDER BACK PART | Na dotaz | Zadat poptávku | |
| 5760 DISH 3030011337 |
C00866155
1761920100 |
HITIT OVER FLOATING CASING | Na dotaz | Zadat poptávku | |
| 5864 DISH 3030011337 |
C00869724
1765950100 |
DOOR OPENING GROUP | Na dotaz | Zadat poptávku | |
| 5867 DISH 3030011337 |
C00873204
1732490500 |
BOTTOM TRAY GASKET GR. | Na dotaz | Zadat poptávku | |
| 6311 DISH 3030011337 |
C00866403
1761940200 |
HITIT MICRO SWITCH ZINGEAR | Na dotaz | Zadat poptávku | |
| 6315 DISH 3030011337 |
C00977230
1760940200 |
COUNTER PCB 4 | Na dotaz | Zadat poptávku | |
| 6330 DISH 3030011337 |
C00914050
1731980300 |
Microswitch door (low end) | Na dotaz | Zadat poptávku | |
| 649 DISH 3030011337 |
C00985742
1744930500 |
REAR FRAME COTTON FLEECE | Na dotaz | Zadat poptávku | |
| 650 DISH 3030011337 |
C00888825
1780800100 |
ANGORA ISOLATION | Na dotaz | Zadat poptávku | |
| 654 DISH 3030011337 |
C00872445
1731490100 |
KICK PLATE FELT | Na dotaz | Zadat poptávku | |
| 655 DISH 3030011337 |
C00888827
1783830200 |
ANGORA INNER TUB ISOLATION LEFT | Na dotaz | Zadat poptávku | |
| 660 DISH 3030011337 |
C00888807
1783950100 |
ANGORA KICK PLATE ISOLATION | Na dotaz | Zadat poptávku | |
| 6802 DISH 3030011337 |
C00890939
1831470100 |
THERMOACTUATOR D3731 D3421 | Na dotaz | Zadat poptávku | |
| 6920 DISH 3030011337 |
C00984687
1518980100 |
EMZ Turbidity sensor | Na dotaz | Zadat poptávku | |
| 7000 DISH 3030011337 |
C00871852
1760360300 |
T&P AQUASTOP NEWDESIGN | Na dotaz | Zadat poptávku | |
| 7011 DISH 3030011337 |
C00869206
1783230100 |
ANGORA AQUASTOP HOLDER | Na dotaz | Zadat poptávku | |
| 7100 DISH 3030011337 |
C00927741
1776610500 |
SOFTENER GROUP 2022 60CM | Na dotaz | Zadat poptávku | |
| 7102 DISH 3030011337 |
C00870431
1742450100 |
WATER SOFTENER NUT-RAL7037 | Na dotaz | Zadat poptávku | |
| 7103 DISH 3030011337 |
C00864440
1766470100 |
SOFTONER O-RING | Na dotaz | Zadat poptávku | |
| 7108 DISH 3030011337 |
C00971880
1883910500 |
WATER SOFTENER CAP GASKET | Na dotaz | Zadat poptávku | |
| 7140 DISH 3030011337 |
C00980113
1766560700 |
WATER SOFTONER CAP GROUP 2 | Na dotaz | Zadat poptávku | |
| 7160 DISH 3030011337 |
C00864992
1760200500 |
AIR BREAKER COUNTER GR SMALL | Na dotaz | Zadat poptávku | |
| 7161 DISH 3030011337 |
C00914090
1882630200 |
Těsnění labyrintu myčky Whirlpool / IKEA | 82 Kč
€ 3.40 |
||
| 7162 DISH 3030011337 |
C00864993
1882620700 |
AIR FUNNEL CAP | Na dotaz | Zadat poptávku | |
| 7229 DISH 3030011337 |
C00889685
1800865900 |
HOSE (REGENERATION UNIT) | Na dotaz | Zadat poptávku | |
| 7510 DISH 3030011337 |
C00962413
1511900044 |
KARÝNA SUMP GROUP | Na dotaz | Zadat poptávku | |
| 7561 DISH 3030011337 |
C00871846
1767140100 |
LED HOLDER OVERFLOW SIPHON | Na dotaz | Zadat poptávku | |
| 7612 DISH 3030011337 |
C00864960
1512000200 |
KARINA VALVE GROUP | Na dotaz | Zadat poptávku | |
| 7810 DISH 3030011337 |
C00889689
1740161500 |
DRAIN HOSE | Na dotaz | Zadat poptávku | |
| 7815 DISH 3030011337 |
C00866675
1752000100 |
DRAIN HOSE-L=440MM | Na dotaz | Zadat poptávku | |
| 7845 DISH 3030011337 |
C00932340
1800868000 |
HOSE | Na dotaz | Zadat poptávku | |
| 7910 DISH 3030011337 |
C00912522
1740050300 |
O-Ring Suction pipe | Na dotaz | Zadat poptávku | |
| 7917 DISH 3030011337 |
C00890471
1786570500 |
6 WAY VALVE SYNCHRONOUS MOTOR | Na dotaz | Zadat poptávku | |
| 8000 DISH 3030011337 |
C00871219
1783300200 |
ANGORA FAN GROUP | Na dotaz | Zadat poptávku | |
| 8003 DISH 3030011337 |
C00890860
1783330100 |
FAN OUTLET PART-ANGORA | Na dotaz | Zadat poptávku | |
| 8004 DISH 3030011337 |
C00890859
1766500100 |
FAN FUNNEL GR | Na dotaz | Zadat poptávku | |
| 8353 DISH 3030011337 |
C00915191
2002370800 |
Strap 15,9 | Na dotaz | Zadat poptávku | |
| 8354 DISH 3030011337 |
C00882349
2002371600 |
HOSE CLAMP (Ø 27.5) | Na dotaz | Zadat poptávku | |
| 8357 DISH 3030011337 |
C00915228
2002372100 |
Clamp Water collector | Na dotaz | Zadat poptávku | |
| 8360 DISH 3030011337 |
C00915043
2002372500 |
Strap 47 | Na dotaz | Zadat poptávku | |
| 8365 DISH 3030011337 |
C00871757
1783370100 |
ANGORA WATER INLET VALVE HOSE HOLDER | Na dotaz | Zadat poptávku | |
| 8394 DISH 3030011337 |
C00884795
2705810100 |
PT SCREW (3 5X9.5) | Na dotaz | Zadat poptávku | |
| 9019 DISH 3030011337 |
C00864695
1757470300 |
CRIMP CLAMP | Na dotaz | Zadat poptávku | |
| 9080 DISH 3030011337 |
C00909482
551500201 |
O-RING(84X3 6MM | Na dotaz | Zadat poptávku | |
| 9081 DISH 3030011337 |
C00907645
552203705 |
MOTOR ASSY TRIO | Na dotaz | Zadat poptávku | |
| 9090 DISH 3030011337 |
C00931757
552202704 |
PUMP HOUSING HOSE AND HEATER 2040W EU | Na dotaz | Zadat poptávku | |
| 9102 DISH 3030011337 |
C00871240
1889340100 |
SCREW 4X14 | Na dotaz | Zadat poptávku | |
| 9106 DISH 3030011337 |
C00877643
1889270100 |
SCREW (MAIN PLUG-REAR BOTTOM SUPPORT) | Na dotaz | Zadat poptávku | |
| 953 DISH 3030011337 |
C00882353
1762651400 |
CARDSIZ Q MOTOR KELEPCE GR | Na dotaz | Zadat poptávku | |
| 9640 DISH 3030011337 |
C00871242
1784161000 |
ANGORA LARGE UPPER SOUND GASKET | Na dotaz | Zadat poptávku | |
| 9641 DISH 3030011337 |
C00915476
1880282500 |
NOISE ISOLATION FOR (B I) LEFT | Na dotaz | Zadat poptávku | |
| 9642 DISH 3030011337 |
C00923903
1880282600 |
NOISE ISOLATION FOR (B I) LEFT | Na dotaz | Zadat poptávku | |
| 9966 DISH 3030011337 |
C00874965
1783540100 |
ANGORA DRAIN HOSE LOCK | Na dotaz | Zadat poptávku | |
| 9971 DISH 3030011337 |
C00874978
1764050100 |
HITIT REAR UPPER TRAVERSE | Na dotaz | Zadat poptávku | |
| 9973 DISH 3030011337 |
C00874352
1783190100 |
ANGORA 1MM NETWORK CABLE LOCK | Na dotaz | Zadat poptávku | |
| 9975 DISH 3030011337 |
C00865715
1761930100 |
HİTİT FLOAT STYROPOR | Na dotaz | Zadat poptávku | |
| 9995 DISH 3030011337 |
C00869208
1767160100 |
SLIDING DOOR PROGRAM END SIGNAL MODUL | Na dotaz | Zadat poptávku | |
| 9996 DISH 3030011337 |
C00870432
1519870200 |
SPACER INNER PART | Na dotaz | Zadat poptávku | |
| 9997 DISH 3030011337 |
C00883480
1799650200 |
FAN MOTOR SOCKET CASING | Na dotaz | Zadat poptávku | |
| 9998 DISH 3030011337 |
C00954299
1762673700 |
KARÝNA SUMP GROUP | Na dotaz | Zadat poptávku | |
