| Komerční kód: | BLZE 9700 IN |
| Kód 12NC/I.C. kód: | 857453801050 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0924330000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

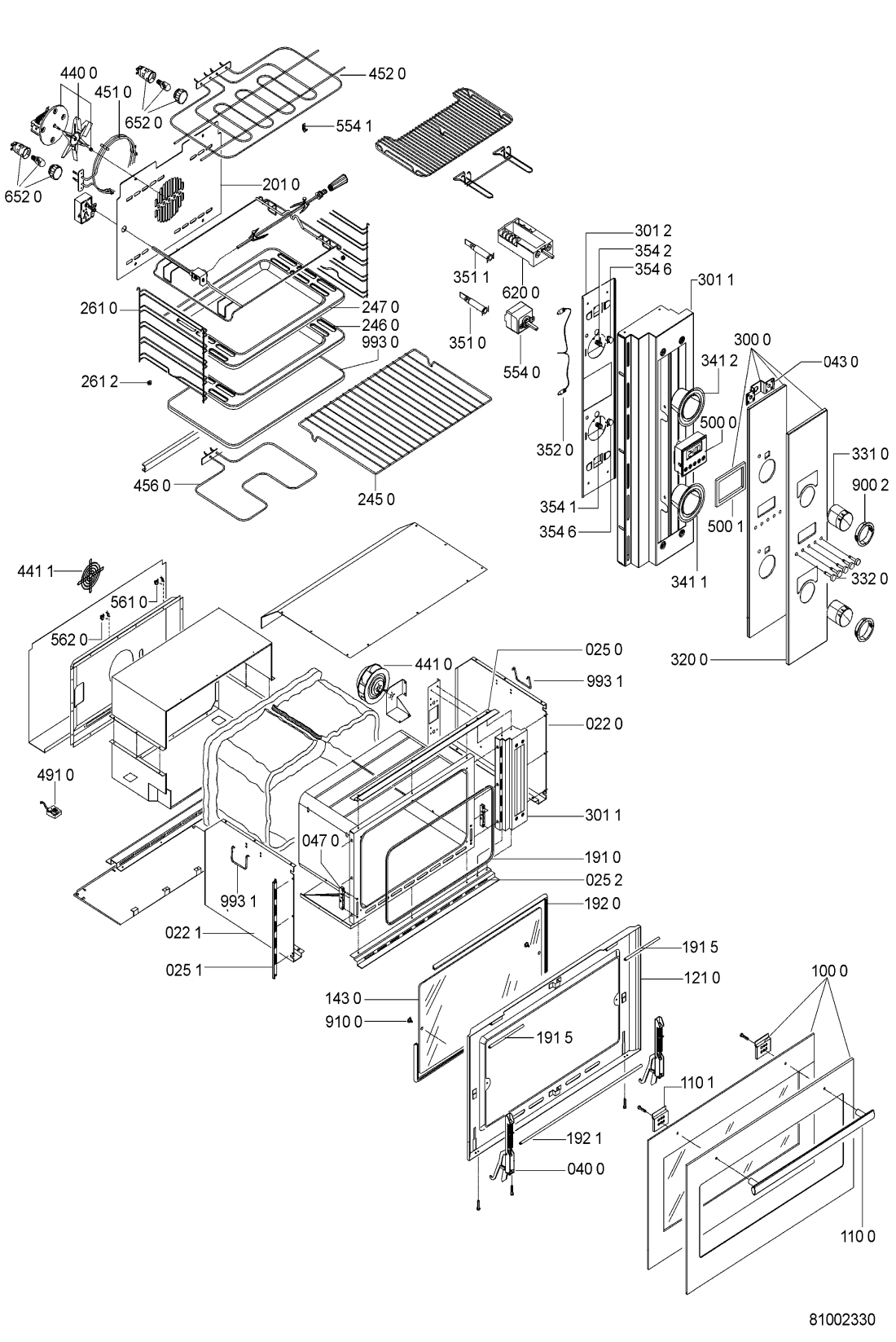

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR05623 |
C00327939 | Side panel oven right | Na dotaz | Zadat poptávku | |
| 022 1 WHR05623 |
C00327940
481244010555 |
Side panel oven left | Na dotaz | Zadat poptávku | |
| 025 0 WHR05623 |
C00330433
481246098035 |
Trim upper IX | Na dotaz | Zadat poptávku | |
| 025 1 WHR05623 |
C00330404
481246079117 |
Frame left post | Na dotaz | Zadat poptávku | |
| 025 2 WHR05623 |
C00330405
481246079118 |
Frame lower oven | Na dotaz | Zadat poptávku | |
| 040 0 WHR05623 |
C00313542
481241719046 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 043 0 WHR05623 |
C00344197
481240478569 |
Bracket control panel | Na dotaz | Zadat poptávku | |
| 047 0 WHR05623 |
C00314503
481241758385 |
Hinge support | Na dotaz | Zadat poptávku | |
| 100 0 WHR05623 |
C00316084 | Door glass outer complete | Na dotaz | Zadat poptávku | |
| 110 0 WHR05623 |
C00340140
481249878229 |
Handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR05623 |
C00316711
481253058157 |
Washer handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR05623 |
C00330800
481246418073 |
Door inner skin | Na dotaz | Zadat poptávku | |
| 143 0 WHR05623 |
C00331068
481244269257 |
Door glass inner | Na dotaz | Zadat poptávku | |
| 191 0 WHR05623 |
C00331496
481246688747 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 191 5 WHR05623 |
C00331578
481246818113 |
Gasket door upper | Na dotaz | Zadat poptávku | |
| 192 0 WHR05623 |
C00331579
481246818236 |
Seal inner oven door | Na dotaz | Zadat poptávku | |
| 192 1 WHR05623 |
C00331497
481246688748 |
Gasket oven door lower | Na dotaz | Zadat poptávku | |
| 201 0 WHR05623 |
C00331097
481244528016 |
Fan difusser | Na dotaz | Zadat poptávku | |
| 204 0 WHR05623 |
C00337759
481231028087 |
SADA KATALYTICKYCH P | Na dotaz | Zadat poptávku | |
| 204 0 WHR05623 |
C00337760 | Plate selfclean assy lateral | Na dotaz | Zadat poptávku | |
| 245 0 WHR05623 |
C00330039
481245819083 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR05623 |
C00327786
481241838077 |
plech na peceni | Na dotaz | Zadat poptávku | |
| 247 0 WHR05623 |
C00344539
481241838089 |
Baking tray | Na dotaz | Zadat poptávku | |
| 261 0 WHR05623 |
C00330645
481246238122 |
Guide shelf | Na dotaz | Zadat poptávku | |
| 261 2 WHR05623 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 300 0 WHR05623 |
C00343223
481231038801 |
Control panel kit | Na dotaz | Zadat poptávku | |
| 301 1 WHR05623 |
C00329960
481245359872 |
Support control panel | Na dotaz | Zadat poptávku | |
| 301 2 WHR05623 |
C00335849
481245359873 |
Support control panel | Na dotaz | Zadat poptávku | |
| 320 0 WHR05623 |
C00343207
481245359647 |
Control panel steel | Na dotaz | Zadat poptávku | |
| 331 0 WHR05623 |
C00329364
481241128948 |
Knoflík | Na dotaz | Zadat poptávku | |
| 332 0 WHR05623 |
C00337035
481241338063 |
Push button | Na dotaz | Zadat poptávku | |
| 341 1 WHR05623 |
C00329518
481241378665 |
Collar thermostat | Na dotaz | Zadat poptávku | |
| 341 2 WHR05623 |
C00329516
481241378663 |
Collar oven selector | Na dotaz | Zadat poptávku | |
| 351 0 WHR05623 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 351 1 WHR05623 |
C00326832
481213448284 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 352 0 WHR05623 |
C00341819
481213448291 |
Lamp illumination neon | Na dotaz | Zadat poptávku | |
| 354 1 WHR05623 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 354 2 WHR05623 |
C00328847
481238118279 |
Lens green | Na dotaz | Zadat poptávku | |
| 354 6 WHR05623 |
C00341827
481213448292 |
Lamp cover | Na dotaz | Zadat poptávku | |
| 440 0 WHR05623 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR05623 |
C00328826
481236158343 |
Motor fan rad. twin line | Na dotaz | Zadat poptávku | |
| 441 1 WHR05623 |
C00328831
481236158396 |
Cover fan motor | Na dotaz | Zadat poptávku | |
| 451 0 WHR05623 |
C00316916
481225928814 |
Heating element circular 230V | Na dotaz | Zadat poptávku | |
| 452 0 WHR05623 |
C00320050 | Heating element top+gr | Na dotaz | Zadat poptávku | |
| 456 0 WHR05623 |
C00320306
481225948148 |
topeni | Na dotaz | Zadat poptávku | |
| 491 0 WHR05623 |
C00327591
481229068283 |
Terminal block | Na dotaz | Zadat poptávku | |
| 500 0 WHR05623 |
C00311891
481221478361 |
Control unit | Na dotaz | Zadat poptávku | |
| 500 1 WHR05623 |
C00335422
481221479162 |
Timer insulator | Na dotaz | Zadat poptávku | |
| 554 0 WHR05623 |
C00327549
481228238095 |
Thermostat 2 bulbs ego 55.19 | Na dotaz | Zadat poptávku | |
| 554 1 WHR05623 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 561 0 WHR05623 |
C00317987
481228208633 |
Thermostat safety NA T70 | Na dotaz | Zadat poptávku | |
| 562 0 WHR05623 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 620 0 WHR05623 |
C00327278
481227618383 |
Switch selector | Na dotaz | Zadat poptávku | |
| 652 0 WHR05623 |
C00327121
481225518243 |
Lamp oven 50HZ 25W | Na dotaz | Zadat poptávku | |
| 900 2 WHR05623 |
C00329365
481241128949 |
Flange for knob | Na dotaz | Zadat poptávku | |
| 910 0 WHR05623 |
C00332086
481250218588 |
Screw oven door | Na dotaz | Zadat poptávku | |
| 993 0 WHR05623 |
C00344659
481269048009 |
Accessory pizza stone | Na dotaz | Zadat poptávku | |
| 993 1 WHR05623 |
C00340032
481231048233 |
Handle for lifting oven | Na dotaz | Zadat poptávku | |
| 999 WHR05623 |
C00371769 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05623 |
C00371770 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05623 |
C00371771 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
