BAUKNECHT BLZS 7200 IN
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | BLZS 7200 IN |
| Kód 12NC: | 855635001000 |
| I.C. kód: | 855635001001 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 855635001000, 855635001002 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

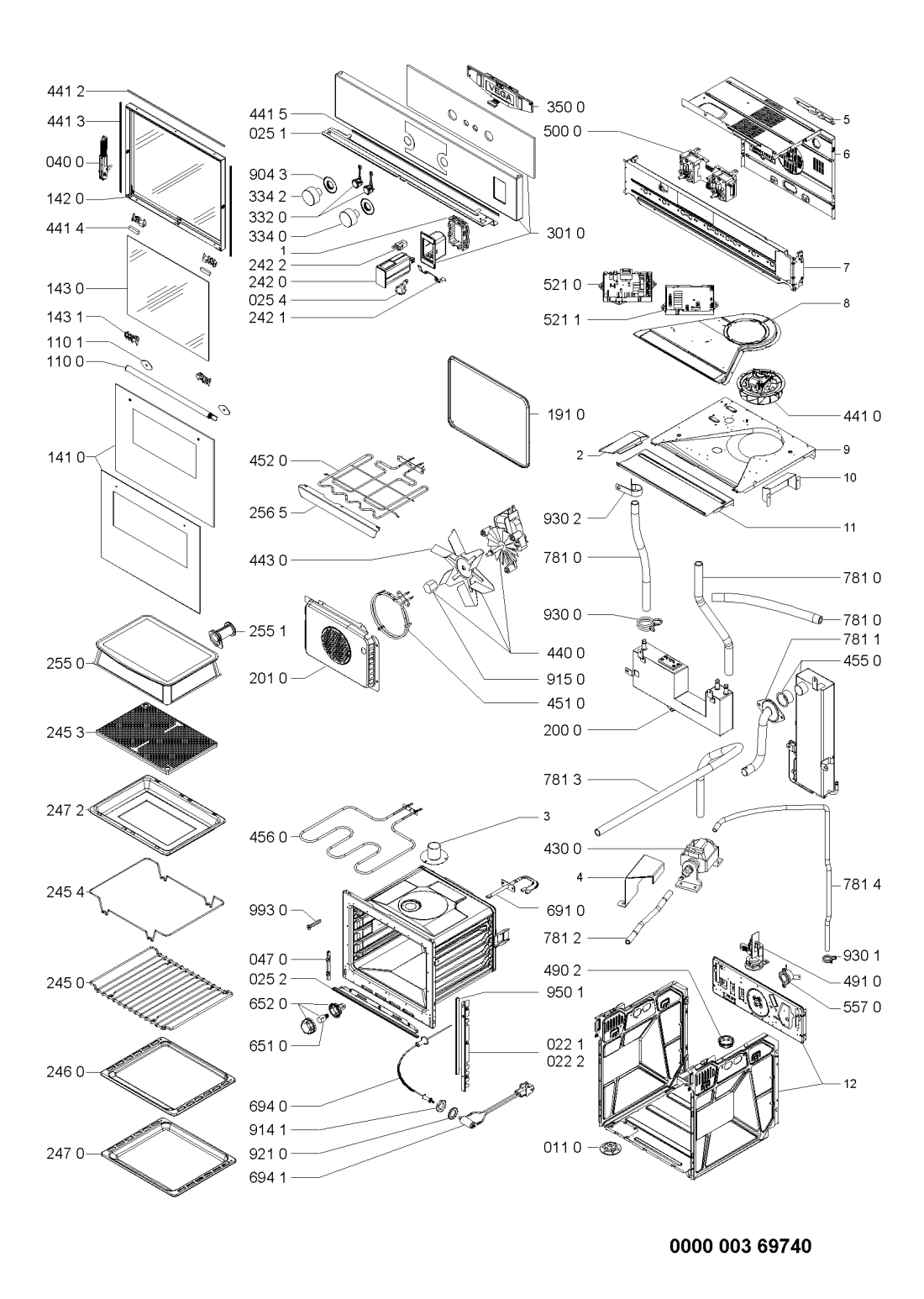

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR27143 |
C00330453
481246218255 |
FOOT | Na dotaz | Zadat poptávku | |
| 022 1 WHR27143 |
C00330316
481246049739 |
výplň boční | Na dotaz | Zadat poptávku | |
| 022 2 WHR27143 |
C00330315
481246049738 |
výplň boční | Na dotaz | Zadat poptávku | |
| 025 1 WHR27143 |
C00319305
481246068634 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR27143 |
C00330398
481246068637 |
Profile | Na dotaz | Zadat poptávku | |
| 025 4 WHR27143 |
C00328628
481236058603 |
Nozzle water | Na dotaz | Zadat poptávku | |
| 040 0 WHR27143 |
C00329765
481241719472 |
zaves dveri | 2 638 Kč
€ 108.20 |
||
| 047 0 WHR27143 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR27143 |
C00345842
481249868293 |
Madlo dveří trouby Whirlpool, Bauknecht | 1 902 Kč
€ 78.00 |
||
| 110 1 WHR27143 |
C00312913
481246668928 |
Podložka gumová | 50 Kč
€ 2.10 |
||
| 141 0 WHR27143 |
C00430363
480121100548 |
Oven glass + trims | Na dotaz | Zadat poptávku | |
| 142 0 WHR27143 |
C00430297
480121100328 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR27143 |
C00317662
481245059587 |
Sklo dveří | 2 215 Kč
€ 90.90 |
||
| 143 1 WHR27143 |
C00329234
481240478858 |
držák skla | 164 Kč
€ 6.70 |
||
| 191 0 WHR27143 |
C00405145
481246689031 |
gasket door | Na dotaz | Zadat poptávku | |
| 200 0 WHR27143 |
C00321197
480112100259 |
Container | Na dotaz | Zadat poptávku | |
| 201 0 WHR27143 |
C00464249
481246448246 |
Panel rear steam | Na dotaz | Zadat poptávku | |
| 242 0 WHR27143 |
C00320166
481241858052 |
nadoba | 1 492 Kč
€ 61.20 |
||
| 242 1 WHR27143 |
C00345833
481249238418 |
pruzina | 52 Kč
€ 2.10 |
||
| 242 2 WHR27143 |
C00318325
480121102744 |
drzak | 255 Kč
€ 10.50 |
||
| 245 0 WHR27143 |
C00330192
481245858534 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 245 3 WHR27143 |
C00330193
481245858535 |
Grid drip down | Na dotaz | Zadat poptávku | |
| 245 4 WHR27143 |
C00329145
481240449868 |
Support grid assembly | Na dotaz | Zadat poptávku | |
| 246 0 WHR27143 |
C00344536
481241838142 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR27143 |
C00496250
481241838141 |
plech | Na dotaz | Zadat poptávku | |
| 247 2 WHR27143 |
C00458855
481241838176 |
Fat pan set | Na dotaz | Zadat poptávku | |
| 255 0 WHR27143 |
C00464135
481246229403 |
Lid assembly | Na dotaz | Zadat poptávku | |
| 255 1 WHR27143 |
C00329250
481240478929 |
Connection | Na dotaz | Zadat poptávku | |
| 256 5 WHR27143 |
C00486122
481246638076 |
Protector | Na dotaz | Zadat poptávku | |
| 301 0 WHR27143 |
C00430362
480121100547 |
Panel control + glass | Na dotaz | Zadat poptávku | |
| 332 0 WHR27143 |
C00314971
481241029511 |
tlačítko | 114 Kč
€ 4.70 |
||
| 334 0 WHR27143 |
C00329448
481241279052 |
knoflik IX | 549 Kč
€ 22.50 |
||
| 334 2 WHR27143 |
C00393395
480123100015 |
Knob | Na dotaz | Zadat poptávku | |
| 350 0 WHR27143 |
C00315740
481213038798 |
displej | Na dotaz | Zadat poptávku | |
| 430 0 WHR27143 |
C00318901
481236018595 |
Čerpadlo | Na dotaz | Zadat poptávku | |
| 440 0 WHR27143 |
C00328820
481236118633 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR27143 |
C00313480
481236118498 |
Ventilator | Na dotaz | Zadat poptávku | |
| 441 2 WHR27143 |
C00330921
481246668719 |
tesneni | 105 Kč
€ 4.30 |
||
| 441 3 WHR27143 |
C00330922
481246668723 |
tesneni postranni | 338 Kč
€ 13.90 |
||
| 441 4 WHR27143 |
C00331518
481246688859 |
Gasket | Na dotaz | Zadat poptávku | |
| 441 5 WHR27143 |
C00331562
481246699047 |
tesneni dveri trouby | 269 Kč
€ 11.00 |
||
| 443 0 WHR27143 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR27143 |
C00311124
481225998405 |
Topné těleso trouby – kruhové, horkovzduch 2000W | 976 Kč
€ 40.00 |
||
| 452 0 WHR27143 |
C00315073
481225998476 |
topeni horni - náhrada 481225998574 | Na dotaz | Zadat poptávku | |
| 455 0 WHR27143 |
C00318267
481231019243 |
Kit boiler + gasket | Na dotaz | Zadat poptávku | |
| 456 0 WHR27143 |
C00311461
481225998418 |
Topné těleso trouby - spodní 1450 W | 2 204 Kč
€ 90.40 |
||
| 490 2 WHR27143 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR27143 |
C00327306
481229068366 |
Terminal block | Na dotaz | Zadat poptávku | |
| 500 0 WHR27143 |
C00393609
480123100311 |
control unit | Na dotaz | Zadat poptávku | |
| 521 0 WHR27143 |
C00321536
480123100309 |
Power unit Antares | Na dotaz | Zadat poptávku | |
| 521 1 WHR27143 |
C00315866
481221458518 |
jednotka kontrolni pary | 3 410 Kč
€ 139.90 |
||
| 557 0 WHR27143 |
C00312260
481228228325 |
pojistka tepelna 155°C | Na dotaz | Zadat poptávku | |
| 651 0 WHR27143 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR27143 |
C00311901
481225518213 |
Osvětlení trouby Whirlpool, Bauknecht , Ignis - komplet | 1 099 Kč
€ 45.10 |
||
| 691 0 WHR27143 |
C00311427
481221078034 |
Senzor teploty | Na dotaz | Zadat poptávku | |
| 694 0 WHR27143 |
C00326916
481221058077 |
sonda na maso | 789 Kč
€ 32.40 |
||
| 694 1 WHR27143 |
C00326919
481221058083 |
Meat probe assembly | Na dotaz | Zadat poptávku | |
| 781 0 WHR27143 |
C00332599
481253049327 |
Tube silicone | Na dotaz | Zadat poptávku | |
| 781 1 WHR27143 |
C00332597
481253049325 |
Tube steam | Na dotaz | Zadat poptávku | |
| 781 2 WHR27143 |
C00321495
480123100014 |
hadice | Na dotaz | Zadat poptávku | |
| 781 3 WHR27143 |
C00332598
481253049326 |
Tube | Na dotaz | Zadat poptávku | |
| 781 4 WHR27143 |
C00321494
480123100013 |
hadice | Na dotaz | Zadat poptávku | |
| 904 3 WHR27143 |
C00329209
481240478724 |
podložka | Na dotaz | Zadat poptávku | |
| 914 1 WHR27143 |
C00332190
481250518439 |
Nut 10x1.57 | Na dotaz | Zadat poptávku | |
| 915 0 WHR27143 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 921 0 WHR27143 |
C00332642
481253058187 |
WASHER MEAT PROBE | Na dotaz | Zadat poptávku | |
| 930 0 WHR27143 |
C00329141
481240449864 |
Fastener large | Na dotaz | Zadat poptávku | |
| 930 1 WHR27143 |
C00321832
480121100248 |
drzak | Na dotaz | Zadat poptávku | |
| 930 2 WHR27143 |
C00329136
481240449849 |
Fastener tube | Na dotaz | Zadat poptávku | |
| 950 1 WHR27143 |
C00340580
481246668909 |
Gasket | Na dotaz | Zadat poptávku | |
| 993 0 WHR27143 |
C00316311
481231039078 |
Mounting kit | Na dotaz | Zadat poptávku | |
