| Komerční kód: | BSZH 5979/IN OVENS BK |
| Kód 12NC/I.C. kód: | 857457715050 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

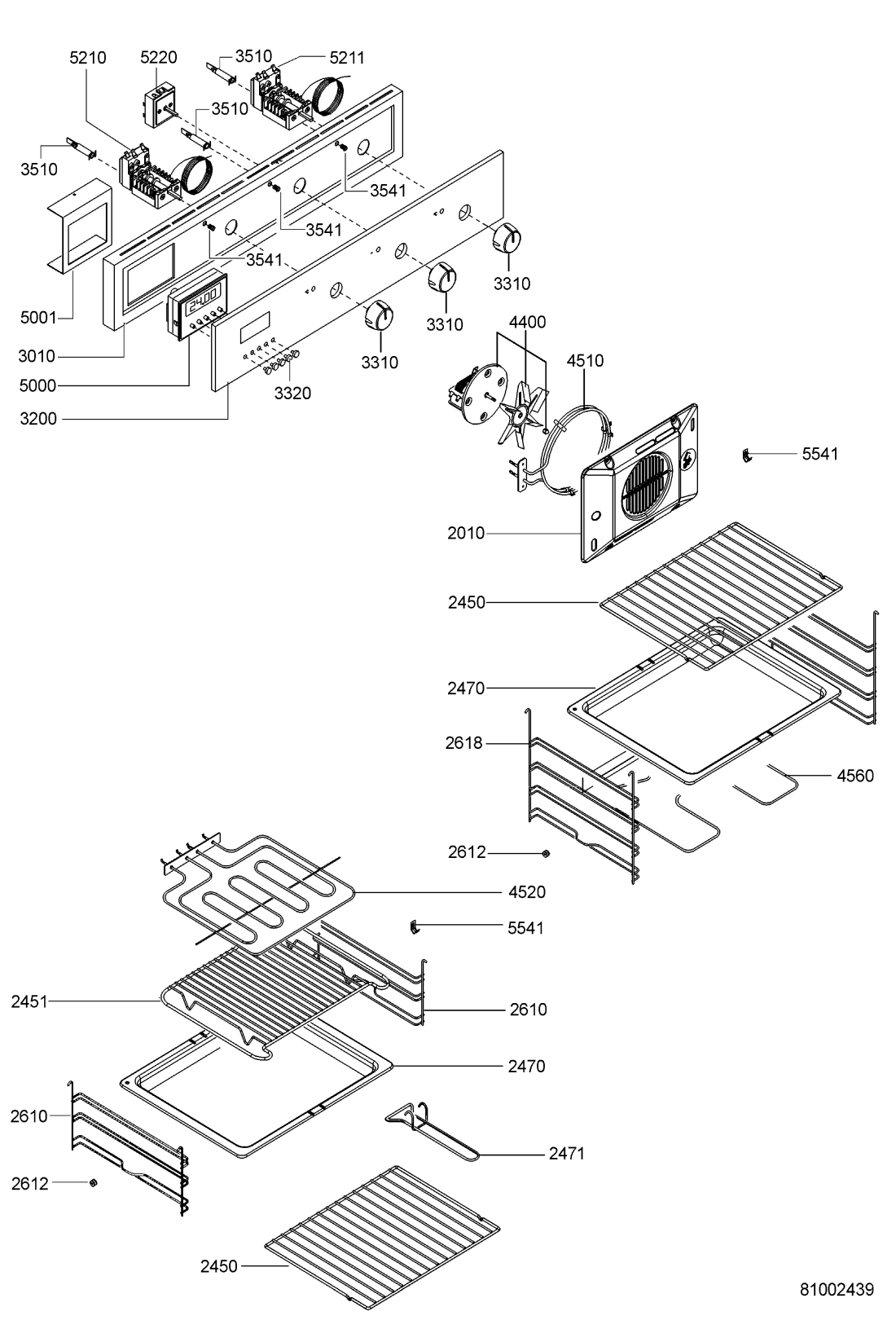

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0220 WHR75190 |
C00330807
481246418151 |
Panel side right | Na dotaz | Zadat poptávku | |
| 0221 WHR75190 |
C00330808
481246418152 |
Panel side left | Na dotaz | Zadat poptávku | |
| 0222 WHR75190 |
C00330810
481246418154 |
Frame post right | Na dotaz | Zadat poptávku | |
| 0223 WHR75190 |
C00330809
481246418153 |
Frame post left | Na dotaz | Zadat poptávku | |
| 0250 WHR75190 |
C00332759
481281518708 |
Trim side | Na dotaz | Zadat poptávku | |
| 0252 WHR75190 |
C00332760
481281518709 |
Plate support | Na dotaz | Zadat poptávku | |
| 0400 WHR75190 |
C00312539
481241719298 |
Hinge oven door lower 3/4 | Na dotaz | Zadat poptávku | |
| 0401 WHR75190 |
C00313466
481241719299 |
Hinge oven door upper 1/2 3 V | Na dotaz | Zadat poptávku | |
| 0430 WHR75190 |
C00329728
481241719297 |
Hinge support oven door | Na dotaz | Zadat poptávku | |
| 1000 WHR75190 |
C00596957
481244269501 |
Oven door glass + frame (lower). | Na dotaz | Zadat poptávku | |
| 1001 WHR75190 |
C00596958
481244269502 |
Oven door glass + frame (upper). | Na dotaz | Zadat poptávku | |
| 1100 WHR75190 |
C00340140
481249878229 |
Handle | Na dotaz | Zadat poptávku | |
| 1101 WHR75190 |
C00314970
481249878634 |
Support support | Na dotaz | Zadat poptávku | |
| 1210 WHR75190 |
C00312509
481246418156 |
Oven door inner glass frame lower | Na dotaz | Zadat poptávku | |
| 1211 WHR75190 |
C00498435
481246418155 |
Oven door inner glass frame upper | Na dotaz | Zadat poptávku | |
| 1420 WHR75190 |
C00317620
481245058984 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 1421 WHR75190 |
C00319055
481240418464 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 1422 WHR75190 |
C00316632
481240418465 |
Bracket inner door glass | Na dotaz | Zadat poptávku | |
| 1430 WHR75190 |
C00317301
481245058985 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 1431 WHR75190 |
C00315379
481240418463 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 1910 WHR75190 |
C00311502
481204658011 |
Gasket | Na dotaz | Zadat poptávku | |
| 1911 WHR75190 |
C00311672
481204658009 |
Gasket | Na dotaz | Zadat poptávku | |
| 2010 WHR75190 |
C00327928
481242378009 |
Fan oven diffuser | Na dotaz | Zadat poptávku | |
| 2450 WHR75190 |
C00330066
481245819268 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 2451 WHR75190 |
C00330064
481245819266 |
Grill grid | Na dotaz | Zadat poptávku | |
| 2470 WHR75190 |
C00327791
481241838126 |
Baking tray | Na dotaz | Zadat poptávku | |
| 2471 WHR75190 |
C00327929
481242378011 |
Handle baking tray | Na dotaz | Zadat poptávku | |
| 2610 WHR75190 |
C00330067
481245819269 |
Inset grid upper cavity | Na dotaz | Zadat poptávku | |
| 2612 WHR75190 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 2618 WHR75190 |
C00330065
481245819267 |
Inset grid lower cavity | Na dotaz | Zadat poptávku | |
| 3010 WHR75190 |
C00331468
481245350018 |
Control panel support | Na dotaz | Zadat poptávku | |
| 3200 WHR75190 |
C00596998
481245350121 |
Control panel. | Na dotaz | Zadat poptávku | |
| 3310 WHR75190 |
C00596919
481241129018 |
Knob BL | Na dotaz | Zadat poptávku | |
| 3320 WHR75190 |
C00312958
481241259123 |
Push button BL | Na dotaz | Zadat poptávku | |
| 3510 WHR75190 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 3541 WHR75190 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 4000 WHR75190 |
C00315048
481202858348 |
96ntilator tangential motor | Na dotaz | Zadat poptávku | |
| 4400 WHR75190 |
C00311342
481236118457 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 4510 WHR75190 |
C00312315
481225998465 |
Heating element circ. 2000W 230V | Na dotaz | Zadat poptávku | |
| 4520 WHR75190 |
C00312039
481225948111 |
Topné těleso trouby – horní + grill | Na dotaz | Zadat poptávku | |
| 4560 WHR75190 |
C00311969
481225948189 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 4910 WHR75190 |
C00314644
481232128427 |
Terminal block + cable | Na dotaz | Zadat poptávku | |
| 5000 WHR75190 |
C00311891
481221478361 |
Control unit | Na dotaz | Zadat poptávku | |
| 5001 WHR75190 |
C00327006
481221478652 |
Support programmer EL. | Na dotaz | Zadat poptávku | |
| 5210 WHR75190 |
C00314735
481228208648 |
Switch,oven + thermostat upper | Na dotaz | Zadat poptávku | |
| 5211 WHR75190 |
C00497370
481228248285 |
Switch,oven + thermostat lower | Na dotaz | Zadat poptávku | |
| 5220 WHR75190 |
C00315975
481227328159 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 5541 WHR75190 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 5620 WHR75190 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 5621 WHR75190 |
C00317987
481228208633 |
Thermostat safety NA T70 | Na dotaz | Zadat poptávku | |
| 5622 WHR75190 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 5623 WHR75190 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | Na dotaz | Zadat poptávku | |
| 6520 WHR75190 |
C00312081
481213428087 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 7430 WHR75190 |
C00316208
481244039495 |
Conveyor air upper | Na dotaz | Zadat poptávku | |
| 7431 WHR75190 |
C00328203
481244039496 |
Conveyor air lower | Na dotaz | Zadat poptávku | |
