ARISTON C 757 GT (X)/I
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | C 757 GT (X)/I |
| Kód 12NC: | 869990244110 |
| I.C. kód: | 79244110000 |
| Značka: | ARISTON |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

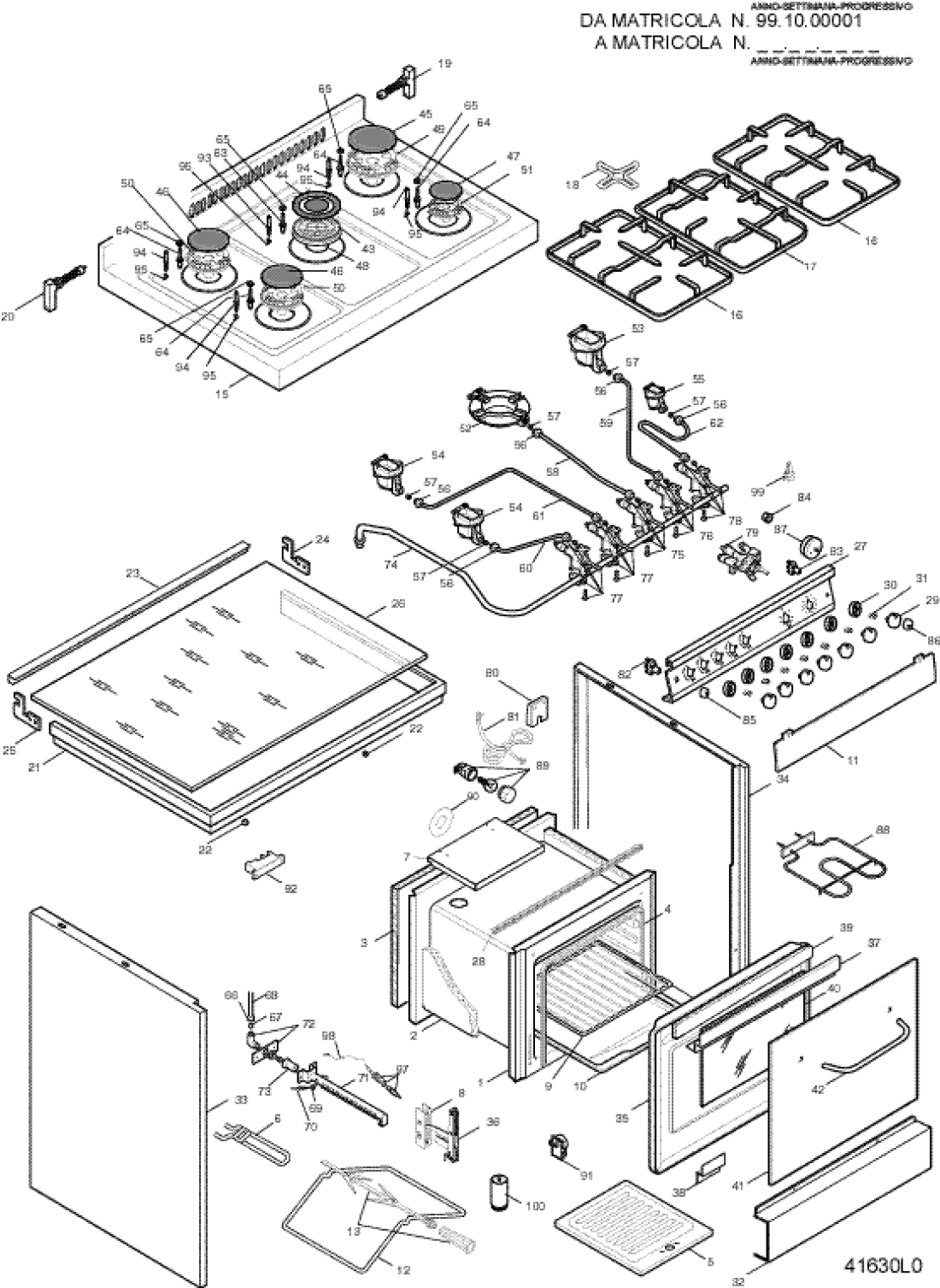

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 41630l0 |
C00074770 | OVEN CHAMBER - ENAMELLED | Na dotaz | Zadat poptávku | |
| 002 41630l0 |
C00075932 | OVEN INSULATION - TOP | Na dotaz | Zadat poptávku | |
| 003 41630l0 |
C00052430 | OVEN INSULATION - BACK STAR | Na dotaz | Zadat poptávku | |
| 004 41630l0 |
C00052411
482000074695 |
OVEN GASKET | Na dotaz | Zadat poptávku | |
| 005 41630l0 |
C00057271 | GRIDDLE PLATE | Na dotaz | Zadat poptávku | |
| 006 41630l0 |
C00057272 | HANDLE STEAK GRILL | Na dotaz | Zadat poptávku | |
| 007 41630l0 |
C00066010 | OUTLET HOSE | Na dotaz | Zadat poptávku | |
| 008 41630l0 |
C00052418
482000026789 |
ROLLER SUPPORT | Na dotaz | Zadat poptávku | |
| 009 41630l0 |
C00052427 | OVEN GRID SHELF STAR | Na dotaz | Zadat poptávku | |
| 010 41630l0 |
C00052428 | OVEN DRIP TRAY STAR | Na dotaz | Zadat poptávku | |
| 011 41630l0 |
C00074774 | KNOB DEFLECTOR | Na dotaz | Zadat poptávku | |
| 012 41630l0 |
C00052431 | ROTISSERIE SUPPORT STAR | Na dotaz | Zadat poptávku | |
| 013 41630l0 |
C00057270 | ROTISSERIE L=370MM STAR | Na dotaz | Zadat poptávku | |
| 015 41630l0 |
C00075872 | WORKING TABLE | Na dotaz | Zadat poptávku | |
| 016 41630l0 |
C00075890 | GRID 2 BURNERS 70X60 | Na dotaz | Zadat poptávku | |
| 017 41630l0 |
C00075891 | CENTRAL PAN-SUPPORTING GRID 70X60 | Na dotaz | Zadat poptávku | |
| 018 41630l0 |
C00064003
482000027141 |
REDUKČNÍ MŘÍŽKA C60 S2000 | Na dotaz | Zadat poptávku | |
| 019 41630l0 |
C00074786
482000053881 |
COVER RIGHT HINGE | Na dotaz | Zadat poptávku | |
| 020 41630l0 |
C00074787
482000053882 |
COVER LEFT HINGE | Na dotaz | Zadat poptávku | |
| 021 41630l0 |
C00075918 | COVER FRAME | Na dotaz | Zadat poptávku | |
| 022 41630l0 |
C00058858
482000027057 |
RUBBER BUFFER - PAN GRID | Na dotaz | Zadat poptávku | |
| 023 41630l0 |
C00075919 | BACK LID PROFILE | Na dotaz | Zadat poptávku | |
| 024 41630l0 |
C00074277
482000091004 |
COVER RIGHT HINGE SUPPORT | Na dotaz | Zadat poptávku | |
| 025 41630l0 |
C00074278
482000091005 |
COVER LEFT HINGE SUPPORT | Na dotaz | Zadat poptávku | |
| 026 41630l0 |
C00074791 | GLASS COVER | Na dotaz | Zadat poptávku | |
| 027 41630l0 |
C00075867 | DASHBORAD SERIG. STAR | Na dotaz | Zadat poptávku | |
| 028 41630l0 |
C00054333
482000074839 |
SEAL (CONTROL PANEL TOP) | Na dotaz | Zadat poptávku | |
| 029 41630l0 |
C00074252
482000027286 |
KNOB | Na dotaz | Zadat poptávku | |
| 030 41630l0 |
C00074254
482000076305 |
KNOB DISC | Na dotaz | Zadat poptávku | |
| 031 41630l0 |
C00064343
482000027153 |
PRUŽINA KOTOUČE OVLADAČE 'STAR' | Na dotaz | Zadat poptávku | |
| 032 41630l0 |
C00075921 | PLINTH | Na dotaz | Zadat poptávku | |
| 033 41630l0 |
C00075868 | SIDE PANEL SX | Na dotaz | Zadat poptávku | |
| 034 41630l0 |
C00075869 | SIDE PANEL DX | Na dotaz | Zadat poptávku | |
| 035 41630l0 |
C00074779
482000064461 |
OVEN METAL INNER DOOR | Na dotaz | Zadat poptávku | |
| 036 41630l0 |
C00052419
482000026790 |
DOOR HINGE STAR | Na dotaz | Zadat poptávku | |
| 037 41630l0 |
C00074780 | UPPER SUPPORT GLASS STAR | Na dotaz | Zadat poptávku | |
| 038 41630l0 |
C00052420 | SUPPORT GLASS | Na dotaz | Zadat poptávku | |
| 039 41630l0 |
C00052422 | DOOR INSULATION STAR | Na dotaz | Zadat poptávku | |
| 040 41630l0 |
C00052421
482000074696 |
OVEN DOOR GLASS - INNER | Na dotaz | Zadat poptávku | |
| 041 41630l0 |
C00075931 | OVEN DOOR GLASS | Na dotaz | Zadat poptávku | |
| 042 41630l0 |
C00081959 | SUPPORT BRACKET - HANDLE | Na dotaz | Zadat poptávku | |
| 042 41630l0 |
C00074257 | DOOR HANDLE | Na dotaz | Zadat poptávku | |
| 043 41630l0 |
C00053174
482000026842 |
KRYT USMĚRŇ. PLAMENE TR.KORUNA CERNA | Na dotaz | Zadat poptávku | |
| 044 41630l0 |
C00053175
482000026843 |
Kryt hořáku | 481 Kč
€ 19.80 |
||
| 045 41630l0 |
C00052931
482000026824 |
Víko hořáku velké | 172 Kč
€ 7.10 |
||
| 046 41630l0 |
C00052932
482000026825 |
Víko hořáku střední | 159 Kč
€ 6.50 |
||
| 047 41630l0 |
C00052933
482000026826 |
KRYT HOŘÁKU POM. 'SABAF' CERNA | Na dotaz | Zadat poptávku | |
| 048 41630l0 |
C00053173
482000026841 |
HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 049 41630l0 |
C00052928
482000026821 |
Těleso hořáku velké | Na dotaz | Zadat poptávku | |
| 050 41630l0 |
C00052929
482000026822 |
Těleso hořáku polorychlé plynové varné desky Whirlpool | 506 Kč
€ 20.80 |
||
| 051 41630l0 |
C00052930
482000026823 |
BURNER BASE/FLAME SPLITTER - S | Na dotaz | Zadat poptávku | |
| 052 41630l0 |
C00053254
482000026856 |
KRYT HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 053 41630l0 |
C00052925
482000026818 |
KRYT HOŘÁK RYCHLÝ 'SABAF' | Na dotaz | Zadat poptávku | |
| 054 41630l0 |
C00052926
482000026819 |
BURNER CUP - MEDIUM BURNER | Na dotaz | Zadat poptávku | |
| 055 41630l0 |
C00052927
482000026820 |
KRYT HOŘÁK POMOC. 'SABAF' | Na dotaz | Zadat poptávku | |
| 056 41630l0 |
C00060458
482000075200 |
NUT M1 3X1 | Na dotaz | Zadat poptávku | |
| 057 41630l0 |
C00058506
482000075095 |
CONE ELBOW 'STAR' | Na dotaz | Zadat poptávku | |
| 058 41630l0 |
C00075922
482000053218 |
RH BACK S.R. BURNER SUPPLY PIPE T.C. | Na dotaz | Zadat poptávku | |
| 059 41630l0 |
C00075923 | FRONT LEFT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 060 41630l0 |
C00075924 | SEMI-RAPID BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 061 41630l0 |
C00075925 | SEMI-RAPID BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 062 41630l0 |
C00075926 | FRONT RIGHT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 063 41630l0 |
C00074280
482000027292 |
THERMOCOUPLE - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 064 41630l0 |
C00052986
482000026835 |
Termočlánek | 419 Kč
€ 17.20 |
||
| 065 41630l0 |
C00063693
482000058036 |
IMPELLOR THERMOCOUPLE | Na dotaz | Zadat poptávku | |
| 066 41630l0 |
C00047856 | NUT | Na dotaz | Zadat poptávku | |
| 067 41630l0 |
C00047830 | CONE ELBOW 'STAR' | Na dotaz | Zadat poptávku | |
| 068 41630l0 |
C00075935 | OVEN FEEDING PIPE | Na dotaz | Zadat poptávku | |
| 069 41630l0 |
C00056374
482000054429 |
IMPELLOR NUT M8X1 | Na dotaz | Zadat poptávku | |
| 070 41630l0 |
C00056104
482000054936 |
THERMOCOUPLE OVEN L-1200 | Na dotaz | Zadat poptávku | |
| 071 41630l0 |
C00056101 | COMPLETE OVEN BURNER | Na dotaz | Zadat poptávku | |
| 072 41630l0 |
C00074805 | RACCORD PLATE | Na dotaz | Zadat poptávku | |
| 073 41630l0 |
C00057275 | LARGE BURNER AIR ADJUSTER OVENS | Na dotaz | Zadat poptávku | |
| 074 41630l0 |
C00075936 | PIPE - TAP | Na dotaz | Zadat poptávku | |
| 075 41630l0 |
C00059242
482000027074 |
THERMOSTAT WITH VALVE TRIPLA CORONA | Na dotaz | Zadat poptávku | |
| 076 41630l0 |
C00059240
482000027072 |
GAS TAP WITH FAST VALVE STAR | Na dotaz | Zadat poptávku | |
| 077 41630l0 |
C00059241
482000027073 |
THERMOSTAT WITH VALVE SEMIRAPIDO | Na dotaz | Zadat poptávku | |
| 078 41630l0 |
C00059239
482000027071 |
GAS TAP WITH VALVE BY-PASS 0,27 | Na dotaz | Zadat poptávku | |
| 079 41630l0 |
C00056100
482000026946 |
1 WAY OVEN THERMOSTAT WITH VALVE | Na dotaz | Zadat poptávku | |
| 080 41630l0 |
C00056382
482000026959 |
SVORKOVNICE 'STAR' | Na dotaz | Zadat poptávku | |
| 081 41630l0 |
C00056381 | SUPPLY CABLE 10A | Na dotaz | Zadat poptávku | |
| 082 41630l0 |
C00074264
482000054510 |
PUSHBUTTON | Na dotaz | Zadat poptávku | |
| 083 41630l0 |
C00074265
482000054508 |
LAMP SWITCH | Na dotaz | Zadat poptávku | |
| 084 41630l0 |
C00074266
482000054108 |
SWITCH SUPPORT | Na dotaz | Zadat poptávku | |
| 085 41630l0 |
C00074267
482000054109 |
CAP FOR IGNITION SWITCH | Na dotaz | Zadat poptávku | |
| 086 41630l0 |
C00048786
482000092665 |
BLACK CAP FOR LIGHT SWITCH ROLD | Na dotaz | Zadat poptávku | |
| 087 41630l0 |
C00052527
482000026798 |
Minutka | 824 Kč
€ 33.90 |
||
| 088 41630l0 |
C00054036 | GRILL HEATING ELEMENT 1500W | Na dotaz | Zadat poptávku | |
| 089 41630l0 |
C00050003
482000074502 |
LAMP-HOLDER COMPLETE | Na dotaz | Zadat poptávku | |
| 090 41630l0 |
C00052172
482000074678 |
OCHRANA OBJÍMKA 'STAR' | Na dotaz | Zadat poptávku | |
| 091 41630l0 |
C00049972
482000054557 |
MOTOR -ROTISSERIE | Na dotaz | Zadat poptávku | |
| 092 41630l0 |
C00031720
482000022593 |
TRANSFORMÁTOR ZAPÁLENÍ 6P+FILTR | Na dotaz | Zadat poptávku | |
| 093 41630l0 |
C00075911
482000027365 |
ELECTRODE -TRIPLE BURNER L=500 | Na dotaz | Zadat poptávku | |
| 094 41630l0 |
C00052951
482000022639 |
Svíčka zapalovací | 84 Kč
€ 3.50 |
||
| 095 41630l0 |
C00052934
482000026827 |
PRUŽINA ZAPAL.SVÍČKY HOŘÁKU 'SABAF' | Na dotaz | Zadat poptávku | |
| 097 41630l0 |
C00056160
488000056160 |
SPARK PLUGS OVEN | Na dotaz | Zadat poptávku | |
| 098 41630l0 |
C00056161 | CABLE | Na dotaz | Zadat poptávku | |
| 099 41630l0 |
C00049971
482000074501 |
FLAT SPRING RETAINER-THERMOS.CAPIL. MM26 | Na dotaz | Zadat poptávku | |
| 100 41630l0 |
C00074282 | FOOT CHROMIUM | Na dotaz | Zadat poptávku | |
| 101 41630l0 |
C00059235
482000057943 |
KIT INJECTOR GAS METANO G20 'STAR' | Na dotaz | Zadat poptávku | |
| 102 41630l0 |
C00075929
488000075929 |
KIT INJECTOR GPL G30 | Na dotaz | Zadat poptávku | |
| 103 41630l0 |
C00074767 | USER INSTRUCTIONS | Na dotaz | Zadat poptávku | |
