| Komerční kód: | CBA 281 REFRIGERATORS IG |
| Kód 12NC/I.C. kód: | 850323401000 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850323401004, 850323401005, 850323401008, 850323401006, 850323401007 |
Potřebujete servis? Jsme tady pro Vás

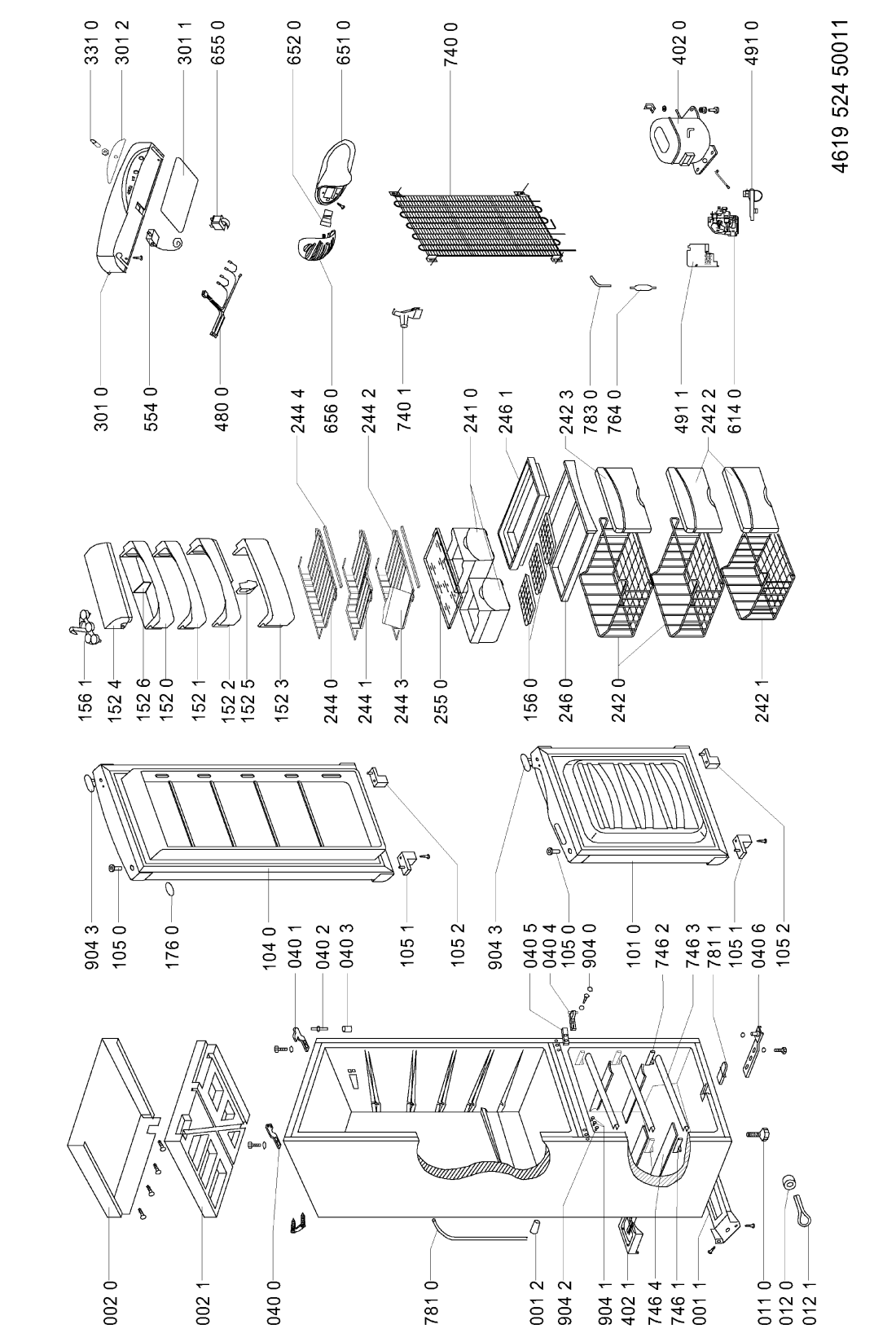

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR67017 |
C00480841
481246699027 |
PRIECKA | Na dotaz | Zadat poptávku | |
| 001 2 WHR67017 |
C00498593
481252518014 |
Guide | Na dotaz | Zadat poptávku | |
| 002 0 WHR67017 |
C00342942
481246418098 |
Cover | Na dotaz | Zadat poptávku | |
| 002 1 WHR67017 |
C00326888
481215748001 |
VLOZKA PLAST | Na dotaz | Zadat poptávku | |
| 011 0 WHR67017 |
C00344635
481246218249 |
Adjusting screw | Na dotaz | Zadat poptávku | |
| 012 0 WHR67017 |
C00332373
481252878062 |
kolecko lednice | 311 Kč
€ 12.70 |
||
| 012 1 WHR67017 |
C00332726
481253578074 |
osa kolecka lednice | Na dotaz | Zadat poptávku | |
| 040 0 WHR67017 |
C00339755
481241778092 |
pant | Na dotaz | Zadat poptávku | |
| 040 1 WHR67017 |
C00497797
481241778093 |
Hinge,upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR67017 |
C00327075
481222608004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR67017 |
C00336279
481247838002 |
Sleeve | Na dotaz | Zadat poptávku | |
| 040 4 WHR67017 |
C00497788
481241719139 |
NAHRADA 481241718139 N | Na dotaz | Zadat poptávku | |
| 040 5 WHR67017 |
C00480844
481252648142 |
STRIEKACIE RAMENO UMYVACKY | Na dotaz | Zadat poptávku | |
| 040 6 WHR67017 |
C00329708
481241719115 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 101 0 WHR67017 |
C00574804
481241818418 |
DVERE MRAZNICKY | Na dotaz | Zadat poptávku | |
| 104 0 WHR67017 |
C00553484
481241618932 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 105 0 WHR67017 |
C00332691
481253288034 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR67017 |
C00332690
481253288033 |
Sleeve | Na dotaz | Zadat poptávku | |
| 105 2 WHR67017 |
C00332695
481253288048 |
Sleeveleft | Na dotaz | Zadat poptávku | |
| 152 0 WHR67017 |
C00319174
481241828539 |
Door,dairyupper | Na dotaz | Zadat poptávku | |
| 152 1 WHR67017 |
C00553528
481241828541 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 152 2 WHR67017 |
C00574813
481241828542 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 152 3 WHR67017 |
C00553529
481241828543 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 152 4 WHR67017 |
C00331038
481244228018 |
Flap f.dairy door | Na dotaz | Zadat poptávku | |
| 152 5 WHR67017 |
C00329926
481241828489 |
Separator | Na dotaz | Zadat poptávku | |
| 152 6 WHR67017 |
C00489033
481241828544 |
Separator upper shelf | Na dotaz | Zadat poptávku | |
| 156 0 WHR67017 |
C00574812
481241828525 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 156 1 WHR67017 |
C00489029
481241828486 |
Rack,egg | Na dotaz | Zadat poptávku | |
| 176 0 WHR67017 |
C00319169
481245918241 |
Nameplate IGNIS | Na dotaz | Zadat poptávku | |
| 241 0 WHR67017 |
C00342287
481241879834 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 0 WHR67017 |
C00344510
481241838091 |
kos mraznicky | Na dotaz | Zadat poptávku | |
| 242 1 WHR67017 |
C00344511
481241838092 |
Koš mrazničky drátěný - malý | Na dotaz | Zadat poptávku | |
| 242 2 WHR67017 |
C00342334
481241858039 |
Cover,basket | Na dotaz | Zadat poptávku | |
| 242 3 WHR67017 |
C00553533
481241848654 |
Cover,basket | Na dotaz | Zadat poptávku | |
| 244 0 WHR67017 |
C00574519
481245819155 |
POLICKA | Na dotaz | Zadat poptávku | |
| 244 1 WHR67017 |
C00574890
481245819156 |
Shelf. | Na dotaz | Zadat poptávku | |
| 244 2 WHR67017 |
C00487637
481245819157 |
Shelf | Na dotaz | Zadat poptávku | |
| 244 3 WHR67017 |
C00574736
481240478641 |
Shelf flap. | Na dotaz | Zadat poptávku | |
| 244 4 WHR67017 |
C00335293
481245938054 |
Trim | Na dotaz | Zadat poptávku | |
| 246 0 WHR67017 |
C00335360
481246228454 |
RAM PLAST | Na dotaz | Zadat poptávku | |
| 246 1 WHR67017 |
C00335361
481246228453 |
Tray | Na dotaz | Zadat poptávku | |
| 255 0 WHR67017 |
C00574863
481245088192 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 301 0 WHR67017 |
C00553728
481246469026 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR67017 |
C00328422
481244098137 |
kryt | Na dotaz | Zadat poptávku | |
| 301 2 WHR67017 |
C00574884
481245310251 |
Decor trim set | Na dotaz | Zadat poptávku | |
| 331 0 WHR67017 |
C00338432
481241218031 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR67017 |
C00320754
481236038863 |
Compressor HQY 11 AA | Na dotaz | Zadat poptávku | |
| 402 1 WHR67017 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 480 0 WHR67017 |
C00574289
481201978827 |
Cable harness | Na dotaz | Zadat poptávku | |
| 491 0 WHR67017 |
C00330476
481246228261 |
pruchodka | Na dotaz | Zadat poptávku | |
| 491 1 WHR67017 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 554 0 WHR67017 |
C00314287
481228238134 |
Thermostat | Na dotaz | Zadat poptávku | |
| 614 0 WHR67017 |
C00337077
481228038047 |
elektroinstalace MK | Na dotaz | Zadat poptávku | |
| 651 0 WHR67017 |
C00339203
481244098138 |
Housing | Na dotaz | Zadat poptávku | |
| 652 0 WHR67017 |
C00320404
481225528015 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 655 0 WHR67017 |
C00574278
481227148007 |
spinac osvetleni | Na dotaz | Zadat poptávku | |
| 656 0 WHR67017 |
C00312883
481246098066 |
Stínidlo světla | Na dotaz | Zadat poptávku | |
| 740 0 WHR67017 |
C00332236
481251148314 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR67017 |
C00330494
481246228448 |
Holder | Na dotaz | Zadat poptávku | |
| 746 1 WHR67017 |
C00319703
481246628139 |
drzak vyparniku l | Na dotaz | Zadat poptávku | |
| 746 2 WHR67017 |
C00319357
481246228447 |
drzak vyparniku p | Na dotaz | Zadat poptávku | |
| 746 3 WHR67017 |
C00342034
481246098054 |
lista kryci vyparnik | Na dotaz | Zadat poptávku | |
| 746 4 WHR67017 |
C00319325
481246098055 |
Podpora koše mrazničky | 90 Kč
€ 3.70 |
||
| 764 0 WHR67017 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR67017 |
C00326893
481217158001 |
Hadice na kondenzát | Na dotaz | Zadat poptávku | |
| 781 1 WHR67017 |
C00342062
481217158002 |
Kanál odtokový | Na dotaz | Zadat poptávku | |
| 783 0 WHR67017 |
C00318198
481952643046 |
SPOJKA | 161 Kč
€ 6.60 |
||
| 904 0 WHR67017 |
C00498384
481246228508 |
kryt | Na dotaz | Zadat poptávku | |
| 904 1 WHR67017 |
C00332688
481253288029 |
zaslepka 480132102378 | Na dotaz | Zadat poptávku | |
| 904 2 WHR67017 |
C00316993
481222608003 |
zaslepka | Na dotaz | Zadat poptávku | |
| 904 3 WHR67017 |
C00332689
481253288032 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR67017 |
C00686128 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
