IGNIS CBAE 375R/M
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CBAE 375R/M |
| Kód 12NC: | 853966338000 |
| I.C. kód: | 853966338003 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853966338001, 853966338002 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

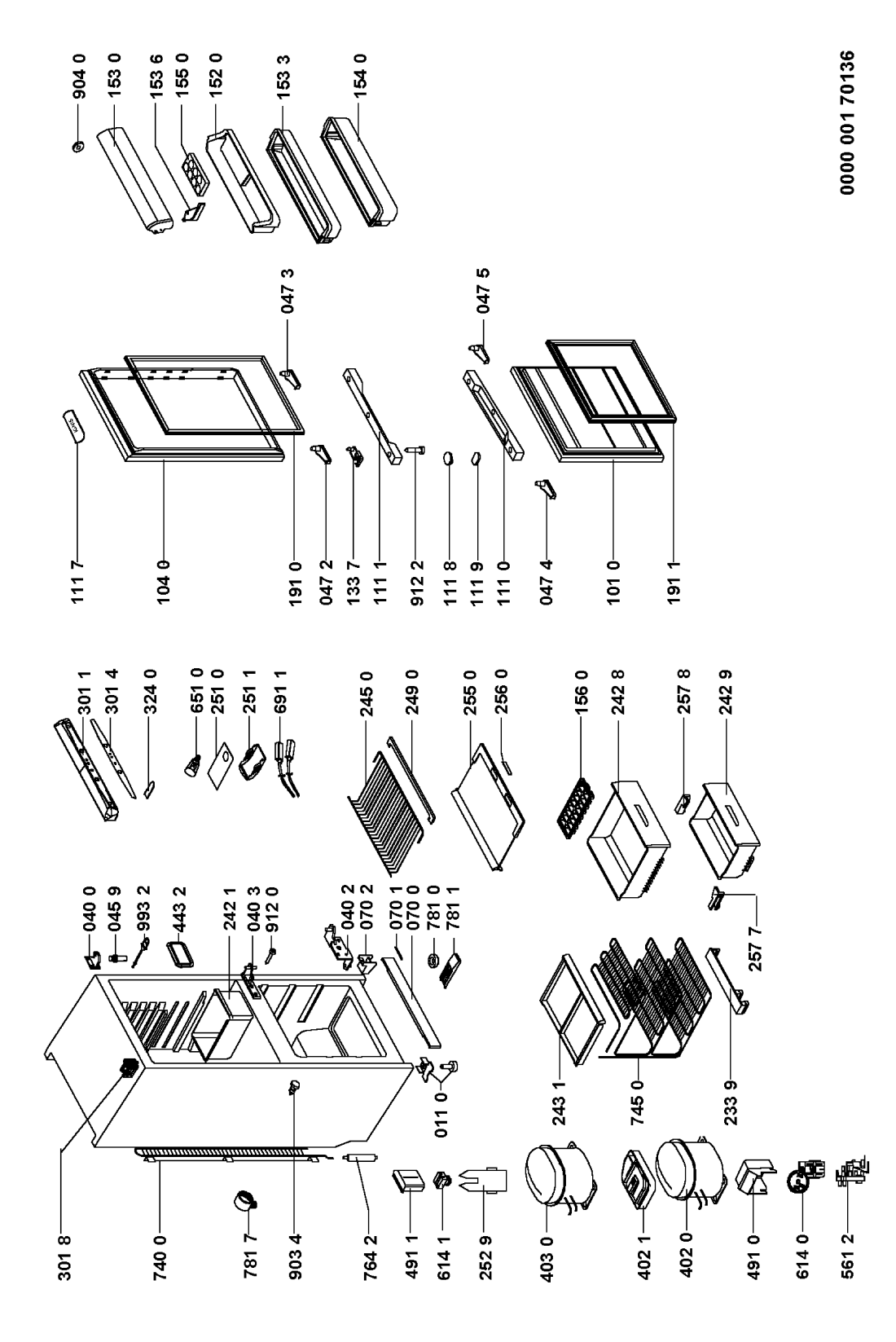

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR96036 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR96036 |
C00575014
481941719412 |
HINGE,UPPER. | Na dotaz | Zadat poptávku | |
| 040 2 WHR96036 |
C00587333
481941719431 |
Hinge lower. | Na dotaz | Zadat poptávku | |
| 040 3 WHR96036 |
C00742862
481241719177 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 045 9 WHR96036 |
C00337808
481953598666 |
Pivot | Na dotaz | Zadat poptávku | |
| 047 2 WHR96036 |
C00587467
481953268866 |
BUSHING. | Na dotaz | Zadat poptávku | |
| 047 3 WHR96036 |
C00587466
481953268865 |
BUSHING. | Na dotaz | Zadat poptávku | |
| 047 4 WHR96036 |
C00587469
481953268868 |
BUSHING. | Na dotaz | Zadat poptávku | |
| 047 5 WHR96036 |
C00587468
481953268867 |
BUSHING. | Na dotaz | Zadat poptávku | |
| 070 0 WHR96036 |
C00587352
481944268341 |
PLINTH. | Na dotaz | Zadat poptávku | |
| 070 1 WHR96036 |
C00587406
481946078248 |
INSERT,PLINTH. | Na dotaz | Zadat poptávku | |
| 070 2 WHR96036 |
C00332946
481940478921 |
drzak soklu | 141 Kč
€ 6.20 |
||
| 101 0 WHR96036 |
C00587371
481944269157 |
DOOR,FREEZER. | Na dotaz | Zadat poptávku | |
| 104 0 WHR96036 |
C00742859
481241618657 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 111 0 WHR96036 |
C00587449
481949878412 |
Handle door | Na dotaz | Zadat poptávku | |
| 111 1 WHR96036 |
C00488319
481949878413 |
Handle door | Na dotaz | Zadat poptávku | |
| 111 7 WHR96036 |
C00587215
481245298209 |
Nameplate. | Na dotaz | Zadat poptávku | |
| 111 8 WHR96036 |
C00486744
481946258323 |
STOPPER | Na dotaz | Zadat poptávku | |
| 111 9 WHR96036 |
C00587424
481946288011 |
PLUG. | Na dotaz | Zadat poptávku | |
| 133 7 WHR96036 |
C00593539
481241778047 |
Doorstay. | Na dotaz | Zadat poptávku | |
| 152 0 WHR96036 |
C00327901
481241879841 |
Compartment | Na dotaz | Zadat poptávku | |
| 153 0 WHR96036 |
C00586656
481241828155 |
Flap f. door dairy. | Na dotaz | Zadat poptávku | |
| 153 3 WHR96036 |
C00586655
481241828154 |
DOOR,DAIRY. | Na dotaz | Zadat poptávku | |
| 153 6 WHR96036 |
C00333068
481946089353 |
drzak lahvi | 348 Kč
€ 15.30 |
||
| 154 0 WHR96036 |
C00586658
481241828477 |
Bottle shelf. | Na dotaz | Zadat poptávku | |
| 155 0 WHR96036 |
C00586654
481241828081 |
DRZIAK VAJEC ARL172 N | Na dotaz | Zadat poptávku | |
| 156 0 WHR96036 |
C00489028
481241828466 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 191 0 WHR96036 |
C00486837
481946818084 |
GASKET,REF.DOOR | Na dotaz | Zadat poptávku | |
| 191 1 WHR96036 |
C00587438
481946818083 |
GASKET.FRE.DOOR | Na dotaz | Zadat poptávku | |
| 233 9 WHR96036 |
C00335837
481946699082 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 242 1 WHR96036 |
C00587087
481241828547 |
Drawer. | Na dotaz | Zadat poptávku | |
| 242 8 WHR96036 |
C00374068
481241848609 |
kos mraznicky stred. | Na dotaz | Zadat poptávku | |
| 242 9 WHR96036 |
C00742863
481241848626 |
Drawer | Na dotaz | Zadat poptávku | |
| 243 1 WHR96036 |
C00742864
481241828478 |
Shelf plate | Na dotaz | Zadat poptávku | |
| 245 0 WHR96036 |
C00340302
481945868071 |
rost lednice | 634 Kč
€ 27.90 |
||
| 249 0 WHR96036 |
C00587123
481244069083 |
TRIM | Na dotaz | Zadat poptávku | |
| 251 0 WHR96036 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR96036 |
C00342451
481946279771 |
kryt svetla | 345 Kč
€ 15.20 |
||
| 252 9 WHR96036 |
C00333089
481946258371 |
Guard | Na dotaz | Zadat poptávku | |
| 255 0 WHR96036 |
C00587144
481245088028 |
GLASS SHELF. | Na dotaz | Zadat poptávku | |
| 256 0 WHR96036 |
C00587238
481246049408 |
Insert. | Na dotaz | Zadat poptávku | |
| 257 7 WHR96036 |
C00314855
481946699151 |
Držák výparníku pravý | 304 Kč
€ 13.40 |
||
| 257 8 WHR96036 |
C00314857
481946699152 |
Držák výparníku levý | 309 Kč
€ 13.60 |
||
| 301 1 WHR96036 |
C00742860
481245228373 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 4 WHR96036 |
C00742861
481246049323 |
Insert | Na dotaz | Zadat poptávku | |
| 301 8 WHR96036 |
C00336005
481246048955 |
Stopper | Na dotaz | Zadat poptávku | |
| 324 0 WHR96036 |
C00587387
481945299882 |
INSERT. | Na dotaz | Zadat poptávku | |
| 402 0 WHR96036 |
C00311989
481236038764 |
kompresorEMT 26CLP 59W - mraznička | Na dotaz | Zadat poptávku | |
| 402 1 WHR96036 |
C00333005
481941878641 |
miska na kondenzat | 161 Kč
€ 7.10 |
||
| 403 0 WHR96036 |
C00498951
481936038704 |
nahradene 481281718829 | Na dotaz | Zadat poptávku | |
| 443 2 WHR96036 |
C00485987
481246228382 |
Cover | Na dotaz | Zadat poptávku | |
| 491 0 WHR96036 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 491 1 WHR96036 |
C00333094
481946279241 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 561 2 WHR96036 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 614 0 WHR96036 |
C00327493
481228068325 |
monoblok ART | 1 369 Kč
€ 60.20 |
||
| 614 1 WHR96036 |
C00332847
481928068367 |
RELE ART284 | 1 086 Kč
€ 47.70 |
||
| 651 0 WHR96036 |
C00313818
481913488178 |
Lamp Tclick T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 691 1 WHR96036 |
C00340976
481223708003 |
Feeler | Na dotaz | Zadat poptávku | |
| 740 0 WHR96036 |
C00575057
481951148608 |
CHLADIC ART831 N | Na dotaz | Zadat poptávku | |
| 745 0 WHR96036 |
C00486261
481251138193 |
VYPARNIK | 5 173 Kč
€ 227.40 |
||
| 764 2 WHR96036 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR96036 |
C00331410
481245298259 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR96036 |
C00327909
481241889008 |
kanal odtokovy | 143 Kč
€ 6.30 |
||
| 781 7 WHR96036 |
C00333270
481952648307 |
priruba hadice | 255 Kč
€ 11.20 |
||
| 903 4 WHR96036 |
C00333168
481949248154 |
zaslepka | 100 Kč
€ 4.40 |
||
| 904 0 WHR96036 |
C00333158
481946818282 |
Podložka distanční | 331 Kč
€ 14.50 |
||
| 912 0 WHR96036 |
C00336672
481950218525 |
Screw | Na dotaz | Zadat poptávku | |
| 912 2 WHR96036 |
C00336669
481950218338 |
Screw | Na dotaz | Zadat poptávku | |
| 993 2 WHR96036 |
C00316841
481969028169 |
Čistič odtoku | 221 Kč
€ 9.70 |
||
| 999 WHR96036 |
C00765716 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
