IKEA CBI956W CBI 956 W 200 192 92
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CBI956W CBI 956 W 200 192 92 |
| Kód 12NC: | 850787510000 |
| Značka: | IKEA |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

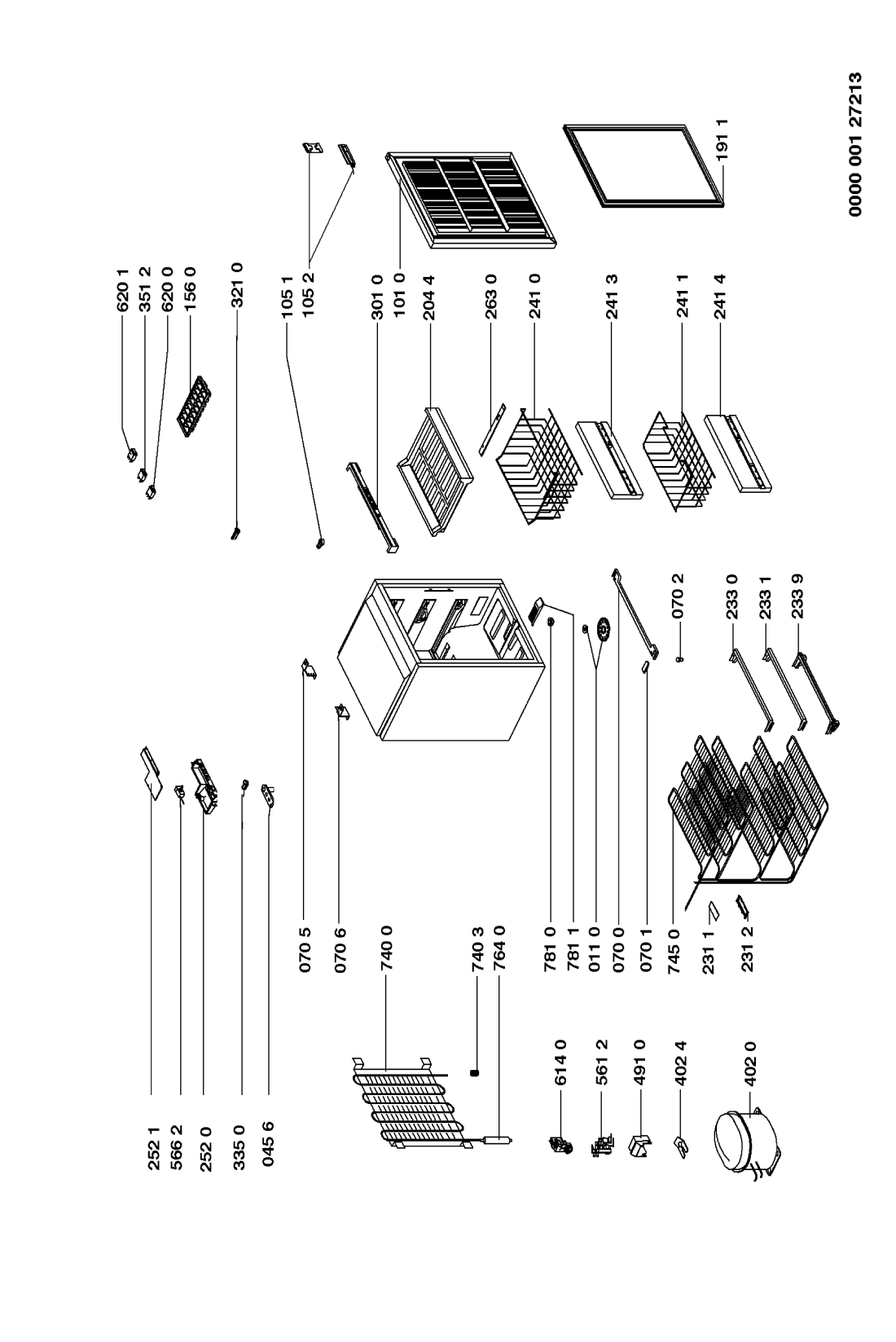

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR107890 |
C00333197
481950018123 |
Foot | Na dotaz | Zadat poptávku | |
| 045 6 WHR107890 |
C00333199
481950018151 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 070 0 WHR107890 |
C00341492
481944088294 |
Pedestal | Na dotaz | Zadat poptávku | |
| 070 1 WHR107890 |
C00499324
481946049066 |
VLOZKA PANELU N | Na dotaz | Zadat poptávku | |
| 070 2 WHR107890 |
C00344330
481953518016 |
Bolt | Na dotaz | Zadat poptávku | |
| 070 5 WHR107890 |
C00344158
481940449968 |
Bracket right | Na dotaz | Zadat poptávku | |
| 070 6 WHR107890 |
C00344171
481940449967 |
Bracket left | Na dotaz | Zadat poptávku | |
| 101 0 WHR107890 |
C00740003
481944268421 |
Door freezer | Na dotaz | Zadat poptávku | |
| 105 1 WHR107890 |
C00312022
481953268815 |
Pouzdro závěsu | 486 Kč
€ 21.40 |
||
| 105 2 WHR107890 |
C00315571
481931039838 |
posouvac-sada | Na dotaz | Zadat poptávku | |
| 156 0 WHR107890 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 1 WHR107890 |
C00381251
481946818131 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 204 4 WHR107890 |
C00386707
481941879076 |
TRAY | Na dotaz | Zadat poptávku | |
| 231 1 WHR107890 |
C00333126
481946688956 |
PLATE THERMOSTAT SENSOR | Na dotaz | Zadat poptávku | |
| 231 2 WHR107890 |
C00343341
481946689101 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 233 0 WHR107890 |
C00339653
481940479375 |
Holder ,EvaporatorEvaporator | Na dotaz | Zadat poptávku | |
| 233 1 WHR107890 |
C00339620
481940479374 |
drzak vyparniku | 268 Kč
€ 11.80 |
||
| 233 9 WHR107890 |
C00339621
481940479376 |
Holder evaporator | Na dotaz | Zadat poptávku | |
| 241 0 WHR107890 |
C00499264
481945819567 |
Koš mrazničky drátěný - horní | 909 Kč
€ 40.00 |
||
| 241 1 WHR107890 |
C00344495
481945819568 |
Koš mrazničky drátěný - spodní | 959 Kč
€ 42.20 |
||
| 241 3 WHR107890 |
C00499167
481944228498 |
kryt kos.pravy | 343 Kč
€ 15.10 |
||
| 241 4 WHR107890 |
C00741360
481944278386 |
Cover basket | Na dotaz | Zadat poptávku | |
| 252 0 WHR107890 |
C00499382
481946278682 |
Casing thermostat | Na dotaz | Zadat poptávku | |
| 252 1 WHR107890 |
C00499162
481944098941 |
Lid f.thermostat | Na dotaz | Zadat poptávku | |
| 263 0 WHR107890 |
C00340172
481946238886 |
kolejnice kose | Na dotaz | Zadat poptávku | |
| 301 0 WHR107890 |
C00740164
481946288051 |
PANEL OVLADACI | 248 Kč
€ 10.90 |
||
| 321 0 WHR107890 |
C00336913
481938118096 |
Reflector | Na dotaz | Zadat poptávku | |
| 335 0 WHR107890 |
C00499077
481941338064 |
knoflik termostatu | 56 Kč
€ 2.50 |
||
| 351 2 WHR107890 |
C00498802
481913448192 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 402 0 WHR107890 |
C00574284
481936058775 |
KOMPRESOR EMT43HLP ART876 N | Na dotaz | Zadat poptávku | |
| 402 4 WHR107890 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 5.30 |
||
| 491 0 WHR107890 |
C00342331
481946288145 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 561 2 WHR107890 |
C00316074
481929068433 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 566 2 WHR107890 |
C00498836
481927128833 |
termostat A04-0153 | 863 Kč
€ 37.90 |
||
| 614 0 WHR107890 |
C00492725
481969028193 |
rele rozbehove | 562 Kč
€ 24.70 |
||
| 620 0 WHR107890 |
C00498860
481927718128 |
signalka | 399 Kč
€ 17.50 |
||
| 620 1 WHR107890 |
C00335705
481927718127 |
signalka | 343 Kč
€ 15.10 |
||
| 740 0 WHR107890 |
C00499539
481951148532 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 3 WHR107890 |
C00328255
481244048012 |
Holder condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR107890 |
C00556286
481951138661 |
VYPARNIK AFB904 N | Na dotaz | Zadat poptávku | |
| 764 0 WHR107890 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR107890 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR107890 |
C00499108
481941849577 |
ODTOKOVY ZLIABOK N | Na dotaz | Zadat poptávku | |
| 993 9 WHR107890 |
C00555825
481931039595 |
SUPRAVA PRE ZMENU OTV. DVERI *** N | Na dotaz | Zadat poptávku | |
| 999 WHR107890 |
C00787206 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
