| Komerční kód: | 20016236 CFS 671 R SPECIAL PRODUCTS IK |
| Kód 12NC/I.C. kód: | 856468001100 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 856468001200 |
Potřebujete servis? Jsme tady pro Vás

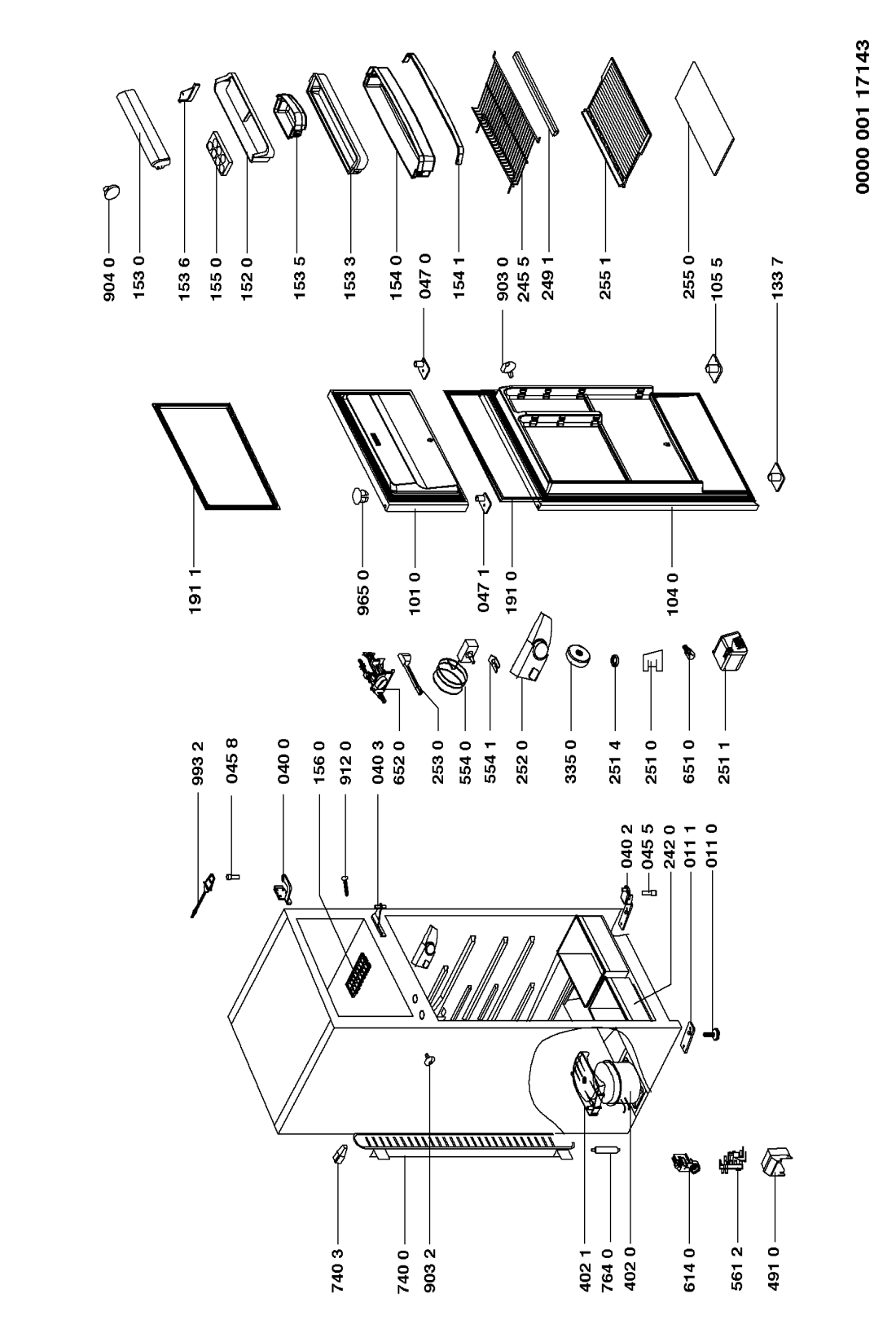

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR74814 |
C00591130
481244068951 |
Side panel /RH. | Na dotaz | Zadat poptávku | |
| 001 1 WHR74814 |
C00528125
481244068952 |
SIDE PANEL /RH /RH | Na dotaz | Zadat poptávku | |
| 011 0 WHR74814 |
C00333081
481946248513 |
noha | 63 Kč
€ 2.60 |
||
| 011 1 WHR74814 |
C00336245
481946699164 |
Small plate | Na dotaz | Zadat poptávku | |
| 030 0 WHR74814 |
C00528127
481244068955 |
LID,TOP /RH /RH | Na dotaz | Zadat poptávku | |
| 033 3 WHR74814 |
C00591132
481244068957 |
SMALL PLATE,MID. | Na dotaz | Zadat poptávku | |
| 040 0 WHR74814 |
C00527806
481241718847 |
HINGE /RH /RH | Na dotaz | Zadat poptávku | |
| 040 2 WHR74814 |
C00339805
481941719647 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR74814 |
C00555974
481941719667 |
ZAVES STREDNY ART676 N | Na dotaz | Zadat poptávku | |
| 045 5 WHR74814 |
C00344545
481953598677 |
Axle | Na dotaz | Zadat poptávku | |
| 045 8 WHR74814 |
C00330687
481246258004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR74814 |
C00557598
481953268913 |
DRZIAK DVERI ART676 N | Na dotaz | Zadat poptávku | |
| 047 1 WHR74814 |
C00556340
481953268912 |
DRZIAK DVERI ART676 N | Na dotaz | Zadat poptávku | |
| 070 0 WHR74814 |
C00591133
481244068958 |
PLINTH. | Na dotaz | Zadat poptávku | |
| 101 0 WHR74814 |
C00341335
481944269399 |
Door,freezer | Na dotaz | Zadat poptávku | |
| 101 1 WHR74814 |
C00593148
481244069023 |
Door cabinet /RH/freezing. | Na dotaz | Zadat poptávku | |
| 104 0 WHR74814 |
C00341308
481944269398 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 104 1 WHR74814 |
C00591128
481244068948 |
PORTA REFR.DX.INOX. | Na dotaz | Zadat poptávku | |
| 105 5 WHR74814 |
C00337806
481946689479 |
Pivot left | Na dotaz | Zadat poptávku | |
| 111 0 WHR74814 |
C00487826
481249878031 |
Door handle set(CO+FR) | Na dotaz | Zadat poptávku | |
| 133 7 WHR74814 |
C00337805
481946689478 |
Pivot right | Na dotaz | Zadat poptávku | |
| 152 0 WHR74814 |
C00341347
481941879592 |
police dveri horni | Na dotaz | Zadat poptávku | |
| 153 0 WHR74814 |
C00341344
481944278385 |
Door,flapdairy door | Na dotaz | Zadat poptávku | |
| 153 3 WHR74814 |
C00341353
481941879333 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 153 5 WHR74814 |
C00341354
481941879898 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 153 6 WHR74814 |
C00336512
481944278078 |
Separator | Na dotaz | Zadat poptávku | |
| 154 0 WHR74814 |
C00344313
481941879899 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR74814 |
C00492408
481946078882 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 155 0 WHR74814 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 156 0 WHR74814 |
C00287849
481941878977 |
miska na led | 500 Kč
€ 20.30 |
||
| 170 3 WHR74814 |
C00591112
481244019619 |
Trim door. | Na dotaz | Zadat poptávku | |
| 191 0 WHR74814 |
C00587440
481946818383 |
TESNENIE DVERI MAGN. ART676 N | Na dotaz | Zadat poptávku | |
| 191 1 WHR74814 |
C00338281
481946818384 |
Magnetic seal ,freezinfreezing | Na dotaz | Zadat poptávku | |
| 242 0 WHR74814 |
C00553542
481241879643 |
Drawer.. | Na dotaz | Zadat poptávku | |
| 245 5 WHR74814 |
C00340292
481945868305 |
Grid | Na dotaz | Zadat poptávku | |
| 249 1 WHR74814 |
C00335239
481946089726 |
Trim grid | Na dotaz | Zadat poptávku | |
| 251 0 WHR74814 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR74814 |
C00316270
481244078294 |
stinidlo osvetleni | 533 Kč
€ 21.60 |
||
| 251 4 WHR74814 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 252 0 WHR74814 |
C00343909
481246279653 |
Cabinet lamp / thermos | Na dotaz | Zadat poptávku | |
| 253 0 WHR74814 |
C00344553
481253598053 |
ovladac spinace osv. | Na dotaz | Zadat poptávku | |
| 255 0 WHR74814 |
C00342276
481946678451 |
kryci deska | Na dotaz | Zadat poptávku | |
| 255 1 WHR74814 |
C00587240
481246078869 |
POLICKA SKLENENA ART676 N | Na dotaz | Zadat poptávku | |
| 335 0 WHR74814 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR74814 |
C00343569
481936058759 |
Compressor EMT46CLP | Na dotaz | Zadat poptávku | |
| 402 1 WHR74814 |
C00335355
481941879552 |
miska na kondenzat | 58 Kč
€ 2.40 |
||
| 491 0 WHR74814 |
C00342331
481946288145 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 554 0 WHR74814 |
C00385108
481927129109 |
Thermostat A13-0521 | Na dotaz | Zadat poptávku | |
| 554 1 WHR74814 |
C00333185
481949268723 |
pruzina | 248 Kč
€ 10.10 |
||
| 561 2 WHR74814 |
C00316074
481929068433 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 614 0 WHR74814 |
C00492725
481969028193 |
rele rozbehove | 335 Kč
€ 13.60 |
||
| 651 0 WHR74814 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR74814 |
C00327118
481225518203 |
objimka zarovky | Na dotaz | Zadat poptávku | |
| 740 0 WHR74814 |
C00574655
481951148682 |
CHLADIC ART676 N | Na dotaz | Zadat poptávku | |
| 740 3 WHR74814 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 0 WHR74814 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 903 0 WHR74814 |
C00333338
481953518117 |
krytka | 4 Kč
€ 0.20 |
||
| 903 2 WHR74814 |
C00333168
481949248154 |
zaslepka | 41 Kč
€ 1.70 |
||
| 904 0 WHR74814 |
C00333158
481946818282 |
Podložka distanční | 178 Kč
€ 7.20 |
||
| 912 0 WHR74814 |
C00492579
481950218498 |
SKRUTKA ART785 N | Na dotaz | Zadat poptávku | |
| 965 0 WHR74814 |
C00336022
481946278448 |
Stopper | Na dotaz | Zadat poptávku | |
| 993 2 WHR74814 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 179 Kč
€ 7.30 |
||
| 993 9 WHR74814 |
C00344675
481931039861 |
Accessories not shown | Na dotaz | Zadat poptávku | |
| 999 WHR74814 |
C00699224 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
