| Komerční kód: | 40070171 |
| Kód 12NC: | 852390784010 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

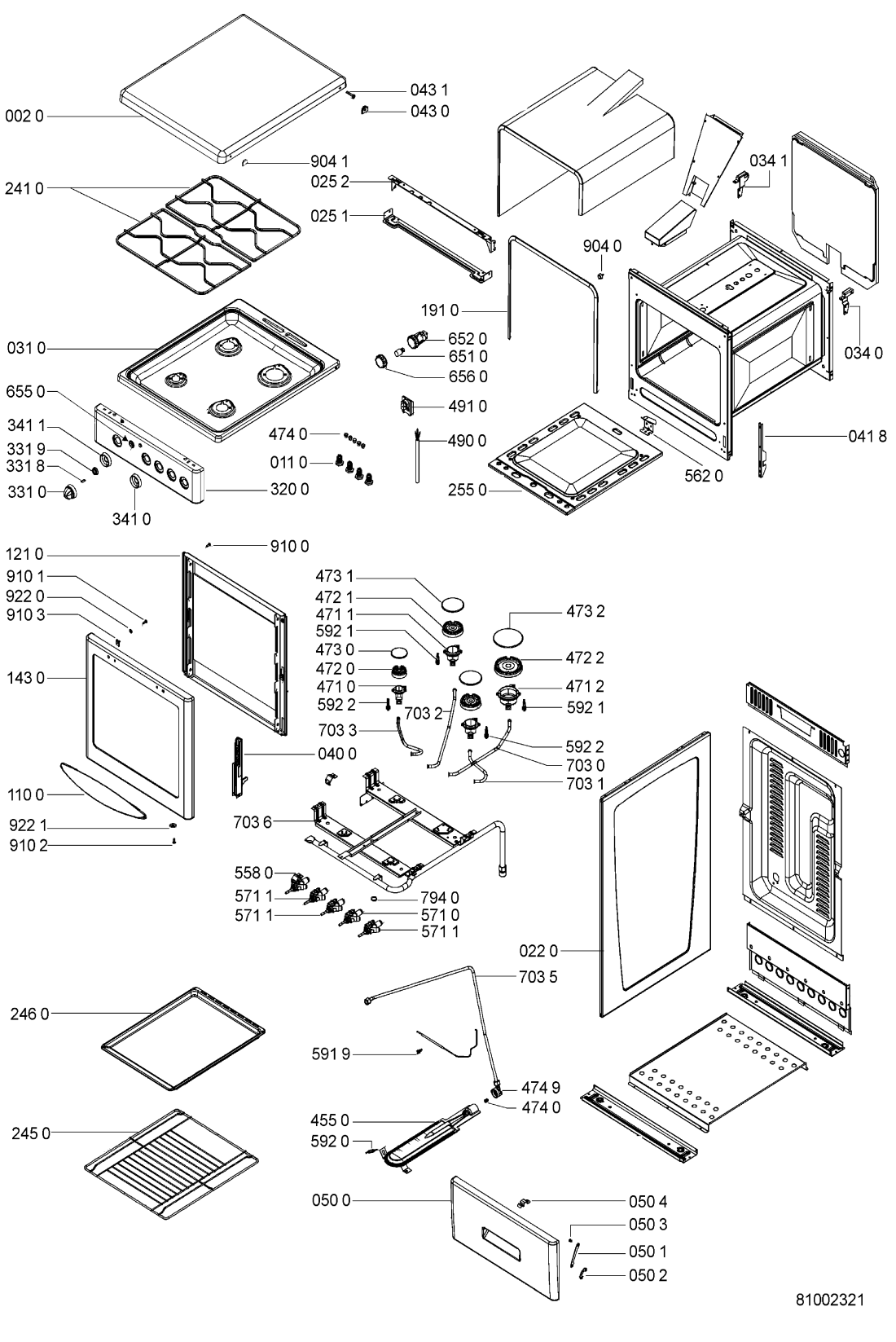

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR62926 |
C00485122
481244058293 |
Lid | Na dotaz | Zadat poptávku | |
| 011 0 WHR62926 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 022 0 WHR62926 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
| 025 1 WHR62926 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR62926 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
| 031 0 WHR62926 |
C00582098
481225998445 |
Hotplate. | Na dotaz | Zadat poptávku | |
| 034 0 WHR62926 |
C00553503
481241719157 |
Hinge | Na dotaz | Zadat poptávku | |
| 034 1 WHR62926 |
C00553504
481241719158 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 0 WHR62926 |
C00582243
481253548018 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
| 041 8 WHR62926 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
| 043 0 WHR62926 |
C00493530
481241719159 |
Washer lid | Na dotaz | Zadat poptávku | |
| 043 1 WHR62926 |
C00492111
481253268123 |
Pivot lid | Na dotaz | Zadat poptávku | |
| 050 0 WHR62926 |
C00489337
481244269316 |
Plinth | Na dotaz | Zadat poptávku | |
| 050 1 WHR62926 |
C00493561
481244269303 |
Rod drawer upper | Na dotaz | Zadat poptávku | |
| 050 2 WHR62926 |
C00493562
481244269304 |
Rod drawer lower | Na dotaz | Zadat poptávku | |
| 050 3 WHR62926 |
C00489336
481244269305 |
Bush drawer | Na dotaz | Zadat poptávku | |
| 050 4 WHR62926 |
C00621424
481244269419 |
Spring drawer | Na dotaz | Zadat poptávku | |
| 110 0 WHR62926 |
C00377807
481246268871 |
Handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR62926 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 143 0 WHR62926 |
C00582202
481245058869 |
Door upper sheet. | Na dotaz | Zadat poptávku | |
| 191 0 WHR62926 |
C00377819
481246668715 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 241 0 WHR62926 |
C00487667
481245858243 |
Grid hob | Na dotaz | Zadat poptávku | |
| 245 0 WHR62926 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR62926 |
C00582320
481941838362 |
Baking tray. | Na dotaz | Zadat poptávku | |
| 255 0 WHR62926 |
C00492371
481944059561 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 320 0 WHR62926 |
C00582212
481245359864 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR62926 |
C00488742
481241128904 |
Knob | Na dotaz | Zadat poptávku | |
| 331 8 WHR62926 |
C00582225
481249268192 |
Spring knob. | Na dotaz | Zadat poptávku | |
| 331 9 WHR62926 |
C00377834
481249268169 |
Spring | Na dotaz | Zadat poptávku | |
| 341 0 WHR62926 |
C00582157
481241378625 |
Indication disc hob burner. | Na dotaz | Zadat poptávku | |
| 341 1 WHR62926 |
C00488850
481241378626 |
Indication disc thermostat | Na dotaz | Zadat poptávku | |
| 455 0 WHR62926 |
C00582130
481236068561 |
Burner oven. | Na dotaz | Zadat poptávku | |
| 471 0 WHR62926 |
C00582127
481236068556 |
Burner cup AUX. | Na dotaz | Zadat poptávku | |
| 471 1 WHR62926 |
C00582128
481236068557 |
Burner cup SR. | Na dotaz | Zadat poptávku | |
| 471 2 WHR62926 |
C00582129
481236068558 |
Burner cup R. | Na dotaz | Zadat poptávku | |
| 472 0 WHR62926 |
C00493253
481236068401 |
Distributor AUX | Na dotaz | Zadat poptávku | |
| 472 1 WHR62926 |
C00493254
481236068404 |
Distributor SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR62926 |
C00377582
481236068407 |
Distributor R | Na dotaz | Zadat poptávku | |
| 473 0 WHR62926 |
C00482802
481236078109 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 473 1 WHR62926 |
C00482804
481236078112 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR62926 |
C00482805
481236078114 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 474 0 WHR62926 |
C00582108
481231038736 |
Nozzle D 1,45. | Na dotaz | Zadat poptávku | |
| 474 0 WHR62926 |
C00582109
481231038789 |
Nozzle kit butane. | Na dotaz | Zadat poptávku | |
| 474 9 WHR62926 |
C00482777
481236068621 |
Nozzle housing | Na dotaz | Zadat poptávku | |
| 490 0 WHR62926 |
C00582112
481232118199 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 491 0 WHR62926 |
C00582140
481240118572 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 558 0 WHR62926 |
C00327230
481227128492 |
SPINAC AKM370 | 2 455 Kč
€ 107.90 |
||
| 562 0 WHR62926 |
C00486882
481953041097 |
Fuse | Na dotaz | Zadat poptávku | |
| 571 0 WHR62926 |
C00377576
481236058384 |
Gas tap 0,37 NG | Na dotaz | Zadat poptávku | |
| 571 1 WHR62926 |
C00582115
481236058383 |
Gas tap 0,30 NG. | Na dotaz | Zadat poptávku | |
| 591 9 WHR62926 |
C00491993
481249248158 |
Spring | Na dotaz | Zadat poptávku | |
| 592 0 WHR62926 |
C00481058
481236068398 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 592 1 WHR62926 |
C00582136
481236068623 |
Thermo couple 500mm | Na dotaz | Zadat poptávku | |
| 592 2 WHR62926 |
C00582135
481236068622 |
Thermo couple 260mm | Na dotaz | Zadat poptávku | |
| 651 0 WHR62926 |
C00582091
481225518245 |
Lamp. | Na dotaz | Zadat poptávku | |
| 652 0 WHR62926 |
C00377486
481225518257 |
Lamp 15W 240V AC | Na dotaz | Zadat poptávku | |
| 655 0 WHR62926 |
C00377509
481227328213 |
Switch | Na dotaz | Zadat poptávku | |
| 656 0 WHR62926 |
C00487005
481213428072 |
Glass cover | Na dotaz | Zadat poptávku | |
| 703 0 WHR62926 |
C00582134
481236068566 |
Pipe right back. | Na dotaz | Zadat poptávku | |
| 703 1 WHR62926 |
C00582133
481236068565 |
Pipe right front. | Na dotaz | Zadat poptávku | |
| 703 2 WHR62926 |
C00582132
481236068564 |
Pipe left back. | Na dotaz | Zadat poptávku | |
| 703 3 WHR62926 |
C00582131
481236068563 |
Pipe left front. | Na dotaz | Zadat poptávku | |
| 703 5 WHR62926 |
C00493768
481253048392 |
Pipe oven feeder | Na dotaz | Zadat poptávku | |
| 703 6 WHR62926 |
C00582239
481253048684 |
Gas connection. | Na dotaz | Zadat poptávku | |
| 794 0 WHR62926 |
C00486890
481953268755 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR62926 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
| 904 1 WHR62926 |
C00491966
481246698998 |
Spacer | Na dotaz | Zadat poptávku | |
| 910 0 WHR62926 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku | |
| 910 1 WHR62926 |
C00621472
481250218636 |
Screw | Na dotaz | Zadat poptávku | |
| 910 2 WHR62926 |
C00582229
481250218637 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 3 WHR62926 |
C00582230
481250218638 |
Nut. | Na dotaz | Zadat poptávku | |
| 922 0 WHR62926 |
C00582219
481246248422 |
Washer. | Na dotaz | Zadat poptávku | |
| 922 1 WHR62926 |
C00582755
481246248423 |
Washer. | Na dotaz | Zadat poptávku | |
