| Komerční kód: | COO719W COO 719 W 400 380 20 |
| Kód 12NC: | 852390784000 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

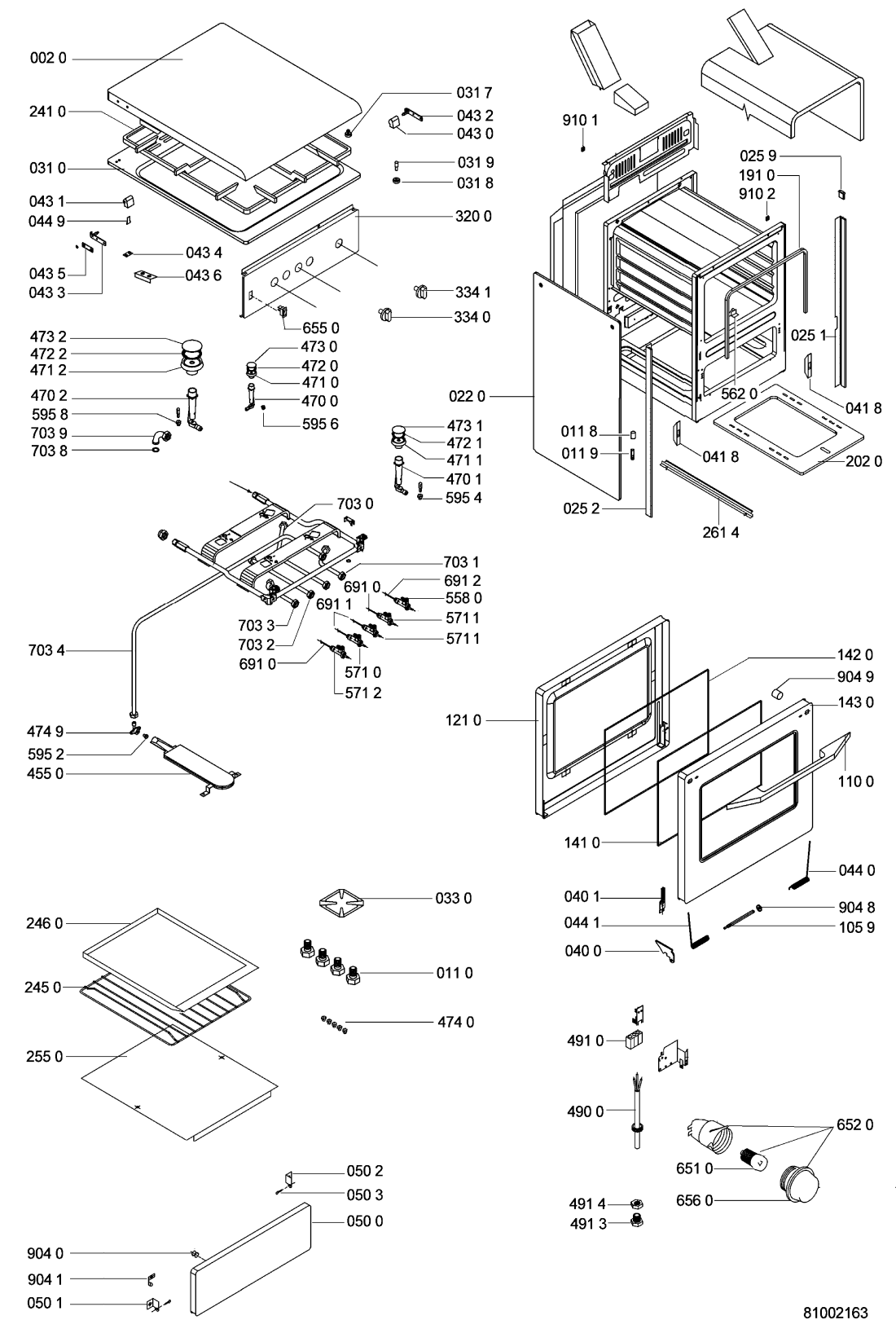

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR94756 |
C00485120
481244058171 |
Cover | Na dotaz | Zadat poptávku | |
| 011 0 WHR94756 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 011 8 WHR94756 |
C00582426
481953268684 |
Bushing. | Na dotaz | Zadat poptávku | |
| 011 9 WHR94756 |
C00582403
481950218419 |
Screw. | Na dotaz | Zadat poptávku | |
| 022 0 WHR94756 |
C00582335
481944059562 |
Side panel. | Na dotaz | Zadat poptávku | |
| 025 1 WHR94756 |
C00582374
481946078105 |
Trim side right. | Na dotaz | Zadat poptávku | |
| 025 2 WHR94756 |
C00582373
481946078104 |
Trim side left. | Na dotaz | Zadat poptávku | |
| 025 9 WHR94756 |
C00582390
481946698774 |
Cap. | Na dotaz | Zadat poptávku | |
| 031 0 WHR94756 |
C00745187
481244229142 |
Hob cooktop | Na dotaz | Zadat poptávku | |
| 031 7 WHR94756 |
C00582241
481253228917 |
Buffer. | Na dotaz | Zadat poptávku | |
| 031 8 WHR94756 |
C00494774
481953258284 |
Washer | Na dotaz | Zadat poptávku | |
| 031 9 WHR94756 |
C00492572
481950218373 |
Screw | Na dotaz | Zadat poptávku | |
| 033 0 WHR94756 |
C00747182
481945838037 |
Small pan supp. | Na dotaz | Zadat poptávku | |
| 040 0 WHR94756 |
C00745113
481253548012 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 1 WHR94756 |
C00486736
481946258134 |
Cover plate oven hinge | Na dotaz | Zadat poptávku | |
| 041 8 WHR94756 |
C00582314
481941719295 |
Hinge bearing. | Na dotaz | Zadat poptávku | |
| 043 0 WHR94756 |
C00582316
481941719297 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 043 1 WHR94756 |
C00582315
481941719296 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 043 2 WHR94756 |
C00582379
481946258133 |
Cover hinge right. | Na dotaz | Zadat poptávku | |
| 043 3 WHR94756 |
C00582378
481946258132 |
Cover hinge left. | Na dotaz | Zadat poptávku | |
| 043 4 WHR94756 |
C00582422
481953228252 |
Washer. | Na dotaz | Zadat poptávku | |
| 043 5 WHR94756 |
C00582423
481953228253 |
Washer. | Na dotaz | Zadat poptávku | |
| 043 6 WHR94756 |
C00484379
481940479051 |
Bracket | Na dotaz | Zadat poptávku | |
| 044 0 WHR94756 |
C00492530
481949248158 |
spring oven door right | Na dotaz | Zadat poptávku | |
| 044 1 WHR94756 |
C00492529
481949248157 |
Spring oven door left | Na dotaz | Zadat poptávku | |
| 044 9 WHR94756 |
C00582398
481949268667 |
Spring hinge lid. | Na dotaz | Zadat poptávku | |
| 050 0 WHR94756 |
C00582341
481944059937 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 050 1 WHR94756 |
C00490574
481941719298 |
Hook left | Na dotaz | Zadat poptávku | |
| 050 2 WHR94756 |
C00582317
481941719299 |
Hook right. | Na dotaz | Zadat poptávku | |
| 050 3 WHR94756 |
C00745188
481253598096 |
Pin split elestic | Na dotaz | Zadat poptávku | |
| 105 9 WHR94756 |
C00492713
481953598471 |
Pin | Na dotaz | Zadat poptávku | |
| 110 0 WHR94756 |
C00373652
481231068002 |
Grip set | Na dotaz | Zadat poptávku | |
| 121 0 WHR94756 |
C00582351
481944239435 |
Door frame inner. | Na dotaz | Zadat poptávku | |
| 141 0 WHR94756 |
C00747133
481945058435 |
Door glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR94756 |
C00582352
481945058434 |
Glass inner. | Na dotaz | Zadat poptávku | |
| 143 0 WHR94756 |
C00745189
481245058623 |
Door upper sheet | Na dotaz | Zadat poptávku | |
| 191 0 WHR94756 |
C00621586
481946669942 |
Gasket oven. | Na dotaz | Zadat poptávku | |
| 202 0 WHR94756 |
C00582349
481944238601 |
Bottom. | Na dotaz | Zadat poptávku | |
| 241 0 WHR94756 |
C00598891
481945858425 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR94756 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR94756 |
C00582320
481941838362 |
Baking tray. | Na dotaz | Zadat poptávku | |
| 255 0 WHR94756 |
C00492371
481944059561 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 261 4 WHR94756 |
C00532013
481946238745 |
Rail drawer drawer | Na dotaz | Zadat poptávku | |
| 320 0 WHR94756 |
C00745190
481245359527 |
Control panel | Na dotaz | Zadat poptávku | |
| 334 0 WHR94756 |
C00745191
481941129812 |
Knob | Na dotaz | Zadat poptávku | |
| 334 1 WHR94756 |
C00745192
481941129813 |
Knob | Na dotaz | Zadat poptávku | |
| 455 0 WHR94756 |
C00621560
481936069471 |
Burner oven | Na dotaz | Zadat poptávku | |
| 470 0 WHR94756 |
C00598860
481936078332 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 470 1 WHR94756 |
C00492271
481936078333 |
INJECTOR HOLDER | Na dotaz | Zadat poptávku | |
| 470 2 WHR94756 |
C00598861
481936078334 |
INJECTOR HOLDER. | Na dotaz | Zadat poptávku | |
| 471 0 WHR94756 |
C00484318
481936069465 |
Burner body | Na dotaz | Zadat poptávku | |
| 471 1 WHR94756 |
C00747186
481936069466 |
Burner body | Na dotaz | Zadat poptávku | |
| 471 2 WHR94756 |
C00747187
481936069467 |
Burner body | Na dotaz | Zadat poptávku | |
| 472 0 WHR94756 |
C00378057
481936069468 |
Spreader,burner small | Na dotaz | Zadat poptávku | |
| 472 1 WHR94756 |
C00598855
481936069389 |
Spreader,burner medium. | Na dotaz | Zadat poptávku | |
| 472 2 WHR94756 |
C00598856
481936069391 |
Spreader,burner large | Na dotaz | Zadat poptávku | |
| 473 0 WHR94756 |
C00373392
481936069392 |
Burner cap small | Na dotaz | Zadat poptávku | |
| 473 1 WHR94756 |
C00610513
481936069393 |
Burner cap medium. | Na dotaz | Zadat poptávku | |
| 473 2 WHR94756 |
C00622678
481936069394 |
Burner cap large | Na dotaz | Zadat poptávku | |
| 474 0 WHR94756 |
C00745193
481231038589 |
Nozzle set - ZP G20 | Na dotaz | Zadat poptávku | |
| 474 0 WHR94756 |
C00745194
481231038642 |
Nozzle set - PB | Na dotaz | Zadat poptávku | |
| 474 9 WHR94756 |
C00582273
481936061377 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 490 0 WHR94756 |
C00745195
481932118339 |
Cable mains | Na dotaz | Zadat poptávku | |
| 491 0 WHR94756 |
C00745196
481229068256 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 491 3 WHR94756 |
C00582226
481250218434 |
Screw paddingP16. | Na dotaz | Zadat poptávku | |
| 491 4 WHR94756 |
C00529842
481250218435 |
Nut padding P16 padding P16 | Na dotaz | Zadat poptávku | |
| 558 0 WHR94756 |
C00745197
481227128501 |
Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR94756 |
C00486882
481953041097 |
Fuse | Na dotaz | Zadat poptávku | |
| 571 0 WHR94756 |
C00527387
481236058297 |
Tap gas large | Na dotaz | Zadat poptávku | |
| 571 1 WHR94756 |
C00527388
481236058298 |
Tap gas medium | Na dotaz | Zadat poptávku | |
| 571 2 WHR94756 |
C00484728
481236058296 |
Tap gas small | Na dotaz | Zadat poptávku | |
| 595 2 WHR94756 |
C00745198
481236068206 |
Nozzle Oven | Na dotaz | Zadat poptávku | |
| 595 4 WHR94756 |
C00745199
481236068204 |
Nozzle middle | Na dotaz | Zadat poptávku | |
| 595 6 WHR94756 |
C00745200
481236068203 |
Nozzle small | Na dotaz | Zadat poptávku | |
| 595 8 WHR94756 |
C00599104
481236068205 |
Nozzle D 1,40. | Na dotaz | Zadat poptávku | |
| 651 0 WHR94756 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR94756 |
C00492213
481925518245 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 655 0 WHR94756 |
C00745201
481227328216 |
Switch | Na dotaz | Zadat poptávku | |
| 656 0 WHR94756 |
C00582250
481913488171 |
KRYTKA YIAROVKY AKP706 *** N | Na dotaz | Zadat poptávku | |
| 691 0 WHR94756 |
C00747193
481913838092 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 691 1 WHR94756 |
C00747194
481913038093 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 691 2 WHR94756 |
C00379121
481913838094 |
Thermo couple oven | Na dotaz | Zadat poptávku | |
| 703 0 WHR94756 |
C00747212
481953048871 |
Pipe rear right | Na dotaz | Zadat poptávku | |
| 703 1 WHR94756 |
C00747213
481953048869 |
Pipe front right | Na dotaz | Zadat poptávku | |
| 703 2 WHR94756 |
C00747214
481953048872 |
Pipe rear left | Na dotaz | Zadat poptávku | |
| 703 3 WHR94756 |
C00747215
481953048873 |
Pipe front left | Na dotaz | Zadat poptávku | |
| 703 4 WHR94756 |
C00598922
481953048554 |
Gas pipe burner oven. | Na dotaz | Zadat poptávku | |
| 703 8 WHR94756 |
C00745202
481253068023 |
Seal | Na dotaz | Zadat poptávku | |
| 703 9 WHR94756 |
C00745203
481253048241 |
Gas pipe knee | Na dotaz | Zadat poptávku | |
| 904 0 WHR94756 |
C00745204
481246248396 |
Stopper | Na dotaz | Zadat poptávku | |
| 904 1 WHR94756 |
C00745205
481246248397 |
Stopper | Na dotaz | Zadat poptávku | |
| 904 8 WHR94756 |
C00494768
481953228242 |
Washer spring | Na dotaz | Zadat poptávku | |
| 904 9 WHR94756 |
C00582430
481953268893 |
Spacer. | Na dotaz | Zadat poptávku | |
| 910 1 WHR94756 |
C00598910
481950518381 |
Nut. | Na dotaz | Zadat poptávku | |
| 910 2 WHR94756 |
C00598909
481950518379 |
Nut. | Na dotaz | Zadat poptávku | |
