ARISTON CP 057 GT(X) EX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CP 057 GT(X) EX |
| Kód 12NC: | 869990254350 |
| I.C. kód: | 79254350000 |
| Značka: | ARISTON |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

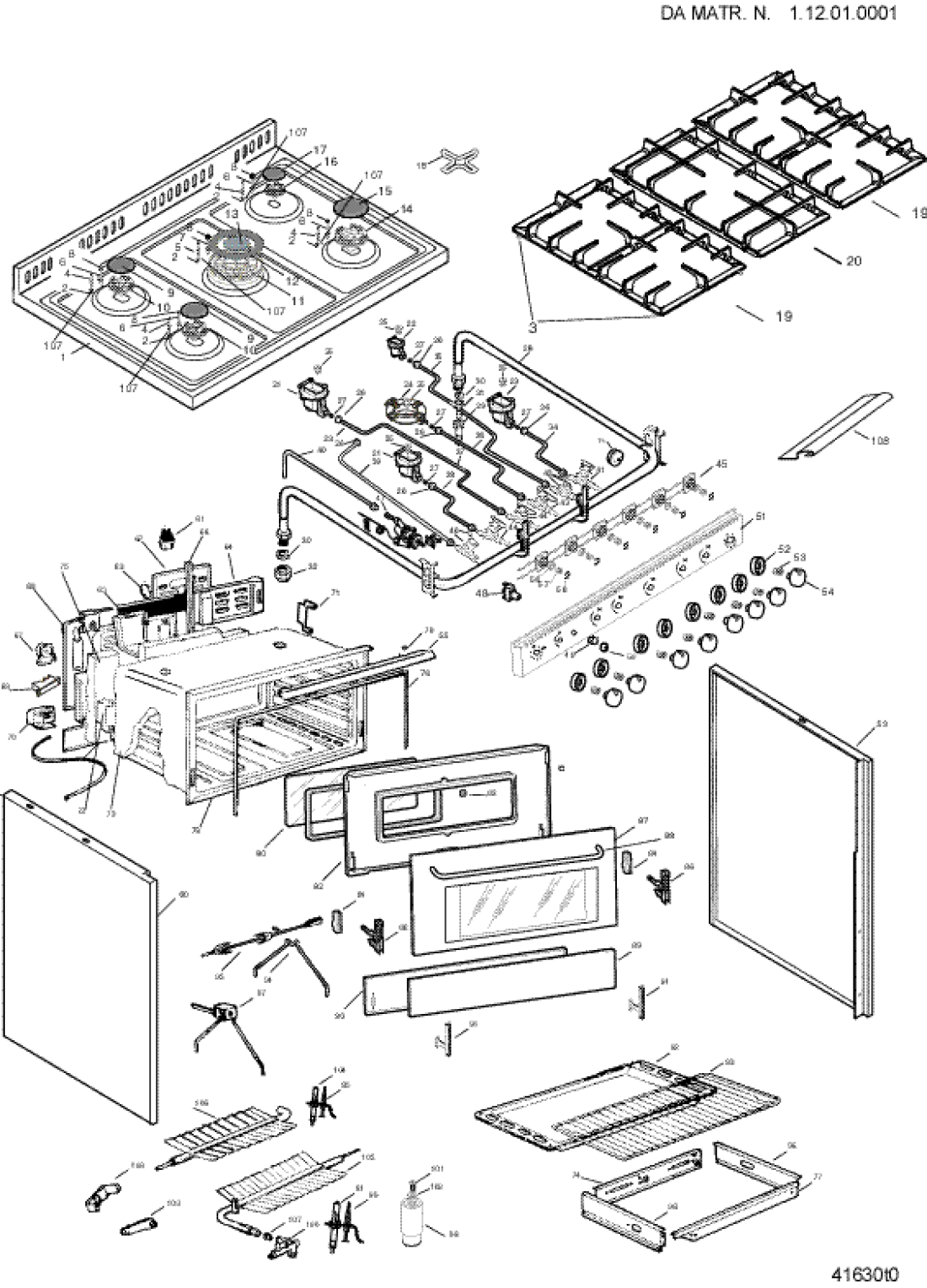

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 41630t0 |
C00086825 | WORKING TABLE | Na dotaz | Zadat poptávku | |
| 002 41630t0 |
C00052934
482000026827 |
PRUŽINA ZAPAL.SVÍČKY HOŘÁKU 'SABAF' | Na dotaz | Zadat poptávku | |
| 003 41630t0 |
C00058858
482000027057 |
RUBBER BUFFER - PAN GRID | Na dotaz | Zadat poptávku | |
| 004 41630t0 |
C00059237
482000072408 |
SPARK PLUGS 900MM 'STAR' | Na dotaz | Zadat poptávku | |
| 005 41630t0 |
C00053244
482000026855 |
ZAPALOVACÍ SVÍČKA TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 006 41630t0 |
C00052986
482000026835 |
Termočlánek | 419 Kč
€ 17.20 |
||
| 007 41630t0 |
C00074280
482000027292 |
THERMOCOUPLE - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 008 41630t0 |
C00063693
482000058036 |
IMPELLOR THERMOCOUPLE | Na dotaz | Zadat poptávku | |
| 009 41630t0 |
C00059422
482000054859 |
SEMI-FAST BURNER CAP | Na dotaz | Zadat poptávku | |
| 010 41630t0 |
C00052929
482000026822 |
Těleso hořáku polorychlé plynové varné desky Whirlpool | 506 Kč
€ 20.80 |
||
| 011 41630t0 |
C00053173
482000026841 |
HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 012 41630t0 |
C00059423
482000054863 |
BURNER CAP (OUTER RING) - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 013 41630t0 |
C00059424
482000054865 |
BURNER CAP (CENTRE DISC) - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 014 41630t0 |
C00052928
482000026821 |
Těleso hořáku velké | Na dotaz | Zadat poptávku | |
| 015 41630t0 |
C00059425
482000054855 |
FAST BURNER CAP | Na dotaz | Zadat poptávku | |
| 016 41630t0 |
C00052930
482000026823 |
BURNER BASE/FLAME SPLITTER - S | Na dotaz | Zadat poptávku | |
| 017 41630t0 |
C00059426
482000054861 |
BURNER CAP - AUSILIARIO BURNER | Na dotaz | Zadat poptávku | |
| 018 41630t0 |
C00047805
482000026654 |
REDUCING GRID 'STAR' | Na dotaz | Zadat poptávku | |
| 019 41630t0 |
C00085446
482000027673 |
GRID FOR 2 BURNERS 'STAR' | Na dotaz | Zadat poptávku | |
| 020 41630t0 |
C00085447
482000027674 |
1 BURNER GRID STAR | Na dotaz | Zadat poptávku | |
| 021 41630t0 |
C00052926
482000026819 |
BURNER CUP - MEDIUM BURNER | Na dotaz | Zadat poptávku | |
| 022 41630t0 |
C00052927
482000026820 |
KRYT HOŘÁK POMOC. 'SABAF' | Na dotaz | Zadat poptávku | |
| 023 41630t0 |
C00052925
482000026818 |
KRYT HOŘÁK RYCHLÝ 'SABAF' | Na dotaz | Zadat poptávku | |
| 024 41630t0 |
C00053254
482000026856 |
KRYT HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 025 41630t0 |
C00076872
482000055516 |
KIT NOZZLE SET GPB HOBS | Na dotaz | Zadat poptávku | |
| 026 41630t0 |
C00060458
482000075200 |
NUT M1 3X1 | Na dotaz | Zadat poptávku | |
| 027 41630t0 |
C00058506
482000075095 |
CONE ELBOW 'STAR' | Na dotaz | Zadat poptávku | |
| 028 41630t0 |
C00043601 | DISTRIBUTING PIPE U 90X57 5+0 | Na dotaz | Zadat poptávku | |
| 029 41630t0 |
C00056385
482000055049 |
METHANE/TOWN GAS PIPE | Na dotaz | Zadat poptávku | |
| 030 41630t0 |
C00010506
482000025938 |
SEALING WASHER - GAS ELBOW/PIPE | Na dotaz | Zadat poptávku | |
| 031 41630t0 |
C00056384
482000055052 |
LIQUID GAS PIPE | Na dotaz | Zadat poptávku | |
| 032 41630t0 |
C00004682
482000025913 |
ZÁTKA UZAVÍRACÍ 1/2 PLYN VÁLCOVÁ | Na dotaz | Zadat poptávku | |
| 033 41630t0 |
C00052527
482000026798 |
Minutka | 824 Kč
€ 33.90 |
||
| 034 41630t0 |
C00086826 | FRONT LEFT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 035 41630t0 |
C00086827 | FRONT RIGHT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 036 41630t0 |
C00086828
482000053226 |
FRONT RIGHT BURNER SUPPLY PIPE TC | Na dotaz | Zadat poptávku | |
| 037 41630t0 |
C00086829 | PIPE - TAP | Na dotaz | Zadat poptávku | |
| 038 41630t0 |
C00086830 | PIPE - TAP | Na dotaz | Zadat poptávku | |
| 039 41630t0 |
C00086831 | GRILL SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 040 41630t0 |
C00086832 | OVEN BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 041 41630t0 |
C00059240
482000027072 |
GAS TAP WITH FAST VALVE STAR | Na dotaz | Zadat poptávku | |
| 042 41630t0 |
C00059239
482000027071 |
GAS TAP WITH VALVE BY-PASS 0,27 | Na dotaz | Zadat poptávku | |
| 043 41630t0 |
C00059242
482000027074 |
THERMOSTAT WITH VALVE TRIPLA CORONA | Na dotaz | Zadat poptávku | |
| 044 41630t0 |
C00059241
482000027073 |
THERMOSTAT WITH VALVE SEMIRAPIDO | Na dotaz | Zadat poptávku | |
| 045 41630t0 |
C00086833 | MICROSWITCH UNIT | Na dotaz | Zadat poptávku | |
| 046 41630t0 |
C00056162 | OVEN THERMOSTAT WITH VALVE DC STAR | Na dotaz | Zadat poptávku | |
| 047 41630t0 |
C00086834 | 1 WAY OVEN THERMOSTAT WITH VALVE | Na dotaz | Zadat poptávku | |
| 048 41630t0 |
C00074265
482000054508 |
LAMP SWITCH | Na dotaz | Zadat poptávku | |
| 049 41630t0 |
C00086835 | SWITCH SUPPORT | Na dotaz | Zadat poptávku | |
| 050 41630t0 |
C00086836
488000086836 |
OVEN LIGHT - TURNSPIT SWITCH | Na dotaz | Zadat poptávku | |
| 051 41630t0 |
C00086837 | DASHBORAD SERIG. | Na dotaz | Zadat poptávku | |
| 052 41630t0 |
C00083722 | KNOB DISC | Na dotaz | Zadat poptávku | |
| 053 41630t0 |
C00064343
482000027153 |
PRUŽINA KOTOUČE OVLADAČE 'STAR' | Na dotaz | Zadat poptávku | |
| 054 41630t0 |
C00086838 | KNOB | Na dotaz | Zadat poptávku | |
| 055 41630t0 |
C00021015
482000064677 |
KNOB DEFLECTOR | Na dotaz | Zadat poptávku | |
| 056 41630t0 |
C00056186
482000054438 |
WASHER | Na dotaz | Zadat poptávku | |
| 057 41630t0 |
C00056188
482000074944 |
SPRING | Na dotaz | Zadat poptávku | |
| 058 41630t0 |
C00056187 | SEALING RING SPIDER | Na dotaz | Zadat poptávku | |
| 059 41630t0 |
C00086839 | SIDE PANEL 54X57 INOX DX | Na dotaz | Zadat poptávku | |
| 060 41630t0 |
C00086840 | SIDE PANEL 54X57 INOX SX | Na dotaz | Zadat poptávku | |
| 061 41630t0 |
C00038035
482000026352 |
Osvětlení trouby komplet | 858 Kč
€ 35.30 |
||
| 062 41630t0 |
C00037381 | BACK PANEL PB MAXI | Na dotaz | Zadat poptávku | |
| 063 41630t0 |
C00034805 | COVER PLATE - FOR REAR COVER | Na dotaz | Zadat poptávku | |
| 064 41630t0 |
C00033360 | UPPER BACK CROSS-PIECE | Na dotaz | Zadat poptávku | |
| 065 41630t0 |
C00033357 | CHIMNEY | Na dotaz | Zadat poptávku | |
| 066 41630t0 |
C00037382 | REAR CENTRE UPRIGHT | Na dotaz | Zadat poptávku | |
| 067 41630t0 |
C00008563
482000062484 |
TURSPIT MOTOR-REDUCER 110/220V | Na dotaz | Zadat poptávku | |
| 068 41630t0 |
C00039462 | BACK PANEL COOKER 54 FASTEX | Na dotaz | Zadat poptávku | |
| 069 41630t0 |
C00031160
482000064056 |
IGNITION TRANSF. DISCHAR. 7P. 220/240V | Na dotaz | Zadat poptávku | |
| 070 41630t0 |
C00039460
482000026383 |
SVORKOVNICE 2 P. FASTEX | Na dotaz | Zadat poptávku | |
| 071 41630t0 |
C00033569 | MOULDING FISSING OVEN EN | Na dotaz | Zadat poptávku | |
| 073 41630t0 |
C00076220 | GAS OVEN INSULATION | Na dotaz | Zadat poptávku | |
| 074 41630t0 |
C00021002 | BACK PANEL | Na dotaz | Zadat poptávku | |
| 075 41630t0 |
C00037393
482000064681 |
BACK INSULATING MATERIAL OVEN MAXI | Na dotaz | Zadat poptávku | |
| 076 41630t0 |
C00037372
482000026336 |
OVEN GASKET MAXI EN 3LATI | Na dotaz | Zadat poptávku | |
| 077 41630t0 |
C00041340 | FRONT TRIM (05/93) | Na dotaz | Zadat poptávku | |
| 078 41630t0 |
C00011093 | DEFLECTOR WASHER | Na dotaz | Zadat poptávku | |
| 079 41630t0 |
C00037394 | BLACK OVEN X MAXI EN | Na dotaz | Zadat poptávku | |
| 080 41630t0 |
C00042685 | INTERNAL GLASS FOR OVEN DOOR THERM+ SERI. | Na dotaz | Zadat poptávku | |
| 081 41630t0 |
C00028642 | SPARK PLUGS GRILL + NUT | Na dotaz | Zadat poptávku | |
| 082 41630t0 |
C00040116 | OVEN INNER DOOR MAXI 2V. BLACK | Na dotaz | Zadat poptávku | |
| 083 41630t0 |
C00002498
482000062610 |
NUT 5MA | Na dotaz | Zadat poptávku | |
| 084 41630t0 |
C00037388
482000073670 |
HINGE SAUPPORTING PIECE MAXI | Na dotaz | Zadat poptávku | |
| 085 41630t0 |
C00076222
482000054937 |
THERMOCOUPLE L=1200 | Na dotaz | Zadat poptávku | |
| 086 41630t0 |
C00037377
482000026337 |
HINGE FOR OVEN DOOR MAXI | Na dotaz | Zadat poptávku | |
| 087 41630t0 |
C00086842 | DOOR+GLASS ASSEMBLY | Na dotaz | Zadat poptávku | |
| 088 41630t0 |
C00064127 | INOX OVEN DOOR HANDLE MM26 BK | Na dotaz | Zadat poptávku | |
| 089 41630t0 |
C00086843 | FRONT DRAWER PANEL | Na dotaz | Zadat poptávku | |
| 090 41630t0 |
C00037369 | BLACK WARMING-DRAWER INNER-DOOR MAXI | Na dotaz | Zadat poptávku | |
| 091 41630t0 |
C00022741
482000062635 |
HINGE DISHWARMER DOOR MAXI | Na dotaz | Zadat poptávku | |
| 092 41630t0 |
C00031854
482000061801 |
DRIP TRAY BLACK MAXI | Na dotaz | Zadat poptávku | |
| 093 41630t0 |
C00021066
482000064679 |
OVEN GRID | Na dotaz | Zadat poptávku | |
| 094 41630t0 |
C00021020
482000062622 |
TURNSPIT SUPPORT | Na dotaz | Zadat poptávku | |
| 095 41630t0 |
C00040117 | SPIT RODMAXI | Na dotaz | Zadat poptávku | |
| 096 41630t0 |
C00021001 | SIDE PANEL | Na dotaz | Zadat poptávku | |
| 097 41630t0 |
C00021021
482000061799 |
TURNSPIT SUPPORT WITH GEAR | Na dotaz | Zadat poptávku | |
| 098 41630t0 |
C00086847 | FOOT | Na dotaz | Zadat poptávku | |
| 099 41630t0 |
C00009304
482000025930 |
TERMOČLÁNEK DLOUHÝ 850MM | Na dotaz | Zadat poptávku | |
| 100 41630t0 |
C00017297 | OVEN INJECTOR BODY FLAT | Na dotaz | Zadat poptávku | |
| 100 41630t0 |
C00021030
482000072858 |
LIQUID GAS NOZZLE OVEN/GRILL BURNER 110 | Na dotaz | Zadat poptávku | |
| 102 41630t0 |
C00037385
482000026340 |
REINFORCEMENT WASHER FOR FOOT ATTACHMENT | Na dotaz | Zadat poptávku | |
| 103 41630t0 |
C00002864
482000072585 |
INJECTOR UNIT NUT | Na dotaz | Zadat poptávku | |
| 103 41630t0 |
C00026277
482000054924 |
GAS INJECTOR BODY | Na dotaz | Zadat poptávku | |
| 103 41630t0 |
C00021927
482000026026 |
GRILL NOZZLE GAS BUTANO (100) | Na dotaz | Zadat poptávku | |
| 103 41630t0 |
C00082150
482000092159 |
SUPPORT FOR GAS INJECTOR BODY | Na dotaz | Zadat poptávku | |
| 104 41630t0 |
C00028641 | SPARK PLUGS OVEN L.=450MM | Na dotaz | Zadat poptávku | |
| 105 41630t0 |
C00037395
482000057471 |
OVEN BURNER MAXI | Na dotaz | Zadat poptávku | |
| 106 41630t0 |
C00033177
482000062661 |
GRILL BURNER | Na dotaz | Zadat poptávku | |
| 108 41630t0 |
C00086848 | OVEN REAR BAFFLE PLATE | Na dotaz | Zadat poptávku | |
| 109 41630t0 |
C00027147
482000062620 |
BRACKET FOR THERMOCOUPLE+IGNITION | Na dotaz | Zadat poptávku | |
