| Komerční kód: | CP 058 GT (X) F (T) |
| Kód 12NC: | 869990288280 |
| I.C. kód: | 79288280000 |
| Značka: | ARISTON |
| Typ produktu: | Volně stojící sporáky a trouby |
| Další podobné modely: | 79288280100 |
Potřebujete servis? Jsme tady pro Vás

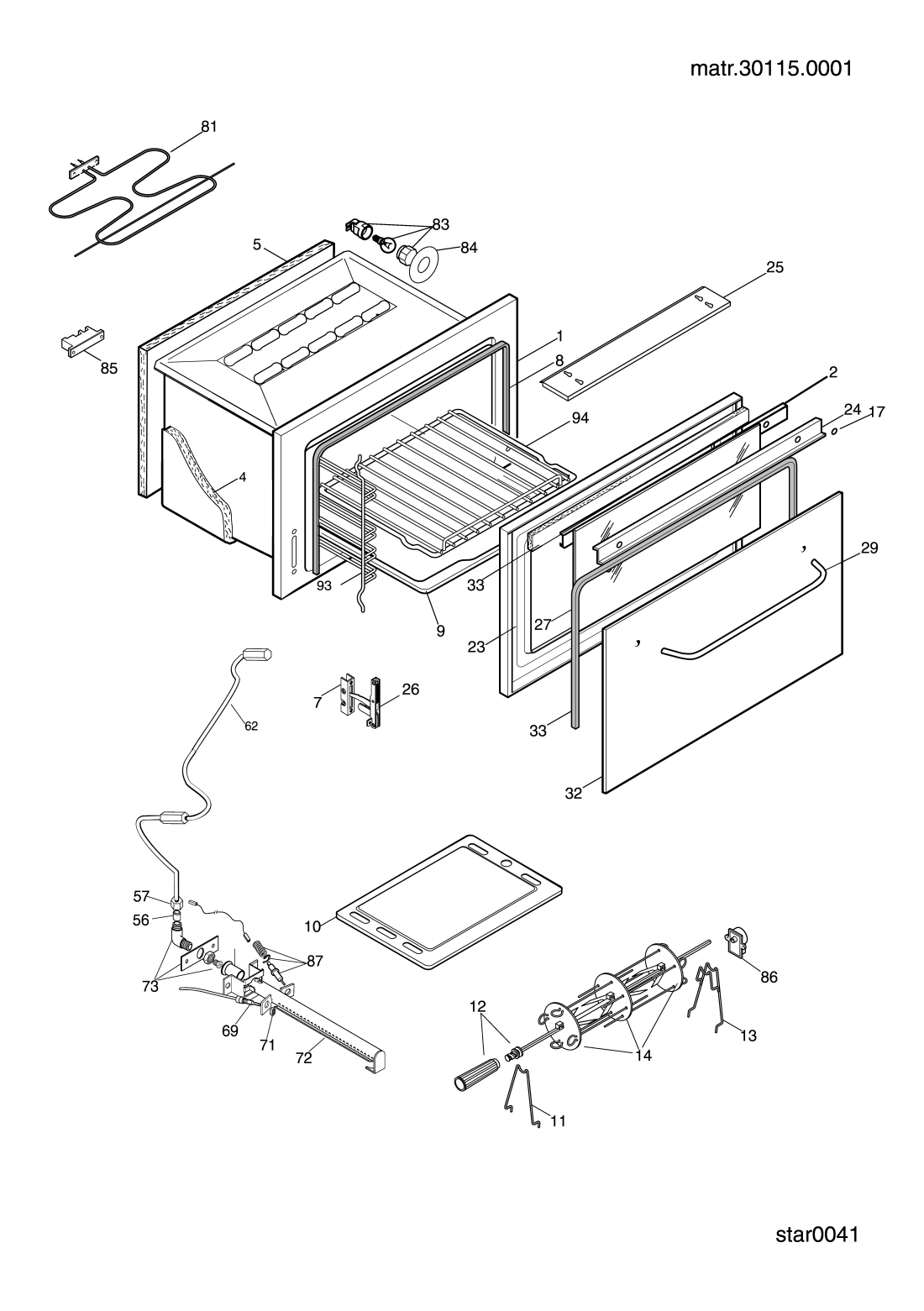

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 star0041 |
C00095028 | BLACK OVEN | Na dotaz | Zadat poptávku | |
| 002 star0041 |
C00091983
482000077703 |
PLATE CLAMP HANDLE | Na dotaz | Zadat poptávku | |
| 004 star0041 |
C00092897
488000092897 |
OVEN INSULATION | Na dotaz | Zadat poptávku | |
| 005 star0041 |
C00056076 | OVEN BACK PANEL INSULATION | Na dotaz | Zadat poptávku | |
| 007 star0041 |
C00075148
482000053760 |
ROLLER SUPPORT M26 | Na dotaz | Zadat poptávku | |
| 008 star0041 |
C00052152
482000026780 |
OVEN DOOR SEAL LARGE OVEN | Na dotaz | Zadat poptávku | |
| 009 star0041 |
C00076073
482000027368 |
ODKAPNÍ MISKA SMALTOVANÝ | Na dotaz | Zadat poptávku | |
| 010 star0041 |
C00094806
482000028044 |
OVEN BOTTOM | Na dotaz | Zadat poptávku | |
| 011 star0041 |
C00049974
482000026716 |
PODPĚRA JEHLA OTOČNÉHO GRILU MM26 'STAR | Na dotaz | Zadat poptávku | |
| 012 star0041 |
C00056079
482000026945 |
JEHLA OTÁČECÍHO GRILU L-537 'STAR' | Na dotaz | Zadat poptávku | |
| 013 star0041 |
C00049973
482000026715 |
PODPĚRA LIŠTY OTOČNÉHO GRILU MM26 'STAR' | Na dotaz | Zadat poptávku | |
| 014 star0041 |
C00089099
482000055202 |
ROTISSERIE COMPLETE | Na dotaz | Zadat poptávku | |
| 017 star0041 |
C00082473
482000022713 |
HANDLE SPACER | Na dotaz | Zadat poptávku | |
| 023 star0041 |
C00089083
482000053657 |
OVEN METAL INNER DOOR | Na dotaz | Zadat poptávku | |
| 024 star0041 |
C00095030 | HANDLE SUPPORT | Na dotaz | Zadat poptávku | |
| 025 star0041 |
C00056377 | KNOB DEFLECTOR | Na dotaz | Zadat poptávku | |
| 026 star0041 |
C00085563
482000027681 |
Pant | 770 Kč
€ 31.70 |
||
| 027 star0041 |
C00049936
482000026710 |
OVEN DOOR GLASS - INNER (564X306X4) | Na dotaz | Zadat poptávku | |
| 029 star0041 |
C00091984
482000061759 |
OVEN DOOR HANDLE IX | Na dotaz | Zadat poptávku | |
| 032 star0041 |
C00094971
482000055300 |
OVEN DOOR GLASS MIRROR | Na dotaz | Zadat poptávku | |
| 056 star0041 |
C00058506
482000075095 |
CONE ELBOW 'STAR' | Na dotaz | Zadat poptávku | |
| 057 star0041 |
C00095032 | NUT 1/4GAS | Na dotaz | Zadat poptávku | |
| 062 star0041 |
C00095034
482000062567 |
OVEN FEEDING PIPE | Na dotaz | Zadat poptávku | |
| 069 star0041 |
C00111932
482000028557 |
THERMOCOUPLE OVEN 1300MM CAST | Na dotaz | Zadat poptávku | |
| 072 star0041 |
C00095037
482000052788 |
OVEN BURNER | Na dotaz | Zadat poptávku | |
| 073 star0041 |
C00095038 | RACCORD PLATE | Na dotaz | Zadat poptávku | |
| 081 star0041 |
C00056108
482000026947 |
GRILL HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 083 star0041 |
C00050003
482000074502 |
LAMP-HOLDER COMPLETE | Na dotaz | Zadat poptávku | |
| 084 star0041 |
C00052172
482000074678 |
OCHRANA OBJÍMKA 'STAR' | Na dotaz | Zadat poptávku | |
| 085 star0041 |
C00031720
482000022593 |
TRANSFORMÁTOR ZAPÁLENÍ 6P+FILTR | Na dotaz | Zadat poptávku | |
| 086 star0041 |
C00089098
482000027775 |
MOTOR ROTISSERIE | Na dotaz | Zadat poptávku | |
| 087 star0041 |
C00114652
482000065116 |
OVEN SPARK PLUGS CAST | Na dotaz | Zadat poptávku | |
| 093 star0041 |
C00066389
482000027231 |
BOČNÍ MŘÍŽKA 'STAR' | Na dotaz | Zadat poptávku | |
| 094 star0041 |
C00049947
482000074499 |
(31387) MŘÍŽKA TROUBA MM26 'STAR' | Na dotaz | Zadat poptávku | |
| 000 star0042 |
C00094219
482000064790 |
INSTRUCTION BOOK IT-GB-FR-ES-PT | Na dotaz | Zadat poptávku | |
| 003 star0042 |
C00091801
482000027881 |
Mikrospínače | 893 Kč
€ 36.80 |
||
| 006 star0042 |
C00010506
482000025938 |
SEALING WASHER - GAS ELBOW/PIPE | Na dotaz | Zadat poptávku | |
| 015 star0042 |
C00057349
482000055071 |
NOT UK- HOSE FERRULE - LPG | Na dotaz | Zadat poptávku | |
| 016 star0042 |
C00056385
482000055049 |
METHANE/TOWN GAS PIPE | Na dotaz | Zadat poptávku | |
| 018 star0042 |
C00095044
482000053490 |
DASHBORAD SERIG. CP058GT(X)F | Na dotaz | Zadat poptávku | |
| 019 star0042 |
C00091766
482000054394 |
KNOB IX | Na dotaz | Zadat poptávku | |
| 019 star0042 |
C00108815
482000054395 |
KNOB CP/EG CHROMATE | Na dotaz | Zadat poptávku | |
| 019 star0042 |
C00111916
482000028556 |
KNOB IX | Na dotaz | Zadat poptávku | |
| 020 star0042 |
C00091974
482000053488 |
PATICE INOX 90CM | Na dotaz | Zadat poptávku | |
| 021 star0042 |
C00091977
482000053497 |
SIDE PANEL LEFT | Na dotaz | Zadat poptávku | |
| 022 star0042 |
C00091978 | SIDE PANEL DX | Na dotaz | Zadat poptávku | |
| 030 star0042 |
C00095045 | WORKING TABLE IX CP058GT(X)F | Na dotaz | Zadat poptávku | |
| 031 star0042 |
C00058858
482000027057 |
RUBBER BUFFER - PAN GRID | Na dotaz | Zadat poptávku | |
| 039 star0042 |
C00085446
482000027673 |
GRID FOR 2 BURNERS 'STAR' | Na dotaz | Zadat poptávku | |
| 040 star0042 |
C00085447
482000027674 |
1 BURNER GRID STAR | Na dotaz | Zadat poptávku | |
| 041 star0042 |
C00047805
482000026654 |
REDUCING GRID 'STAR' | Na dotaz | Zadat poptávku | |
| 042 star0042 |
C00059425
482000054855 |
FAST BURNER CAP | Na dotaz | Zadat poptávku | |
| 043 star0042 |
C00059422
482000054859 |
SEMI-FAST BURNER CAP | Na dotaz | Zadat poptávku | |
| 044 star0042 |
C00059426
482000054861 |
BURNER CAP - AUSILIARIO BURNER | Na dotaz | Zadat poptávku | |
| 045 star0042 |
C00059423
482000054863 |
BURNER CAP (OUTER RING) - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 046 star0042 |
C00059424
482000054865 |
BURNER CAP (CENTRE DISC) - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 047 star0042 |
C00052928
482000026821 |
Těleso hořáku velké | Na dotaz | Zadat poptávku | |
| 048 star0042 |
C00052929
482000026822 |
Těleso hořáku polorychlé plynové varné desky Whirlpool | 506 Kč
€ 20.80 |
||
| 049 star0042 |
C00052930
482000026823 |
BURNER BASE/FLAME SPLITTER - S | Na dotaz | Zadat poptávku | |
| 050 star0042 |
C00053173
482000026841 |
HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 051 star0042 |
C00052925
482000026818 |
KRYT HOŘÁK RYCHLÝ 'SABAF' | Na dotaz | Zadat poptávku | |
| 052 star0042 |
C00052926
482000026819 |
BURNER CUP - MEDIUM BURNER | Na dotaz | Zadat poptávku | |
| 053 star0042 |
C00052927
482000026820 |
KRYT HOŘÁK POMOC. 'SABAF' | Na dotaz | Zadat poptávku | |
| 054 star0042 |
C00053254
482000026856 |
KRYT HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 055 star0042 |
C00060458
482000075200 |
NUT M1 3X1 | Na dotaz | Zadat poptávku | |
| 058 star0042 |
C00091968 | FRONT LEFT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 059 star0042 |
C00091970
488000091970 |
FRONT LEFT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 060 star0042 |
C00091969
482000077702 |
SEMI-RAPID BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 061 star0042 |
C00091971
488000091971 |
FRONT RIGHT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 063 star0042 |
C00091990
482000077705 |
DISTRIBUTING | Na dotaz | Zadat poptávku | |
| 064 star0042 |
C00059240
482000027072 |
GAS TAP WITH FAST VALVE STAR | Na dotaz | Zadat poptávku | |
| 065 star0042 |
C00059241
482000027073 |
THERMOSTAT WITH VALVE SEMIRAPIDO | Na dotaz | Zadat poptávku | |
| 066 star0042 |
C00059239
482000027071 |
GAS TAP WITH VALVE BY-PASS 0,27 | Na dotaz | Zadat poptávku | |
| 067 star0042 |
C00059242
482000027074 |
THERMOSTAT WITH VALVE TRIPLA CORONA | Na dotaz | Zadat poptávku | |
| 067 star0042 |
C00097822 | THERMOSTAT WITH VALVE TC | Na dotaz | Zadat poptávku | |
| 068 star0042 |
C00091830
482000027883 |
1 WAY THERMOSTAT NAT GAS | Na dotaz | Zadat poptávku | |
| 069 star0042 |
C00052986
482000026835 |
Termočlánek | 419 Kč
€ 17.30 |
||
| 070 star0042 |
C00074280
482000027292 |
THERMOCOUPLE - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 071 star0042 |
C00093834
482000027985 |
SCREW NUT M6 | Na dotaz | Zadat poptávku | |
| 074 star0042 |
C00056382
482000026959 |
SVORKOVNICE 'STAR' | Na dotaz | Zadat poptávku | |
| 075 star0042 |
C00056381 | SUPPLY CABLE 10A | Na dotaz | Zadat poptávku | |
| 077 star0042 |
C00033335
482000073455 |
VYPÍNAČ (SPÍNACÍ)'SVĚTLO TROUBY GRILU A | Na dotaz | Zadat poptávku | |
| 078 star0042 |
C00086835 | SWITCH SUPPORT | Na dotaz | Zadat poptávku | |
| 080 star0042 |
C00086836
488000086836 |
OVEN LIGHT - TURNSPIT SWITCH | Na dotaz | Zadat poptávku | |
| 082 star0042 |
C00052527
482000026798 |
Minutka | 824 Kč
€ 34.00 |
||
| 088 star0042 |
C00075911
482000027365 |
ELECTRODE -TRIPLE BURNER L=500 | Na dotaz | Zadat poptávku | |
| 089 star0042 |
C00083140
482000076885 |
SPARK PLUGS+ CABLE L=200 | Na dotaz | Zadat poptávku | |
| 090 star0042 |
C00052934
482000026827 |
PRUŽINA ZAPAL.SVÍČKY HOŘÁKU 'SABAF' | Na dotaz | Zadat poptávku | |
| 091 star0042 |
C00049971
482000074501 |
FLAT SPRING RETAINER-THERMOS.CAPIL. MM26 | Na dotaz | Zadat poptávku | |
| 092 star0042 |
C00074052
482000027272 |
FOOT INOX | Na dotaz | Zadat poptávku | |
| 095 star0042 |
C00086437
482000077132 |
OUTER BACK OVEN COVER | Na dotaz | Zadat poptávku | |
| 096 star0042 |
C00074269
482000027289 |
KIT INJECTOR GAS METANO G20 | Na dotaz | Zadat poptávku | |
| 096 star0042 |
C00095039
482000028065 |
KIT INJECTOR GAS LIQUID | Na dotaz | Zadat poptávku | |
| 097 star0042 |
C00091967
482000027892 |
FRONT RIGHT BURNER SUPPLY PIPE TC | Na dotaz | Zadat poptávku | |
| 098 star0042 |
C00095040 | CONNECTION DISTRIBUTING OVEN PIPE | Na dotaz | Zadat poptávku | |
| 099 star0042 |
C00115701
482000054572 |
PILOT LIGHT RED | Na dotaz | Zadat poptávku | |
| 099 star0042 |
C00095041 | BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
