BAUKNECHT DCCB 5269 IN COOKING CENTRE BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | DCCB 5269 IN COOKING CENTRE BK |
| Kód 12NC: | 857457815000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

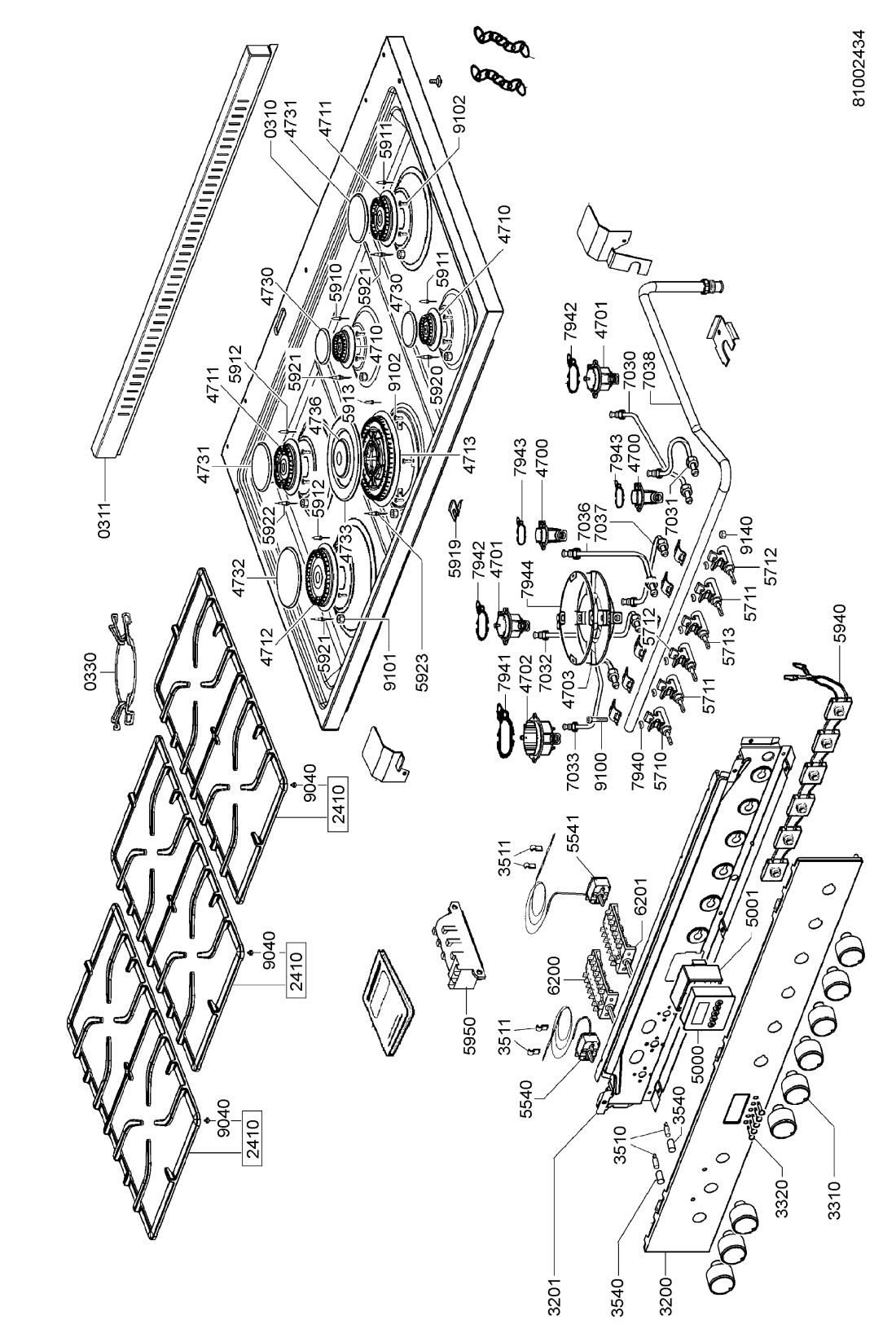

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR70128 |
C00596890
481240478709 |
Foot assembly. | Na dotaz | Zadat poptávku | |
| 022 0 WHR70128 |
C00597024
481246049591 |
Oven side panel right. | Na dotaz | Zadat poptávku | |
| 022 1 WHR70128 |
C00597023
481246049589 |
Oven side panel left. | Na dotaz | Zadat poptávku | |
| 025 0 WHR70128 |
C00597025
481246049592 |
Oven front frame. | Na dotaz | Zadat poptávku | |
| 025 1 WHR70128 |
C00596891
481240478711 |
Panel fixed door. | Na dotaz | Zadat poptávku | |
| 031 0 WHR70128 |
C00596951
481244039521 |
Hob top. | Na dotaz | Zadat poptávku | |
| 031 1 WHR70128 |
C00596952
481244039522 |
Hob rear skirtboard. | Na dotaz | Zadat poptávku | |
| 033 0 WHR70128 |
C00597016
481245858412 |
Grid pot stand. | Na dotaz | Zadat poptávku | |
| 040 0 WHR70128 |
C00596932
481241719319 |
Hinge roller assembly. | Na dotaz | Zadat poptávku | |
| 041 8 WHR70128 |
C00636176
481941758131 |
Hinge. | Na dotaz | Zadat poptávku | |
| 047 0 WHR70128 |
C00596931
481241719318 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
| 047 1 WHR70128 |
C00488986
481241719321 |
Hinge oven door (small) | Na dotaz | Zadat poptávku | |
| 110 0 WHR70128 |
C00597049
481249858212 |
Handle oven door (large). | Na dotaz | Zadat poptávku | |
| 110 1 WHR70128 |
C00597051
481249858214 |
Handle oven door (small). | Na dotaz | Zadat poptávku | |
| 110 2 WHR70128 |
C00597050
481249858213 |
Spacer oven door handle. | Na dotaz | Zadat poptávku | |
| 117 0 WHR70128 |
C00597048
481249858211 |
Handle oven grid. | Na dotaz | Zadat poptávku | |
| 141 0 WHR70128 |
C00596973
481245059409 |
Oven door + glass (large). | Na dotaz | Zadat poptávku | |
| 141 1 WHR70128 |
C00596975
481245059412 |
Oven door + glass (small). | Na dotaz | Zadat poptávku | |
| 142 0 WHR70128 |
C00596972
481245059408 |
Oven inner door (large). | Na dotaz | Zadat poptávku | |
| 142 1 WHR70128 |
C00596974
481245059411 |
Oven inner door (small). | Na dotaz | Zadat poptávku | |
| 191 0 WHR70128 |
C00597040
481246688811 |
Oven gasket (large). | Na dotaz | Zadat poptávku | |
| 191 1 WHR70128 |
C00597039
481246688809 |
Oven gasket (small). | Na dotaz | Zadat poptávku | |
| 201 0 WHR70128 |
C00596959
481244528038 |
Oven air deflector. | Na dotaz | Zadat poptávku | |
| 201 1 WHR70128 |
C00596960
481244528039 |
Spacer air deflector. | Na dotaz | Zadat poptávku | |
| 241 0 WHR70128 |
C00597019
481245858415 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR70128 |
C00597007
481245819286 |
Oven grid. | Na dotaz | Zadat poptávku | |
| 245 1 WHR70128 |
C00597006
481245819285 |
Oven grid. | Na dotaz | Zadat poptávku | |
| 245 2 WHR70128 |
C00596936
481241838134 |
Oven tray support grid. | Na dotaz | Zadat poptávku | |
| 245 3 WHR70128 |
C00484983
481241838132 |
Oven grid | Na dotaz | Zadat poptávku | |
| 245 4 WHR70128 |
C00596934
481241838131 |
Oven grid. | Na dotaz | Zadat poptávku | |
| 246 0 WHR70128 |
C00596937
481241838135 |
Oven tray teflon. | Na dotaz | Zadat poptávku | |
| 246 1 WHR70128 |
C00596933
481241838129 |
Oven plate. | Na dotaz | Zadat poptávku | |
| 246 2 WHR70128 |
C00596935
481241838133 |
Oven tray. | Na dotaz | Zadat poptávku | |
| 261 0 WHR70128 |
C00597018
481245858414 |
Oven guide right frame. | Na dotaz | Zadat poptávku | |
| 261 1 WHR70128 |
C00597017
481245858413 |
Oven guide left frame. | Na dotaz | Zadat poptávku | |
| 320 0 WHR70128 |
C00596997
481245350089 |
Control panel. | Na dotaz | Zadat poptávku | |
| 320 1 WHR70128 |
C00596996
481245350088 |
Control panel support. | Na dotaz | Zadat poptávku | |
| 331 0 WHR70128 |
C00487203
481241259112 |
Knob assembly | Na dotaz | Zadat poptávku | |
| 332 0 WHR70128 |
C00596920
481241259111 |
Knob push-button. | Na dotaz | Zadat poptávku | |
| 351 0 WHR70128 |
C00302389
481213038751 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 351 1 WHR70128 |
C00651196
481213038749 |
RETAINING CLIP | Na dotaz | Zadat poptávku | |
| 354 0 WHR70128 |
C00302391
481213038752 |
LED ORANGE | Na dotaz | Zadat poptávku | |
| 440 0 WHR70128 |
C00596883
481236118468 |
Motor assembly. | Na dotaz | Zadat poptávku | |
| 443 0 WHR70128 |
C00484751
481236118471 |
Fan motor assy. 220-240V | Na dotaz | Zadat poptávku | |
| 443 1 WHR70128 |
C00596884
481236118469 |
Fan wheel. | Na dotaz | Zadat poptávku | |
| 443 2 WHR70128 |
C00651132
481236118467 |
FAN RETAINING NUT | Na dotaz | Zadat poptávku | |
| 451 0 WHR70128 |
C00488545
481225998481 |
Heating element fan 2200W | Na dotaz | Zadat poptávku | |
| 452 0 WHR70128 |
C00596835
481225928879 |
Heating element + grill upper. | Na dotaz | Zadat poptávku | |
| 452 1 WHR70128 |
C00373671
481225998479 |
Heating element grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR70128 |
C00596837
481225998482 |
Heating element lower 1300W. | Na dotaz | Zadat poptávku | |
| 456 1 WHR70128 |
C00596836
481225998478 |
Heating element lower oven. | Na dotaz | Zadat poptávku | |
| 470 0 WHR70128 |
C00301402
481236068701 |
SMALL BURNER | Na dotaz | Zadat poptávku | |
| 470 1 WHR70128 |
C00301403
481236068702 |
SEMI-RAPID BURNER | Na dotaz | Zadat poptávku | |
| 470 2 WHR70128 |
C00596871
481236058443 |
Burner cup Rapid D.1,08. | Na dotaz | Zadat poptávku | |
| 470 3 WHR70128 |
C00482783
481236068709 |
Burner | Na dotaz | Zadat poptávku | |
| 471 0 WHR70128 |
C00301506
481236068703 |
Burner | Na dotaz | Zadat poptávku | |
| 471 1 WHR70128 |
C00301507
481236068704 |
Burner | Na dotaz | Zadat poptávku | |
| 471 2 WHR70128 |
C00301508
481236068712 |
ODCHYLOVAČ PLAMENE VELKÝ MOSAZ | Na dotaz | Zadat poptávku | |
| 471 3 WHR70128 |
C00500775
481236068711 |
horak | 3 388 Kč
€ 148.90 |
||
| 473 0 WHR70128 |
C00301514
481236068708 |
Burner cap | Na dotaz | Zadat poptávku | |
| 473 1 WHR70128 |
C00301513
481236068707 |
Burner cap | Na dotaz | Zadat poptávku | |
| 473 2 WHR70128 |
C00301515
481236058444 |
KRYT HOŘÁK RYCHLÝ | Na dotaz | Zadat poptávku | |
| 473 3 WHR70128 |
C00482782
481236068706 |
viko horaku | 1 210 Kč
€ 53.20 |
||
| 473 6 WHR70128 |
C00500774
481236068705 |
viko horaku | 724 Kč
€ 31.80 |
||
| 474 0 WHR70128 |
C00301386
481231038941 |
TRYSKA LPG | Na dotaz | Zadat poptávku | |
| 474 0 WHR70128 |
C00301520
481231038938 |
TRYSKA D=097 | Na dotaz | Zadat poptávku | |
| 474 0 WHR70128 |
C00301516
481231038936 |
TRYSKA D=0,50 GPL | Na dotaz | Zadat poptávku | |
| 474 0 WHR70128 |
C00301519
481231038937 |
Nozzle AUX 0,72 NG | Na dotaz | Zadat poptávku | |
| 474 0 WHR70128 |
C00482663
481231038935 |
Nozzle | Na dotaz | Zadat poptávku | |
| 474 0 WHR70128 |
C00482664
481231038939 |
Nozzle | Na dotaz | Zadat poptávku | |
| 474 0 WHR70128 |
C00596859
481231038942 |
Nozzle R 0,79 LPG. | Na dotaz | Zadat poptávku | |
| 474 0 WHR70128 |
C00596860
481231038943 |
Nozzle R 1,08 NG. | Na dotaz | Zadat poptávku | |
| 490 0 WHR70128 |
C00596849
481229068304 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 491 0 WHR70128 |
C00596848
481229068303 |
Terminal block. | Na dotaz | Zadat poptávku | |
| 491 1 WHR70128 |
C00596847
481229068302 |
Terminal block protection. | Na dotaz | Zadat poptávku | |
| 500 0 WHR70128 |
C00596832
481221479381 |
Timer + programmer | Na dotaz | Zadat poptávku | |
| 500 1 WHR70128 |
C00596831
481221479379 |
Timer support. | Na dotaz | Zadat poptávku | |
| 554 0 WHR70128 |
C00302390
481228228296 |
THERMOSTAT | Na dotaz | Zadat poptávku | |
| 554 1 WHR70128 |
C00596846
481228228299 |
Thermostat oven. | Na dotaz | Zadat poptávku | |
| 556 0 WHR70128 |
C00302395
481228228298 |
TERMOSTAT 90°C | Na dotaz | Zadat poptávku | |
| 561 0 WHR70128 |
C00596845
481228228294 |
Thermostat safety. | Na dotaz | Zadat poptávku | |
| 562 0 WHR70128 |
C00613441
481228228297 |
OVER TEMP CUT-OUT | Na dotaz | Zadat poptávku | |
| 563 0 WHR70128 |
C00302361
481228228293 |
SAFETY THERMOSTAT 70°C S200 | Na dotaz | Zadat poptávku | |
| 564 0 WHR70128 |
C00596844
481228208649 |
Thermostat magn.. | Na dotaz | Zadat poptávku | |
| 566 0 WHR70128 |
C00302366
481228228295 |
ELEMENT CERAMIC RS470 | Na dotaz | Zadat poptávku | |
| 571 0 WHR70128 |
C00596873
481236058446 |
Tap Rapid D.0,45. | Na dotaz | Zadat poptávku | |
| 571 1 WHR70128 |
C00596874
481236058447 |
Tap Semi-Rapid D.0,33. | Na dotaz | Zadat poptávku | |
| 571 2 WHR70128 |
C00596875
481236058448 |
Tap AUX. D.0,30. | Na dotaz | Zadat poptávku | |
| 571 3 WHR70128 |
C00596872
481236058445 |
Tap Ultra-Rapid D.0,65. | Na dotaz | Zadat poptávku | |
| 591 0 WHR70128 |
C00302542
481225268076 |
Svíčka zapalovací | 487 Kč
€ 21.40 |
||
| 591 1 WHR70128 |
C00596833
481225268077 |
Spark plug 870mm. | Na dotaz | Zadat poptávku | |
| 591 2 WHR70128 |
C00301589
481225268075 |
Svíčka zapalovací | 514 Kč
€ 22.60 |
||
| 591 3 WHR70128 |
C00484738
481236058438 |
svicka zapalovaci | 497 Kč
€ 21.80 |
||
| 591 9 WHR70128 |
C00301396
481249258055 |
Spring thermocouple | Na dotaz | Zadat poptávku | |
| 592 0 WHR70128 |
C00621796
481213838038 |
termopojistka | 871 Kč
€ 38.30 |
||
| 592 1 WHR70128 |
C00621795
481213838037 |
Thermo couple 450mm | Na dotaz | Zadat poptávku | |
| 592 2 WHR70128 |
C00627419
481213838036 |
Thermo couple 650mm. | Na dotaz | Zadat poptávku | |
| 592 3 WHR70128 |
C00490925
481213838035 |
Thermo couple TC 450mm | Na dotaz | Zadat poptávku | |
| 594 0 WHR70128 |
C00491071
481227328277 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 595 0 WHR70128 |
C00484610
481214528031 |
Generator | Na dotaz | Zadat poptávku | |
| 620 0 WHR70128 |
C00596840
481227618476 |
Oven selector switch lower | Na dotaz | Zadat poptávku | |
| 620 1 WHR70128 |
C00484658
481227618475 |
Oven selector switch upper | Na dotaz | Zadat poptávku | |
| 632 0 WHR70128 |
C00596843
481227618478 |
Microswitch oven. | Na dotaz | Zadat poptávku | |
| 633 0 WHR70128 |
C00596841
481227618477 |
Microswitch. | Na dotaz | Zadat poptávku | |
| 651 0 WHR70128 |
C00301387
481213488069 |
LAMP 25W 230V 300°C | Na dotaz | Zadat poptávku | |
| 652 0 WHR70128 |
C00621801
481225518279 |
Lamp holder assembly | Na dotaz | Zadat poptávku | |
| 703 0 WHR70128 |
C00597087
481253048864 |
Pipe right back. | Na dotaz | Zadat poptávku | |
| 703 1 WHR70128 |
C00597086
481253048863 |
Pipe right front. | Na dotaz | Zadat poptávku | |
| 703 2 WHR70128 |
C00597091
481253048868 |
Pipe left back. | Na dotaz | Zadat poptávku | |
| 703 3 WHR70128 |
C00597090
481253048867 |
Pipe left front. | Na dotaz | Zadat poptávku | |
| 703 6 WHR70128 |
C00597089
481253048866 |
Pipe centre back. | Na dotaz | Zadat poptávku | |
| 703 7 WHR70128 |
C00597088
481253048865 |
Pipe centre front. | Na dotaz | Zadat poptávku | |
| 703 8 WHR70128 |
C00597085
481253048862 |
Pipe gas main. | Na dotaz | Zadat poptávku | |
| 773 0 WHR70128 |
C00302388
481245819287 |
FLUE | Na dotaz | Zadat poptávku | |
| 774 0 WHR70128 |
C00597008
481245819288 |
Fan ventilation duct. | Na dotaz | Zadat poptávku | |
| 794 0 WHR70128 |
C00597096
481253268145 |
Gasket gas tap. | Na dotaz | Zadat poptávku | |
| 794 1 WHR70128 |
C00597095
481253268144 |
Gasket Rapid burner. | Na dotaz | Zadat poptávku | |
| 794 2 WHR70128 |
C00545047
481246688804 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 3 WHR70128 |
C00545046
481246688803 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 4 WHR70128 |
C00545045
481246688802 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR70128 |
C00301537
481246378014 |
Support | Na dotaz | Zadat poptávku | |
| 910 0 WHR70128 |
C00301388
481250518413 |
SCREW GAS VALVE MOUNT S850 | Na dotaz | Zadat poptávku | |
| 910 1 WHR70128 |
C00545060
481250518412 |
Nut | Na dotaz | Zadat poptávku | |
| 910 2 WHR70128 |
C00545059
481250518411 |
Screw | Na dotaz | Zadat poptávku | |
| 914 0 WHR70128 |
C00597055
481250518414 |
Nut for tap. | Na dotaz | Zadat poptávku | |
| 923 0 WHR70128 |
C00301401
481253268146 |
WASCHER | Na dotaz | Zadat poptávku | |
| 999 WHR70128 |
C00690960 | Gastable WHP | Na dotaz | Zadat poptávku | |
