ARISTON DF 461 NFL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | DF 461 NFL |
| Kód 12NC: | 869990245210 |
| I.C. kód: | 81245210000 |
| Značka: | ARISTON |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

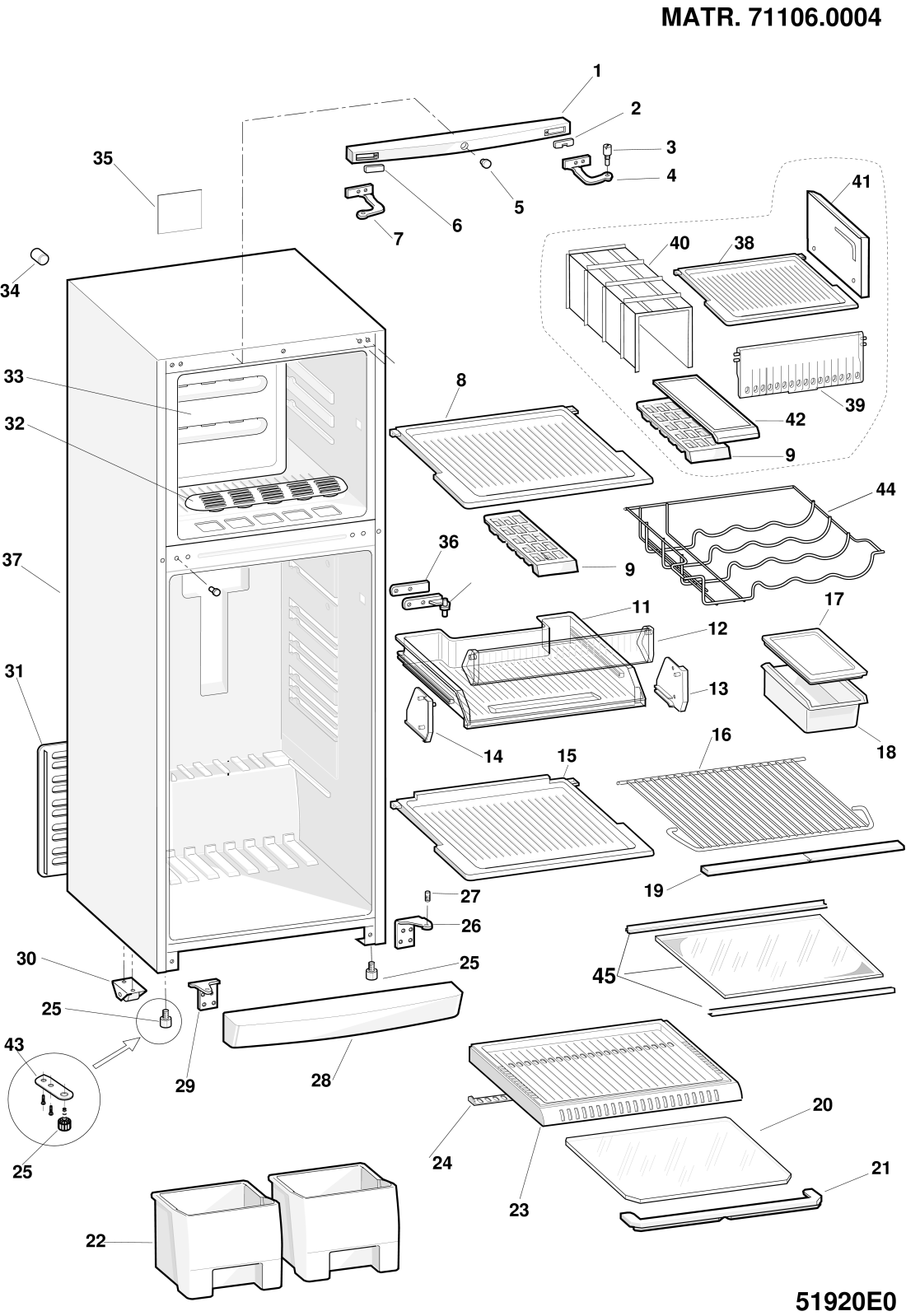

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 51920e0 |
C00174509 | INSTRUCTIONS BOOKLET DF460NF-NFL | Na dotaz | Zadat poptávku | |
| 001 51920e0 |
C00173078 | CABINET HEADPANEL INOX | Na dotaz | Zadat poptávku | |
| 002 51920e0 |
C00173079 | DASHBOARD PIPE (WITH HOLE) | Na dotaz | Zadat poptávku | |
| 003 51920e0 |
C00172136
482000082962 |
HINGE PIN - UPPER | Na dotaz | Zadat poptávku | |
| 004 51920e0 |
C00172148
482000082965 |
UPPER HINGE / RIGHT | Na dotaz | Zadat poptávku | |
| 005 51920e0 |
C00173074
482000042151 |
HINGE BEARING PLUG | Na dotaz | Zadat poptávku | |
| 006 51920e0 |
C00173080 | DASHBOARD PIPE (WITHOUT HOLE) | Na dotaz | Zadat poptávku | |
| 007 51920e0 |
C00173076
482000051609 |
UPPER HINGE (LEFT) | Na dotaz | Zadat poptávku | |
| 008 51920e0 |
C00173686
482000082994 |
CLEAR SHELF-FREEZER ETDF450NF | Na dotaz | Zadat poptávku | |
| 009 51920e0 |
C00174206
482000047200 |
ICE TRAY | Na dotaz | Zadat poptávku | |
| 010 51920e0 |
C00173444
482000051610 |
MIDDLE HINGE | Na dotaz | Zadat poptávku | |
| 011 51920e0 |
C00173687
482000047174 |
CHILLER BOX ETDF450NF | Na dotaz | Zadat poptávku | |
| 012 51920e0 |
C00173691 | CHILLER BOX COVER ETDF450NF | Na dotaz | Zadat poptávku | |
| 013 51920e0 |
C00173694
482000042427 |
CHILLER GUIDE (RIGHT)450NF | Na dotaz | Zadat poptávku | |
| 014 51920e0 |
C00173695
482000042428 |
CHILLER GUIDE(LEFT)450NF | Na dotaz | Zadat poptávku | |
| 017 51920e0 |
C00172175
482000047058 |
COVER - MEAT BOX WHITE | Na dotaz | Zadat poptávku | |
| 018 51920e0 |
C00173096
482000047149 |
MEAT BOX ARISTON(GREEN-31) | Na dotaz | Zadat poptávku | |
| 022 51920e0 |
C00172170
482000047054 |
CRISPER WHITE | Na dotaz | Zadat poptávku | |
| 023 51920e0 |
C00172515
482000047102 |
KRYT ZÁSOB. ZELENINY BÍLÝ | Na dotaz | Zadat poptávku | |
| 025 51920e0 |
C00174376
482000082999 |
NOŽIČKA NASTAVITELNÁ BÍLÁ M8 | Na dotaz | Zadat poptávku | |
| 026 51920e0 |
C00172157
482000041875 |
LOWER HINGE / RIGHT | Na dotaz | Zadat poptávku | |
| 027 51920e0 |
C00172138
482000030062 |
Čep spodního závěsu dveří mrazáku chladničky Indesit | 108 Kč
€ 4.40 |
||
| 028 51920e0 |
C00174378
482000083000 |
KICK PLATE INOX ETDF450X | Na dotaz | Zadat poptávku | |
| 029 51920e0 |
C00172972
482000072364 |
LOWER HINGE LH - STAINLESS | Na dotaz | Zadat poptávku | |
| 031 51920e0 |
C00173891
482000030088 |
KRYT PROSTORU KOMPRESORU (OD 20.10.98 | Na dotaz | Zadat poptávku | |
| 032 51920e0 |
C00173753
488000173753 |
AIR GRID-FREEZER 450NF | Na dotaz | Zadat poptávku | |
| 033 51920e0 |
C00173700
482000043118 |
FREEZER REAR VENT.COVER ASSM.450NF | Na dotaz | Zadat poptávku | |
| 034 51920e0 |
C00173403 | SPACER | Na dotaz | Zadat poptávku | |
| 035 51920e0 |
C00174633 | ELECTRICAL SCHEME DF461NF | Na dotaz | Zadat poptávku | |
| 036 51920e0 |
C00173211
482000082989 |
MIDDLE HINGE BOTTOM PLS. | Na dotaz | Zadat poptávku | |
| 038 51920e0 |
C00174207
482000082996 |
TRANSPARENT SHELF(FAST FRZ.) | Na dotaz | Zadat poptávku | |
| 039 51920e0 |
C00171304
482000082956 |
FAST FREEZER COVER NO FROST | Na dotaz | Zadat poptávku | |
| 040 51920e0 |
C00174208 | SEATING FOR ICE TRAY | Na dotaz | Zadat poptávku | |
| 041 51920e0 |
C00174209 | COVER HOLDER PLASTIC FREEZER (NO FROST) | Na dotaz | Zadat poptávku | |
| 042 51920e0 |
C00174210
482000047201 |
COVER FOR ICE TRAY | Na dotaz | Zadat poptávku | |
| 043 51920e0 |
C00174377
482000043080 |
PODPĚRA NASTAVITELNÉ NOŽIČKY (M8) | Na dotaz | Zadat poptávku | |
| 045 51920e0 |
C00174176
482000030089 |
SHELF GLASS | Na dotaz | Zadat poptávku | |
| 001 51921d0 |
C00173401 | PLUG - UPPER HINGE HOLE EDF450 INOX | Na dotaz | Zadat poptávku | |
| 002 51921d0 |
C00174510 | FREEZER DOOR SHELF 450XLNF | Na dotaz | Zadat poptávku | |
| 003 51921d0 |
C00172918 | UPPER SHELF ARISTON WHITE | Na dotaz | Zadat poptávku | |
| 004 51921d0 |
C00172158
482000030065 |
DRŽÁK VAJEC | Na dotaz | Zadat poptávku | |
| 005 51921d0 |
C00172169
482000082968 |
TILTABLE DOOR SHELF WHITE | Na dotaz | Zadat poptávku | |
| 006 51921d0 |
C00172168 | MOVABLE DOOR SHELF WHITE 295X95 | Na dotaz | Zadat poptávku | |
| 007 51921d0 |
C00172173
482000042088 |
COVER - AROMA PROOF BOX (GREEN) | Na dotaz | Zadat poptávku | |
| 008 51921d0 |
C00172172
482000047056 |
AROMA PROOF BOX - GREEN | Na dotaz | Zadat poptávku | |
| 009 51921d0 |
C00172155
482000047051 |
DIVIDER - BOTTLE SHELF WHITE | Na dotaz | Zadat poptávku | |
| 010 51921d0 |
C00172166
482000042543 |
DVEŘ. PŘIHRÁDKA NA LÁHVE BÍLÁ 592X95 | Na dotaz | Zadat poptávku | |
| 011 51921d0 |
C00172176
482000042223 |
AUTO-LOCKING RIGHT | Na dotaz | Zadat poptávku | |
| 011 51921d0 |
C00172177
482000082969 |
AUTO-LOCKING LEFT | Na dotaz | Zadat poptávku | |
| 012 51921d0 |
C00173673 | INSULATED DOOR PANEL - LOWER ETDF450XLNF | Na dotaz | Zadat poptávku | |
| 014 51921d0 |
C00173073 | HANDLE - LOWER DOOR INOX(FRIDGE) | Na dotaz | Zadat poptávku | |
| 015 51921d0 |
C00172198
482000042262 |
HINGE BUSH / LOWER DOOR | Na dotaz | Zadat poptávku | |
| 017 51921d0 |
C00173072 | HANDLE - UPPER DOOR INOX (FREEZER) | Na dotaz | Zadat poptávku | |
| 018 51921d0 |
C00173672 | INSULATED DOOR PANEL - UPPER 450XL NF/H8 | Na dotaz | Zadat poptávku | |
| 020 51921d0 |
C00173674 | HEADPANEL-UPPER DOOR (INOX)450NF | Na dotaz | Zadat poptávku | |
| 021 51921d0 |
C00174178 | DASHBOARD PIPE | Na dotaz | Zadat poptávku | |
| 022 51921d0 |
C00173692 | LOGO(ARISTON) NO-FROST | Na dotaz | Zadat poptávku | |
| 001 5192260 |
C00174151
482000047198 |
THERMOSTOP ASM.450NF(ELTH1079)FROM 15/9/9 | Na dotaz | Zadat poptávku | |
| 002 5192260 |
C00173767
482000042817 |
FIN EVAP HEATER R:1 450NF | Na dotaz | Zadat poptávku | |
| 004 5192260 |
C00174511
482000030093 |
VÝPARNÍK NO-FROST (DF460NFL) | Na dotaz | Zadat poptávku | |
| 005 5192260 |
C00173922
482000043048 |
FIN EVAP COVER ASSY.450NF | Na dotaz | Zadat poptávku | |
| 006 5192260 |
C00173745
482000041948 |
FIN EVAP.COVER 450NF | Na dotaz | Zadat poptávku | |
| 007 5192260 |
C00173763
482000047178 |
FAN MOTOR RUBBER-FREEZER 450NF | Na dotaz | Zadat poptávku | |
| 008 5192260 |
C00174380
482000030090 |
MOTOR FIME C09R1829 VENT..ŠPIČKA 450 | Na dotaz | Zadat poptávku | |
| 009 5192260 |
C00174379
482000083001 |
PODPĚRA MOTORU VRTULE MES MRAZNIČKA '450N | Na dotaz | Zadat poptávku | |
| 010 5192260 |
C00173740
482000030085 |
TLAČÍTKO VĚTRÁKU /OSVĚTLENÍ 4 FASTONA | Na dotaz | Zadat poptávku | |
| 011 5192260 |
C00174381
482000030091 |
VRTULE MES F61-10 | Na dotaz | Zadat poptávku | |
| 012 5192260 |
C00173766 | SPONGE(20X20X610)450NF | Na dotaz | Zadat poptávku | |
| 013 5192260 |
C00173755 | FIN EVAP. STRF.COMPLETE.450NF | Na dotaz | Zadat poptávku | |
| 013 5192260 |
C00173756 | FIN EVAP STRF.COMPLETE -LOWER | Na dotaz | Zadat poptávku | |
| 014 5192260 |
C00174442
482000030092 |
TOPNÉ TĚLÍSKO ROZMRAŽENÍ 450NF | Na dotaz | Zadat poptávku | |
| 015 5192260 |
C00174512
482000047211 |
TIMER (DEFROST) SONXIE 1210 | Na dotaz | Zadat poptávku | |
| 016 5192260 |
C00173761 | COMPONENT INSTALLATION PLASTIC 450NF | Na dotaz | Zadat poptávku | |
| 018 5192260 |
C00173698
482000049403 |
MULTY-FLOW STRF.ASSM. 450NF | Na dotaz | Zadat poptávku | |
| 020 5192260 |
C00173699 | MULTY-FLOW COVER ASSM.450NF | Na dotaz | Zadat poptávku | |
| 021 5192260 |
C00173651 | LAMP COVER-FRIDGE SECTION (RIGHT) 450NF | Na dotaz | Zadat poptávku | |
| 022 5192260 |
C00173749
482000050636 |
THERMOSTAT KNOB DEC. 450NF | Na dotaz | Zadat poptávku | |
| 022 5192260 |
C00173750
482000044320 |
DAMPER KNOB DEC. 450NF | Na dotaz | Zadat poptávku | |
| 023 5192260 |
C00172156 | PLUG | Na dotaz | Zadat poptávku | |
| 025 5192260 |
C00173806
482000047181 |
EVAPORATING TRAY | Na dotaz | Zadat poptávku | |
| 029 5192260 |
C00170451
482000047001 |
NAPÁJECÍ KABEL V.D.E.(3X0,75) | Na dotaz | Zadat poptávku | |
| 030 5192260 |
C00172581
482000047103 |
DRIER 12GR R134A | Na dotaz | Zadat poptávku | |
| 031 5192260 |
C00174631
482000047226 |
KOMPRESOR NLY7F 220-240/50 R134A | Na dotaz | Zadat poptávku | |
| 031 5192260 |
C00174632
482000042701 |
RELAY - THERMAL PROTECTOR ASSY. NLY7F | Na dotaz | Zadat poptávku | |
| 032 5192260 |
C00171620
482000082959 |
COMPRESSOR RUBBER BUFFER | Na dotaz | Zadat poptávku | |
| 033 5192260 |
C00174281
482000041839 |
COMPRESSOR BASEMENT 700/175 ( NL10FT) | Na dotaz | Zadat poptávku | |
| 034 5192260 |
C00172505
482000082976 |
ČEP KOLEČKA | Na dotaz | Zadat poptávku | |
| 035 5192260 |
C00173702
482000042396 |
KOLEČKO | Na dotaz | Zadat poptávku | |
| 036 5192260 |
C00174383
482000083002 |
PODPĚRA MOTORU VENTILACE KOMPRESOR | Na dotaz | Zadat poptávku | |
| 037 5192260 |
C00172190
482000082971 |
TOP RUBBER MOUNT-FAN BRACKET | Na dotaz | Zadat poptávku | |
| 038 5192260 |
C00174541
482000042720 |
MOTOR ASSM. FIME C15 R8165 | Na dotaz | Zadat poptávku | |
| 040 5192260 |
C00173683
482000042872 |
CONDENSER 450NF R:1 | Na dotaz | Zadat poptávku | |
| 041 5192260 |
C00043021
482000074099 |
TRUBKA LOKRING S VENTILEM A (6 NFMSSV) | Na dotaz | Zadat poptávku | |
| 041 5192260 |
C00173135
482000082987 |
CHARGING PIPE (6X90X1) | Na dotaz | Zadat poptávku | |
| 041 5192260 |
C00277029
482000087506 |
CHARGING PIPE 6X0.71X115MM | Na dotaz | Zadat poptávku | |
| 042 5192260 |
C00172143
482000047048 |
FIXING PLATE - COMPRESSOR | Na dotaz | Zadat poptávku | |
| 043 5192260 |
C00173652 | LAMP COVER-FRIDGE SECTION (LEFT) 450NF | Na dotaz | Zadat poptávku | |
| 045 5192260 |
C00173757
482000043031 |
DAMPER STRF.450NF | Na dotaz | Zadat poptávku | |
| 046 5192260 |
C00173679
482000047172 |
DAMPER THERMOSTAT (BA 3317)450NF | Na dotaz | Zadat poptávku | |
| 047 5192260 |
C00173765
482000041796 |
SPONGE(3 PIECES)AUTOMOD | Na dotaz | Zadat poptávku | |
| 048 5192260 |
C00170367
482000042717 |
LAMP 220/240V 15W E14 | Na dotaz | Zadat poptávku | |
| 049 5192260 |
C00173751
488000173751 |
LAMP SOCKET(ELTEK E/4)450NF | Na dotaz | Zadat poptávku | |
| 050 5192260 |
C00173650
482000030082 |
TERMOSTAT RANCO K57-L2839/K57-L2870 450N | Na dotaz | Zadat poptávku | |
| 051 5192260 |
C00173684 | LAMP COVER-FREEZER 450XLNF | Na dotaz | Zadat poptávku | |
| 052 5192260 |
C00173685
482000030084 |
KRABICE ŽÁROVKA | Na dotaz | Zadat poptávku | |
| 053 5192260 |
C00173827
482000030086 |
MULTI FLOW HEATER ELEMENT 450NF | Na dotaz | Zadat poptávku | |
| 099 5192260 |
C00170439 | WIRING HARNESS ASSY.(CV220) | Na dotaz | Zadat poptávku | |
