IGNIS DPA 26/3 AL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | DPA 26/3 AL |
| Kód 12NC: | 850322201110 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

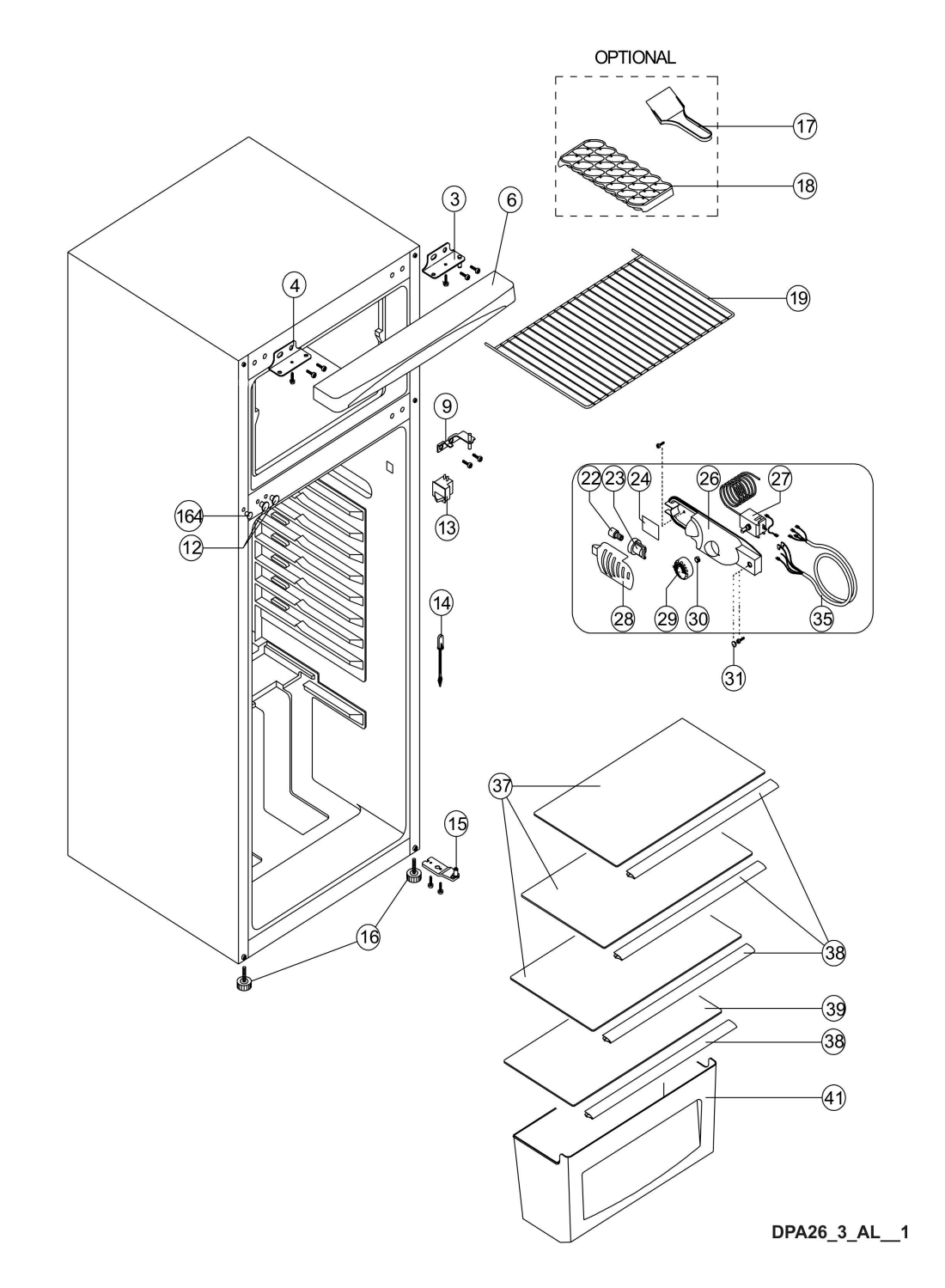

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 WHR45030 |
C00416668
482000019478 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 004 WHR45030 |
C00416669
482000019479 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 006 WHR45030 |
C00416670
482000019480 |
Panel | Na dotaz | Zadat poptávku | |
| 009 WHR45030 |
C00394351
480132102469 |
Hinge center | Na dotaz | Zadat poptávku | |
| 011 WHR45030 |
C00270034
482000002929 |
ZÁTKA KRYTKA ŠROUBU | Na dotaz | Zadat poptávku | |
| 012 WHR45030 |
C00306359
482000019481 |
Screw cap | Na dotaz | Zadat poptávku | |
| 013 WHR45030 |
C00345101
480131100418 |
Spínač dveří | 337 Kč
€ 14.80 |
||
| 014 WHR45030 |
C00416637
482000019436 |
Swab | Na dotaz | Zadat poptávku | |
| 015 WHR45030 |
C00394352
480132102471 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 016 WHR45030 |
C00345128
482000013074 |
Adjust. foot M8x35 Grey | Na dotaz | Zadat poptávku | |
| 017 WHR45030 |
C00345139
480131100433 |
Swab | Na dotaz | Zadat poptávku | |
| 018 WHR45030 |
C00410718
482000007772 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 019 WHR45030 |
C00416098
482000018652 |
Shelf | Na dotaz | Zadat poptávku | |
| 022 WHR45030 |
C00314888
484000000984 |
Lamp E14/220-24/15W T22 300°C | Na dotaz | Zadat poptávku | |
| 023 WHR45030 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 024 WHR45030 |
C00513139
481225568016 |
Reflector lamp | Na dotaz | Zadat poptávku | |
| 026 WHR45030 |
C00407328
482000001286 |
Thermostathous. | Na dotaz | Zadat poptávku | |
| 027 WHR45030 |
C00312744
481228208657 |
termostat | 1 821 Kč
€ 80.00 |
||
| 028 WHR45030 |
C00330535
481246228694 |
kryt | 559 Kč
€ 24.60 |
||
| 029 WHR45030 |
C00416100
482000018654 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 030 WHR45030 |
C00345850
481249258054 |
Knob thermostat spring | Na dotaz | Zadat poptávku | |
| 031 WHR45030 |
C00394357
480132102477 |
THERMOSTAT BOX SCREW CAP/140(S.W.) | Na dotaz | Zadat poptávku | |
| 035 WHR45030 |
C00328485
481232058171 |
Cable harness thermostat | Na dotaz | Zadat poptávku | |
| 037 WHR45030 |
C00331225
481245088469 |
rost skleneny | 1 416 Kč
€ 62.20 |
||
| 038 WHR45030 |
C00344972
480131100417 |
Trim Glass shelf | Na dotaz | Zadat poptávku | |
| 039 WHR45030 |
C00485370
481245088297 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
| 041 WHR45030 |
C00403053
481241848934 |
Zásuvka na zeleninu | 1 776 Kč
€ 78.10 |
||
| 151 WHR45030 |
C00513152
482000019482 |
Bushing | Na dotaz | Zadat poptávku | |
| 152 WHR45030 |
C00270062
482000002930 |
BUSHING CAP | Na dotaz | Zadat poptávku | |
| 153 WHR45030 |
C00416671
482000019483 |
Door freezer assy. | Na dotaz | Zadat poptávku | |
| 154 WHR45030 |
C00416672
482000019484 |
Nameplate | Na dotaz | Zadat poptávku | |
| 155 WHR45030 |
C00416673
482000019485 |
Door refriger. assy. | Na dotaz | Zadat poptávku | |
| 156 WHR45030 |
C00403021
481241829887 |
Cover crisper | Na dotaz | Zadat poptávku | |
| 157 WHR45030 |
C00402822
481241820004 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 159 WHR45030 |
C00621637
482000019457 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 164 WHR45030 |
C00416629
482000019376 |
Cap | Na dotaz | Zadat poptávku | |
| 168 WHR45030 |
C00402799
481241778195 |
Door stopper right | Na dotaz | Zadat poptávku | |
| 169 WHR45030 |
C00416101
482000018656 |
Screw ST 2.9x9.5 YSB-R-C | Na dotaz | Zadat poptávku | |
| 170 WHR45030 |
C00402800
481241778196 |
Door stopper left | Na dotaz | Zadat poptávku | |
| 174 WHR45030 |
C00416102
482000018657 |
R BOTTOM STOPPER/140CE | Na dotaz | Zadat poptávku | |
| 175 WHR45030 |
C00403052
481241848933 |
Door dairy | Na dotaz | Zadat poptávku | |
| 201 WHR45030 |
C00513157
482000007770 |
Condenser | Na dotaz | Zadat poptávku | |
| 203 WHR45030 |
C00345215
482000018659 |
Spacer | Na dotaz | Zadat poptávku | |
| 204 WHR45030 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 206 WHR45030 |
C00329058
481240448976 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 207 WHR45030 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 208 WHR45030 |
C00329065
481240448984 |
Bracket condenser | Na dotaz | Zadat poptávku | |
| 210 WHR45030 |
C00416104
482000018660 |
Mains cable | Na dotaz | Zadat poptávku | |
| 211 WHR45030 |
C00513147
482000007768 |
Overload prot. | Na dotaz | Zadat poptávku | |
| 212 WHR45030 |
C00513219
482000018661 |
Capacitor | Na dotaz | Zadat poptávku | |
| 214 WHR45030 |
C00513217
480132102475 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 215 WHR45030 |
C00416105
482000018663 |
Dryer | Na dotaz | Zadat poptávku | |
| 216 WHR45030 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217 WHR45030 |
C00416674
482000019486 |
Compressor SK65CY | Na dotaz | Zadat poptávku | |
| 218 WHR45030 |
C00411840
482000010018 |
Base Compressor | Na dotaz | Zadat poptávku | |
| 223 WHR45030 |
C00330458
481246218283 |
Foot | Na dotaz | Zadat poptávku | |
| 225 WHR45030 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR45030 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 999 WHR45031 |
C00634372 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
