| Komerční kód: | 20038021 DWF 407 W INTEGR. DISHWASHING |
| Kód 12NC: | 854585601610 |
| Značka: | IKEA |
| Typ produktu: | Myčky |
| Další podobné modely: | 854585601611 |
Potřebujete servis? Jsme tady pro Vás

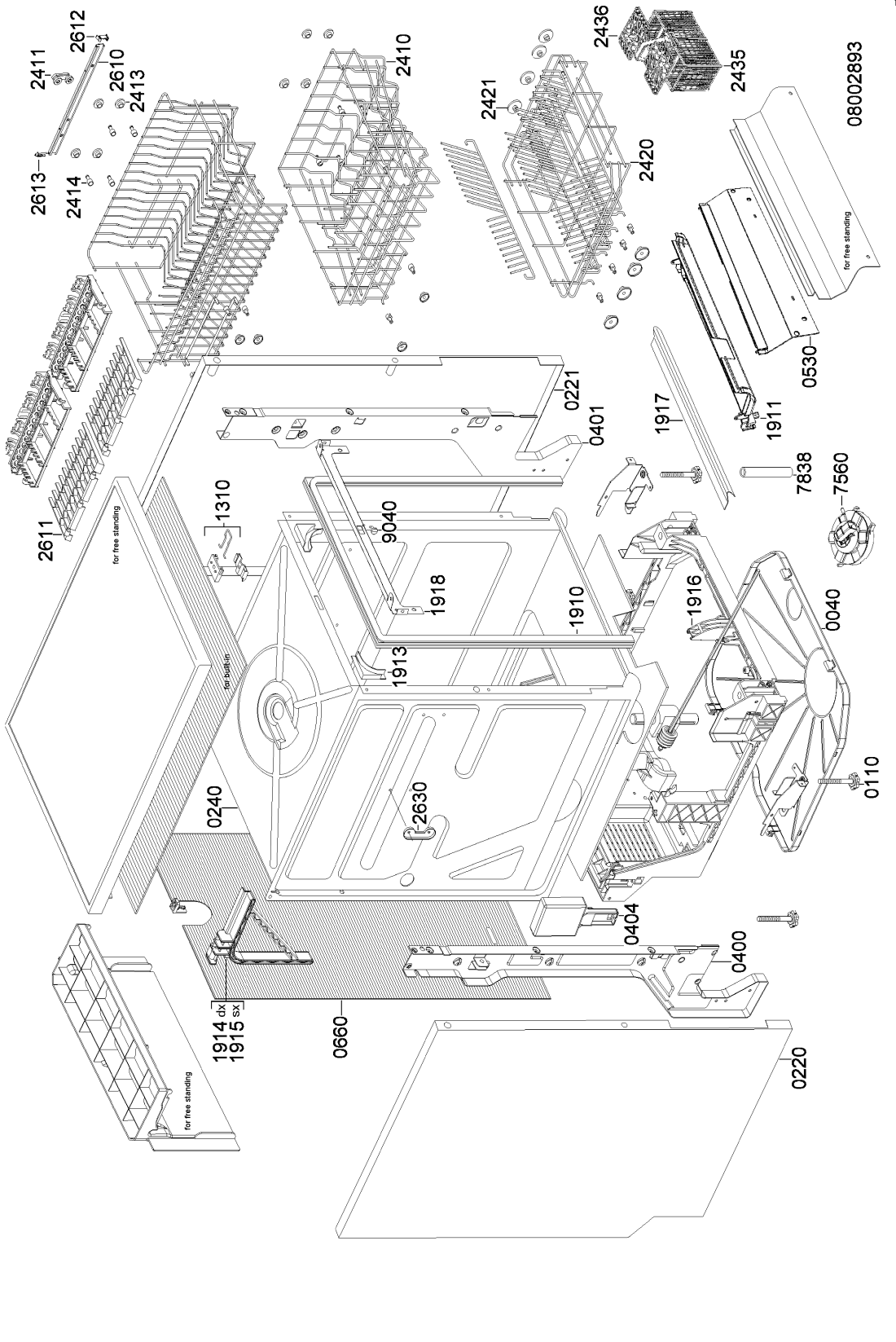

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0040 WHR43500 |
C00341209
481290508205 |
Miska spodní,odkapávací | 916 Kč
€ 40.30 |
||
| 0110 WHR43500 |
C00340803
481290508128 |
Foot | Na dotaz | Zadat poptávku | |
| 0122 WHR43500 |
C00340911
481290508148 |
balicek montazni | 1 016 Kč
€ 44.70 |
||
| 0122 WHR43500 |
C00340989
481290508808 |
sada montazni | 799 Kč
€ 35.10 |
||
| 0123 WHR43500 |
C00341019
481990501036 |
PRICHYTKA ADG95 | 213 Kč
€ 9.40 |
||
| 0220 WHR43500 |
C00336324
481290508222 |
Side panel left | Na dotaz | Zadat poptávku | |
| 0221 WHR43500 |
C00336312
481290508221 |
PODLOZKA KOVOVA | 2 159 Kč
€ 94.90 |
||
| 0240 WHR43500 |
C00342720
481290508211 |
Container | Na dotaz | Zadat poptávku | |
| 0400 WHR43500 |
C00340736
481290508162 |
Frame left | Na dotaz | Zadat poptávku | |
| 0401 WHR43500 |
C00340725
481290508161 |
Frame right | Na dotaz | Zadat poptávku | |
| 0402 WHR43500 |
C00339778
481290508241 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0403 WHR43500 |
C00339815
481290508242 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0404 WHR43500 |
C00342708
481290508208 |
Container | Na dotaz | Zadat poptávku | |
| 0440 WHR43500 |
C00316733
481290508234 |
Spring Door | Na dotaz | Zadat poptávku | |
| 0530 WHR43500 |
C00337716
481290508202 |
Plinth | Na dotaz | Zadat poptávku | |
| 0650 WHR43500 |
C00338711
481990500692 |
izolace dveri | 380 Kč
€ 16.70 |
||
| 0660 WHR43500 |
C00343005
481290508206 |
Cover | Na dotaz | Zadat poptávku | |
| 1001 WHR43500 |
C00336179
481990500001 |
Spacer Rubber | Na dotaz | Zadat poptávku | |
| 1030 WHR43500 |
C00338982
481244019835 |
Door outer | Na dotaz | Zadat poptávku | |
| 1200 WHR43500 |
C00339010
481290508193 |
Door Inner | Na dotaz | Zadat poptávku | |
| 1300 WHR43500 |
C00338993
481290508527 |
mikrospinac | 1 539 Kč
€ 67.60 |
||
| 1310 WHR43500 |
C00338331
481290508536 |
hak dveri | 694 Kč
€ 30.50 |
||
| 1761 WHR43500 |
C00337096
481990500036 |
Protector | Na dotaz | Zadat poptávku | |
| 1910 WHR43500 |
C00340457
481990500569 |
Gasket door from 96/12 | Na dotaz | Zadat poptávku | |
| 1911 WHR43500 |
C00337097
481290508197 |
Protector | Na dotaz | Zadat poptávku | |
| 1913 WHR43500 |
C00343115
481290508004 |
Corner piece | Na dotaz | Zadat poptávku | |
| 1914 WHR43500 |
C00344159
481290508179 |
Bracket right | Na dotaz | Zadat poptávku | |
| 1915 WHR43500 |
C00344172
481290508181 |
Bracket left | Na dotaz | Zadat poptávku | |
| 1916 WHR43500 |
C00340789
481290508164 |
Foot Base. | Na dotaz | Zadat poptávku | |
| 1917 WHR43500 |
C00340525
481290508163 |
Gasket | Na dotaz | Zadat poptávku | |
| 1918 WHR43500 |
C00340647
481290508219 |
Front trim Container | Na dotaz | Zadat poptávku | |
| 2410 WHR43500 |
C00344444
481290508195 |
Koš myčky - prostřední | 3 299 Kč
€ 145.00 |
||
| 2411 WHR43500 |
C00340173
481290508159 |
Nosič koše s kolečky | 699 Kč
€ 30.70 |
||
| 2413 WHR43500 |
C00337337
481990501224 |
UPPERBASKET WHEEL | Na dotaz | Zadat poptávku | |
| 2414 WHR43500 |
C00344090
481990501225 |
Bushing | Na dotaz | Zadat poptávku | |
| 2420 WHR43500 |
C00344475
481990501208 |
Basket lower | Na dotaz | Zadat poptávku | |
| 2421 WHR43500 |
C00337186
481990500675 |
Wheel basket lower | Na dotaz | Zadat poptávku | |
| 2435 WHR43500 |
C00344486
481990500089 |
Basket cutlery | Na dotaz | Zadat poptávku | |
| 2436 WHR43500 |
C00339613
481990501238 |
drzak priboru | 450 Kč
€ 19.80 |
||
| 2610 WHR43500 |
C00340167
481990501214 |
Guide f.basket | Na dotaz | Zadat poptávku | |
| 2611 WHR43500 |
C00344482
481290508146 |
Rošt plastový na příbory do myčky | 903 Kč
€ 39.70 |
||
| 2612 WHR43500 |
C00317432
481990501226 |
koncovka kolejnice | 143 Kč
€ 6.30 |
||
| 2613 WHR43500 |
C00335612
481990501217 |
tailpiece guide | Na dotaz | Zadat poptávku | |
| 2630 WHR43500 |
C00336237
481990501215 |
Small plate support | Na dotaz | Zadat poptávku | |
| 3010 WHR43500 |
C00588889
481290508741 |
Control panel DWF 407W. | Na dotaz | Zadat poptávku | |
| 3011 WHR43500 |
C00337737
481231028261 |
PlateKIT | Na dotaz | Zadat poptávku | |
| 3220 WHR43500 |
C00588887
481290508178 |
Panel Strip. | Na dotaz | Zadat poptávku | |
| 3320 WHR43500 |
C00344046
481290508532 |
tlacitko | 248 Kč
€ 10.90 |
||
| 3323 WHR43500 |
C00320704
481290508533 |
krytka spinace | Na dotaz | Zadat poptávku | |
| 3510 WHR43500 |
C00339127
481290508529 |
Indication unit | Na dotaz | Zadat poptávku | |
| 4000 WHR43500 |
C00580905
481290508742 |
nahradene 481290508661 | Na dotaz | Zadat poptávku | |
| 4050 WHR43500 |
C00335812
481290508217 |
Support motor | Na dotaz | Zadat poptávku | |
| 4300 WHR43500 |
C00314356
481290508156 |
Čerpadlo vypouštěcí 22W | 205 Kč
€ 9.00 |
||
| 4500 WHR43500 |
C00373928
481290508537 |
topeni prutokove | 3 257 Kč
€ 143.20 |
||
| 4501 WHR43500 |
C00320708
481290508538 |
Connection SP/heatingelem. | Na dotaz | Zadat poptávku | |
| 4803 WHR43500 |
C00340512
481990500002 |
tesneni | 175 Kč
€ 7.70 |
||
| 4900 WHR43500 |
C00119931
481290508155 |
KABEL | Na dotaz | Zadat poptávku | |
| 5520 WHR43500 |
C00318592
481221078011 |
senzor NTC | 799 Kč
€ 35.10 |
||
| 5710 WHR43500 |
C00317208
481290508369 |
ventil napousteci | 1 507 Kč
€ 66.20 |
||
| 5711 WHR43500 |
C00317206
481290508158 |
Filtr odrušovací | Na dotaz | Zadat poptávku | |
| 5830 WHR43500 |
C00314358
481290508194 |
presostat mycky | 1 427 Kč
€ 62.70 |
||
| 6200 WHR43500 |
C00312557
481290508531 |
programator mycky | 6 047 Kč
€ 265.80 |
||
| 6210 WHR43500 |
C00320706
481290508534 |
spinac mycky | 589 Kč
€ 25.90 |
||
| 6330 WHR43500 |
C00341746
481290508528 |
mikrospinac | 1 158 Kč
€ 50.90 |
||
| 6800 WHR43500 |
C00318336
481990501044 |
Combidosage electr. Indicaton | Na dotaz | Zadat poptávku | |
| 6801 WHR43500 |
C00318324
481990500026 |
tesneni nasypky | 480 Kč
€ 21.10 |
||
| 6802 WHR43500 |
C00341008
481990500027 |
drzak nasypky | 373 Kč
€ 16.40 |
||
| 7000 WHR43500 |
C00339334
481290508535 |
Hose inlet Reflex L1750 | Na dotaz | Zadat poptávku | |
| 7011 WHR43500 |
C00344147
481290508337 |
Bracket valve | Na dotaz | Zadat poptávku | |
| 7012 WHR43500 |
C00339417
481290508373 |
Hose | Na dotaz | Zadat poptávku | |
| 7100 WHR43500 |
C00320446
481290508154 |
zasobnik soli | 3 607 Kč
€ 158.50 |
||
| 7102 WHR43500 |
C00341706
481290508152 |
MonoblockNut | Na dotaz | Zadat poptávku | |
| 7140 WHR43500 |
C00335468
481290508153 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 7160 WHR43500 |
C00342736
481290508151 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 7161 WHR43500 |
C00340514
481290508133 |
tesneni | 231 Kč
€ 10.20 |
||
| 7162 WHR43500 |
C00343605
481290508132 |
uzaver | 106 Kč
€ 4.70 |
||
| 7210 WHR43500 |
C00339177
481990501145 |
naboj ramene spodni | 219 Kč
€ 9.60 |
||
| 7211 WHR43500 |
C00336164
481990500067 |
Spray arm below | Na dotaz | Zadat poptávku | |
| 7220 WHR43500 |
C00336154
481290508145 |
rameno myci stredni | Na dotaz | Zadat poptávku | |
| 7222 WHR43500 |
C00343487
481290508212 |
naboj ramene stred | 347 Kč
€ 15.30 |
||
| 7223 WHR43500 |
C00340835
481290508207 |
klapka zpetna | 196 Kč
€ 8.60 |
||
| 7224 WHR43500 |
C00343488
481290508213 |
SPOJKA | Na dotaz | Zadat poptávku | |
| 7225 WHR43500 |
C00340526
481990501223 |
tesneni ramene | 683 Kč
€ 30.00 |
||
| 7230 WHR43500 |
C00341592
481990501218 |
Nozzle ceiling | Na dotaz | Zadat poptávku | |
| 7231 WHR43500 |
C00341591
481290508131 |
NOZZLE | 344 Kč
€ 15.10 |
||
| 7261 WHR43500 |
C00339418
481290508183 |
Hose | Na dotaz | Zadat poptávku | |
| 7262 WHR43500 |
C00335464
481290508185 |
Threaded ring | Na dotaz | Zadat poptávku | |
| 7263 WHR43500 |
C00340527
481290508184 |
tesneni nab rame | 153 Kč
€ 6.70 |
||
| 7510 WHR43500 |
C00344989
481290508436 |
Water collector | Na dotaz | Zadat poptávku | |
| 7560 WHR43500 |
C00340824
481290508188 |
Floater | Na dotaz | Zadat poptávku | |
| 7610 WHR43500 |
C00340955
481290508218 |
Filter | Na dotaz | Zadat poptávku | |
| 7613 WHR43500 |
C00335884
481290508172 |
Support | Na dotaz | Zadat poptávku | |
| 7630 WHR43500 |
C00340956
481290508173 |
filtr | 1 304 Kč
€ 57.30 |
||
| 7810 WHR43500 |
C00320442
481290508135 |
hadice vytok. mycky | 848 Kč
€ 37.30 |
||
| 7813 WHR43500 |
C00340528
481290508157 |
Gasket | Na dotaz | Zadat poptávku | |
| 7814 WHR43500 |
C00336779
481990501144 |
Rubber Motor | Na dotaz | Zadat poptávku | |
| 7831 WHR43500 |
C00339419
481290508187 |
Hose | Na dotaz | Zadat poptávku | |
| 7832 WHR43500 |
C00339258
481290508168 |
Hose Pump-lower spray+sky | Na dotaz | Zadat poptávku | |
| 7833 WHR43500 |
C00339420
481290508149 |
Hose | Na dotaz | Zadat poptávku | |
| 7834 WHR43500 |
C00339243
481290508182 |
hadice | 539 Kč
€ 23.70 |
||
| 7835 WHR43500 |
C00339360
481290508539 |
Hose heating element | Na dotaz | Zadat poptávku | |
| 7836 WHR43500 |
C00339422
481290508192 |
Hose | Na dotaz | Zadat poptávku | |
| 7837 WHR43500 |
C00339423
481990501197 |
Hose | Na dotaz | Zadat poptávku | |
| 7838 WHR43500 |
C00341278
481290508196 |
Drainhose | Na dotaz | Zadat poptávku | |
| 7910 WHR43500 |
C00340886
481290508186 |
Flange | Na dotaz | Zadat poptávku | |
| 7911 WHR43500 |
C00340529
481290508167 |
tesneni | 501 Kč
€ 22.00 |
||
| 7940 WHR43500 |
C00340472
481990501143 |
tesneni ramene horni | 126 Kč
€ 5.50 |
||
| 9002 WHR43500 |
C00339547
481990500494 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 9040 WHR43500 |
C00335999
481290508147 |
Záslepka šroubu myčky Whirlpool, Bauknecht | 147 Kč
€ 6.50 |
||
| 9935 WHR43500 |
C00340633
481990500033 |
davkovac soli | 214 Kč
€ 9.40 |
||
| 999 WHR43500 |
C00610869 | Testprogram WHP | Na dotaz | Zadat poptávku | |
