ARISTON DZ 2VS (IX)
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | DZ 2VS (IX) |
| Kód 12NC: | 869990531430 |
| I.C. kód: | AQ531430000 |
| Značka: | ARISTON |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

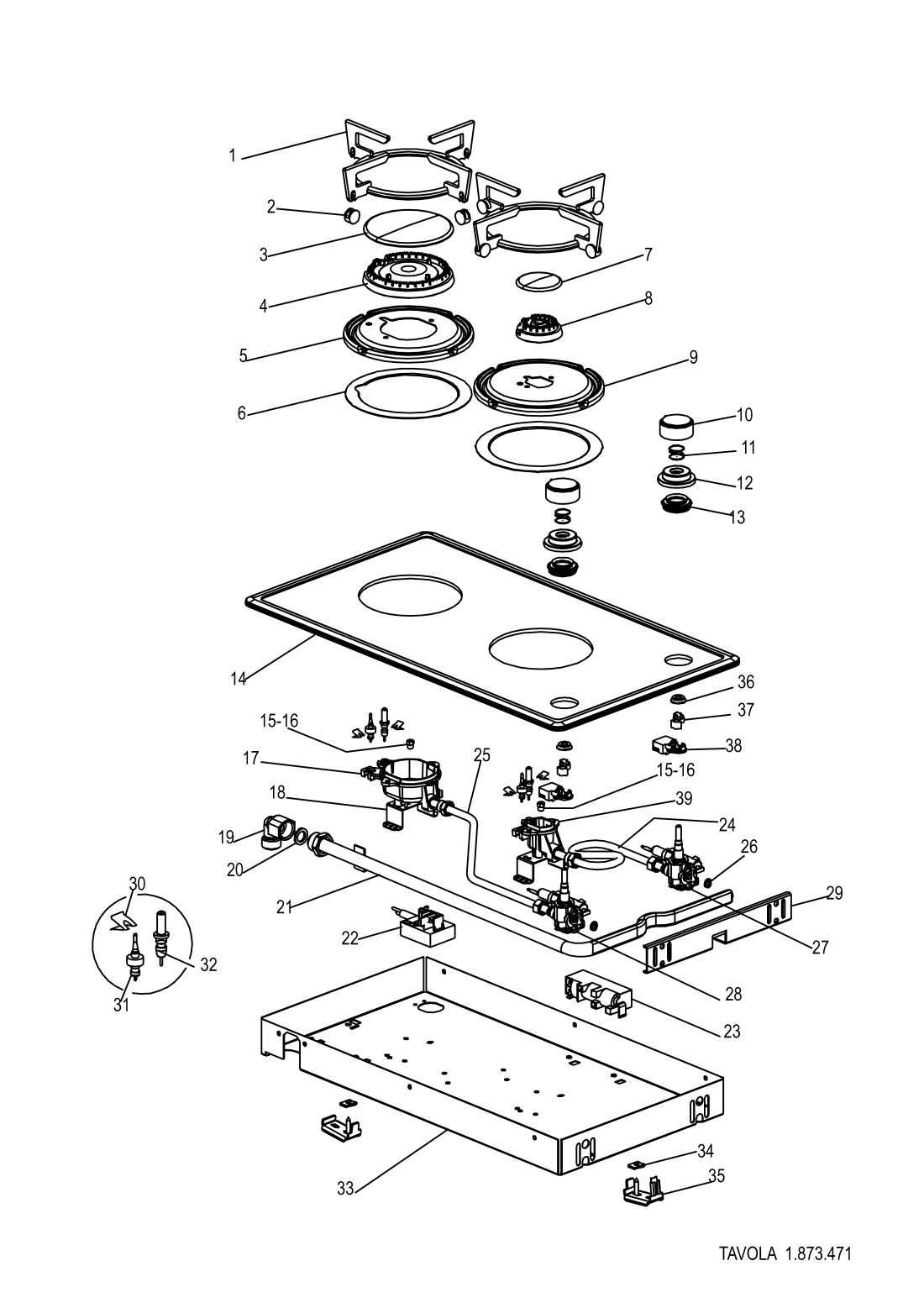

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1.873.471 |
C00267250
488000267250 |
MŘÍŽKA 1 HOŘÁK | Na dotaz | Zadat poptávku | |
| 002 1.873.471 |
C00267249
482000009472 |
RUBBER BUFFER - PAN GRID | Na dotaz | Zadat poptávku | |
| 003 1.873.471 |
C00267213 | KRYT HOŘÁKU RYCHLÉHO | Na dotaz | Zadat poptávku | |
| 004 1.873.471 |
C00267236
488000267236 |
HOŘÁK RYCHLÝ | Na dotaz | Zadat poptávku | |
| 005 1.873.471 |
C00267253 | KRYT HOŘÁK RYCHLÝ | Na dotaz | Zadat poptávku | |
| 006 1.873.471 |
C00057200
482000009471 |
GASKET CUP PLANES | Na dotaz | Zadat poptávku | |
| 007 1.873.471 |
C00267212
482000086115 |
KRYT HOŘÁKU POM. | Na dotaz | Zadat poptávku | |
| 008 1.873.471 |
C00267235
488000267235 |
HOŘÁK POMOCNÝ | Na dotaz | Zadat poptávku | |
| 009 1.873.471 |
C00267252 | KRYT HOŘÁK POMOC. | Na dotaz | Zadat poptávku | |
| 010 1.873.471 |
C00267160
482000086108 |
OVLADAČ NEREZ | Na dotaz | Zadat poptávku | |
| 011 1.873.471 |
C00267162
482000086110 |
PRUŽINA KOTOUČE OVLADAČE | Na dotaz | Zadat poptávku | |
| 012 1.873.471 |
C00267164
482000086111 |
DISK PODOVLADAČ INOX | Na dotaz | Zadat poptávku | |
| 013 1.873.471 |
C00057168
480121102434 |
KNOB DISC GAS BURNERS BLACK | Na dotaz | Zadat poptávku | |
| 014 1.873.471 |
C00270554
482000055944 |
PLOCHA SKLO DZ 2VS (IX) | Na dotaz | Zadat poptávku | |
| 015 1.873.471 |
C00267219
481231038825 |
TRYSKA D=50 GPL | Na dotaz | Zadat poptávku | |
| 015 1.873.471 |
C00267218
481231038826 |
TRYSKA D= 87 GPL | Na dotaz | Zadat poptávku | |
| 016 1.873.471 |
C00267215
481231038823 |
TRYSKA D= 77 GN | Na dotaz | Zadat poptávku | |
| 016 1.873.471 |
C00267216
481231038824 |
TRYSKA D= 129 GN | Na dotaz | Zadat poptávku | |
| 017 1.873.471 |
C00267234 | KRYT HOŘÁK RYCHLÝ | Na dotaz | Zadat poptávku | |
| 018 1.873.471 |
C00267248 | FLASK DOMINO | Na dotaz | Zadat poptávku | |
| 019 1.873.471 |
C00057210
488000057210 |
GAS PIPE ELBOW 1/2" GAS | Na dotaz | Zadat poptávku | |
| 020 1.873.471 |
C00057243
482000090701 |
SEALING WASHER-GAS ELBOW/PIPE | Na dotaz | Zadat poptávku | |
| 021 1.873.471 |
C00113523
482000021792 |
MAIN GAS PIPE MG32S | Na dotaz | Zadat poptávku | |
| 022 1.873.471 |
C00113498 | TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 023 1.873.471 |
C00081715
480121102446 |
SPARK IGNITION TRANSFORMER | Na dotaz | Zadat poptávku | |
| 024 1.873.471 |
C00267206
482000021793 |
SEMI-RAPID BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 025 1.873.471 |
C00267207
482000021794 |
REAR BURNER SUPPLY PIPE DOMINO | Na dotaz | Zadat poptávku | |
| 026 1.873.471 |
C00045282
482000063139 |
GASKET FOR NOZZLE WITH VALVE | Na dotaz | Zadat poptávku | |
| 027 1.873.471 |
C00267241 | BURNER TAP BY-PASS 0,34 | Na dotaz | Zadat poptávku | |
| 028 1.873.471 |
C00267242 | BURNER TAP BY-PASS 0,43 | Na dotaz | Zadat poptávku | |
| 029 1.873.471 |
C00113521 | TAP FIXING PLATE DOMINO | Na dotaz | Zadat poptávku | |
| 030 1.873.471 |
C00267205
481244048355 |
SPRING | Na dotaz | Zadat poptávku | |
| 031 1.873.471 |
C00267240
482000091015 |
TERMOČLÁNEK DLOUHÝ 600 MM | Na dotaz | Zadat poptávku | |
| 032 1.873.471 |
C00267221
482000030844 |
ZAPALOVACÍ SVÍČKA VARNÉ DESKY H30 D=500 | Na dotaz | Zadat poptávku | |
| 033 1.873.471 |
C00113522 | BASE COVER 2F | Na dotaz | Zadat poptávku | |
| 034 1.873.471 |
C00045235
481231038832 |
spona | Na dotaz | Zadat poptávku | |
| 035 1.873.471 |
C00113469
481240478832 |
FIXING BRACKET | Na dotaz | Zadat poptávku | |
| 036 1.873.471 |
C00113507 | REDUCER SPACER MICRO DOMINO SCHOLT | Na dotaz | Zadat poptávku | |
| 037 1.873.471 |
C00113509 | AUTO-LOCKING MICRO | Na dotaz | Zadat poptávku | |
| 038 1.873.471 |
C00113511
482000079934 |
IGNITION MICROSWITCH 2 DOMINO | Na dotaz | Zadat poptávku | |
| 038 1.873.471 |
C00279603
482000031453 |
IGNITION MICROSWITCH 2 DOMINO | Na dotaz | Zadat poptávku | |
| 039 1.873.471 |
C00267233
488000267233 |
KRYT HOŘÁK POMOC. | Na dotaz | Zadat poptávku | |
