| Komerční kód: | DZ F (IX) |
| Kód 12NC: | 869990529330 |
| I.C. kód: | AQ529330000 |
| Značka: | ARISTON |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

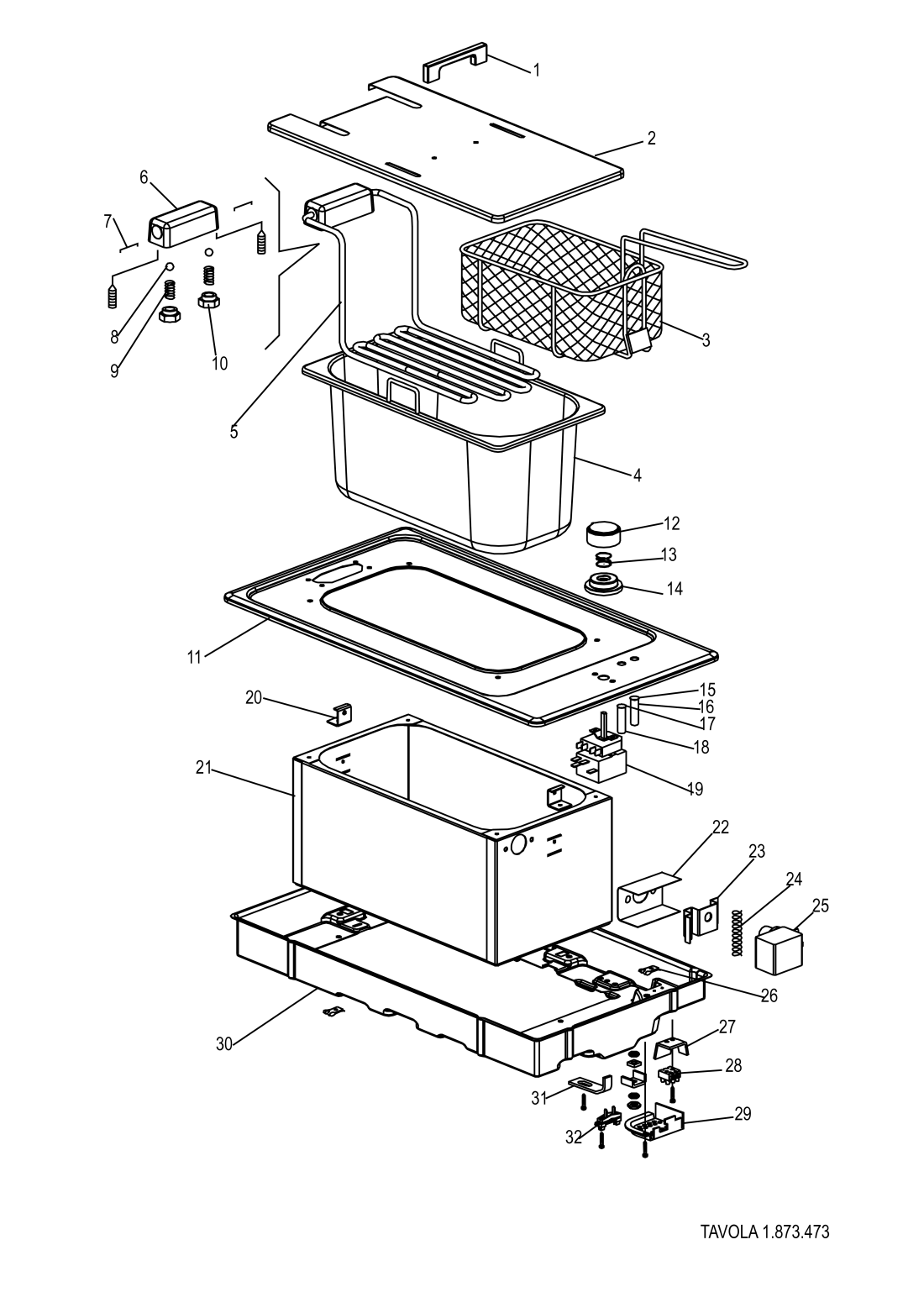

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1.873.473 |
C00267571 | MADLO | Na dotaz | Zadat poptávku | |
| 002 1.873.473 |
C00267564 | LID - OIL PAN | Na dotaz | Zadat poptávku | |
| 003 1.873.473 |
C00045344 | FRYER WIRE BASKET | Na dotaz | Zadat poptávku | |
| 004 1.873.473 |
C00045342
482000074216 |
FRYER OIL PAN | Na dotaz | Zadat poptávku | |
| 005 1.873.473 |
C00045346 | FRYER HEATING ELEMENT 230V | Na dotaz | Zadat poptávku | |
| 006 1.873.473 |
C00045337 | SUPPORT - HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 007 1.873.473 |
C00045347 | "U" WIRE SPRING - HINGE | Na dotaz | Zadat poptávku | |
| 008 1.873.473 |
C00045341 | BALL - ELEMENT HINGE (HCR 58-65) | Na dotaz | Zadat poptávku | |
| 009 1.873.473 |
C00045339 | COIL SPRING - ELEMENT HINGE | Na dotaz | Zadat poptávku | |
| 010 1.873.473 |
C00045338 | SPRING CAP(HEX)-ELEMENT HINGE | Na dotaz | Zadat poptávku | |
| 011 1.873.473 |
C00270591 | TOP PLATE - STAINLESS | Na dotaz | Zadat poptávku | |
| 012 1.873.473 |
C00267566 | OVLADAČ NEREZ | Na dotaz | Zadat poptávku | |
| 013 1.873.473 |
C00267162
482000086110 |
PRUŽINA KOTOUČE OVLADAČE | Na dotaz | Zadat poptávku | |
| 014 1.873.473 |
C00267164
482000086111 |
DISK PODOVLADAČ INOX | Na dotaz | Zadat poptávku | |
| 015 1.873.473 |
C00081749
482000055909 |
PILOT LAMP LENS | Na dotaz | Zadat poptávku | |
| 016 1.873.473 |
C00045302
482000026555 |
INDICATOR LIGHT | Na dotaz | Zadat poptávku | |
| 017 1.873.473 |
C00045314
481225518272 |
LIGHT LENS - GREEN | Na dotaz | Zadat poptávku | |
| 018 1.873.473 |
C00081782
482000063142 |
KONTROLKA BÍLÁ 'MENEGHETTI' | Na dotaz | Zadat poptávku | |
| 019 1.873.473 |
C00081783
482000072318 |
OPERATING THERMOSTAT + SWITCH | Na dotaz | Zadat poptávku | |
| 020 1.873.473 |
C00045335 | BOTTOM SUPPORT - CASING | Na dotaz | Zadat poptávku | |
| 021 1.873.473 |
C00045334 | OUTER CASING - OIL PAN | Na dotaz | Zadat poptávku | |
| 022 1.873.473 |
C00045351 | INSULATING CASING - THERMOSTAT | Na dotaz | Zadat poptávku | |
| 023 1.873.473 |
C00045336 | SUPPORT BRACKET - THERMOSTAT | Na dotaz | Zadat poptávku | |
| 024 1.873.473 |
C00045350 | RETAINING COIL-T/STAT CAPLLARY | Na dotaz | Zadat poptávku | |
| 025 1.873.473 |
C00045349
482000074218 |
SAFETY THERMOSTAT | Na dotaz | Zadat poptávku | |
| 026 1.873.473 |
C00045235
481231038832 |
spona | Na dotaz | Zadat poptávku | |
| 027 1.873.473 |
C00045332 | INSULATION PLATE - TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 028 1.873.473 |
C00045324
481229068289 |
TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 029 1.873.473 |
C00045322
481229068292 |
COVER - TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 030 1.873.473 |
C00045331 | BASE COVER TRAY | Na dotaz | Zadat poptávku | |
| 031 1.873.473 |
C00081752
482000076745 |
PLATE CLAMP HOBS | Na dotaz | Zadat poptávku | |
| 032 1.873.473 |
C00045323 | CABLE CLAMP | Na dotaz | Zadat poptávku | |
