BAUKNECHT ECSK7 9845 PT
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ECSK7 9845 PT |
| Kód 12NC: | 858979801900 |
| I.C. kód: | 758979801900 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 858979801900, 758979801901 |
Potřebujete servis? Jsme tady pro Vás

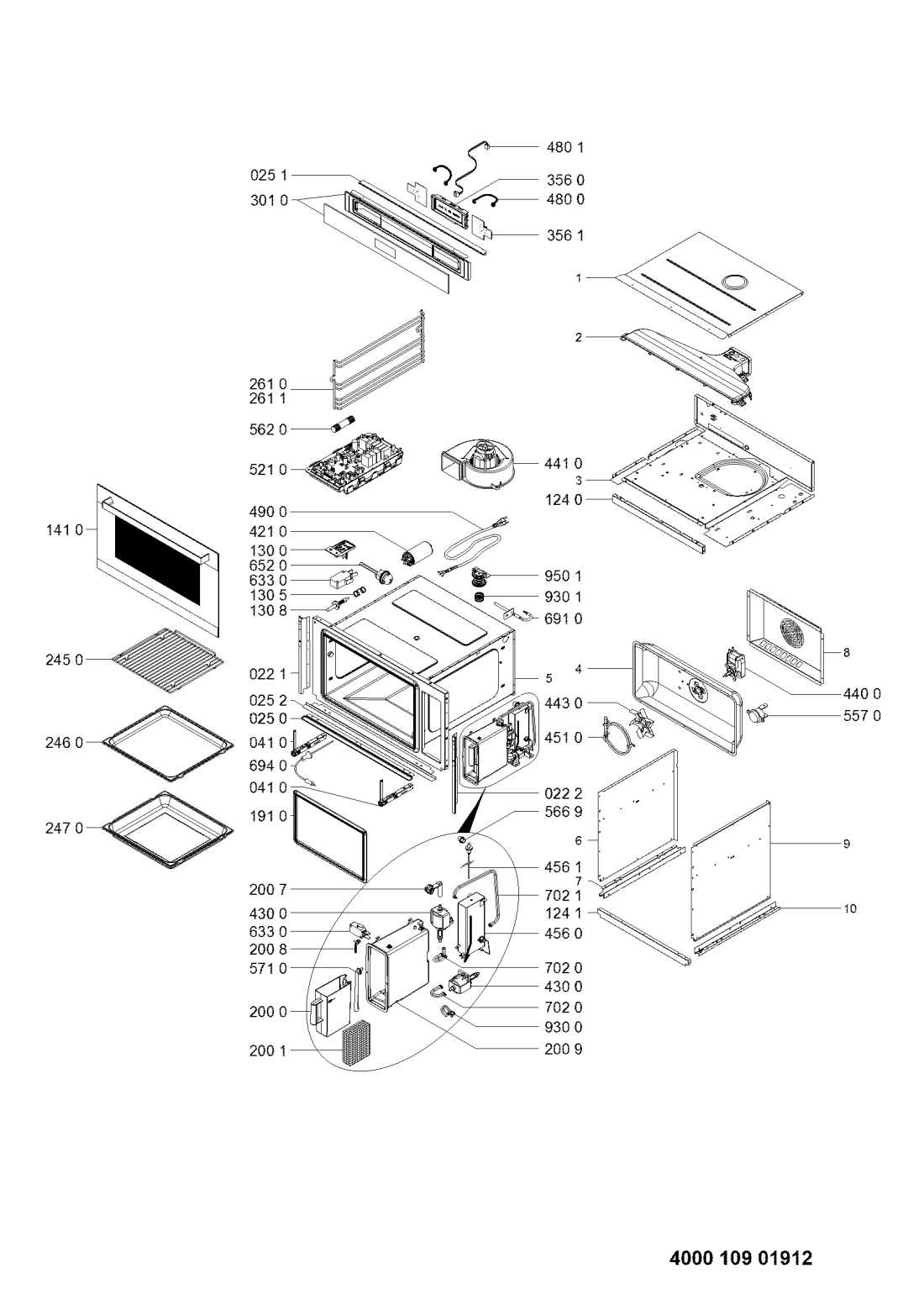

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0221 WHR06745 |
C00321529
480123100299 |
Trim lateral left | Na dotaz | Zadat poptávku | |
| 0222 WHR06745 |
C00321528
480123100298 |
Trim lateral right | Na dotaz | Zadat poptávku | |
| 0250 WHR06745 |
C00383077
481068972371 |
Trim Shelf BL SAUNA | Na dotaz | Zadat poptávku | |
| 0251 WHR06745 |
C00317554
480120100539 |
Profile ventilator | Na dotaz | Zadat poptávku | |
| 0252 WHR06745 |
C00321732
480120101582 |
Lišta spodní | 484 Kč
€ 19.90 |
||
| 0410 WHR06745 |
C00332138
481250218782 |
Screw | 211 Kč
€ 8.70 |
||
| 0410 WHR06745 |
C00383071
481010760845 |
Hinge SAUNA 450 KA VBL | Na dotaz | Zadat poptávku | |
| 1240 WHR06745 |
C00321530
480123100301 |
Vapour catcher (FRONT EXTENSION BOTTOM) | Na dotaz | Zadat poptávku | |
| 1241 WHR06745 |
C00382862
481068973691 |
Grid VENT 450 SAUNA | Na dotaz | Zadat poptávku | |
| 1300 WHR06745 |
C00321524
480123100293 |
Bracket door switch | Na dotaz | Zadat poptávku | |
| 1305 WHR06745 |
C00322402
480121104016 |
Spring | Na dotaz | Zadat poptávku | |
| 1308 WHR06745 |
C00321525
480123100294 |
Pin door switch | Na dotaz | Zadat poptávku | |
| 1410 WHR06745 |
C00495518
481010901914 |
Door cpl. SAUNA BK CORE+ KITCHEN AF | Na dotaz | Zadat poptávku | |
| 1910 WHR06745 |
C00322280
480121103392 |
Těsnění dveří trouby | 2 160 Kč
€ 88.60 |
||
| 2000 WHR06745 |
C00321517
480123100285 |
Nádoba na vodu | 3 681 Kč
€ 151.00 |
||
| 2001 WHR06745 |
C00322441
480121104258 |
Sponge not shown | Na dotaz | Zadat poptávku | |
| 2007 WHR06745 |
C00321520
480123100288 |
Tube connection Sauna | Na dotaz | Zadat poptávku | |
| 2008 WHR06745 |
C00321518
480123100286 |
Sensor water | Na dotaz | Zadat poptávku | |
| 2009 WHR06745 |
C00321519
480123100287 |
Guide water tank | Na dotaz | Zadat poptávku | |
| 2450 WHR06745 |
C00325224
481010558232 |
Rošt trouby | 1 877 Kč
€ 77.00 |
||
| 2460 WHR06745 |
C00325222
481010558224 |
plech mělký SAUNA W | 1 501 Kč
€ 61.60 |
||
| 2470 WHR06745 |
C00325223
481010558226 |
Plech - perforovaný | 2 379 Kč
€ 97.60 |
||
| 2610 WHR06745 |
C00321516
480123100284 |
Insert grid left | Na dotaz | Zadat poptávku | |
| 2611 WHR06745 |
C00321515
480123100283 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 3010 WHR06745 |
C00386847
481010823914 |
CONTROL PANEL GLASS NAVIG PREM BIO | Na dotaz | Zadat poptávku | |
| 3560 WHR06745 |
C00507951
481010874368 |
DISPLAY BOARD NAVIGATOR TIANMA WH FT FC | Na dotaz | Zadat poptávku | |
| 3560 WHR06745 |
C00629481
488000629481 |
DISPLAY BOARD NAVIGATOR TIANMA WH FT FC | Na dotaz | Zadat poptávku | |
| 3560,3010 WHR06745 |
C00386905
481010842529 |
CONTROL PANEL ASSY GLASS NAVIG PREM BIO | Na dotaz | Zadat poptávku | |
| 3561 WHR06745 |
C00314591
480121102685 |
Control unit assembly | Na dotaz | Zadat poptávku | |
| 4210 WHR06745 |
C00316062
481212208003 |
Filtr odrušovací | 1 624 Kč
€ 66.60 |
||
| 4210 WHR06745 |
C00941274
488000941274 |
ANTI-INTERFERENCE (EMI) FILTER no nut | Na dotaz | Zadat poptávku | |
| 4300 WHR06745 |
C00325511
481068979381 |
Pump KIT 22W 230V/50Hz | Na dotaz | Zadat poptávku | |
| 4400 WHR06745 |
C00313819
480120100529 |
motor ventilátoru horkovzduchu mikrovlnné trouby | Na dotaz | Zadat poptávku | |
| 4400 WHR06745 |
C00859616
488000859616 |
Motor FC OSM-15149C2 | Na dotaz | Zadat poptávku | |
| 4410 WHR06745 |
C00386906
481068974051 |
Motor fan SAUNA | Na dotaz | Zadat poptávku | |
| 4430 WHR06745 |
C00321514
480123100282 |
Vrtule ventilátoru | 929 Kč
€ 38.10 |
||
| 4510 WHR06745 |
C00321573
480120100773 |
Topení horkovduchu 1400W/230V | 2 204 Kč
€ 90.40 |
||
| 4560 WHR06745 |
C00320100
480121103385 |
Boiler steamer 1400W | Na dotaz | Zadat poptávku | |
| 4561 WHR06745 |
C00382920
481067015221 |
Water level Probe SAUNA | Na dotaz | Zadat poptávku | |
| 4800 WHR06745 |
C00382861
481068967651 |
Cable harness flat RAST2.5 C1/2 5pol L80 | Na dotaz | Zadat poptávku | |
| 4801 WHR06745 |
C00382922
481068969481 |
Control harnessFLAT R2.5 C4/5 R2.5 5-POL | Na dotaz | Zadat poptávku | |
| 4900 WHR06745 |
C00322277
480121103383 |
Cable mains SA | Na dotaz | Zadat poptávku | |
| 5210 WHR06745 |
C00323942
481010350766 |
Control board 230V/50Hz STEAM/FC S | Na dotaz | Zadat poptávku | |
| 5570 WHR06745 |
C00327562
481228248254 |
TERMOSTAT 145°C | Na dotaz | Zadat poptávku | |
| 5620 WHR06745 |
C00311937
481925228125 |
Pojistka 10A L | 152 Kč
€ 6.20 |
||
| 5669 WHR06745 |
C00321523
480123100292 |
Gasket diffusor outlet | Na dotaz | Zadat poptávku | |
| 5710 WHR06745 |
C00321521
480123100289 |
Pipe water Sauna | Na dotaz | Zadat poptávku | |
| 6330 WHR06745 |
C00314456
480120100814 |
Mikrospínač | 125 Kč
€ 5.10 |
||
| 6520 WHR06745 |
C00322281
480121103393 |
Osvětlení komplet | 912 Kč
€ 37.40 |
||
| 6910 WHR06745 |
C00316169
480121103384 |
Sensor cavity | Na dotaz | Zadat poptávku | |
| 6940 WHR06745 |
C00324394
481010460412 |
Probe FOOD | Na dotaz | Zadat poptávku | |
| 6940 WHR06745 |
C00324395
481010460414 |
Jack FOOD, SAUNA | Na dotaz | Zadat poptávku | |
| 7020,7021 WHR06745 |
C00321522
480123100291 |
Tube silicon L470 D6 SAUNA | Na dotaz | Zadat poptávku | |
| 9300 WHR06745 |
C00382923
481071300007 |
Clamp FZB 9.8x10.4 MATTSSONS not shown | Na dotaz | Zadat poptávku | |
| 9301 WHR06745 |
C00321527
480123100297 |
Spring airflow | Na dotaz | Zadat poptávku | |
| 9501 WHR06745 |
C00321526
480123100296 |
Gasket airflow | Na dotaz | Zadat poptávku | |
