BAUKNECHT ED 2842/2 BR LI ED 2842/2 BR/LI-CH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ED 2842/2 BR LI ED 2842/2 BR/LI-CH |
| Kód 12NC: | 855002216210 |
| I.C. kód: | 855002216211 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 855002216210 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

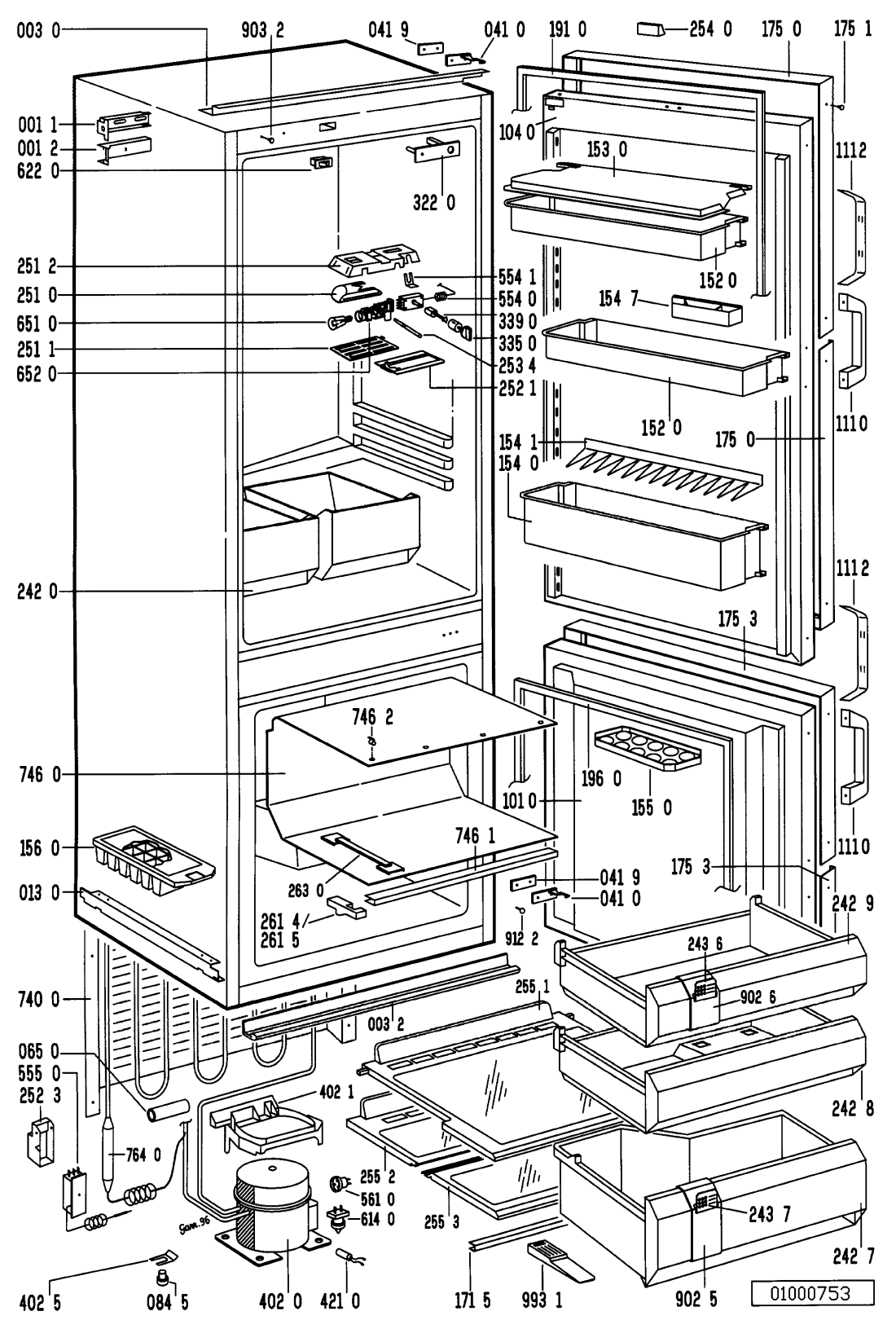

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR97976 |
C00329697
481241718765 |
PRICHYTKA | Na dotaz | Zadat poptávku | |
| 001 2 WHR97976 |
C00553724
481246278324 |
Cover f. fastener square.. | Na dotaz | Zadat poptávku | |
| 003 0 WHR97976 |
C00553712
481246088198 |
Trim, cover.. | Na dotaz | Zadat poptávku | |
| 003 2 WHR97976 |
C00488717
481240448158 |
Batten | Na dotaz | Zadat poptávku | |
| 013 0 WHR97976 |
C00491936
481246278222 |
Foot trim | Na dotaz | Zadat poptávku | |
| 041 0 WHR97976 |
C00490239
481253268033 |
Hinge upper/lower KIT | Na dotaz | Zadat poptávku | |
| 041 9 WHR97976 |
C00589750
481240448147 |
Holder adjust. | Na dotaz | Zadat poptávku | |
| 065 0 WHR97976 |
C00585179
481946698521 |
Insulation ,white.. | Na dotaz | Zadat poptávku | |
| 084 5 WHR97976 |
C00555629
481252918037 |
BUFFER PIECE COMPRESSO.. | Na dotaz | Zadat poptávku | |
| 101 0 WHR97976 |
C00528023
481244028583 |
Door foamed foamed | Na dotaz | Zadat poptávku | |
| 104 0 WHR97976 |
C00752844
481244028584 |
Door foamed | Na dotaz | Zadat poptávku | |
| 111 0 WHR97976 |
C00487802
481249868093 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 2 WHR97976 |
C00487696
481246048077 |
DOOR HANDLE INSERT BROWN | Na dotaz | Zadat poptávku | |
| 152 0 WHR97976 |
C00555242
481241848282 |
Door,dairy.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR97976 |
C00555337
481244098023 |
LID.. | Na dotaz | Zadat poptávku | |
| 154 0 WHR97976 |
C00555244
481241848324 |
Bottle shelf.. | Na dotaz | Zadat poptávku | |
| 154 1 WHR97976 |
C00589828
481241848204 |
Bottle holder. | Na dotaz | Zadat poptávku | |
| 154 7 WHR97976 |
C00527896
481241878005 |
Separator | Na dotaz | Zadat poptávku | |
| 155 0 WHR97976 |
C00339533
481946088503 |
Holder, eggs f. 7 eggs | Na dotaz | Zadat poptávku | |
| 156 0 WHR97976 |
C00287849
481941878977 |
miska na led | 180 Kč
€ 7.40 |
||
| 171 5 WHR97976 |
C00485856
481246048099 |
Trim cover f. shelf plate glass | Na dotaz | Zadat poptávku | |
| 175 0 WHR97976 |
C00590004
481246058254 |
Trim ornamental upper/lower. | Na dotaz | Zadat poptávku | |
| 175 1 WHR97976 |
C00495529
481990302939 |
Screw | Na dotaz | Zadat poptávku | |
| 175 3 WHR97976 |
C00590003
481246058253 |
Trim ornamental upper/lower. | Na dotaz | Zadat poptávku | |
| 191 0 WHR97976 |
C00553732
481246668455 |
Gasket, door.. | Na dotaz | Zadat poptávku | |
| 196 0 WHR97976 |
C00490131
481246668454 |
Gasket, door | Na dotaz | Zadat poptávku | |
| 242 0 WHR97976 |
C00386371
481241848335 |
CRISPER BIGbig | Na dotaz | Zadat poptávku | |
| 242 7 WHR97976 |
C00553686
481245818051 |
DRAWER LOWER.. | Na dotaz | Zadat poptávku | |
| 242 8 WHR97976 |
C00529521
481245818074 |
DRAWER MIDDLE middle | Na dotaz | Zadat poptávku | |
| 242 9 WHR97976 |
C00529520
481245818073 |
DRAWER UPPER upper | Na dotaz | Zadat poptávku | |
| 243 6 WHR97976 |
C00493588
481246048103 |
Calendar upper + middle | Na dotaz | Zadat poptávku | |
| 243 7 WHR97976 |
C00589994
481246048098 |
Calendar lower. | Na dotaz | Zadat poptávku | |
| 251 0 WHR97976 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR97976 |
C00320080
481946279556 |
kryt dif | 434 Kč
€ 17.80 |
||
| 251 2 WHR97976 |
C00555241
481241848248 |
LAMPHOLDER.. | Na dotaz | Zadat poptávku | |
| 252 1 WHR97976 |
C00318922
481946279617 |
kryt | 17 Kč
€ 0.70 |
||
| 252 3 WHR97976 |
C00590012
481246278056 |
Cover thermost.. | Na dotaz | Zadat poptávku | |
| 253 4 WHR97976 |
C00344554
481953598273 |
spinac osvetl.tycka Náhrada 481227618525 |
Na dotaz | Zadat poptávku | |
| 254 0 WHR97976 |
C00555475
481245918116 |
SHIELD CPL... | Na dotaz | Zadat poptávku | |
| 255 1 WHR97976 |
C00553693
481245818339 |
Shelf plate.. | Na dotaz | Zadat poptávku | |
| 255 2 WHR97976 |
C00485817
481245818342 |
Shelf plate rear glass | Na dotaz | Zadat poptávku | |
| 255 3 WHR97976 |
C00485816
481245818341 |
Shelf plate front glass | Na dotaz | Zadat poptávku | |
| 261 4 WHR97976 |
C00491962
481246698015 |
Fixation ri.f.basket | Na dotaz | Zadat poptávku | |
| 261 5 WHR97976 |
C00379258
481246698013 |
Fixation le.f.basket | Na dotaz | Zadat poptávku | |
| 263 0 WHR97976 |
C00336947
481240448582 |
Rail | Na dotaz | Zadat poptávku | |
| 322 0 WHR97976 |
C00341930
481945298449 |
Panel f. thermostat | Na dotaz | Zadat poptávku | |
| 335 0 WHR97976 |
C00338417
481941249139 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 339 0 WHR97976 |
C00333350
481953598347 |
Shaft thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR97976 |
C00555864
481936038691 |
Compressor.. | Na dotaz | Zadat poptávku | |
| 402 1 WHR97976 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 402 5 WHR97976 |
C00333135
481946689405 |
PRICHYTKA | 53 Kč
€ 2.20 |
||
| 421 0 WHR97976 |
C00584887
481212118148 |
CAPACITOR. | Na dotaz | Zadat poptávku | |
| 554 0 WHR97976 |
C00481514
481227128199 |
THERMOSTAT K59-L1233 K59-L1233 | Na dotaz | Zadat poptávku | |
| 554 1 WHR97976 |
C00333185
481949268723 |
pruzina | 248 Kč
€ 10.20 |
||
| 555 0 WHR97976 |
C00589722
481227128207 |
Thermostat heating. | Na dotaz | Zadat poptávku | |
| 561 0 WHR97976 |
C00620498
481928228701 |
Protect motor. | Na dotaz | Zadat poptávku | |
| 614 0 WHR97976 |
C00621544
481928238031 |
RELE PTC-1260001 | Na dotaz | Zadat poptávku | |
| 622 0 WHR97976 |
C00491143
481227718008 |
SWITCH,DOUBLE | Na dotaz | Zadat poptávku | |
| 651 0 WHR97976 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR97976 |
C00554906
481225518037 |
NAHRADA 481925518199 | Na dotaz | Zadat poptávku | |
| 740 0 WHR97976 |
C00590076
481251148186 |
CONDENSER. | Na dotaz | Zadat poptávku | |
| 746 0 WHR97976 |
C00590040
481251138089 |
EVAPORATOR. | Na dotaz | Zadat poptávku | |
| 746 1 WHR97976 |
C00590008
481246238031 |
Front trim. | Na dotaz | Zadat poptávku | |
| 746 2 WHR97976 |
C00313479
481240448567 |
Fastener evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR97976 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 902 5 WHR97976 |
C00529643
481246088188 |
HOLDER LOWER lower | Na dotaz | Zadat poptávku | |
| 902 6 WHR97976 |
C00491900
481246088189 |
Holder upper+interm. | Na dotaz | Zadat poptávku | |
| 903 2 WHR97976 |
C00335993
481246278201 |
Stopper with point | Na dotaz | Zadat poptávku | |
| 912 2 WHR97976 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 993 1 WHR97976 |
C00336349
481939578011 |
skrabka na led náhrada 481244098184 | Na dotaz | Zadat poptávku | |
| 999 WHR97976 |
C00768640 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
