BAUKNECHT ELZG 1480/1 BR
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ELZG 1480/1 BR |
| Kód 12NC: | 855642801510 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

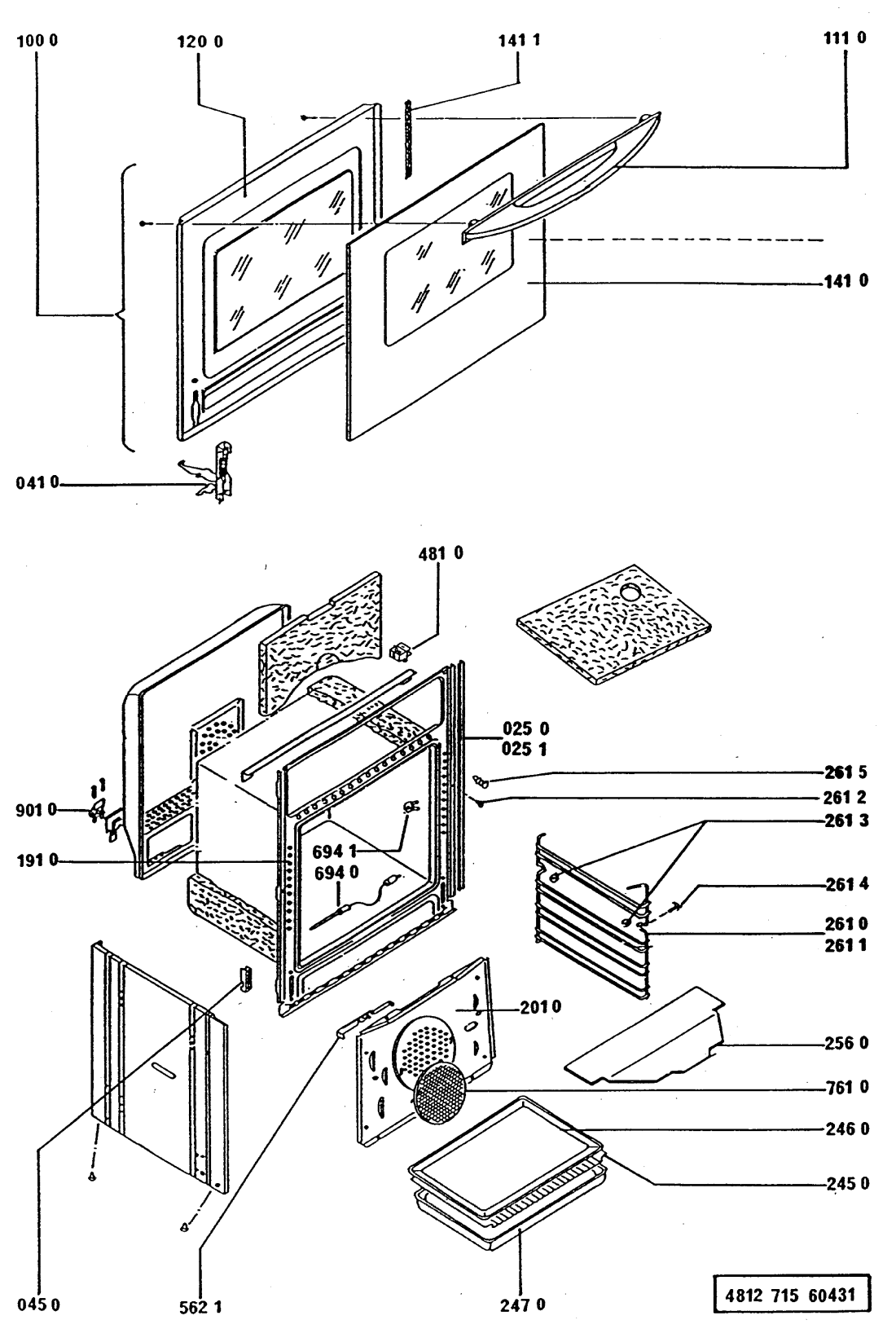

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 041 0 WHR116263 |
C00754738
481241718089 |
Hinge door | Na dotaz | Zadat poptávku | |
| 045 0 WHR116263 |
C00754739
481241718073 |
Hinge Bearing | Na dotaz | Zadat poptávku | |
| 100 0 WHR116263 |
C00754740
481244038269 |
Oven door cpl. | Na dotaz | Zadat poptávku | |
| 111 0 WHR116263 |
C00487750
481249818048 |
Handle door | Na dotaz | Zadat poptávku | |
| 120 0 WHR116263 |
C00754741
481244038748 |
Door inner | Na dotaz | Zadat poptávku | |
| 141 0 WHR116263 |
C00754742
481245068083 |
Oven glass | Na dotaz | Zadat poptávku | |
| 141 1 WHR116263 |
C00754743
481246668443 |
Gasket border | Na dotaz | Zadat poptávku | |
| 191 0 WHR116263 |
C00754744
481246668142 |
tesneni dveri trouby | 1 565 Kč
€ 68.80 |
||
| 201 0 WHR116263 |
C00754745
481244058129 |
Air guide | Na dotaz | Zadat poptávku | |
| 245 0 WHR116263 |
C00754746
481241838012 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR116263 |
C00754747
481241838013 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR116263 |
C00754748
481241858004 |
Fat pan | Na dotaz | Zadat poptávku | |
| 251 0 WHR116263 |
C00754749
481245028002 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 256 0 WHR116263 |
C00754750
481244038739 |
Knob protection | Na dotaz | Zadat poptávku | |
| 256 1 WHR116263 |
C00754751
481250238055 |
Screw | Na dotaz | Zadat poptávku | |
| 261 0 WHR116263 |
C00754752
481245848015 |
Grille left | Na dotaz | Zadat poptávku | |
| 261 1 WHR116263 |
C00529547
481245848006 |
GRILLE RIGHT right | Na dotaz | Zadat poptávku | |
| 261 2 WHR116263 |
C00754753
481246698026 |
Spacer | Na dotaz | Zadat poptávku | |
| 261 3 WHR116263 |
C00754754
481250518012 |
Nut | Na dotaz | Zadat poptávku | |
| 261 4 WHR116263 |
C00492020
481250218061 |
Bolt | Na dotaz | Zadat poptávku | |
| 261 5 WHR116263 |
C00754755
481244088089 |
Stopper | Na dotaz | Zadat poptávku | |
| 301 0 WHR116263 |
C00754756
481246448057 |
Control panel | Na dotaz | Zadat poptávku | |
| 320 0 WHR116263 |
C00754757
481245238166 |
Cover transpar. | Na dotaz | Zadat poptávku | |
| 320 1 WHR116263 |
C00754758
481246668403 |
Cover protect. | Na dotaz | Zadat poptávku | |
| 324 0 WHR116263 |
C00754759
481246468001 |
Trim upper | Na dotaz | Zadat poptávku | |
| 334 0 WHR116263 |
C00754760
481241358168 |
Knob | Na dotaz | Zadat poptávku | |
| 341 0 WHR116263 |
C00754761
481241378445 |
Indication disc 2 zones | Na dotaz | Zadat poptávku | |
| 341 1 WHR116263 |
C00754762
481241378444 |
Indication disc energy regulator | Na dotaz | Zadat poptávku | |
| 341 2 WHR116263 |
C00754763
481241378446 |
Indication disc oven switch | Na dotaz | Zadat poptávku | |
| 341 3 WHR116263 |
C00754764
481241378443 |
Indication disc thermostat | Na dotaz | Zadat poptávku | |
| 354 0 WHR116263 |
C00754765
481213428018 |
Pilot lamp red | Na dotaz | Zadat poptávku | |
| 360 0 WHR116263 |
C00754766
481228218052 |
Autotimer | Na dotaz | Zadat poptávku | |
| 361 0 WHR116263 |
C00754767
481241318004 |
Knob timeswitch | Na dotaz | Zadat poptávku | |
| 361 1 WHR116263 |
C00754768
481241318079 |
Knob timeswitch | Na dotaz | Zadat poptávku | |
| 361 2 WHR116263 |
C00754769
481241318054 |
Knob timeswitch | Na dotaz | Zadat poptávku | |
| 440 0 WHR116263 |
C00754770
481236118179 |
Motor fan | Na dotaz | Zadat poptávku | |
| 440 1 WHR116263 |
C00754771
481251528015 |
Fan wheel motor D 120 | Na dotaz | Zadat poptávku | |
| 440 2 WHR116263 |
C00754772
481253218037 |
Spacer fan motor | Na dotaz | Zadat poptávku | |
| 443 0 WHR116263 |
C00754773
481251528026 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 451 0 WHR116263 |
C00373673
481225928106 |
Heat.elem. 2400W-230V 1R08151001 | Na dotaz | Zadat poptávku | |
| 452 0 WHR116263 |
C00754774
481225928202 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 454 0 WHR116263 |
C00754775
481225928057 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 481 0 WHR116263 |
C00754776
481226818009 |
Bushing | Na dotaz | Zadat poptávku | |
| 491 0 WHR116263 |
C00754777
481929068149 |
Terminal block | Na dotaz | Zadat poptávku | |
| 522 0 WHR116263 |
C00527018
481227318048 |
ENERGY REGULAT. 2-ZONE 2-zone | Na dotaz | Zadat poptávku | |
| 523 0 WHR116263 |
C00754778
481227328131 |
Regulator | Na dotaz | Zadat poptávku | |
| 523 1 WHR116263 |
C00754779
481227318002 |
Energy Regulat. double | Na dotaz | Zadat poptávku | |
| 554 0 WHR116263 |
C00754780
481227128189 |
Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR116263 |
C00754781
481228237014 |
Thermostat cavity | Na dotaz | Zadat poptávku | |
| 562 1 WHR116263 |
C00754782
481240478091 |
Holder | Na dotaz | Zadat poptávku | |
| 620 0 WHR116263 |
C00754783
481227328034 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR116263 |
C00754784
481227328129 |
Switch,rotary | Na dotaz | Zadat poptávku | |
| 650 0 WHR116263 |
C00526806
481213488007 |
LAMP,OVEN CPL. cpl. | Na dotaz | Zadat poptávku | |
| 650 1 WHR116263 |
C00754785
481225518032 |
Lamp oven lateral cpl. | Na dotaz | Zadat poptávku | |
| 650 2 WHR116263 |
C00754786
481246228019 |
Lid lamp | Na dotaz | Zadat poptávku | |
| 651 0 WHR116263 |
C00754787
481213488013 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 653 0 WHR116263 |
C00754788
481213448023 |
Lamp f. disk | Na dotaz | Zadat poptávku | |
| 653 1 WHR116263 |
C00754789
481238028015 |
Cover | Na dotaz | Zadat poptávku | |
| 694 0 WHR116263 |
C00748092
481921078018 |
Probe | Na dotaz | Zadat poptávku | |
| 694 1 WHR116263 |
C00754790
481228268005 |
Bushing | Na dotaz | Zadat poptávku | |
| 761 0 WHR116263 |
C00754791
481248058037 |
Filter,grease | Na dotaz | Zadat poptávku | |
| 901 0 WHR116263 |
C00754792
481229088014 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 915 0 WHR116263 |
C00754793
481250518013 |
Nut fan wheel | Na dotaz | Zadat poptávku | |
