| Komerční kód: | EMZH 4466/01 BR OVENS BK |
| Kód 12NC/I.C. kód: | 857496122000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

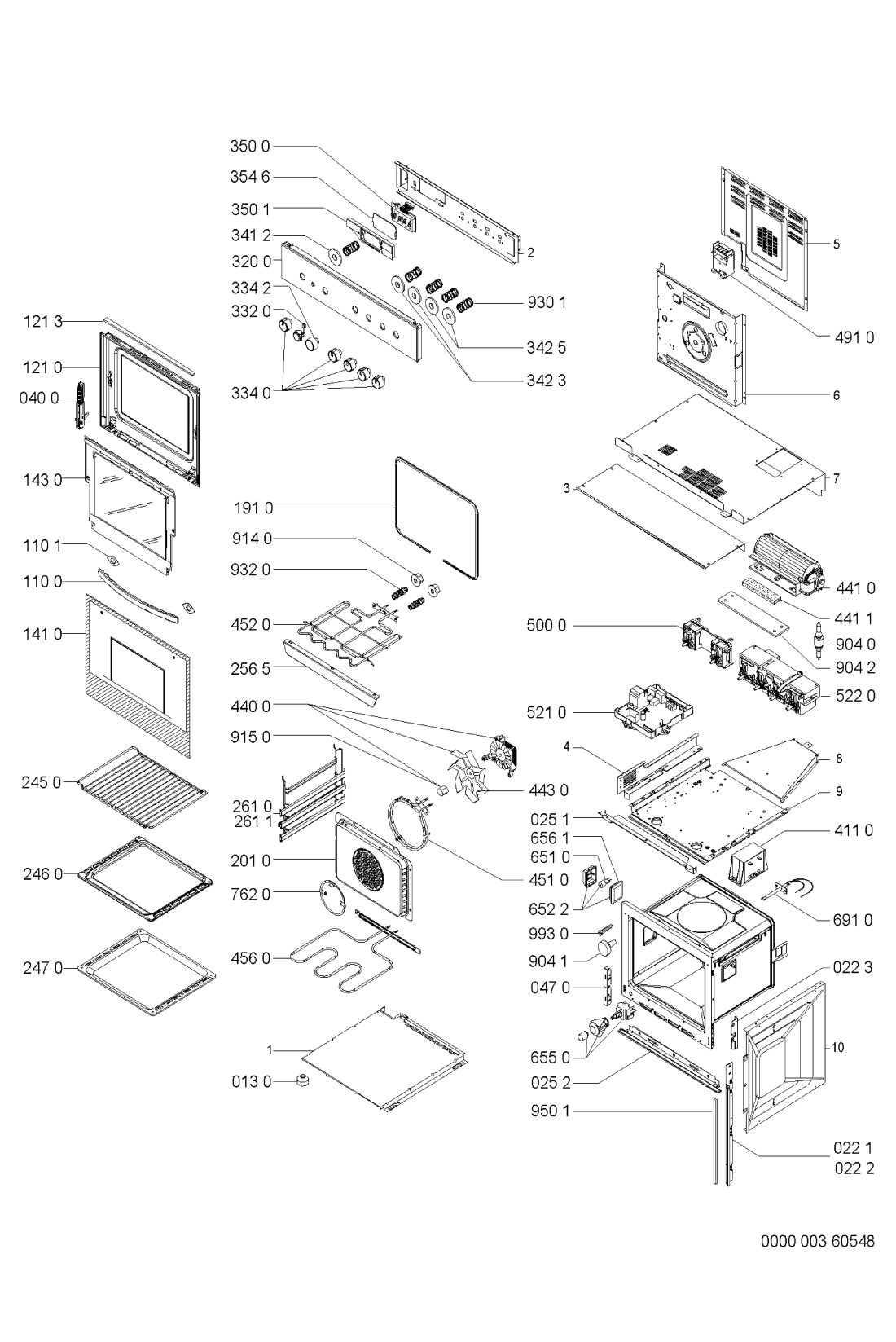

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 013 0 WHR83343 |
C00621152
481953268908 |
Spacer. | Na dotaz | Zadat poptávku | |
| 022 1 WHR83343 |
C00597239
481946078853 |
Trim, side. | Na dotaz | Zadat poptávku | |
| 022 2 WHR83343 |
C00597238
481946078852 |
Trim, side. | Na dotaz | Zadat poptávku | |
| 022 3 WHR83343 |
C00317282
481931039642 |
konzole | Na dotaz | Zadat poptávku | |
| 025 1 WHR83343 |
C00486690
481946078845 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR83343 |
C00316171
481946078844 |
Trim lower | Na dotaz | Zadat poptávku | |
| 040 0 WHR83343 |
C00557435
481941719664 |
NAHRADENE 481241719152 | Na dotaz | Zadat poptávku | |
| 047 0 WHR83343 |
C00312362
481241718837 |
zaves dveri | 505 Kč
€ 20.70 |
||
| 110 0 WHR83343 |
C00597266
481949858585 |
Handle door. | Na dotaz | Zadat poptávku | |
| 110 1 WHR83343 |
C00315752
481946248443 |
podlozka | 257 Kč
€ 10.50 |
||
| 121 0 WHR83343 |
C00597806
481241618138 |
Door inner + glass. | Na dotaz | Zadat poptávku | |
| 121 3 WHR83343 |
C00486691
481946078848 |
Trim,door | 46 Kč
€ 1.90 |
||
| 141 0 WHR83343 |
C00597287
481954058478 |
Oven glass. | Na dotaz | Zadat poptávku | |
| 143 0 WHR83343 |
C00598319
481945948927 |
Frame + glass. | Na dotaz | Zadat poptávku | |
| 191 0 WHR83343 |
C00496123
481946818377 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 0 WHR83343 |
C00316144
481244019701 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 245 0 WHR83343 |
C00490760
481945868301 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 246 0 WHR83343 |
C00344535
481941838416 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR83343 |
C00513871
481941838417 |
Tray,leak. | Na dotaz | Zadat poptávku | |
| 256 5 WHR83343 |
C00598331
481946689477 |
Protector. | Na dotaz | Zadat poptávku | |
| 261 0 WHR83343 |
C00555455
481245818952 |
Grille.. | Na dotaz | Zadat poptávku | |
| 261 1 WHR83343 |
C00555456
481245818954 |
Grille.. | Na dotaz | Zadat poptávku | |
| 320 0 WHR83343 |
C00598305
481945359306 |
Control panel. | Na dotaz | Zadat poptávku | |
| 332 0 WHR83343 |
C00317268
481927618433 |
Microswitch | Na dotaz | Zadat poptávku | |
| 334 0 WHR83343 |
C00598223
481941129693 |
Knob. | Na dotaz | Zadat poptávku | |
| 334 2 WHR83343 |
C00488119
481941129798 |
KNOB | Na dotaz | Zadat poptávku | |
| 341 2 WHR83343 |
C00591919
481941379297 |
Indication disc. | Na dotaz | Zadat poptávku | |
| 342 3 WHR83343 |
C00591920
481941379298 |
Indication disc. | Na dotaz | Zadat poptávku | |
| 342 5 WHR83343 |
C00490543
481941379299 |
Indication disc | Na dotaz | Zadat poptávku | |
| 350 0 WHR83343 |
C00311885
481913038087 |
Display | Na dotaz | Zadat poptávku | |
| 350 1 WHR83343 |
C00339655
481940479544 |
Holder | Na dotaz | Zadat poptávku | |
| 354 6 WHR83343 |
C00319056
481990200644 |
sklo displeje | Na dotaz | Zadat poptávku | |
| 411 0 WHR83343 |
C00500242
481214218001 |
Transformer | Na dotaz | Zadat poptávku | |
| 440 0 WHR83343 |
C00313957
481936178242 |
Motor | Na dotaz | Zadat poptávku | |
| 441 0 WHR83343 |
C00379061
481936118482 |
Motor cooling fan | Na dotaz | Zadat poptávku | |
| 441 1 WHR83343 |
C00333162
481946818387 |
tesneni-náhrada C00522524 | Na dotaz | Zadat poptávku | |
| 443 0 WHR83343 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR83343 |
C00312422
481925928823 |
Heating element circular 2000W 240V | Na dotaz | Zadat poptávku | |
| 452 0 WHR83343 |
C00339897
481925928992 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR83343 |
C00313943
481925928989 |
Topné těleso trouby - spodní 1450W | 3 714 Kč
€ 152.30 |
||
| 491 0 WHR83343 |
C00377554
481229068166 |
svorkovnice | Na dotaz | Zadat poptávku | |
| 500 0 WHR83343 |
C00332819
481921478694 |
Unit control oven selector+timer | Na dotaz | Zadat poptávku | |
| 521 0 WHR83343 |
C00531501
481931039792 |
CONTROL UNIT OVEN KIT oven KIT 2E HQ | Na dotaz | Zadat poptávku | |
| 522 0 WHR83343 |
C00555720
481921478704 |
Control unit hob.. | Na dotaz | Zadat poptávku | |
| 651 0 WHR83343 |
C00490315
481913488203 |
Oven lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR83343 |
C00492214
481925518249 |
Holder lamp ,HL cpl. | Na dotaz | Zadat poptávku | |
| 655 0 WHR83343 |
C00494335
481927618445 |
Switch door | Na dotaz | Zadat poptávku | |
| 656 1 WHR83343 |
C00490737
481945058438 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 691 0 WHR83343 |
C00314559
481921078097 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 762 0 WHR83343 |
C00380264
481948048329 |
FILTER | Na dotaz | Zadat poptávku | |
| 904 0 WHR83343 |
C00598332
481946818376 |
Rubber. | Na dotaz | Zadat poptávku | |
| 904 1 WHR83343 |
C00333334
481953268911 |
Spacer | Na dotaz | Zadat poptávku | |
| 904 2 WHR83343 |
C00598335
481953268909 |
Spacer. | Na dotaz | Zadat poptávku | |
| 914 0 WHR83343 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR83343 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 930 1 WHR83343 |
C00333190
481949268812 |
Spring | Na dotaz | Zadat poptávku | |
| 932 0 WHR83343 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 950 1 WHR83343 |
C00486854
481946818375 |
Gasket | Na dotaz | Zadat poptávku | |
| 993 0 WHR83343 |
C00598203
481931039818 |
Accessories. | Na dotaz | Zadat poptávku | |
