IGNIS FC 8363 B
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | FC 8363 B |
| Kód 12NC: | 859960080730 |
| I.C. kód: | 859960080731 |
| Značka: | IGNIS |
| Typ produktu: | |
| Další podobné modely: | 859960080730, 859960080732, 859960080733, 859960080737, 859960080734 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

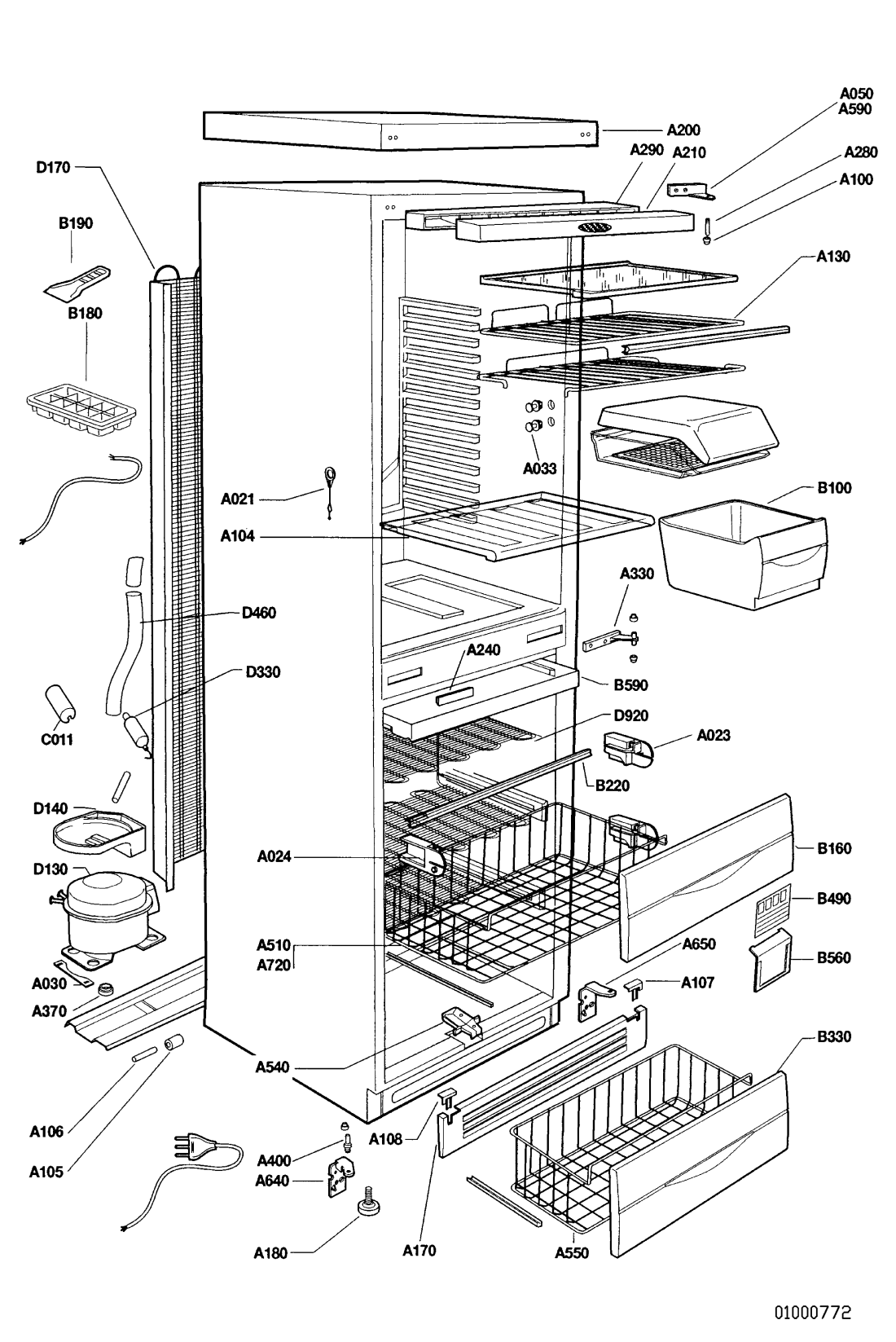

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR115633 |
C00799050 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| A02 1 WHR115633 |
C00316841
481969028169 |
Čistič odtoku | 221 Kč
€ 9.70 |
||
| A02 3 WHR115633 |
C00784468
481990310645 |
Slide ,evap. | Na dotaz | Zadat poptávku | |
| A02 4 WHR115633 |
C00532411
481990310646 |
Slide ,evap. evap. | Na dotaz | Zadat poptávku | |
| A03 0 WHR115633 |
C00484503
481990303706 |
Support compressor | Na dotaz | Zadat poptávku | |
| A03 3 WHR115633 |
C00784421
481940479485 |
Holder | Na dotaz | Zadat poptávku | |
| A05 0 WHR115633 |
C00784469
481990310659 |
Hinge | Na dotaz | Zadat poptávku | |
| A10 0 WHR115633 |
C00784450
481953268871 |
Bushing | Na dotaz | Zadat poptávku | |
| A10 4 WHR115633 |
C00784470
481990310662 |
Shelf | Na dotaz | Zadat poptávku | |
| A10 5 WHR115633 |
C00784471
481990310663 |
Sleeve | Na dotaz | Zadat poptávku | |
| A10 6 WHR115633 |
C00784472
481990310664 |
Shaft | Na dotaz | Zadat poptávku | |
| A10 7 WHR115633 |
C00784515
481990307987 |
Cover hinge | Na dotaz | Zadat poptávku | |
| A10 8 WHR115633 |
C00784516
481990307988 |
Cover hinge | Na dotaz | Zadat poptávku | |
| A13 0 WHR115633 |
C00784475
481990307948 |
Grid | Na dotaz | Zadat poptávku | |
| A17 0 WHR115633 |
C00784517
481990307989 |
Plinth | Na dotaz | Zadat poptávku | |
| A18 0 WHR115633 |
C00492566
481950018143 |
Foot | Na dotaz | Zadat poptávku | |
| A20 0 WHR115633 |
C00784518
481990307991 |
Frame | Na dotaz | Zadat poptávku | |
| A21 0 WHR115633 |
C00784519
481990307992 |
Panel front | Na dotaz | Zadat poptávku | |
| A24 0 WHR115633 |
C00784520
481990307993 |
Stopper | Na dotaz | Zadat poptávku | |
| A28 0 WHR115633 |
C00784425
481990310682 |
Pin hinge | Na dotaz | Zadat poptávku | |
| A29 0 WHR115633 |
C00784480
481990307954 |
Support | Na dotaz | Zadat poptávku | |
| A33 0 WHR115633 |
C00784521
481990307994 |
Hinge | Na dotaz | Zadat poptávku | |
| A37 0 WHR115633 |
C00784427
481990311084 |
Rubber ,compressor | Na dotaz | Zadat poptávku | |
| A40 0 WHR115633 |
C00575069
481953598664 |
Pin hinge | Na dotaz | Zadat poptávku | |
| A51 0 WHR115633 |
C00784482
481990307956 |
Basket | Na dotaz | Zadat poptávku | |
| A54 0 WHR115633 |
C00492771
481990311117 |
Defrostingpipe | Na dotaz | Zadat poptávku | |
| A55 0 WHR115633 |
C00784483
481990307957 |
Basket | Na dotaz | Zadat poptávku | |
| A59 0 WHR115633 |
C00490871
481990310687 |
Hinge | Na dotaz | Zadat poptávku | |
| A64 0 WHR115633 |
C00784522
481990307995 |
Hinge | Na dotaz | Zadat poptávku | |
| A65 0 WHR115633 |
C00784523
481990307996 |
Hinge | Na dotaz | Zadat poptávku | |
| A72 0 WHR115633 |
C00784486
481990307961 |
Crisper | Na dotaz | Zadat poptávku | |
| B00 6 WHR115633 |
C00784487
481990307962 |
Profile | Na dotaz | Zadat poptávku | |
| B00 7 WHR115633 |
C00784488
481990307963 |
Profile | Na dotaz | Zadat poptávku | |
| B03 0 WHR115633 |
C00784489
481990307964 |
Door dairy | Na dotaz | Zadat poptávku | |
| B04 0 WHR115633 |
C00784490
481990307965 |
Holder bottles | Na dotaz | Zadat poptávku | |
| B05 0 WHR115633 |
C00784491
481990307966 |
Door dairy | Na dotaz | Zadat poptávku | |
| B06 0 WHR115633 |
C00784492
481990307967 |
Flap | Na dotaz | Zadat poptávku | |
| B07 0 WHR115633 |
C00492766
481990310556 |
Rack egg | Na dotaz | Zadat poptávku | |
| B08 0 WHR115633 |
C00784435
481990310558 |
Container | Na dotaz | Zadat poptávku | |
| B10 0 WHR115633 |
C00784493
481990307968 |
Crisper | Na dotaz | Zadat poptávku | |
| B14 0 WHR115633 |
C00749298
481990310562 |
Lid ,container | Na dotaz | Zadat poptávku | |
| B16 0 WHR115633 |
C00784494
481990307969 |
Insert drawer | Na dotaz | Zadat poptávku | |
| B18 0 WHR115633 |
C00287849
481941878977 |
miska na led | 290 Kč
€ 12.70 |
||
| B19 0 WHR115633 |
C00336349
481939578011 |
skrabka na led | 111 Kč
€ 4.90 |
||
| B22 0 WHR115633 |
C00784495
481990310783 |
Trim | Na dotaz | Zadat poptávku | |
| B33 0 WHR115633 |
C00784496
481990307971 |
Insert drawer | Na dotaz | Zadat poptávku | |
| B35 0 WHR115633 |
C00784497
481990307972 |
Bottle holder | Na dotaz | Zadat poptávku | |
| B49 0 WHR115633 |
C00784498
481990307973 |
Holder ,calender | Na dotaz | Zadat poptávku | |
| B51 0 WHR115633 |
C00784499
481990307974 |
Holder bottles | Na dotaz | Zadat poptávku | |
| B56 0 WHR115633 |
C00784500
481990307975 |
Insert | Na dotaz | Zadat poptávku | |
| B59 0 WHR115633 |
C00784501
481990310728 |
Tray ,freezer | Na dotaz | Zadat poptávku | |
| C01 1 WHR115633 |
C00784443
481946818337 |
Cover protect. | Na dotaz | Zadat poptávku | |
| C03 0 WHR115633 |
C00784503
481990310737 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| C04 0 WHR115633 |
C00784504
481990310739 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| C38 0 WHR115633 |
C00784524
481990307997 |
Door inner | Na dotaz | Zadat poptávku | |
| C44 0 WHR115633 |
C00784525
481990307998 |
Door inner | Na dotaz | Zadat poptávku | |
| CC0 9 WHR115633 |
C00215266
481946279773 |
TERMINAL BOARD BZ30 | Na dotaz | Zadat poptávku | |
| CC1 1 WHR115633 |
C00332852
481929068367 |
Connectionblock ,ZanusZanussi | Na dotaz | Zadat poptávku | |
| CC1 4 WHR115633 |
C00739664
481928068342 |
Relay ,zanussi | Na dotaz | Zadat poptávku | |
| CC1 6 WHR115633 |
C00739663
481950218441 |
Screw | Na dotaz | Zadat poptávku | |
| CC2 2 WHR115633 |
C00784502
481990311151 |
Protect motor ,zanussi | Na dotaz | Zadat poptávku | |
| D01 0 WHR115633 |
C00784507
481990307978 |
Cover lamp | Na dotaz | Zadat poptávku | |
| D02 0 WHR115633 |
C00784508
481990310751 |
Lamp | Na dotaz | Zadat poptávku | |
| D03 0 WHR115633 |
C00574997
481925518205 |
Holder lamp | Na dotaz | Zadat poptávku | |
| D06 0 WHR115633 |
C00494926
481990307979 |
THERMOSTAT | Na dotaz | Zadat poptávku | |
| D07 0 WHR115633 |
C00784509
481990307981 |
Switch | Na dotaz | Zadat poptávku | |
| D09 0 WHR115633 |
C00784510
481990307982 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| D10 0 WHR115633 |
C00486935
481990311111 |
Stopper | Na dotaz | Zadat poptávku | |
| D11 0 WHR115633 |
C00784511
481990307983 |
Casing | Na dotaz | Zadat poptávku | |
| D13 0 WHR115633 |
C00532386
481990307984 |
Compressor ZEM GL 80 A ZEM GL 80 AA | Na dotaz | Zadat poptávku | |
| D14 0 WHR115633 |
C00749299
481990303165 |
Tray compressor | Na dotaz | Zadat poptávku | |
| D17 0 WHR115633 |
C00784512
481990307985 |
Condenser | Na dotaz | Zadat poptávku | |
| D33 0 WHR115633 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| D46 0 WHR115633 |
C00784513
481990310765 |
Tube | Na dotaz | Zadat poptávku | |
| D92 0 WHR115633 |
C00784514
481990307986 |
Evaporator | Na dotaz | Zadat poptávku | |
