WHIRLPOOL G2P 70 F/BR OVENS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | G2P 70 F/BR OVENS WP |
| Kód 12NC/I.C. kód: | 853566115000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

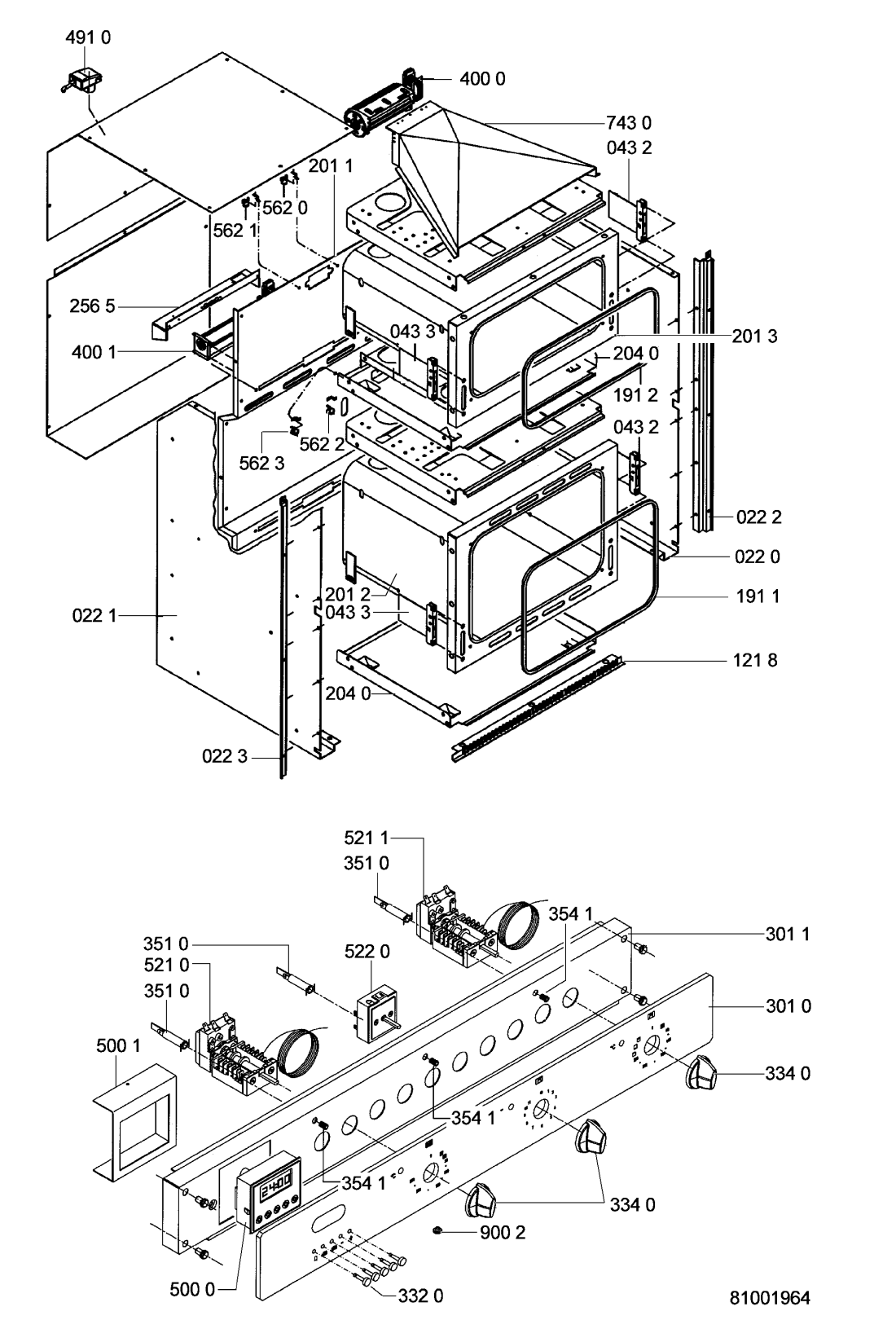

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR67863 |
C00498426
481246418032 |
Cabinet right side | Na dotaz | Zadat poptávku | |
| 022 1 WHR67863 |
C00343908
481246418033 |
Cabinet left side | Na dotaz | Zadat poptávku | |
| 022 2 WHR67863 |
C00340726
481246418035 |
Frame right | Na dotaz | Zadat poptávku | |
| 022 3 WHR67863 |
C00340737
481246418034 |
Frame left | Na dotaz | Zadat poptávku | |
| 025 5 WHR67863 |
C00341527
481246098007 |
Panel upper | Na dotaz | Zadat poptávku | |
| 040 0 WHR67863 |
C00497779
481241718866 |
Hinge inner door (lower) | Na dotaz | Zadat poptávku | |
| 040 1 WHR67863 |
C00339821
481241718864 |
Hinge inner door (upper) | Na dotaz | Zadat poptávku | |
| 043 2 WHR67863 |
C00497778
481241718862 |
Hinge right | Na dotaz | Zadat poptávku | |
| 043 3 WHR67863 |
C00316860
481241718863 |
Hinge left | Na dotaz | Zadat poptávku | |
| 110 0 WHR67863 |
C00585042
481249878164 |
Handle avana WP 46196105.. | Na dotaz | Zadat poptávku | |
| 110 3 WHR67863 |
C00497586
481240448682 |
Holder | Na dotaz | Zadat poptávku | |
| 121 0 WHR67863 |
C00498427
481246418037 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 121 1 WHR67863 |
C00340740
481246418039 |
FRAME INNER DOOR | Na dotaz | Zadat poptávku | |
| 121 8 WHR67863 |
C00340732
481246418036 |
Frame lower | Na dotaz | Zadat poptávku | |
| 141 0 WHR67863 |
C00584982
481245058554 |
Door glass generation 2000 AV.. | Na dotaz | Zadat poptávku | |
| 141 1 WHR67863 |
C00528269
481245058555 |
DOOR GLASS 1/2 AVANA T 1/2 avana type H | Na dotaz | Zadat poptávku | |
| 141 2 WHR67863 |
C00497569
481240418123 |
Glass thermo | Na dotaz | Zadat poptávku | |
| 142 0 WHR67863 |
C00340374
481245058263 |
Glass medium | Na dotaz | Zadat poptávku | |
| 142 1 WHR67863 |
C00498053
481245058264 |
Glass medium | Na dotaz | Zadat poptávku | |
| 143 0 WHR67863 |
C00498052
481245058262 |
GLASS | Na dotaz | Zadat poptávku | |
| 143 1 WHR67863 |
C00497568
481240418122 |
FRAME | Na dotaz | Zadat poptávku | |
| 143 2 WHR67863 |
C00497566
481240418119 |
FRAME | Na dotaz | Zadat poptávku | |
| 191 0 WHR67863 |
C00497235
481204658004 |
GASKET | Na dotaz | Zadat poptávku | |
| 191 1 WHR67863 |
C00313531
481204658005 |
GASKET | Na dotaz | Zadat poptávku | |
| 191 2 WHR67863 |
C00313521
481204658002 |
GASKET | Na dotaz | Zadat poptávku | |
| 192 0 WHR67863 |
C00312973
481204658003 |
GASKET | Na dotaz | Zadat poptávku | |
| 192 1 WHR67863 |
C00497234
481204658001 |
GASKET | Na dotaz | Zadat poptávku | |
| 201 0 WHR67863 |
C00497863
481242378002 |
AIR DIFFUSER | Na dotaz | Zadat poptávku | |
| 201 1 WHR67863 |
C00497527
481236118286 |
AIR DIFFUSER | Na dotaz | Zadat poptávku | |
| 201 2 WHR67863 |
C00497867
481242378007 |
OVEN CUBE cube | Na dotaz | Zadat poptávku | |
| 201 3 WHR67863 |
C00498430
481246418042 |
OVEN CUBE SMOOTH cube smooth | Na dotaz | Zadat poptávku | |
| 204 0 WHR67863 |
C00498429
481246418041 |
Cabinet bulkhead | Na dotaz | Zadat poptávku | |
| 245 0 WHR67863 |
C00340234
481245819025 |
GRILL GRID | Na dotaz | Zadat poptávku | |
| 245 1 WHR67863 |
C00340311
481242378003 |
GRATING | Na dotaz | Zadat poptávku | |
| 247 0 WHR67863 |
C00497864
481242378004 |
TRAY | Na dotaz | Zadat poptávku | |
| 247 1 WHR67863 |
C00497865
481242378005 |
PAN DRIP TRAY | Na dotaz | Zadat poptávku | |
| 247 2 WHR67863 |
C00497866
481242378006 |
HANDLE PAN SET | Na dotaz | Zadat poptávku | |
| 256 5 WHR67863 |
C00497567
481240418121 |
Holder heating element | Na dotaz | Zadat poptávku | |
| 261 0 WHR67863 |
C00344162
481245818976 |
Bracket racks side | Na dotaz | Zadat poptávku | |
| 261 2 WHR67863 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 261 8 WHR67863 |
C00344163
481240418117 |
BRACKET RACKS SIDE | Na dotaz | Zadat poptávku | |
| 301 0 WHR67863 |
C00584998
481245359398 |
CONTROL PANEL.. | Na dotaz | Zadat poptávku | |
| 301 1 WHR67863 |
C00498213
481245359399 |
Control panel support | Na dotaz | Zadat poptávku | |
| 332 0 WHR67863 |
C00584940
481241128655 |
Knob timer.. | Na dotaz | Zadat poptávku | |
| 334 0 WHR67863 |
C00584947
481241128776 |
Knob avana.. | Na dotaz | Zadat poptávku | |
| 351 0 WHR67863 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 354 1 WHR67863 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 400 0 WHR67863 |
C00315607
481202858333 |
motor fan tang. | Na dotaz | Zadat poptávku | |
| 400 1 WHR67863 |
C00314813
481202858332 |
MOTOR | Na dotaz | Zadat poptávku | |
| 440 0 WHR67863 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR67863 |
C00317137
481242378001 |
Heating element circuit | Na dotaz | Zadat poptávku | |
| 452 0 WHR67863 |
C00312039
481225948111 |
Topné těleso trouby – horní + grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR67863 |
C00497313
481225948112 |
Heating element bottom | Na dotaz | Zadat poptávku | |
| 491 0 WHR67863 |
C00335578
481232128393 |
Terminal block with mains cable | Na dotaz | Zadat poptávku | |
| 500 0 WHR67863 |
C00311891
481221478361 |
Control unit | Na dotaz | Zadat poptávku | |
| 500 1 WHR67863 |
C00327006
481221478652 |
Support programmer EL. | Na dotaz | Zadat poptávku | |
| 521 0 WHR67863 |
C00314539
481227328158 |
Selector,switch and thermostat | Na dotaz | Zadat poptávku | |
| 521 1 WHR67863 |
C00315961
481227328157 |
Selector,switch and thermostat | Na dotaz | Zadat poptávku | |
| 522 0 WHR67863 |
C00315975
481227328159 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 554 1 WHR67863 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR67863 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 562 1 WHR67863 |
C00497289
481221838089 |
Thermostat safety T60 | Na dotaz | Zadat poptávku | |
| 562 2 WHR67863 |
C00320310
481228248262 |
Thermostat safety T80 | Na dotaz | Zadat poptávku | |
| 562 3 WHR67863 |
C00316923
481228238066 |
Thermostat safety T125 | Na dotaz | Zadat poptávku | |
| 651 0 WHR67863 |
C00497245
481213428064 |
Oven Lamp | Na dotaz | Zadat poptávku | |
| 743 0 WHR67863 |
C00343132
481244038875 |
CONVEYOR | Na dotaz | Zadat poptávku | |
| 900 2 WHR67863 |
C00497585
481240448681 |
Washer and support | Na dotaz | Zadat poptávku | |
| 910 0 WHR67863 |
C00336588
481250218474 |
Screw door stop | Na dotaz | Zadat poptávku | |
