KITCHENAID GB2026PEKB BM KA
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GB2026PEKB BM KA |
| Kód 12NC: | 851323101000 |
| Značka: | KITCHENAID |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

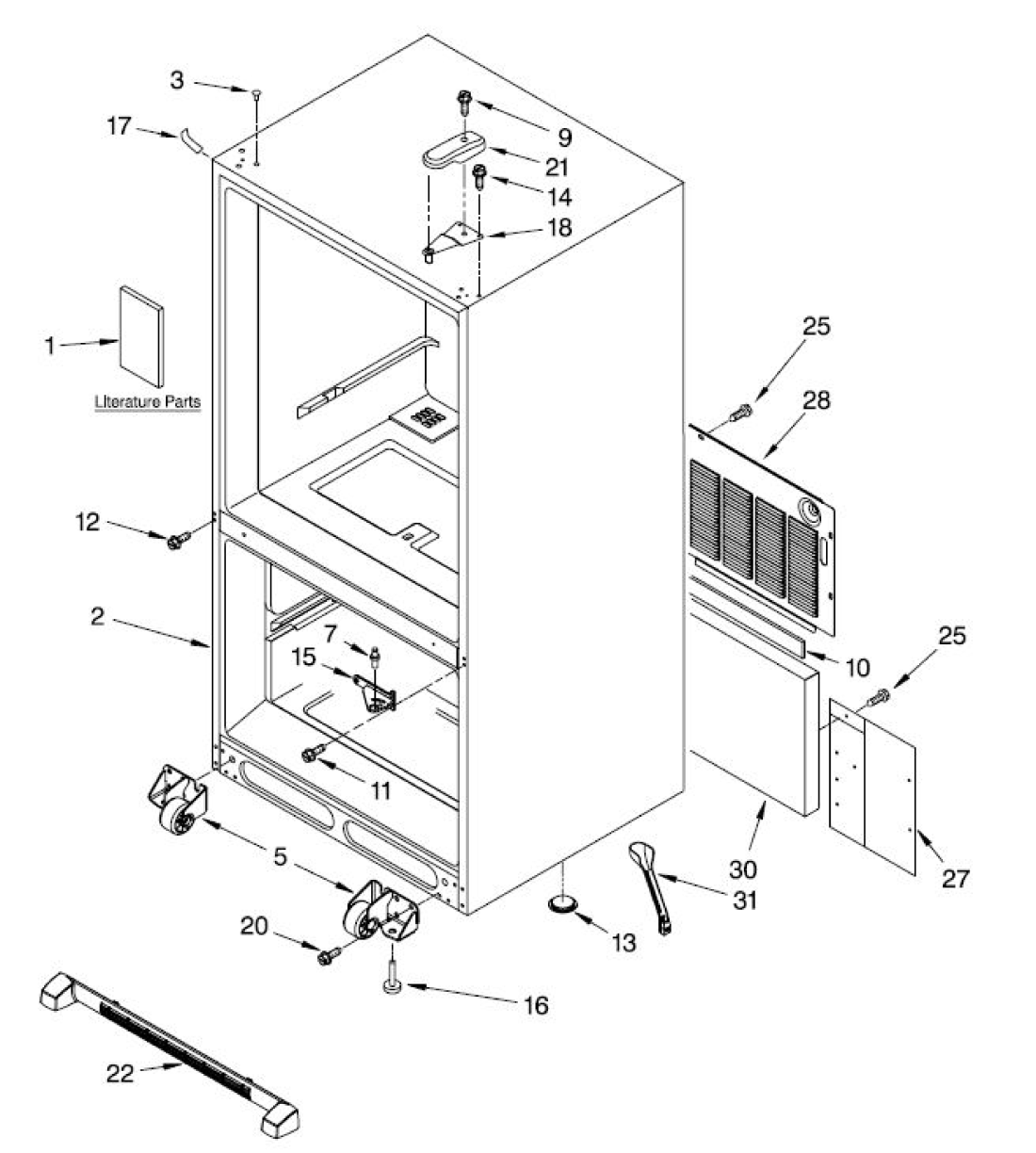

| 003 MAYFR03 |
C00548083
488000548083 |
Plug, Button (3) Black | Na dotaz | Zadat poptávku | |
| 005 MAYFR03 |
C00417694
482000021554 |
Roller front right | Na dotaz | Zadat poptávku | |
| 005 MAYFR03 |
C00417695
482000021555 |
Roller front left | Na dotaz | Zadat poptávku | |
| 007 MAYFR03 |
C00466617
482000006367 |
Pin center hinge | Na dotaz | Zadat poptávku | |
| 010 MAYFR03 |
C00332013
482000006376 |
Gasket | Na dotaz | Zadat poptávku | |
| 013 MAYFR03 |
C00345703
481246818371 |
Button Plug | Na dotaz | Zadat poptávku | |
| 015 MAYFR03 |
C00374457
481201229537 |
12655103ED ENTER HINGE ASS&-STD SQ | Na dotaz | Zadat poptávku | |
| 016 MAYFR03 |
C00326614
481201231244 |
Foot | Na dotaz | Zadat poptávku | |
| 017 MAYFR03 |
C00334932
482000014744 |
corner cover (black) | Na dotaz | Zadat poptávku | |
| 018 MAYFR03 |
C00334928
482000014740 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 018 MAYFR03 |
C00548085
488000548085 |
Hinge, Top Left Hand | Na dotaz | Zadat poptávku | |
| 021 MAYFR03 |
C00417781
482000021641 |
Cover hinge right, black | Na dotaz | Zadat poptávku | |
| 021 MAYFR03 |
C00548086
488000548086 |
Cover, Hinge Black, LH | Na dotaz | Zadat poptávku | |
| 022 MAYFR03 |
C00454240
481201230246 |
W10244561 GRILLE-TOE 36BM &LACK. | Na dotaz | Zadat poptávku | |
| 027 MAYFR03 |
C00419349
482000090604 |
Cover water valve | Na dotaz | Zadat poptávku | |
| 028 MAYFR03 |
C00466773
482000006742 |
Cover unit | Na dotaz | Zadat poptávku | |
| 030 MAYFR03 |
C00332012
482000006374 |
Insulation | Na dotaz | Zadat poptávku | |
| 031 MAYFR03 |
C00417702
482000021562 |
Tube drain | Na dotaz | Zadat poptávku | |
| 002 MAYFR06 |
C00466624
482000006377 |
Bracket control and lights | Na dotaz | Zadat poptávku | |
| 003 MAYFR06 |
C00334659
482000013196 |
overlay | Na dotaz | Zadat poptávku | |
| 004 MAYFR06 |
C00466626
482000006379 |
Housing Control board | Na dotaz | Zadat poptávku | |
| 005 MAYFR06 |
C00311247
481201230125 |
12868515 BOARD-JAZZ SERVICE. | Na dotaz | Zadat poptávku | |
| 006 MAYFR06 |
C00417720
482000021580 |
Light level | Na dotaz | Zadat poptávku | |
| 007 MAYFR06 |
C00417721
482000021581 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 008 MAYFR06 |
C00466629
482000006383 |
Housing lamp | Na dotaz | Zadat poptávku | |
| 009 MAYFR06 |
C00332015
482000006384 |
Bulb | Na dotaz | Zadat poptávku | |
| 010 MAYFR06 |
C00467298
482000010700 |
Socket | Na dotaz | Zadat poptávku | |
| 011 MAYFR06 |
C00334661
482000013201 |
damper cover Insert | Na dotaz | Zadat poptávku | |
| 013 MAYFR06 |
C00326611
481201230835 |
Cover damper | Na dotaz | Zadat poptávku | |
| 014 MAYFR06 |
C00326610
481201230802 |
Insulation | Na dotaz | Zadat poptávku | |
| 015 MAYFR06 |
C00317276
481201230258 |
electronic control for the damper | Na dotaz | Zadat poptávku | |
| 016 MAYFR06 |
C00474650
485160003850 |
VENTILATION CHILLER COVER | Na dotaz | Zadat poptávku | |
| 099 MAYFR06 |
C00472970
485160002144 |
HARNESS - FF CONT EXP (4TH) | Na dotaz | Zadat poptávku | |
| 002 MAYFR07 |
C00334412
482000012431 |
Gasket foam | Na dotaz | Zadat poptávku | |
| 003,007 MAYFR07 |
C00325596
481201225606 |
Gear. | Na dotaz | Zadat poptávku | |
| 005 MAYFR07 |
C00325604
481201229765 |
Shaft | Na dotaz | Zadat poptávku | |
| 009 MAYFR07 |
C00413412
482000013179 |
Bulb | Na dotaz | Zadat poptávku | |
| 010 MAYFR07 |
C00332019
482000006392 |
FZ Light Foil | Na dotaz | Zadat poptávku | |
| 011 MAYFR07 |
C00417707
482000021567 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 013 MAYFR07 |
C00454510
481201230754 |
Bracket door right | Na dotaz | Zadat poptávku | |
| 013 MAYFR07 |
C00466774
482000006743 |
Bracket door left | Na dotaz | Zadat poptávku | |
| 014 MAYFR07 |
C00332021
482000006397 |
FZ Cabinet lamp | Na dotaz | Zadat poptávku | |
| 015 MAYFR07 |
C00332022
482000006398 |
Evaporator Clip | Na dotaz | Zadat poptávku | |
| 016 MAYFR07 |
C00417709
482000021569 |
Light level | Na dotaz | Zadat poptávku | |
| 018 MAYFR07 |
C00325615
481201230755 |
Rail right | Na dotaz | Zadat poptávku | |
| 018 MAYFR07 |
C00325616
481201230756 |
rail left. | Na dotaz | Zadat poptávku | |
| 019 MAYFR07 |
C00344914
482000006744 |
drawer Slide | Na dotaz | Zadat poptávku | |
| 020 MAYFR07 |
C00333650
482000006602 |
Gasket bottom | Na dotaz | Zadat poptávku | |
| 021 MAYFR07 |
C00417766
482000021626 |
Adapter left | Na dotaz | Zadat poptávku | |
| 021 MAYFR07 |
C00417767
482000021627 |
Adapter right | Na dotaz | Zadat poptávku | |
| 022 MAYFR07 |
C00413418
482000013188 |
Grid air | Na dotaz | Zadat poptávku | |
| 023 MAYFR07 |
C00332027
482000006406 |
Cover fan | Na dotaz | Zadat poptávku | |
| 024 MAYFR07 |
C00314835
481236118568 |
evaporator fan | Na dotaz | Zadat poptávku | |
| 025 MAYFR07 |
C00332028
482000006407 |
Grommet | Na dotaz | Zadat poptávku | |
| 026 MAYFR07 |
C00417705
482000021565 |
Motor evaporator | Na dotaz | Zadat poptávku | |
| 027 MAYFR07 |
C00334431
482000012451 |
Drain piece | Na dotaz | Zadat poptávku | |
| 028 MAYFR07 |
C00329522
481241378778 |
Seal | Na dotaz | Zadat poptávku | |
| 029 MAYFR07 |
C00318475
481241378777 |
B8381501 Gasket Drain Tube | Na dotaz | Zadat poptávku | |
| 031 MAYFR07 |
C00334409
482000012428 |
Cover thermistor | Na dotaz | Zadat poptávku | |
| 034 MAYFR07 |
C00332018
482000006390 |
LIGHT SOCKET SHROUD IEC. | Na dotaz | Zadat poptávku | |
| 035 MAYFR07 |
C00454666
481201230999 |
W10284696 RACK-SIDE LH | Na dotaz | Zadat poptávku | |
| 035 MAYFR07 |
C00466775
482000006745 |
Rail right | Na dotaz | Zadat poptávku | |
| 001 MAYFR08 |
C00432474
480132101926 |
Door refrigerator | Na dotaz | Zadat poptávku | |
| 003 MAYFR08 |
C00466643
482000006411 |
Cover door dairy | Na dotaz | Zadat poptávku | |
| 004 MAYFR08 |
C00334663
482000013211 |
dairy Tray | Na dotaz | Zadat poptávku | |
| 005 MAYFR08 |
C00548828
488000548828 |
Bucket (Large) | Na dotaz | Zadat poptávku | |
| 007 MAYFR08 |
C00548830
488000548830 |
Nameplate black | Na dotaz | Zadat poptávku | |
| 008 MAYFR08 |
C00548831
488000548831 |
Gasket, Door Magnetic black | Na dotaz | Zadat poptávku | |
| 011 MAYFR08 |
C00468961
482000019408 |
Door stop | Na dotaz | Zadat poptávku | |
| 012 MAYFR08 |
C00548834
488000548834 |
Hook, Chiller | Na dotaz | Zadat poptávku | |
| 013 MAYFR08 |
C00334958
482000014771 |
right upper black bushing | Na dotaz | Zadat poptávku | |
| 014 MAYFR08 |
C00548837
488000548837 |
Retainer, Chiller | Na dotaz | Zadat poptávku | |
| 016 MAYFR08 |
C00417735
482000021595 |
Door stop black | Na dotaz | Zadat poptávku | |
| 017 MAYFR08 |
C00466813
482000006818 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 018 MAYFR08 |
C00466815
482000006820 |
Lid | Na dotaz | Zadat poptávku | |
| 019 MAYFR08 |
C00466814
482000006819 |
Rack egg | Na dotaz | Zadat poptávku | |
| 020 MAYFR08 |
C00548840
488000548840 |
Frame, Chiller | Na dotaz | Zadat poptávku | |
| 021 MAYFR08 |
C00548846
488000548846 |
Door, RH Chiller | Na dotaz | Zadat poptávku | |
| 022 MAYFR08 |
C00548860
488000548860 |
Door, LH Chiller | Na dotaz | Zadat poptávku | |
| 023 MAYFR08 |
C00548880
488000548880 |
Bucket, Chiller | Na dotaz | Zadat poptávku | |
| 024 MAYFR08 |
C00548889
488000548889 |
Linkeage | Na dotaz | Zadat poptávku | |
| 025 MAYFR08 |
C00548894
488000548894 |
Center, Linkeage | Na dotaz | Zadat poptávku | |
| 001 MAYFR09 |
C00548905
488000548905 |
Freezer Door (w/ Insulation) Black | Na dotaz | Zadat poptávku | |
| 003 MAYFR09 |
C00417758
482000021618 |
Gasket.fre.door black | Na dotaz | Zadat poptávku | |
| 002 MAYFR10 |
C00332036
482000006440 |
Fan blade | Na dotaz | Zadat poptávku | |
| 003 MAYFR10 |
C00454497
481201230725 |
Basepan | Na dotaz | Zadat poptávku | |
| 005 MAYFR10 |
C00332043
482000006458 |
Capacitor | Na dotaz | Zadat poptávku | |
| 006 MAYFR10 |
C00417737
482000021597 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 007 MAYFR10 |
C00466668
482000006443 |
Cable harness | Na dotaz | Zadat poptávku | |
| 008 MAYFR10 |
C00334457
482000012492 |
drip pan | Na dotaz | Zadat poptávku | |
| 010 MAYFR10 |
C00314707
481201230309 |
Odtávací topení chladničky Whirlpool | 2 373 Kč
€ 104.30 |
||
| 011 MAYFR10 |
C00332038
482000006446 |
bale Strap | Na dotaz | Zadat poptávku | |
| 012 MAYFR10 |
C00466824
482000006829 |
start device | Na dotaz | Zadat poptávku | |
| 013 MAYFR10 |
C00332048
482000006463 |
Grommet | Na dotaz | Zadat poptávku | |
| 014 MAYFR10 |
C00419379
482000090635 |
Thermostat | Na dotaz | Zadat poptávku | |
| 015 MAYFR10 |
C00332047
482000006462 |
Roller | Na dotaz | Zadat poptávku | |
| 017 MAYFR10 |
C00332040
482000006449 |
Grommet | Na dotaz | Zadat poptávku | |
| 018 MAYFR10 |
C00466825
482000006830 |
Condenser | Na dotaz | Zadat poptávku | |
| 019 MAYFR10 |
C00417746
482000021606 |
Clip | Na dotaz | Zadat poptávku | |
| 020 MAYFR10 |
C00328350
481244079258 |
drip Tray | Na dotaz | Zadat poptávku | |
| 022 MAYFR10 |
C00417743
482000021603 |
Evaporator | Na dotaz | Zadat poptávku | |
| 023 MAYFR10 |
C00332041
482000006454 |
Damping part right side | Na dotaz | Zadat poptávku | |
| 023 MAYFR10 |
C00332042
482000006455 |
Damping part left side | Na dotaz | Zadat poptávku | |
| 024 MAYFR10 |
C00317272
481201230126 |
fan motor | Na dotaz | Zadat poptávku | |
| 025 MAYFR10 |
C00329086
481240449691 |
heater clip | Na dotaz | Zadat poptávku | |
| 026 MAYFR10 |
C00466787
482000006763 |
Cable harness | Na dotaz | Zadat poptávku | |
| 027 MAYFR10 |
C00325598
481201228602 |
DRIER | Na dotaz | Zadat poptávku | |
| 028 MAYFR10 |
C00466754
482000006640 |
Compressor | Na dotaz | Zadat poptávku | |
| 029 MAYFR10 |
C00329082
481240449686 |
evaporator clip | Na dotaz | Zadat poptávku | |
| 030 MAYFR10 |
C00334472
482000012508 |
Axle roller | Na dotaz | Zadat poptávku | |
| 031 MAYFR10 |
C00333724
482000006764 |
Cover | Na dotaz | Zadat poptávku | |
| 032 MAYFR10 |
C00417739
482000021599 |
Base | Na dotaz | Zadat poptávku | |
| 033 MAYFR10 |
C00417741
482000021601 |
Fastener | Na dotaz | Zadat poptávku | |
| 001 MAYFR11 |
C00333663
482000006625 |
side ladder | Na dotaz | Zadat poptávku | |
| 003 MAYFR11 |
C00332030
482000006420 |
Rail center | Na dotaz | Zadat poptávku | |
| 005 MAYFR11 |
C00466799
482000006804 |
Rack ice tray | Na dotaz | Zadat poptávku | |
| 006 MAYFR11 |
C00333719
482000006747 |
glide Shelf | Na dotaz | Zadat poptávku | |
| 007 MAYFR11 |
C00331216
481245088423 |
Glass | Na dotaz | Zadat poptávku | |
| 008 MAYFR11 |
C00334667
482000013242 |
crisper Frame | Na dotaz | Zadat poptávku | |
| 009 MAYFR11 |
C00466781
482000006755 |
Door drawer | Na dotaz | Zadat poptávku | |
| 010 MAYFR11 |
C00334507
482000012579 |
humidity control slide | Na dotaz | Zadat poptávku | |
| 011 MAYFR11 |
C00313287
481201229701 |
LEFT PANTRY ENDCAP 20FT BTM. | Na dotaz | Zadat poptávku | |
| 011 MAYFR11 |
C00315704
481201229716 |
RIGHT PANTRY ENDCAP 20FT BTM. | Na dotaz | Zadat poptávku | |
| 012 MAYFR11 |
C00417749
482000021609 |
Rail Guide drawer | Na dotaz | Zadat poptávku | |
| 013 MAYFR11 |
C00333720
482000006749 |
crisper Support | Na dotaz | Zadat poptávku | |
| 014 MAYFR11 |
C00466777
482000006750 |
Trim crisper | Na dotaz | Zadat poptávku | |
| 015 MAYFR11 |
C00334967
482000014780 |
Crisper | Na dotaz | Zadat poptávku | |
| 016 MAYFR11 |
C00417756
482000021616 |
Basket upper | Na dotaz | Zadat poptávku | |
| 017 MAYFR11 |
C00330321
481246049763 |
Holder | Na dotaz | Zadat poptávku | |
| 018 MAYFR11 |
C00332033
482000006431 |
upper basket Separator | Na dotaz | Zadat poptávku | |
| 020 MAYFR11 |
C00417774
482000021634 |
Basket lower | Na dotaz | Zadat poptávku | |
| 021 MAYFR11 |
C00333722
482000006757 |
lower basket Separator | Na dotaz | Zadat poptávku | |
| 022 MAYFR11 |
C00325611
481201230523 |
support | Na dotaz | Zadat poptávku | |
| 023 MAYFR11 |
C00334511
482000012583 |
temperature control Slide | Na dotaz | Zadat poptávku | |
| 024 MAYFR11 |
C00413446
482000013234 |
Glass shelf pantry | Na dotaz | Zadat poptávku | |
| 025 MAYFR11 |
C00466749
482000006629 |
Knob temperature control | Na dotaz | Zadat poptávku | |
| 026 MAYFR11 |
C00466780
482000006754 |
Drawer | Na dotaz | Zadat poptávku | |
| 027 MAYFR11 |
C00413458
482000013247 |
Bar control | Na dotaz | Zadat poptávku | |
| 028 MAYFR11 |
C00319828
481201230646 |
Housing control | Na dotaz | Zadat poptávku | |
| 029 MAYFR11 |
C00333657
482000006618 |
Gasket | Na dotaz | Zadat poptávku | |
| 031 MAYFR11 |
C00417747
482000021607 |
Separator pantry | Na dotaz | Zadat poptávku | |
| 032 MAYFR11 |
C00333635
482000006555 |
Guide | Na dotaz | Zadat poptávku | |
| 034 MAYFR11 |
C00374595
480132101949 |
Icecube tray Spacer | Na dotaz | Zadat poptávku | |
| 036 MAYFR11 |
C00334450
482000012479 |
Shaft - rack | Na dotaz | Zadat poptávku | |
| 037 MAYFR11 |
C00417776
482000021636 |
Gear mount, right | Na dotaz | Zadat poptávku | |
| 037 MAYFR11 |
C00417777
482000021637 |
Gear mount, left | Na dotaz | Zadat poptávku | |
| 038 MAYFR11 |
C00466664
482000006438 |
left spur gear | Na dotaz | Zadat poptávku | |
| 038 MAYFR11 |
C00466665
482000006439 |
right spur gear | Na dotaz | Zadat poptávku | |
| 039 MAYFR11 |
C00467540
482000013697 |
Rack wine | Na dotaz | Zadat poptávku | |
