BAUKNECHT GKI 9000/A
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GKI 9000/A |
| Kód 12NC: | 855211301450 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné mrazáky |
| Další podobné modely: | 855211301452, 855211301459, 855211301455, 855211301457, 855211301458, 855211301456 |
Potřebujete servis? Jsme tady pro Vás

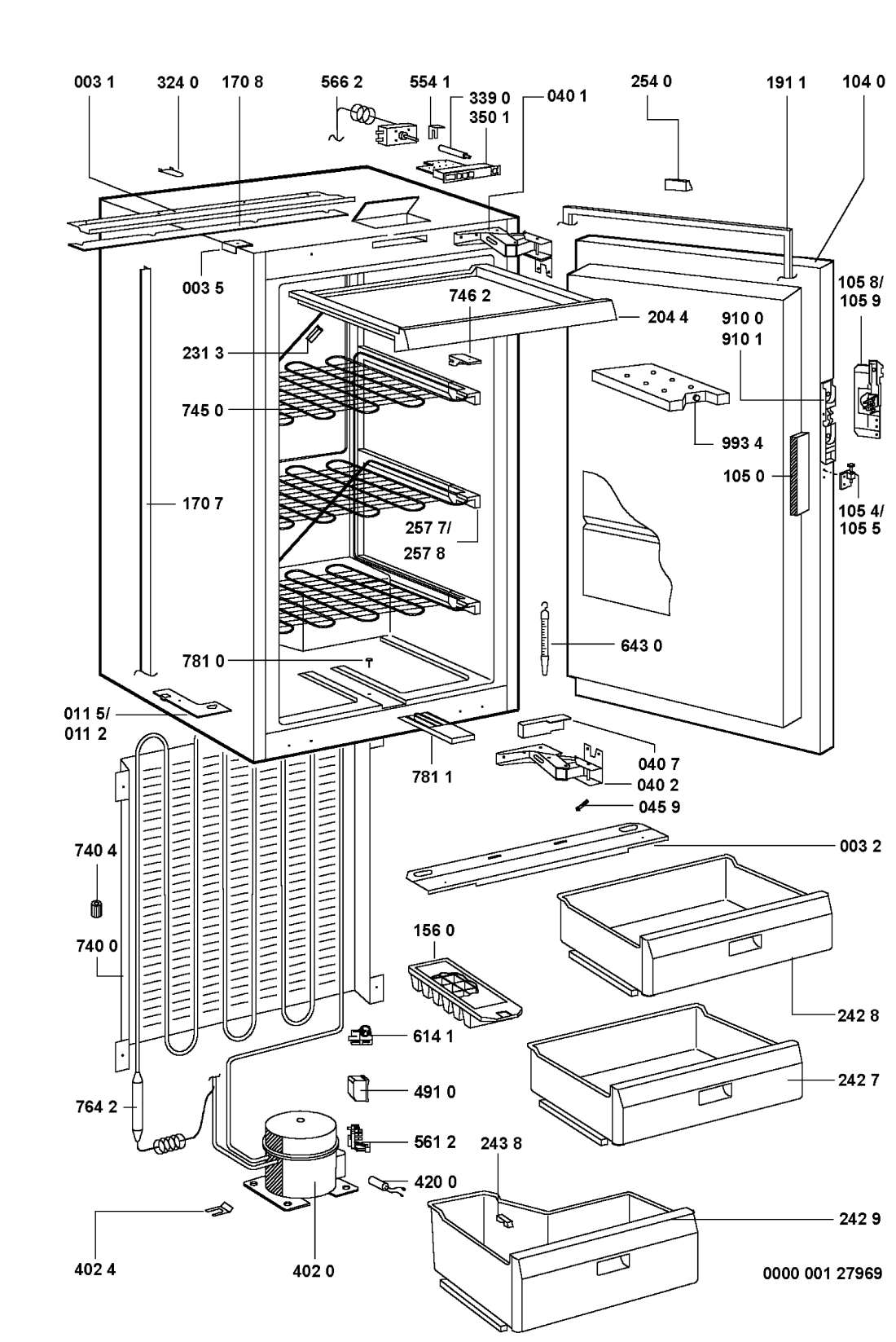

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR86513 |
C00553708
481246058311 |
FASTENER.. | Na dotaz | Zadat poptávku | |
| 003 2 WHR86513 |
C00590714
481246088212 |
FASTENER. | Na dotaz | Zadat poptávku | |
| 003 5 WHR86513 |
C00497305
481225698014 |
HOLDER | Na dotaz | Zadat poptávku | |
| 011 2 WHR86513 |
C00492014
481250018071 |
FOOT | Na dotaz | Zadat poptávku | |
| 011 5 WHR86513 |
C00590750
481250018069 |
FOOT. | Na dotaz | Zadat poptávku | |
| 040 1 WHR86513 |
C00312450
481231018626 |
Závěs dveří - sada | Na dotaz | Zadat poptávku | |
| 040 2 WHR86513 |
C00555207
481241719007 |
HINGE.. | Na dotaz | Zadat poptávku | |
| 040 7 WHR86513 |
C00327816
481241848473 |
Záslepka | 278 Kč
€ 12.20 |
||
| 045 9 WHR86513 |
C00315522
481241778065 |
Čep | Na dotaz | Zadat poptávku | |
| 101 0 WHR86513 |
C00591117
481244028883 |
Door. | Na dotaz | Zadat poptávku | |
| 105 0 WHR86513 |
C00497041
481244028839 |
COVER | Na dotaz | Zadat poptávku | |
| 105 4 WHR86513 |
C00332368
481252838057 |
Držák pravý | 427 Kč
€ 18.80 |
||
| 105 5 WHR86513 |
C00332367
481252838056 |
Držák levý | 1 202 Kč
€ 52.80 |
||
| 105 8 WHR86513 |
C00329033
481240448619 |
Držák pravý | 1 048 Kč
€ 46.10 |
||
| 105 9 WHR86513 |
C00329032
481240448618 |
Držák levý | 1 202 Kč
€ 52.80 |
||
| 156 0 WHR86513 |
C00287849
481941878977 |
miska na led | 290 Kč
€ 12.70 |
||
| 170 7 WHR86513 |
C00553713
481246088204 |
PROFILE.. | Na dotaz | Zadat poptávku | |
| 170 8 WHR86513 |
C00330363
481246058309 |
Profile top | Na dotaz | Zadat poptávku | |
| 191 1 WHR86513 |
C00315451
481246688578 |
tesneni magneticke | 2 240 Kč
€ 98.50 |
||
| 204 4 WHR86513 |
C00591151
481244079005 |
Container. | Na dotaz | Zadat poptávku | |
| 231 3 WHR86513 |
C00333124
481946688704 |
Clamp sensor thermostat | Na dotaz | Zadat poptávku | |
| 242 7 WHR86513 |
C00374028
481245818332 |
Drawer middle | Na dotaz | Zadat poptávku | |
| 242 8 WHR86513 |
C00553539
481241868265 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 9 WHR86513 |
C00553692
481245818331 |
Tray.. | Na dotaz | Zadat poptávku | |
| 254 0 WHR86513 |
C00340910
481940449348 |
PRICHYTKA | 73 Kč
€ 3.20 |
||
| 257 7 WHR86513 |
C00314855
481946699151 |
Držák výparníku pravý | 304 Kč
€ 13.40 |
||
| 257 8 WHR86513 |
C00314857
481946699152 |
Držák výparníku levý | 309 Kč
€ 13.60 |
||
| 324 0 WHR86513 |
C00342500
481244028856 |
krytka | 89 Kč
€ 3.90 |
||
| 339 0 WHR86513 |
C00332731
481253598051 |
tycka termostatu | 277 Kč
€ 12.20 |
||
| 350 1 WHR86513 |
C00312136
481228018015 |
jednotka signalek | 3 973 Kč
€ 174.60 |
||
| 402 0 WHR86513 |
C00498951
481936038704 |
nahradene 481281718829 | Na dotaz | Zadat poptávku | |
| 402 4 WHR86513 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 5.30 |
||
| 420 0 WHR86513 |
C00574296
481212028016 |
Capacitor. | Na dotaz | Zadat poptávku | |
| 491 0 WHR86513 |
C00333099
481946279805 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 554 1 WHR86513 |
C00333185
481949268723 |
pruzina | 452 Kč
€ 19.90 |
||
| 561 2 WHR86513 |
C00332852
481929068367 |
Connectionblock ,ZanusZanussi | Na dotaz | Zadat poptávku | |
| 566 2 WHR86513 |
C00327227
481227128433 |
Thermostat RK54 L2009-RK54 L2009-32U99 | Na dotaz | Zadat poptávku | |
| 614 1 WHR86513 |
C00327494
481228068337 |
Monoblock | Na dotaz | Zadat poptávku | |
| 643 0 WHR86513 |
C00335559
481934938136 |
Thermometer | Na dotaz | Zadat poptávku | |
| 740 0 WHR86513 |
C00332227
481251148251 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 4 WHR86513 |
C00328255
481244048012 |
Holder condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR86513 |
C00332196
481251138185 |
EVAPORATOR | Na dotaz | Zadat poptávku | |
| 746 2 WHR86513 |
C00313479
481240448567 |
Fastener evaporator | Na dotaz | Zadat poptávku | |
| 764 2 WHR86513 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR86513 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR86513 |
C00342192
481941878208 |
kanal odtokovy | 189 Kč
€ 8.30 |
||
| 910 0 WHR86513 |
C00329031
481240448617 |
Držák pravý | 129 Kč
€ 5.70 |
||
| 910 1 WHR86513 |
C00329034
481240448622 |
Držák levý | 226 Kč
€ 9.90 |
||
| 993 4 WHR86513 |
C00591158
481244098044 |
ICE PACK. | Na dotaz | Zadat poptávku | |
| 993 9 WHR86513 |
C00527157
481231018728 |
DOOR REVERS.KIT not shown | Na dotaz | Zadat poptávku | |
| 999 WHR86513 |
C00724186 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
