| Komerční kód: | GMX 5552 DISHWASHERS WP |
| Kód 12NC: | 854822501000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Myčky |
| Další podobné modely: | 854822501001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

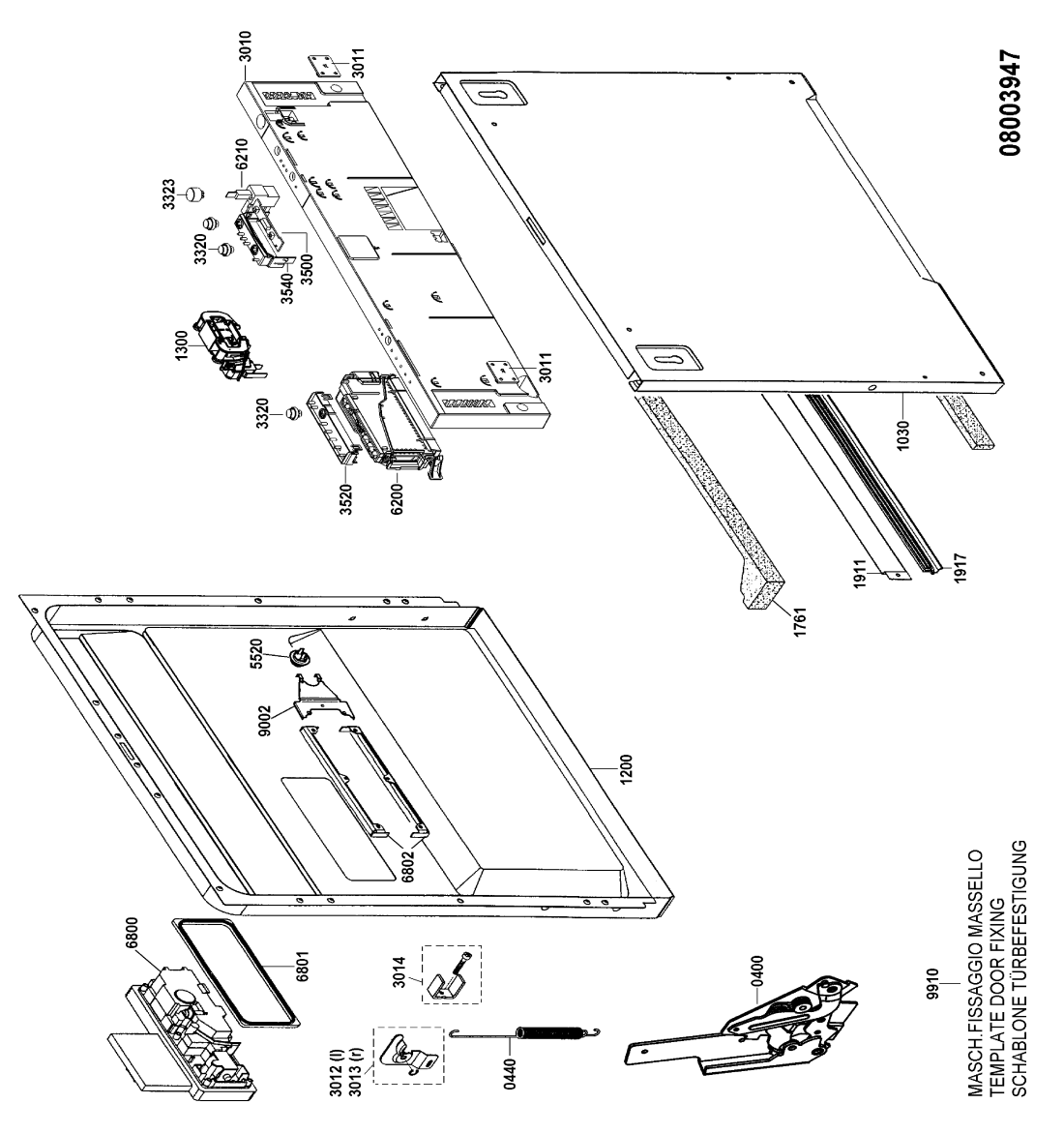

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR53289 |
C00342260
481290508553 |
Crossbar | Na dotaz | Zadat poptávku | |
| 003 1 WHR53289 |
C00335860
481290508567 |
Support back | Na dotaz | Zadat poptávku | |
| 003 2 WHR53289 |
C00486378
481290508549 |
Protector | Na dotaz | Zadat poptávku | |
| 004 0 WHR53289 |
C00337460
481290508605 |
Trip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR53289 |
C00621516
481290508606 |
Base | Na dotaz | Zadat poptávku | |
| 011 0 WHR53289 |
C00340803
481290508128 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR53289 |
C00340781
481290508235 |
Foot rear | Na dotaz | Zadat poptávku | |
| 011 2 WHR53289 |
C00338232
481250518403 |
Mechanism adjust. foot | Na dotaz | Zadat poptávku | |
| 011 3 WHR53289 |
C00338229
481290508236 |
Mechanism adjust. foot | Na dotaz | Zadat poptávku | |
| 011 5 WHR53289 |
C00336598
481290508237 |
Screw adjustable foot | Na dotaz | Zadat poptávku | |
| 011 6 WHR53289 |
C00336448
481290508244 |
Shaft gear adjust.foot | Na dotaz | Zadat poptávku | |
| 011 7 WHR53289 |
C00342834
481290508246 |
Cap | Na dotaz | Zadat poptávku | |
| 011 9 WHR53289 |
C00492173
481290508691 |
Foot Kit | Na dotaz | Zadat poptávku | |
| 022 0 WHR53289 |
C00492168
481290508564 |
Side panel right | Na dotaz | Zadat poptávku | |
| 022 1 WHR53289 |
C00492169
481290508565 |
Side panel left | Na dotaz | Zadat poptávku | |
| 022 2 WHR53289 |
C00486387
481290508628 |
Stopper | Na dotaz | Zadat poptávku | |
| 024 0 WHR53289 |
C00342961
481290508625 |
Cover | Na dotaz | Zadat poptávku | |
| 040 0 WHR53289 |
C00531175
481290508569 |
hinge r. | Na dotaz | Zadat poptávku | |
| 040 0 WHR53289 |
C00531176
481290508571 |
DUMMY l. | Na dotaz | Zadat poptávku | |
| 044 0 WHR53289 |
C00119902
481290508643 |
PRUŽINA DVÍŘEK | Na dotaz | Zadat poptávku | |
| 053 0 WHR53289 |
C00387863
481290508551 |
Frame kickplate | Na dotaz | Zadat poptávku | |
| 053 1 WHR53289 |
C00486386
481290508624 |
Protector Wire | Na dotaz | Zadat poptávku | |
| 053 2 WHR53289 |
C00342253
481290508555 |
Crossbar Pedestal | Na dotaz | Zadat poptávku | |
| 103 0 WHR53289 |
C00339306
481290508566 |
Door FD97 H860 | Na dotaz | Zadat poptávku | |
| 120 0 WHR53289 |
C00339006
481290508872 |
Door inner 60/860 ff.nost | Na dotaz | Zadat poptávku | |
| 120 0 WHR53289 |
C00576452
481290508575 |
Door,inner.. | Na dotaz | Zadat poptávku | |
| 120 1 WHR53289 |
C00335999
481290508147 |
Záslepka šroubu myčky Whirlpool, Bauknecht | 147 Kč
€ 6.50 |
||
| 130 0 WHR53289 |
C00316739
481290508867 |
zamek dveri | 2 356 Kč
€ 103.60 |
||
| 131 0 WHR53289 |
C00490281
481290508706 |
Hook | Na dotaz | Zadat poptávku | |
| 131 1 WHR53289 |
C00344343
481290508612 |
Block Hook | Na dotaz | Zadat poptávku | |
| 176 1 WHR53289 |
C00119891
481290508633 |
OCHRANA KONDENZÁT | Na dotaz | Zadat poptávku | |
| 191 0 WHR53289 |
C00315038
481290508592 |
Gasket door | Na dotaz | Zadat poptávku | |
| 191 1 WHR53289 |
C00496062
481290508554 |
Fixation | Na dotaz | Zadat poptávku | |
| 191 7 WHR53289 |
C00486383
481290508588 |
Gasket | Na dotaz | Zadat poptávku | |
| 192 1 WHR53289 |
C00320722
481290508619 |
tesneni | 140 Kč
€ 6.20 |
||
| 192 2 WHR53289 |
C00320724
481290508621 |
tesneni | 146 Kč
€ 6.40 |
||
| 192 3 WHR53289 |
C00140495
481290508617 |
OCHRANA DX | Na dotaz | Zadat poptávku | |
| 192 4 WHR53289 |
C00140496
481290508618 |
OCHRANA SX | Na dotaz | Zadat poptávku | |
| 241 0 WHR53289 |
C00576454
481290508698 |
Basket upper | Na dotaz | Zadat poptávku | |
| 241 1 WHR53289 |
C00140484
481290508674 |
Kolečko horního koše | 214 Kč
€ 9.40 |
||
| 241 2 WHR53289 |
C00140503
481290508668 |
GREY FLAP | Na dotaz | Zadat poptávku | |
| 241 4 WHR53289 |
C00492172
481290508675 |
Osička kolečka horního koše | 188 Kč
€ 8.30 |
||
| 242 0 WHR53289 |
C00211500
481290508694 |
BASKET LOWER | Na dotaz | Zadat poptávku | |
| 242 1 WHR53289 |
C00344090
481990501225 |
Bushing | Na dotaz | Zadat poptávku | |
| 242 2 WHR53289 |
C00345151
481290508626 |
Wheel basket | Na dotaz | Zadat poptávku | |
| 242 3 WHR53289 |
C00486379
481290508558 |
Rail for basket left lower basket | Na dotaz | Zadat poptávku | |
| 242 4 WHR53289 |
C00486380
481290508559 |
rail for basket right lower basket | Na dotaz | Zadat poptávku | |
| 242 5 WHR53289 |
C00486384
481290508622 |
Protector left | Na dotaz | Zadat poptávku | |
| 242 6 WHR53289 |
C00486385
481290508623 |
Protector right | Na dotaz | Zadat poptávku | |
| 243 0 WHR53289 |
C00379157
481290508687 |
Košík na příbory do myčky komplet | Na dotaz | Zadat poptávku | |
| 261 0 WHR53289 |
C00340169
481290508557 |
Guide | Na dotaz | Zadat poptávku | |
| 261 1 WHR53289 |
C00336941
481290508684 |
Koncovka kolejnice přední | 196 Kč
€ 8.60 |
||
| 261 2 WHR53289 |
C00492170
481290508611 |
Spacer | Na dotaz | Zadat poptávku | |
| 261 3 WHR53289 |
C00336237
481990501215 |
Small plate support | Na dotaz | Zadat poptávku | |
| 261 4 WHR53289 |
C00335611
481290508676 |
Zarážka zadní | 148 Kč
€ 6.50 |
||
| 261 5 WHR53289 |
C00314368
481290508686 |
Support Wheel & Wheel grey | Na dotaz | Zadat poptávku | |
| 301 0 WHR53289 |
C00484185
481290508697 |
Control panel GMX 5552 | Na dotaz | Zadat poptávku | |
| 301 1 WHR53289 |
C00337737
481231028261 |
PlateKIT | Na dotaz | Zadat poptávku | |
| 301 2 WHR53289 |
C00486382
481290508563 |
Cover holder spring l. | Na dotaz | Zadat poptávku | |
| 301 3 WHR53289 |
C00486381
481290508562 |
Cover holder spring r. | Na dotaz | Zadat poptávku | |
| 301 4 WHR53289 |
C00119890
481290508644 |
SUPPORTING BAR | Na dotaz | Zadat poptávku | |
| 301 4 WHR53289 |
C00590094
481290508645 |
Screw. | Na dotaz | Zadat poptávku | |
| 332 0 WHR53289 |
C00344046
481290508532 |
tlacitko | 248 Kč
€ 10.90 |
||
| 332 3 WHR53289 |
C00494224
481290508679 |
Switch on-off | Na dotaz | Zadat poptávku | |
| 350 0 WHR53289 |
C00384620
481290508638 |
User board | Na dotaz | Zadat poptávku | |
| 352 0 WHR53289 |
C00339127
481290508529 |
Indication unit | Na dotaz | Zadat poptávku | |
| 354 0 WHR53289 |
C00486388
481290508632 |
Protector | Na dotaz | Zadat poptávku | |
| 400 0 WHR53289 |
C00315535
481290508635 |
motor mycky | Na dotaz | Zadat poptávku | |
| 405 0 WHR53289 |
C00335811
481290508552 |
Support Motor | Na dotaz | Zadat poptávku | |
| 420 0 WHR53289 |
C00342802
481290508634 |
Capacitor | Na dotaz | Zadat poptávku | |
| 430 0 WHR53289 |
C00314356
481290508156 |
Čerpadlo vypouštěcí 22W | 205 Kč
€ 9.00 |
||
| 450 0 WHR53289 |
C00373928
481290508537 |
topeni prutokove | 3 257 Kč
€ 143.20 |
||
| 450 1 WHR53289 |
C00316735
481290508601 |
Hose Heating element | Na dotaz | Zadat poptávku | |
| 450 2 WHR53289 |
C00314364
481290508594 |
Pipe Bend | Na dotaz | Zadat poptávku | |
| 480 3 WHR53289 |
C00340512
481990500002 |
tesneni | 175 Kč
€ 7.70 |
||
| 490 0 WHR53289 |
C00119931
481290508155 |
KABEL | Na dotaz | Zadat poptávku | |
| 505 2 WHR53289 |
C00344166
481290508582 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| 552 0 WHR53289 |
C00318592
481221078011 |
senzor NTC | 799 Kč
€ 35.10 |
||
| 571 1 WHR53289 |
C00317206
481290508158 |
Filtr odrušovací | Na dotaz | Zadat poptávku | |
| 581 0 WHR53289 |
C00211469
481290508631 |
prutokomer mycky | 1 901 Kč
€ 83.60 |
||
| 582 0 WHR53289 |
C00337560
481290508636 |
presostat mycky | 819 Kč
€ 36.00 |
||
| 583 0 WHR53289 |
C00337546
481290508578 |
Pressostat S. | Na dotaz | Zadat poptávku | |
| 620 0 WHR53289 |
C00378898
481290508692 |
TIMER | Na dotaz | Zadat poptávku | |
| 621 0 WHR53289 |
C00320706
481290508534 |
spinac mycky | 589 Kč
€ 25.90 |
||
| 680 0 WHR53289 |
C00320734
481290508669 |
nasypka kombinovana | 1 846 Kč
€ 81.10 |
||
| 680 1 WHR53289 |
C00318324
481990500026 |
tesneni nasypky | 480 Kč
€ 21.10 |
||
| 680 2 WHR53289 |
C00341008
481990500027 |
drzak nasypky | 373 Kč
€ 16.40 |
||
| 700 0 WHR53289 |
C00576453
481290508693 |
Hose inlet Waterstop 1V.. | Na dotaz | Zadat poptávku | |
| 701 1 WHR53289 |
C00387861
481290508215 |
Cable harness | Na dotaz | Zadat poptávku | |
| 701 3 WHR53289 |
C00340528
481290508157 |
Gasket | Na dotaz | Zadat poptávku | |
| 710 0 WHR53289 |
C00320446
481290508154 |
zasobnik soli | 3 607 Kč
€ 158.50 |
||
| 710 2 WHR53289 |
C00340513
481290508689 |
matice zasobniku | 310 Kč
€ 13.60 |
||
| 714 0 WHR53289 |
C00336774
481290508685 |
Salt container Cap | Na dotaz | Zadat poptávku | |
| 716 0 WHR53289 |
C00342736
481290508151 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 716 1 WHR53289 |
C00340514
481290508133 |
tesneni | 231 Kč
€ 10.20 |
||
| 716 2 WHR53289 |
C00319444
481290508671 |
zaslepka | 141 Kč
€ 6.20 |
||
| 717 0 WHR53289 |
C00315668
481290508637 |
Motorek rozdělovače | 5 439 Kč
€ 239.10 |
||
| 721 0 WHR53289 |
C00339171
481290508673 |
naboj ramene | 273 Kč
€ 12.00 |
||
| 721 1 WHR53289 |
C00313810
481290508561 |
rameno myci | 1 013 Kč
€ 44.50 |
||
| 722 0 WHR53289 |
C00313690
481290508681 |
Horní mycí rameno | 807 Kč
€ 35.50 |
||
| 722 2 WHR53289 |
C00495850
481290508695 |
Spray arm | Na dotaz | Zadat poptávku | |
| 722 3 WHR53289 |
C00340515
481290508604 |
Těsnění | 505 Kč
€ 22.20 |
||
| 722 4 WHR53289 |
C00342728
481290508696 |
Držák ramena | 1 023 Kč
€ 45.00 |
||
| 722 5 WHR53289 |
C00340516
481290508591 |
Gasket | Na dotaz | Zadat poptávku | |
| 723 0 WHR53289 |
C00336139
481290508672 |
rameno horni | 617 Kč
€ 27.10 |
||
| 723 1 WHR53289 |
C00341591
481290508131 |
NOZZLE | 344 Kč
€ 15.10 |
||
| 726 1 WHR53289 |
C00337196
481290508593 |
trubice privodova | 1 171 Kč
€ 51.50 |
||
| 726 2 WHR53289 |
C00338028
481290508678 |
Matice | 141 Kč
€ 6.20 |
||
| 726 3 WHR53289 |
C00340517
481290508005 |
těsnění | 475 Kč
€ 20.90 |
||
| 751 0 WHR53289 |
C00211557
481290508568 |
Water collector | Na dotaz | Zadat poptávku | |
| 761 0 WHR53289 |
C00340954
481290508556 |
Filter | Na dotaz | Zadat poptávku | |
| 761 3 WHR53289 |
C00342344
481290508609 |
Cover Water collector | Na dotaz | Zadat poptávku | |
| 761 4 WHR53289 |
C00320712
481290508586 |
tesneni | 120 Kč
€ 5.30 |
||
| 761 5 WHR53289 |
C00335789
481290508683 |
Support Spray arm lower | Na dotaz | Zadat poptávku | |
| 763 0 WHR53289 |
C00340938
481290508682 |
Filter set | Na dotaz | Zadat poptávku | |
| 781 0 WHR53289 |
C00320442
481290508135 |
hadice vytok. mycky | 848 Kč
€ 37.30 |
||
| 781 4 WHR53289 |
C00336779
481990501144 |
Rubber Motor | Na dotaz | Zadat poptávku | |
| 781 5 WHR53289 |
C00336780
481290508587 |
Rubber Motor | Na dotaz | Zadat poptávku | |
| 783 1 WHR53289 |
C00339413
481990500517 |
HOSE | Na dotaz | Zadat poptávku | |
| 783 2 WHR53289 |
C00500375
481290508324 |
Hose | Na dotaz | Zadat poptávku | |
| 783 3 WHR53289 |
C00341427
481290508595 |
Pipe | Na dotaz | Zadat poptávku | |
| 783 4 WHR53289 |
C00339228
481290508602 |
Hose water support | Na dotaz | Zadat poptávku | |
| 783 5 WHR53289 |
C00317210
481290508599 |
Hadice k topení zahlá | 522 Kč
€ 22.90 |
||
| 783 6 WHR53289 |
C00494219
481290508603 |
Hose | Na dotaz | Zadat poptávku | |
| 783 7 WHR53289 |
C00341428
481290508598 |
Pipe | Na dotaz | Zadat poptávku | |
| 791 0 WHR53289 |
C00340884
481290508613 |
Flange | Na dotaz | Zadat poptávku | |
| 791 1 WHR53289 |
C00340412
481290508589 |
tesneni | 406 Kč
€ 17.80 |
||
| 794 0 WHR53289 |
C00340472
481990501143 |
tesneni ramene horni | 126 Kč
€ 5.50 |
||
| 900 2 WHR53289 |
C00339547
481990500494 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 991 0 WHR53289 |
C00140541
481290508585 |
TEMPLATE DORR FIX. | Na dotaz | Zadat poptávku | |
| 993 5 WHR53289 |
C00336773
481290508677 |
Salt Funnel | Na dotaz | Zadat poptávku | |
