| Komerční kód: | GSI 6420 K SW DISHWASHERS BK |
| Kód 12NC/I.C. kód: | 854664201720 |
| Značka: | BAUKNECHT |
| Typ produktu: | Myčky |
Potřebujete servis? Jsme tady pro Vás

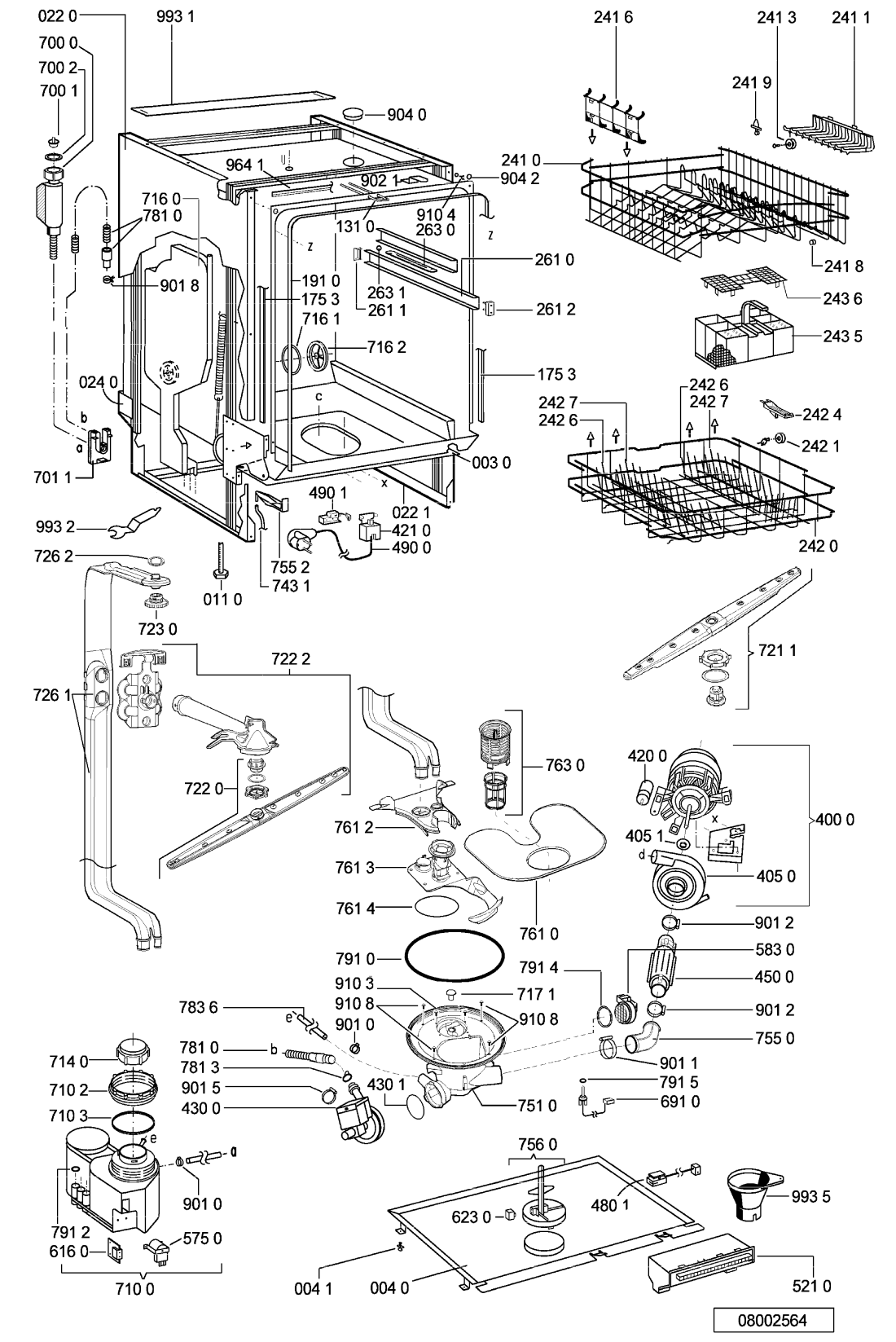

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0030 WHR73291 |
C00497944
481244019594 |
LISTA ADP962/3 N | Na dotaz | Zadat poptávku | |
| 0040 WHR73291 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 0041 WHR73291 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 0110 WHR73291 |
C00318437
481250518369 |
Foot long | Na dotaz | Zadat poptávku | |
| 0220 WHR73291 |
C00336326
481244019398 |
stena bocni leva | Na dotaz | Zadat poptávku | |
| 0221 WHR73291 |
C00336308
481244019397 |
stena bocni prava | Na dotaz | Zadat poptávku | |
| 0240 WHR73291 |
C00497878
481244010417 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 0401 WHR73291 |
C00312272
481241718774 |
Závěs dveří levý | 568 Kč
€ 23.30 |
||
| 0402 WHR73291 |
C00312358
481241718773 |
zaves dveri pravy | 568 Kč
€ 23.30 |
||
| 0440 WHR73291 |
C00311639
481249238362 |
Pružina Dveří | 1 001 Kč
€ 41.10 |
||
| 0470 WHR73291 |
C00311044
481240448746 |
Brzda dveří | 29 Kč
€ 1.20 |
||
| 0471 WHR73291 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 0472 WHR73291 |
C00311951
481240468023 |
hak brzdne pasky | 154 Kč
€ 6.30 |
||
| 0530 WHR73291 |
C00316344
481244088884 |
Plinth | Na dotaz | Zadat poptávku | |
| 1030 WHR73291 |
C00497934
481244019478 |
dvere mycky vnejsi | Na dotaz | Zadat poptávku | |
| 1050 WHR73291 |
C00311337
481240448611 |
Držák dveří dekoru | 368 Kč
€ 15.10 |
||
| 1052 WHR73291 |
C00498573
481250568004 |
PR?CHYTKA KOV N | Na dotaz | Zadat poptávku | |
| 1200 WHR73291 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 1201 WHR73291 |
C00328101
481244018969 |
lista | Na dotaz | Zadat poptávku | |
| 1300 WHR73291 |
C00329789
481241758373 |
Tilt lock cpl. bk | Na dotaz | Zadat poptávku | |
| 1310 WHR73291 |
C00314010
481240118416 |
pojistka zamku | 1 376 Kč
€ 56.50 |
||
| 1753 WHR73291 |
C00344437
481246668572 |
Batten | Na dotaz | Zadat poptávku | |
| 1910 WHR73291 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 654 Kč
€ 26.90 |
||
| 1920 WHR73291 |
C00311260
481246668467 |
Těsnění dveří - spodní myčky nádobí Whirlpool | 666 Kč
€ 27.40 |
||
| 2410 WHR73291 |
C00498279
481245819027 |
KOS NA RIAD HORNY KOV N | Na dotaz | Zadat poptávku | |
| 2411 WHR73291 |
C00319073
481245818324 |
Holder cups right whcups right wh | Na dotaz | Zadat poptávku | |
| 2413 WHR73291 |
C00315034
481252888068 |
Set of 4 Basket Wheels | Na dotaz | Zadat poptávku | |
| 2416 WHR73291 |
C00319342
481231018757 |
Držák skleniček WGH1000 | 923 Kč
€ 37.90 |
||
| 2418 WHR73291 |
C00314554
481246668553 |
Spacer cap set | Na dotaz | Zadat poptávku | |
| 2421 WHR73291 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 2424 WHR73291 |
C00340899
481246648059 |
Fixation wh | Na dotaz | Zadat poptávku | |
| 2426 WHR73291 |
C00498275
481245818977 |
MRIEZKA KOSA | Na dotaz | Zadat poptávku | |
| 2427 WHR73291 |
C00498276
481245818978 |
MRIEZKA KOSA | Na dotaz | Zadat poptávku | |
| 2435 WHR73291 |
C00312440
481931039859 |
Cutlery basket KIT KIT | Na dotaz | Zadat poptávku | |
| 2436 WHR73291 |
C00498277
481245818996 |
mrizka WH | Na dotaz | Zadat poptávku | |
| 2610 WHR73291 |
C00336926
481946238271 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 2611 WHR73291 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 2612 WHR73291 |
C00312762
481246278995 |
Cap rail ahead | Na dotaz | Zadat poptávku | |
| 2630 WHR73291 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 2631 WHR73291 |
C00332297
481252048001 |
Ball Niro 8 D | Na dotaz | Zadat poptávku | |
| 3010 WHR73291 |
C00500461
481245371012 |
Control panel BK | Na dotaz | Zadat poptávku | |
| 3031 WHR73291 |
C00490033
481246038111 |
kryt rukojete BK | 1 372 Kč
€ 56.40 |
||
| 3051 WHR73291 |
C00333202
481950218241 |
Screw synthetic | Na dotaz | Zadat poptávku | |
| 3052 WHR73291 |
C00333238
481950518191 |
matice | Na dotaz | Zadat poptávku | |
| 3053 WHR73291 |
C00497933
481244019477 |
LISTA NASTAVOVACIA 5MM ADG955PLAS N | Na dotaz | Zadat poptávku | |
| 3054 WHR73291 |
C00497926
481244019367 |
LI?TA 10mm N | Na dotaz | Zadat poptávku | |
| 3220 WHR73291 |
C00589899
481245371448 |
Insert panel BK. | Na dotaz | Zadat poptávku | |
| 3310 WHR73291 |
C00553426
481241359059 |
Knob | Na dotaz | Zadat poptávku | |
| 3320 WHR73291 |
C00527625
481241028758 |
Button BK | Na dotaz | Zadat poptávku | |
| 3323 WHR73291 |
C00527624
481241028757 |
Button ON/OFF BK | Na dotaz | Zadat poptávku | |
| 4000 WHR73291 |
C00311248
481236158334 |
Motor + spray pump - PNT permanent | Na dotaz | Zadat poptávku | |
| 4051 WHR73291 |
C00333259
481951528158 |
podlozka | 358 Kč
€ 14.70 |
||
| 4200 WHR73291 |
C00326768
481212118132 |
Capacitor | Na dotaz | Zadat poptávku | |
| 4210 WHR73291 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 4300 WHR73291 |
C00312277
481236018508 |
Pump,draining - 7828.64747 | Na dotaz | Zadat poptávku | |
| 4301 WHR73291 |
C00317755
481246668689 |
tesneni | 501 Kč
€ 20.60 |
||
| 4500 WHR73291 |
C00311759
481225928684 |
Heating element 2040W 220V - 303554 | Na dotaz | Zadat poptávku | |
| 4800 WHR73291 |
C00499776
481232128406 |
Cable harness set | Na dotaz | Zadat poptávku | |
| 4801 WHR73291 |
C00343881
481232128371 |
vodic spojovaci | 347 Kč
€ 14.30 |
||
| 4803 WHR73291 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 4900 WHR73291 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 4901 WHR73291 |
C00309418
481232128367 |
Přechodka | 324 Kč
€ 13.30 |
||
| 5210 WHR73291 |
C00319397
481221838362 |
programator mycky | 3 304 Kč
€ 135.80 |
||
| 5210 WHR73291 |
C00497130
481221478673 |
Control board (CB) | Na dotaz | Zadat poptávku | |
| 5310 WHR73291 |
C00497327
481227318055 |
SPINAC DAVKOVANIA SOLI N | Na dotaz | Zadat poptávku | |
| 5311 WHR73291 |
C00497328
481227318056 |
GOMBIK NASTAVOVACI PLAST. N | Na dotaz | Zadat poptávku | |
| 5750 WHR73291 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 5830 WHR73291 |
C00311913
481227128407 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 6160 WHR73291 |
C00327505
481228118047 |
Contact reed salt | Na dotaz | Zadat poptávku | |
| 6161 WHR73291 |
C00327262
481227158161 |
Contact reed rinsing agent | Na dotaz | Zadat poptávku | |
| 6200 WHR73291 |
C00482486
481221838116 |
OVLADACI PANEL | Na dotaz | Zadat poptávku | |
| 6210 WHR73291 |
C00311780
481941029004 |
Spínač síťový | 128 Kč
€ 5.30 |
||
| 6230 WHR73291 |
C00338099
481227138356 |
Microswitch | Na dotaz | Zadat poptávku | |
| 6330 WHR73291 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 6800 WHR73291 |
C00312283
481241868155 |
Combidosage | Na dotaz | Zadat poptávku | |
| 6801 WHR73291 |
C00314550
481246668495 |
Těsnění násypky | 547 Kč
€ 22.50 |
||
| 6811 WHR73291 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 6812 WHR73291 |
C00316126
481244018975 |
klapka | 527 Kč
€ 21.70 |
||
| 6820 WHR73291 |
C00319741
481246668496 |
tesneni nasypky | 126 Kč
€ 5.20 |
||
| 6910 WHR73291 |
C00315181
481228268012 |
Feeler NTC NTC | Na dotaz | Zadat poptávku | |
| 7000 WHR73291 |
C00337227
481253028804 |
Wasserstopp-Zulaufschlauch XSSG4000 | Na dotaz | Zadat poptávku | |
| 7000 WHR73291 |
C00339223
481253028848 |
Hose, inlet aqua stop 2m | Na dotaz | Zadat poptávku | |
| 7001 WHR73291 |
C00345763
481248048095 |
filtr | Na dotaz | Zadat poptávku | |
| 7002 WHR73291 |
C00330915
481246668628 |
Gasket | Na dotaz | Zadat poptávku | |
| 7011 WHR73291 |
C00327323
481231018153 |
Držák hadic | 666 Kč
€ 27.40 |
||
| 7102 WHR73291 |
C00319772
481931038536 |
matice upevnovaci-náhrada 481231038896 | Na dotaz | Zadat poptávku | |
| 7103 WHR73291 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 7140 WHR73291 |
C00319565
481246278993 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 7160 WHR73291 |
C00311895
481241868147 |
4812 418 68368 POSUDA | Na dotaz | Zadat poptávku | |
| 7161 WHR73291 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 7162 WHR73291 |
C00311305
481246278994 |
mrizka bloku upravy vody | 302 Kč
€ 12.40 |
||
| 7171 WHR73291 |
C00330750
481246279793 |
Stopper | Na dotaz | Zadat poptávku | |
| 7211 WHR73291 |
C00311729
481236068347 |
Spray arm lower. cpl. | Na dotaz | Zadat poptávku | |
| 7220 WHR73291 |
C00497514
481236068348 |
RAMENO STRIEKIACIE PLAST N | Na dotaz | Zadat poptávku | |
| 7222 WHR73291 |
C00312995
481236068349 |
Spray arm 2nd level cp sub 481010555121 | Na dotaz | Zadat poptávku | |
| 7230 WHR73291 |
C00318248
481236068351 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 7261 WHR73291 |
C00314298
481253029118 |
Tube assembly cpl. SUB 481253029331 | Na dotaz | Zadat poptávku | |
| 7262 WHR73291 |
C00314925
481250518208 |
matice plast | 286 Kč
€ 11.80 |
||
| 7431 WHR73291 |
C00314290
481253028102 |
Hadička | 82 Kč
€ 3.40 |
||
| 7510 WHR73291 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 7550 WHR73291 |
C00312127
481253029119 |
Hadice myčky Whirlpool, Ignis | 905 Kč
€ 37.20 |
||
| 7552 WHR73291 |
C00332503
481253048148 |
Přepadový kanál levý | 206 Kč
€ 8.50 |
||
| 7560 WHR73291 |
C00340827
481236058099 |
Floater | Na dotaz | Zadat poptávku | |
| 7610 WHR73291 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 7612 WHR73291 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 7613 WHR73291 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 7614 WHR73291 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 174 Kč
€ 7.20 |
||
| 7630 WHR73291 |
C00345765
481248058123 |
Sieve coarse | Na dotaz | Zadat poptávku | |
| 7810 WHR73291 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 161 Kč
€ 6.60 |
||
| 7813 WHR73291 |
C00317931
481228128417 |
Klapka zpětná | 697 Kč
€ 28.60 |
||
| 7836 WHR73291 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 7910 WHR73291 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 636 Kč
€ 26.10 |
||
| 7912 WHR73291 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 7914 WHR73291 |
C00319745
481246668503 |
Těsnění ADP941 | 426 Kč
€ 17.50 |
||
| 7915 WHR73291 |
C00330909
481246668504 |
tesneni | 333 Kč
€ 13.70 |
||
| 9001 WHR73291 |
C00340990
481231028021 |
Fastener set (not shown) | Na dotaz | Zadat poptávku | |
| 9010 WHR73291 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 77 Kč
€ 3.20 |
||
| 9011 WHR73291 |
C00317950
481240118424 |
spona050,0 | Na dotaz | Zadat poptávku | |
| 9012 WHR73291 |
C00311047
481240118157 |
spona 33-55 | 117 Kč
€ 4.80 |
||
| 9015 WHR73291 |
C00314613
481240148573 |
spona028,6 | Na dotaz | Zadat poptávku | |
| 9018 WHR73291 |
C00328871
481240118075 |
spona20-32/9 | Na dotaz | Zadat poptávku | |
| 9021 WHR73291 |
C00330973
481246678015 |
uhelnik upevnovaci | 227 Kč
€ 9.30 |
||
| 9022 WHR73291 |
C00329172
481240478241 |
Držák | 318 Kč
€ 13.10 |
||
| 9040 WHR73291 |
C00313055
481246278998 |
Záslepka (zátka) vany myčky | 609 Kč
€ 25.00 |
||
| 9042 WHR73291 |
C00342559
481246279657 |
Cover BK 3,5x5 | Na dotaz | Zadat poptávku | |
| 9101 WHR73291 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 9102 WHR73291 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.80 |
||
| 9103 WHR73291 |
C00345781
481250218389 |
sroub 5x20-TORX | 76 Kč
€ 3.10 |
||
| 9104 WHR73291 |
C00345780
481250218385 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 9105 WHR73291 |
C00345782
481250218393 |
Screw 3,5x9-1 Tx15 | Na dotaz | Zadat poptávku | |
| 9107 WHR73291 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 9108 WHR73291 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 9109 WHR73291 |
C00328872
481240118425 |
Screw 2,5x18-H | Na dotaz | Zadat poptávku | |
| 9641 WHR73291 |
C00330914
481246668573 |
Těsnění horní skříně vestavné myčky Whirlpool | 396 Kč
€ 16.30 |
||
| 9931 WHR73291 |
C00319875
481246678388 |
Ochranná fólie, parní zábrana nad vestavnou myčku nádobí Whirlpool | 172 Kč
€ 7.10 |
||
| 9932 WHR73291 |
C00329037
481240448753 |
Kliž pro nastavení nohy myčky | 318 Kč
€ 13.10 |
||
| 9935 WHR73291 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
