| Komerční kód: | HB 560 S |
| Kód 12NC/I.C. kód: | 857938544500 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857938544501, 857938544502 |
Potřebujete servis? Jsme tady pro Vás

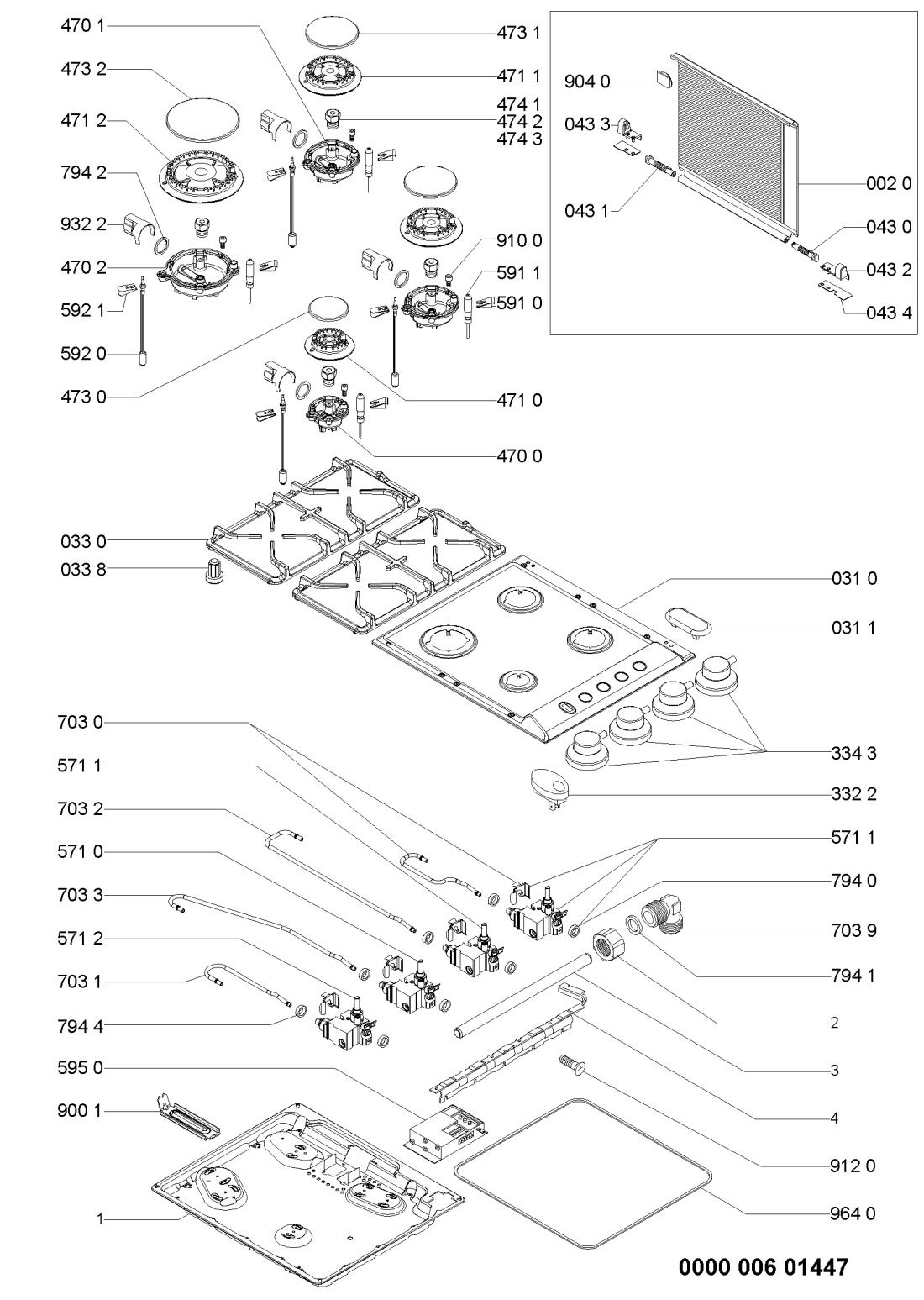

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR32940 |
C00333042
481945058183 |
Lid BL | Na dotaz | Zadat poptávku | |
| 031 0 WHR32940 |
C00328174
481244030014 |
deska vařidlová | Na dotaz | Zadat poptávku | |
| 031 1 WHR32940 |
C00330511
481246228553 |
zaslepka | Na dotaz | Zadat poptávku | |
| 033 0 WHR32940 |
C00312865
481245819053 |
mrizka horaku | Na dotaz | Zadat poptávku | |
| 033 8 WHR32940 |
C00315214
481246818081 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 043 0 WHR32940 |
C00332986
481941719216 |
ZÁVĚS PRAVÝ | Na dotaz | Zadat poptávku | |
| 043 1 WHR32940 |
C00332987
481941719217 |
ZÁVĚS LEVÝ | Na dotaz | Zadat poptávku | |
| 043 2 WHR32940 |
C00332953
481940479318 |
BEARING RIGHT | Na dotaz | Zadat poptávku | |
| 043 3 WHR32940 |
C00332954
481940479319 |
Bearing left | Na dotaz | Zadat poptávku | |
| 043 4 WHR32940 |
C00332870
481931039437 |
TRYSKA - SADA | Na dotaz | Zadat poptávku | |
| 332 2 WHR32940 |
C00313015
481227618335 |
Tlačítko zapalování -náhrada C00313015 | Na dotaz | Zadat poptávku | |
| 334 3 WHR32940 |
C00314566
481241278825 |
knoflik rustikalni | 624 Kč
€ 25.70 |
||
| 470 0 WHR32940 |
C00457451
481236068876 |
Injector holder | Na dotaz | Zadat poptávku | |
| 470 1 WHR32940 |
C00457452
481236068877 |
Injector holder | Na dotaz | Zadat poptávku | |
| 470 2 WHR32940 |
C00457453
481236068878 |
Injector holder | Na dotaz | Zadat poptávku | |
| 471 0 WHR32940 |
C00314563
481236078156 |
Těleso hořáku - levé přední | 368 Kč
€ 15.10 |
||
| 471 1 WHR32940 |
C00312494
481236078157 |
teleso horaku | 464 Kč
€ 19.10 |
||
| 471 2 WHR32940 |
C00311440
481236078158 |
teleso horaku | 594 Kč
€ 24.40 |
||
| 473 0 WHR32940 |
C00314541
481236069009 |
Víko hořáku malé | 542 Kč
€ 22.30 |
||
| 473 1 WHR32940 |
C00315297
481236069011 |
viko horaku | 812 Kč
€ 33.40 |
||
| 473 2 WHR32940 |
C00315299
481236069012 |
viko horaku | 1 087 Kč
€ 44.70 |
||
| 474 1 WHR32940 |
C00457105
481231039141 |
Set of nozzles | Na dotaz | Zadat poptávku | |
| 474 2 WHR32940 |
C00430254
480121100137 |
Set of nozzles | Na dotaz | Zadat poptávku | |
| 474 3 WHR32940 |
C00328426
481231039127 |
Set of nozzles G30-29 mbar | Na dotaz | Zadat poptávku | |
| 571 0 WHR32940 |
C00313759
481236058489 |
Gas cock R/UR G20 | Na dotaz | Zadat poptávku | |
| 571 1 WHR32940 |
C00313896
481236058491 |
kohout stredni | 1 632 Kč
€ 67.10 |
||
| 571 2 WHR32940 |
C00315277
481236058492 |
ventil | 1 632 Kč
€ 67.10 |
||
| 591 0 WHR32940 |
C00311609
481225268088 |
svicka | 352 Kč
€ 14.50 |
||
| 591 1 WHR32940 |
C00313307
481249228219 |
spona | Na dotaz | Zadat poptávku | |
| 592 0 WHR32940 |
C00311632
481213838004 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 592 1 WHR32940 |
C00314265
481949268789 |
pruzina termopojist. | Na dotaz | Zadat poptávku | |
| 595 0 WHR32940 |
C00311369
481214208005 |
transformator | Na dotaz | Zadat poptávku | |
| 703 0 WHR32940 |
C00332518
481253048702 |
trubka na plyn | Na dotaz | Zadat poptávku | |
| 703 1 WHR32940 |
C00332516
481253048699 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 703 2 WHR32940 |
C00332517
481253048701 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 703 3 WHR32940 |
C00318909
481253048698 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 703 9 WHR32940 |
C00317975
481931039599 |
Koleno | 184 Kč
€ 7.60 |
||
| 794 0 WHR32940 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 1 WHR32940 |
C00314988
481953258229 |
Těsnění | Na dotaz | Zadat poptávku | |
| 794 2 WHR32940 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 4 WHR32940 |
C00313483
480111101551 |
tesneni | Na dotaz | Zadat poptávku | |
| 900 1 WHR32940 |
C00317971
481931018528 |
drzak desky+srouby | Na dotaz | Zadat poptávku | |
| 904 0 WHR32940 |
C00333156
481946818271 |
Gumová nožička mřížky hořáku | 76 Kč
€ 3.10 |
||
| 910 0 WHR32940 |
C00317070
481250218833 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR32940 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 932 2 WHR32940 |
C00333191
481949268831 |
Pružina | Na dotaz | Zadat poptávku | |
| 964 0 WHR32940 |
C00331545
481246688988 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR32940 |
C00589098 | Gastable WHP | Na dotaz | Zadat poptávku | |
