IKEA HB G33 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | HB G33 S |
| Kód 12NC: | 854177938600 |
| I.C. kód: | Q0917980000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 854177938600, 854177938602, Q0917980002, 854177938603, Q0917980003, 854177938604, Q0917980004, 854177938605, Q0917980005 |
Potřebujete servis? Jsme tady pro Vás

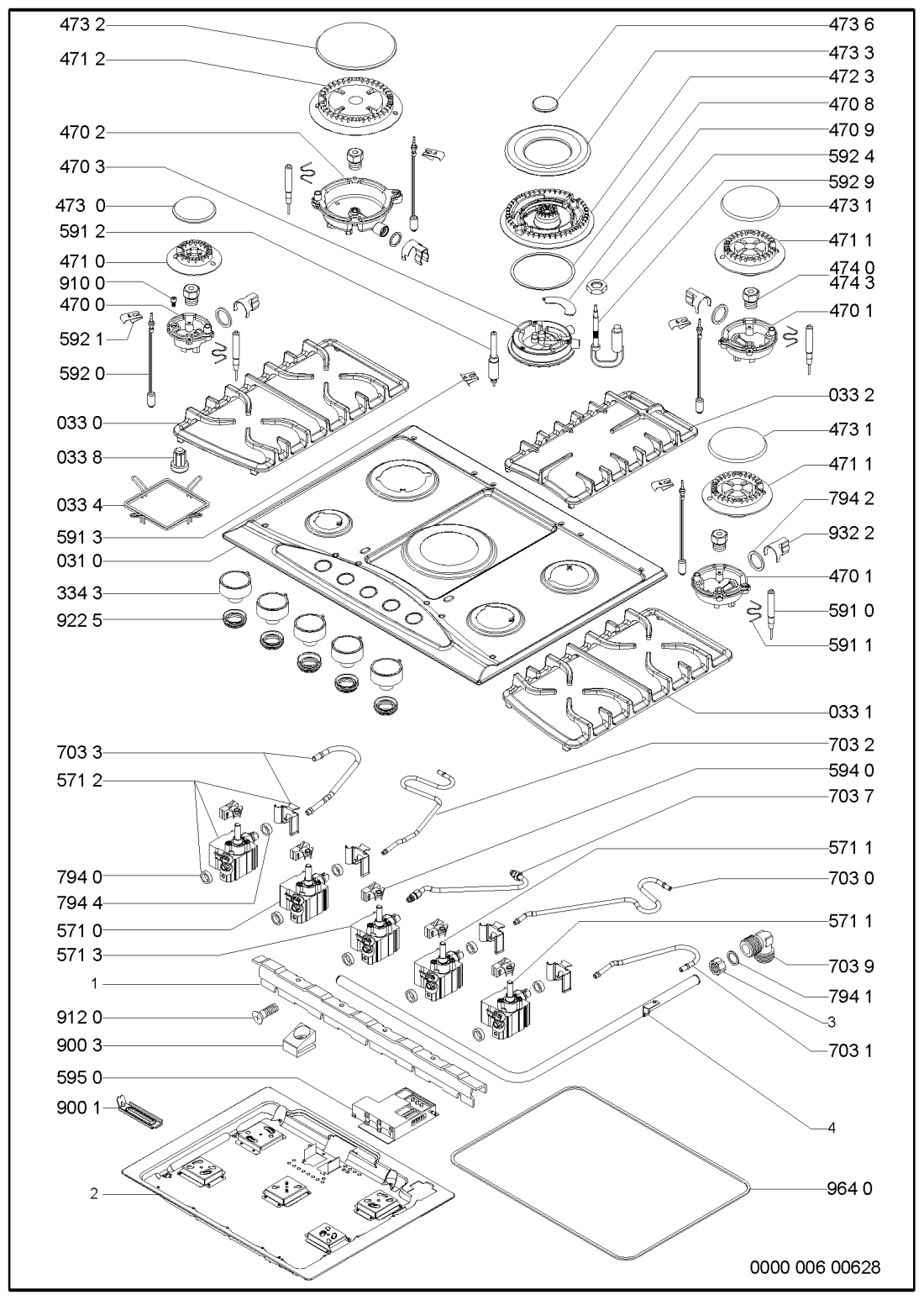

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR01957 |
C00328241
481244039851 |
deska horni | Na dotaz | Zadat poptávku | |
| 033 0 WHR01957 |
C00314173
481245858219 |
mrizka horaku leva | Na dotaz | Zadat poptávku | |
| 033 1 WHR01957 |
C00315078
481245858217 |
mrizka horaku prava | Na dotaz | Zadat poptávku | |
| 033 2 WHR01957 |
C00315412
481245858218 |
Mřížka hořáků | 2 506 Kč
€ 103.00 |
||
| 033 4 WHR01957 |
C00333046
481945819279 |
mrizka horaku | Na dotaz | Zadat poptávku | |
| 033 8 WHR01957 |
C00315214
481246818081 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 334 3 WHR01957 |
C00314782
481241279402 |
Knob | Na dotaz | Zadat poptávku | |
| 470 0 WHR01957 |
C00332885
481936069687 |
dno horaku male | Na dotaz | Zadat poptávku | |
| 470 1 WHR01957 |
C00332884
481936069686 |
dno horaku stredni | Na dotaz | Zadat poptávku | |
| 470 2 WHR01957 |
C00332886
481936069688 |
dno horaku velke | Na dotaz | Zadat poptávku | |
| 470 3 WHR01957 |
C00317599
481236068375 |
Injector holder | Na dotaz | Zadat poptávku | |
| 470 8 WHR01957 |
C00317162
481253058138 |
těsnění | 715 Kč
€ 29.40 |
||
| 470 9 WHR01957 |
C00329007
481240438573 |
Bracket | Na dotaz | Zadat poptávku | |
| 471 0 WHR01957 |
C00328783
481236078174 |
Burner A | Na dotaz | Zadat poptávku | |
| 471 1 WHR01957 |
C00318836
481236078147 |
Burner SR | Na dotaz | Zadat poptávku | |
| 471 2 WHR01957 |
C00328774
481236078148 |
Burner R | Na dotaz | Zadat poptávku | |
| 472 3 WHR01957 |
C00328653
481236068319 |
teleso horaku velke | Na dotaz | Zadat poptávku | |
| 473 0 WHR01957 |
C00328711
481236068886 |
Burner cap A | Na dotaz | Zadat poptávku | |
| 473 1 WHR01957 |
C00316235
481236068837 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR01957 |
C00328712
481236068888 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 473 3 WHR01957 |
C00328704
481236068843 |
Burner cap outer triple crown burner | Na dotaz | Zadat poptávku | |
| 473 6 WHR01957 |
C00328703
481236068842 |
Burner cap central triple crown | Na dotaz | Zadat poptávku | |
| 474 0 WHR01957 |
C00327413
481231038553 |
Set of nozzles G20-20 mbar | Na dotaz | Zadat poptávku | |
| 474 3 WHR01957 |
C00327414
481231038554 |
Trysky propan-butan | Na dotaz | Zadat poptávku | |
| 571 0 WHR01957 |
C00313759
481236058489 |
Gas cock R/UR G20 | Na dotaz | Zadat poptávku | |
| 571 1 WHR01957 |
C00313896
481236058491 |
kohout stredni | 1 632 Kč
€ 67.10 |
||
| 571 2 WHR01957 |
C00315277
481236058492 |
ventil | 1 632 Kč
€ 67.10 |
||
| 571 3 WHR01957 |
C00313761
481236058493 |
kohout | Na dotaz | Zadat poptávku | |
| 591 0 WHR01957 |
C00311700
481925268167 |
Zapalovací svíčka plynové varné desky Whirlpool | 397 Kč
€ 16.30 |
||
| 591 1 WHR01957 |
C00313852
481949268788 |
pruzina | 12 Kč
€ 0.50 |
||
| 591 2 WHR01957 |
C00316746
481225268032 |
Zapalovací svíčka plynové varné desky Whirlpool | 375 Kč
€ 15.40 |
||
| 591 3 WHR01957 |
C00345756
481249268159 |
Spring | Na dotaz | Zadat poptávku | |
| 592 0 WHR01957 |
C00311632
481213838004 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 592 1 WHR01957 |
C00314265
481949268789 |
pruzina termopojist. | Na dotaz | Zadat poptávku | |
| 592 4 WHR01957 |
C00332173
481250518389 |
Nut | Na dotaz | Zadat poptávku | |
| 592 9 WHR01957 |
C00314776
481213838009 |
pojistka tepelna | 428 Kč
€ 17.60 |
||
| 594 0 WHR01957 |
C00311385
481227648152 |
zapalovani | Na dotaz | Zadat poptávku | |
| 595 0 WHR01957 |
C00314584
481213818014 |
zapalovac plynu ele. | 3 434 Kč
€ 141.20 |
||
| 703 0 WHR01957 |
C00332520
481253048705 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 703 1 WHR01957 |
C00332522
481253048707 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 703 2 WHR01957 |
C00332523
481253048708 |
Gas pipe; RL | Na dotaz | Zadat poptávku | |
| 703 3 WHR01957 |
C00332521
481253048706 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 703 7 WHR01957 |
C00328613
481236058511 |
Gas pipe 3-crown | Na dotaz | Zadat poptávku | |
| 703 9 WHR01957 |
C00317975
481931039599 |
Koleno | 184 Kč
€ 7.60 |
||
| 794 0 WHR01957 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 1 WHR01957 |
C00314988
481953258229 |
Těsnění | Na dotaz | Zadat poptávku | |
| 794 2 WHR01957 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 4 WHR01957 |
C00319466
481253058098 |
tesneni vzdusniku Náhrada 481010395017 |
Na dotaz | Zadat poptávku | |
| 900 1 WHR01957 |
C00317971
481931018528 |
drzak desky+srouby | Na dotaz | Zadat poptávku | |
| 900 3 WHR01957 |
C00332931
481940118858 |
SPONA AKM370 | Na dotaz | Zadat poptávku | |
| 910 0 WHR01957 |
C00332120
481250218746 |
Śroub | 41 Kč
€ 1.70 |
||
| 912 0 WHR01957 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 922 5 WHR01957 |
C00333308
481953058102 |
Těsnění knoflíku plynové varné desky Whirlpool AKM 262 IX, GOA 6423/NB, AKM 203/IX. | 325 Kč
€ 13.40 |
||
| 932 2 WHR01957 |
C00333191
481949268831 |
Pružina | Na dotaz | Zadat poptávku | |
| 964 0 WHR01957 |
C00331545
481246688988 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR01957 |
C00358073 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01957 |
C00358074 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01957 |
C00358076 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
